Summary of Contents for Rf-t KAMOUFLAGE P

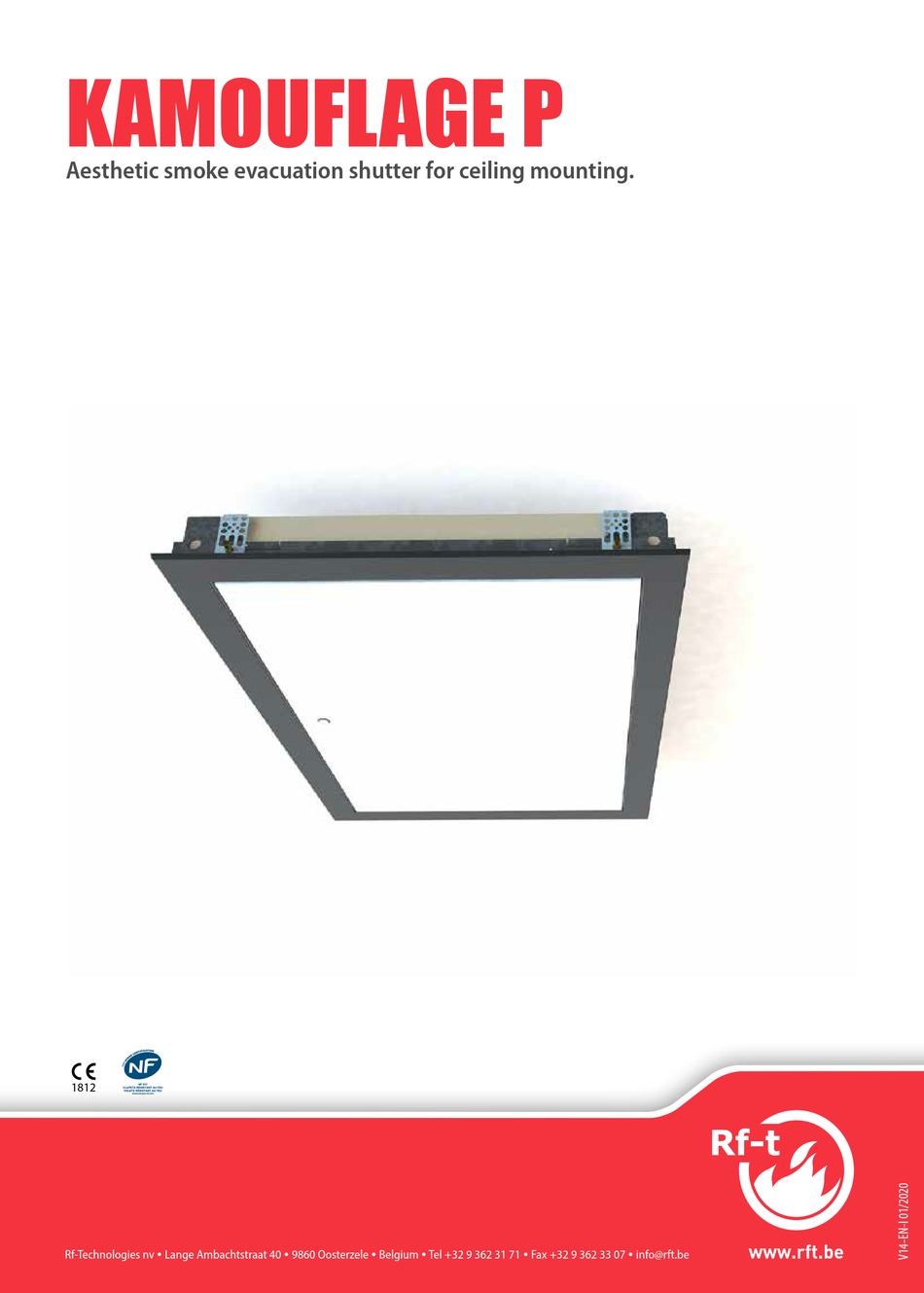

- Page 1 KAMOUFLAGE P Aesthetic smoke evacuation shutter for ceiling mounting. 1812 www.rft.be Rf-Technologies nv Lange Ambachtstraat 40 9860 Oosterzele Belgium Tel +32 9 362 31 71 Fax +32 9 362 33 07 info@rft.be...
-
Page 2: Table Of Contents
Table of content Table of content Declaration of performance Product presentation KAMOUFLAGE P Range and dimensions KAMOUFLAGE P Evolution - kits Options - at the time of order Storage and handling Installation Operation: manual opening Operation: manual closing Electrical connection... - Page 3 Explanation of the abbreviations and pictograms Explanation of the abbreviations and pictograms Wn = nominal width hod = horizontal duct KIT = kit (delivered separately for repair or Hn = nominal height vew = vertical wall penetration upgrade) Sn = free air passage V = volt PG = connection flange to the duct E = integrity...
-
Page 4: Declaration Of Performance
Declaration of performance Harmonised standard EN 12101-8:2011... -
Page 5: Product Presentation Kamouflage P
4. connection compartment 5. blocking mechanism + automatic locking at 90° 6. product identification 7. gas spring (ceiling version) Range and dimensions KAMOUFLAGE P 1. Refractory material 2. Sealing mounting frame 3. KAP mounting frame (mandatory option) 4. Nominal dimensions shutter Wn x Hn 5. -
Page 6: Evolution - Kits
Evolution - kits Evolution - kits Natural magnet 24 V DC KITS VD24-VA Natural magnet 48 V DC KITS VD48-VA Electromagnet 24 V DC (not applicable for ME model) KITS VM24-VA Electromagnet 48 V DC (not applicable for ME model) KITS VM48-VA Limit switches 'open/closed' KITS FDC-VA... -
Page 7: Storage And Handling
∎ Rf-t smoke dampers may be applied to ducts that have been tested according to EN 1366-8 and EN 1366-9 as appropriate, constructed from similar materials with a fire resistance, thickness and density equal or superior to these of the tested materials. -
Page 8: Operation: Manual Closing
Installation Operation: manual closing 15° 1. Resetting 1V 2. Insert the key in the lock. Turn the key 15° clockwise, the key Remove the finishing cap from the shutter. To do this, use the gets blocked in the lock and can be used to pull the shutter. hook with key ring that is delivered with the product. -
Page 9: Electrical Connection
Installation Electrical connection 1. You can thead the cable for the power supply through the 2 2. Drill a hole in the refractory material at the chosen corner(s). corners of the shutter, on the hinges' side. The galvanised part at the inside of the shutter is already indented. -
Page 10: Position In The Shaft
Installation Position in the shaft ≥105 ≥105 Kamouflage P KAP Kamouflage P KAP 1. The shutter is affixed to the smoke evacuation shaft through a sleeve. That sleeve can be installed either in the shaft, in the axis of the shaft or outside the shaft (or shaft extension). -
Page 11: Horizontal Installation With Built-In Mounting Frame: General Instructions For All Types Of Shafts
(W+10) x (H+10) mm. ≥ 105 mm KAMOUFLAGE P 3. Open and position the shutter in the mounting frame. If VM magnet: remove the key from the lock to open the shutter. -
Page 12: Horizontal Installation Into Shaft Promatect L500 With Built-In Mounting Frame
Product Range Wall type Classification Kamouflage 60 P 350x385 mm ≤ Kamouflage P 1V ≤ 700x775 mm; 550x1075 mm Shaft Promatect L500 ≥ 30 mm EI 60 (h i n o) S 1500 AA multi Kamouflage 120 P 350x385 mm ≤ Kamouflage P 1V ≤ 700x775 mm; 550x1075 mm Shaft Promatect L500 ≥... -
Page 13: Horizontal Installation Into Shaft Tecniver With Built-In Mounting Frame
The product was tested and approved in: Product Range Wall type Classification Kamouflage 60 P 350x385 mm ≤ Kamouflage P 1V ≤ 700x775 mm; 550x1075 mm Shaft Tecniver ≥ 35 mm EI 60 (h i n o) S 1500 AA multi Kamouflage 120 P 350x385 mm ≤... -
Page 14: Horizontal Installation Into Shaft Desenfire (Hd/Thd/Str) With Built-In Mounting Frame
The product was tested and approved in: Product Range Wall type Classification Kamouflage 60 P 350x385 mm ≤ Kamouflage P 1V ≤ 700x775 mm; 550x1075 mm Shaft Desenfire HD ≥ 25 mm EI 60 (h i n o) S 1500 AA multi Kamouflage 120 P 350x385 mm ≤... -
Page 15: Finishing
Installation Finishing 1. The upper face of the shutter consists of a sheet of plasterboard, which you can decorate to match the wall in which the shutter is installed (paint or wallpaper). A coat of paint can be applied on the unexposed face of the shutter and the frame;... -
Page 16: Operation And Mechanisms
Operation and mechanisms Operation and mechanisms Operation: general points ∎ See under 'Installation'. Caution : please note dampers must be fully open before starting supply and/or extract fans. † VA MEC Remote controlled unlocking by a magnet. Remote controlled unlocking by an electric impulse (VD) or by interruption (VM) of the magnet's power supply. Options - at the time of order Natural magnet 24 V DC VD24... -
Page 17: Weights
Weights Weights KAMOUFLAGE 1V60 P - 1V120 P Hn\Wn [mm] 385 kg 10,8 11,0 11,3 12,0 12,6 13,5 14,4 415 kg 11,5 12,1 12,7 13,3 13,9 14,5 15,2 445 kg 10,9 11,7 12,4 13,2 14,0 14,7 19,0 19,8 475 kg 11,2 12,0 12,8... -
Page 18: Selection Data
Selection data Selection data ∆p = 0,6 x v² x ζ KAMOUFLAGE 1V60 P - 1V120 P Hn\Wn [mm] 385 ζ [-] 3,603 2,960 2,518 2,196 1,950 1,757 1,600 415 ζ [-] 3,237 2,663 2,267 1,978 1,758 1,585 1,444 445 ζ [-] 2,940 2,422 2,064... -
Page 19: Sample Order
Sample order Sample order KAMOUFLAGE P VD24 FDCB ATOUT RAL 9010 product 1 shutter (1V) fire resistance of 60 or 120 minutes width height option: type magnet and voltage option: bipolar end of range switch (FDCU included) option: frame painted white, shutter covered with white metallic sheet Approvals and certificates All our products are submitted to a number of tests by official test institutes.
