MOUNTING THE CIRCUIT BOARD
Objective
The circuit board has been designed to be used in 2 ways;
A) Mounted on stand-offs to a piece of wood and B) Mounted on stand-offs inside a metal
chassis.

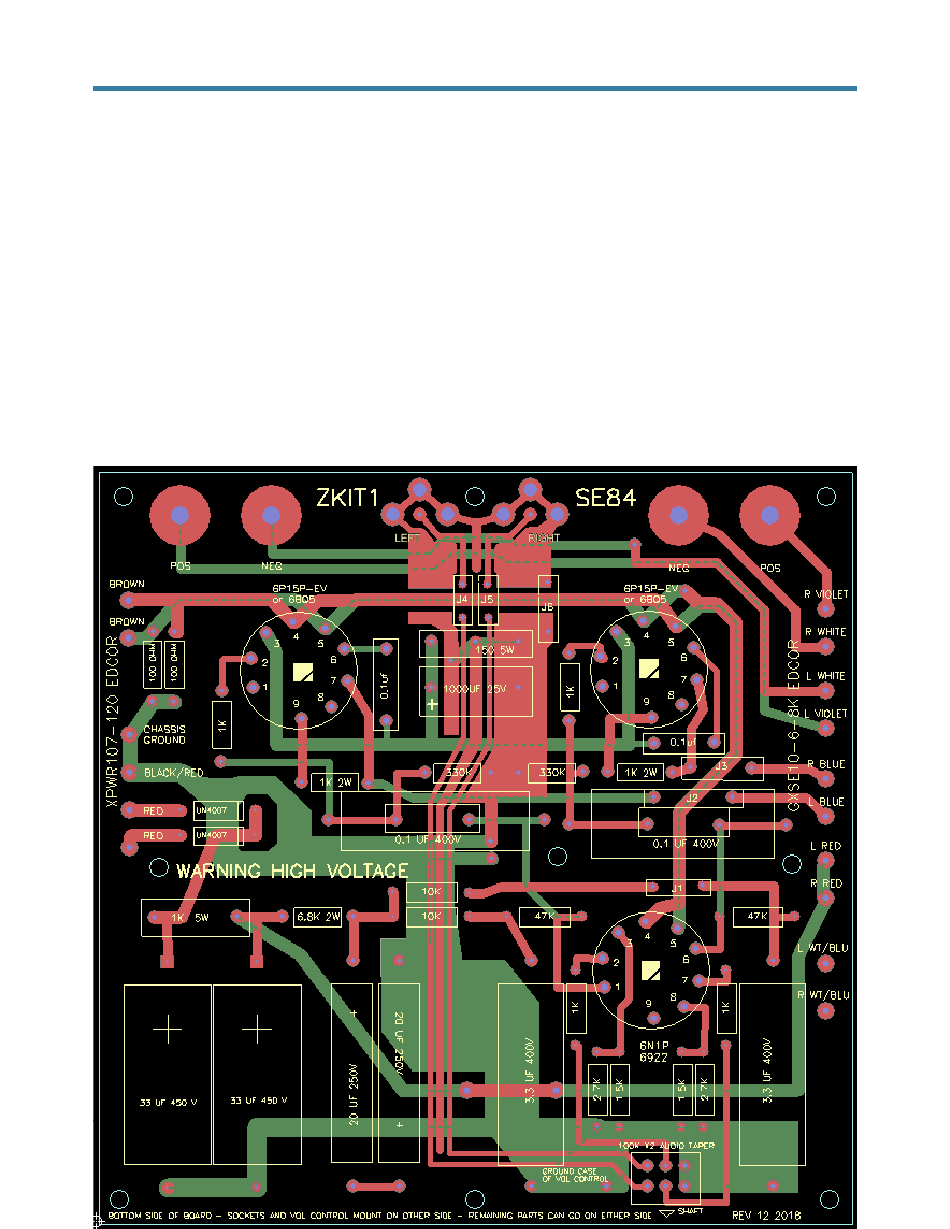

The see-thru picture below lets you see the traces on both sides of the board at the same time.
