FRONT PANEL CONTROLS

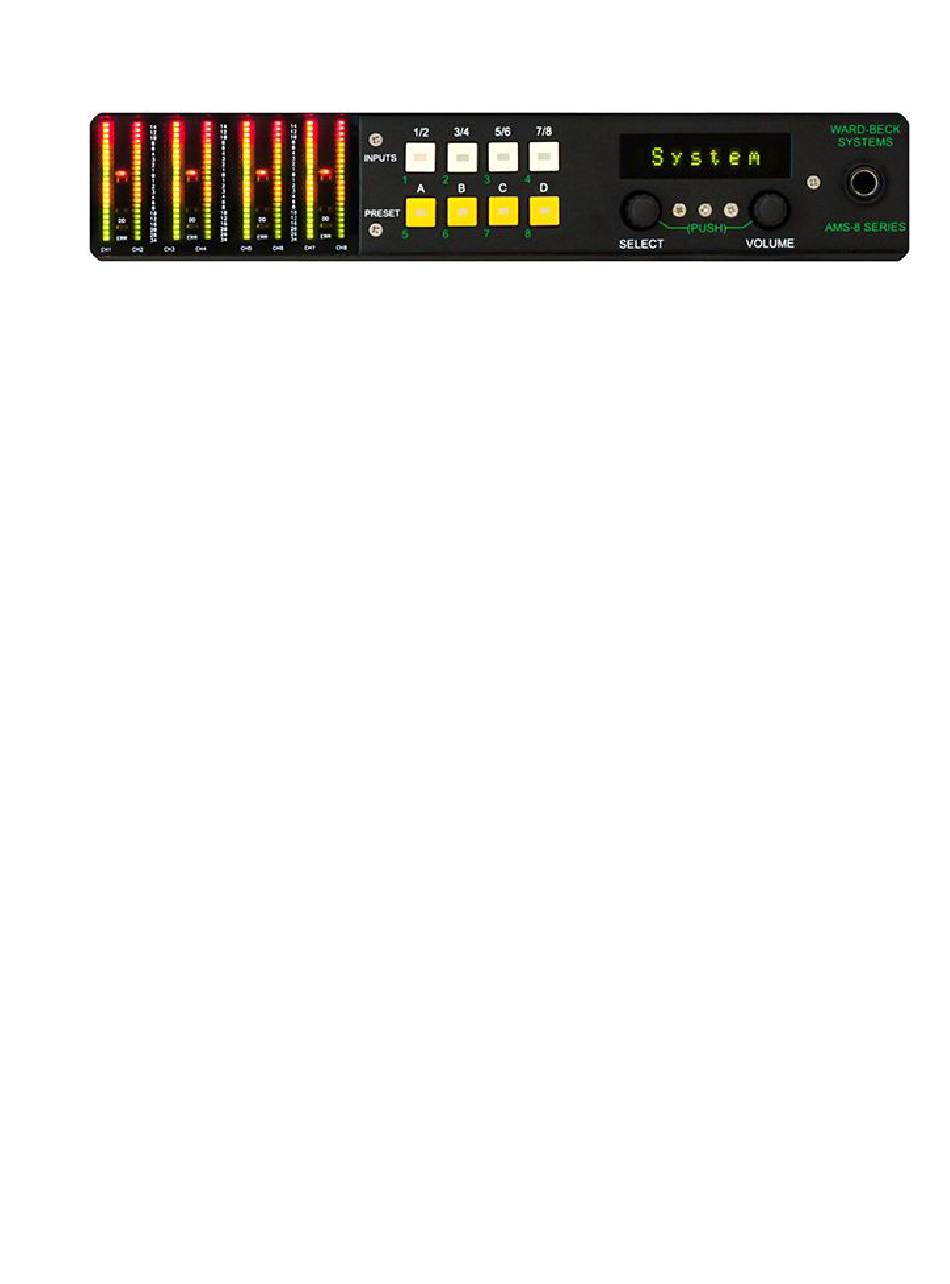

There are eight illuminated push button switches arranged in two rows of four. The
upper row designated INPUTS selects the input source to be monitored. The lower
row designated PRESETS selects a preset configuration or condition under which
the signal is monitored.
The two control knobs designated SELECT and VOLUME are rotary shaft encoders
with integral push switches. In the simplest mode of operation, the SELECT knob
allows the user to scroll through available options while the VOLUME button adjusts
the listening level of the AMS8's speakers.
All eight push buttons, as well as the two knobs with integral push switches, are
used in conjunction with the eight-segment read out when the unit is configured
during SYSTEM SETUP.
