Parts List - Blue Wave NE145 Assembly Instructions Manual

ASSEMBLY INSTRUCTIONS
ABOVE GROUND POOL FENCE - NE145 / NE146 / NE147
SUPPORT CAP
BASE SUPPORT CAP
POST CAP
#12 X 1" SCREW
#8 X 3/4" SCREW
HOLE PLUG
5/20

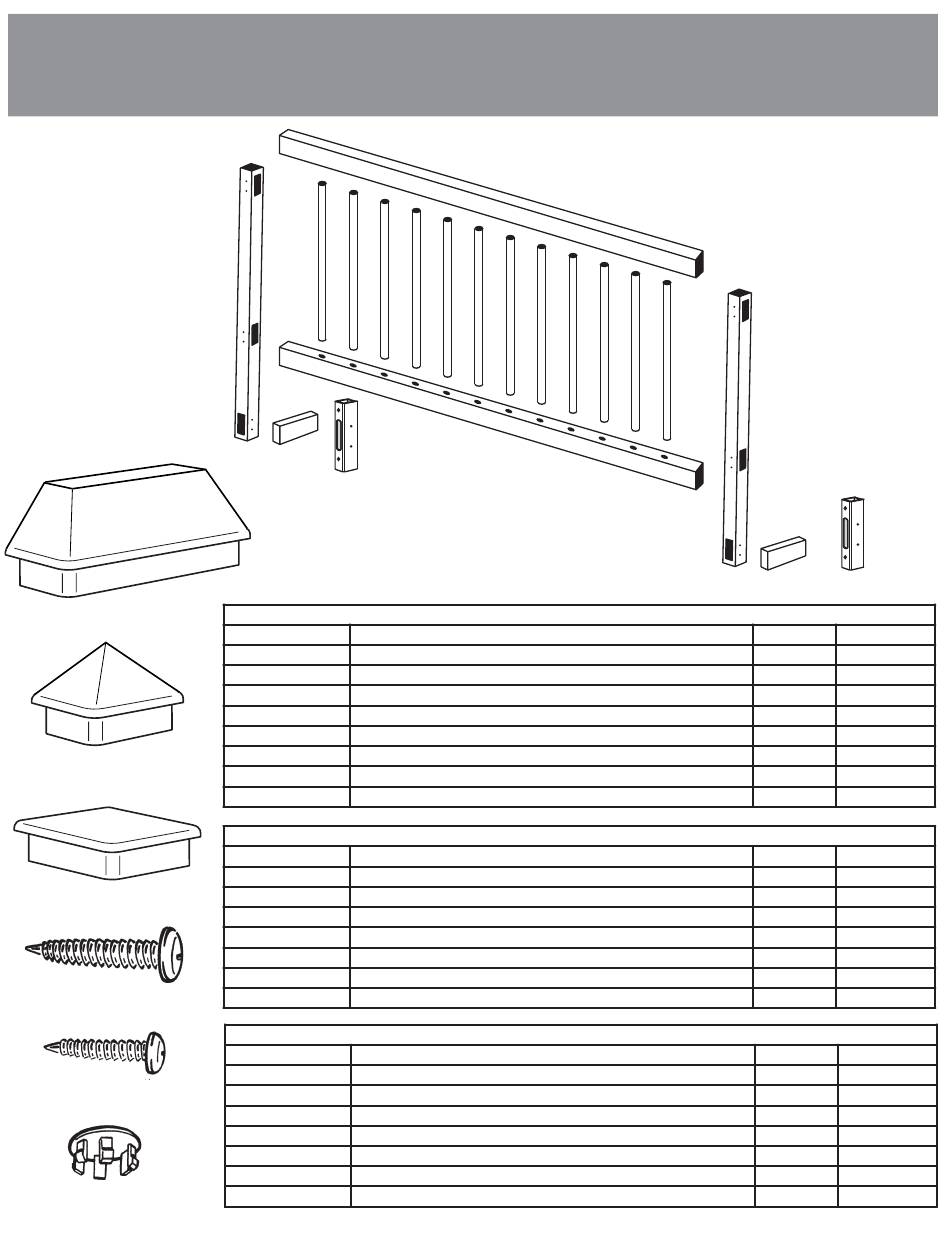

Parts List

ITEM
A
B
C
D
E
Trim Kit (1) Post Cap, (1) Base Support Cap, (1) Support Cap, (2) Hole Plugs
Hardware Kit
ITEM
A
B
C
D
E
Trim Kit (1) Post Cap, (1) Base Support Cap, (1) Support Cap, (2) Hole Plugs
Add-on Hardware Kit
ITEM
A
B
C
D
E
Trim Kit (1) Post Cap, (1) Base Support Cap, (1) Support Cap, (2) Hole Plugs
Add-on Hardware Kit
For replacement parts please call 800-759-0977.
D
NE145 BASE KIT "A" - 8 SECTIONS:
DESCRIPTION
End-Posts
Support Assembly - Base
Support Assembly - Support
Posts
Rail
Spindles
(18) #12 X 1" Screws, (136) #8 X 3/4" Screws
NE146 BASE KIT "B" - 3 SECTIONS:
DESCRIPTION
Support Assembly - Base
Support Assembly - Support
Posts
Rail
Spindles
(2) #12 X 1" Screws, (16) #8 X 3/4" Screws
NE147 BASE KIT "C" - 2 SECTIONS:
DESCRIPTION
Support Assembly - Base
Support Assembly - Support
Posts
Rail
Spindles
(2) #12 X 1" Screws, (16) #8 X 3/4" Screws
E
C
B
QUANTITY PART NO.
2 NEP2700
9 NEP2701
9 NEP2702
7 NEP2703
16 NEP2704
96 NEP2705
9 bags NEP2706
1 bag NEP2709
QUANTITY PART NO.
3 NEP2701
3 NEP2702
3 NEP2703
6 NEP2704
36 NEP2705
NEP2706
3 bags
3 bags NEP2710
QUANTITY PART NO.
2 NEP2701
2 NEP2702
2 NEP2703
4 NEP2704
24 NEP2705
2 bags NEP2706
2 bags NEP2710
A
3
