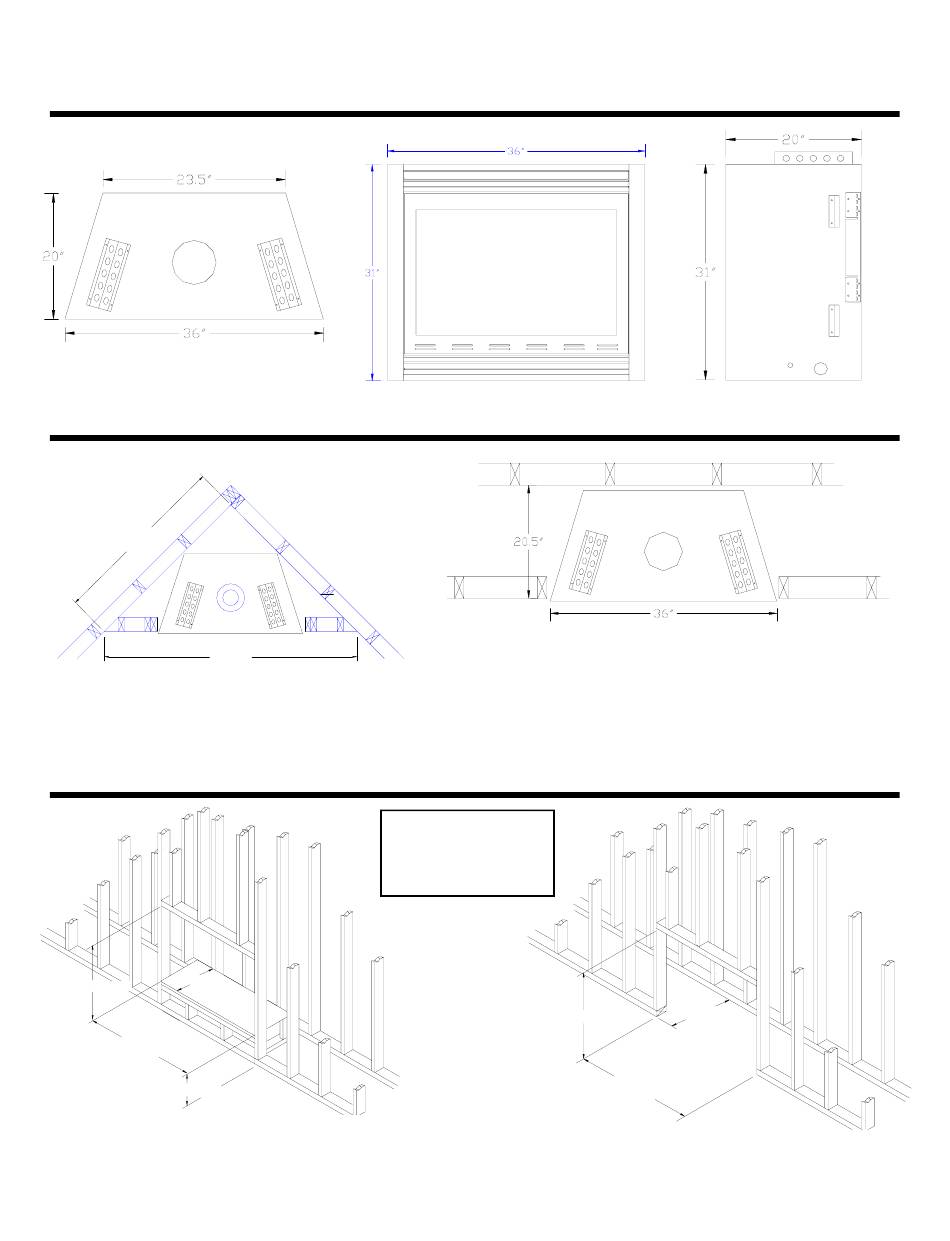

FIREPLACE SPECIFICATIONS AND INSTALLATION INFORMATION
Fireplace Dimensions
TOP VIEW
Framing Dimensions
45"
CORNER INSTALLATION
Minimum Opening
20.5"
33-1/2" Minimum
37-1/2" Minimum
* As Required By Design
PLATFORM INSTALLATION
The above framing diagram does not show a hearth. A hearth is not required,
but often used with this appliance. If a hearth is desired, it must be constructed
so as not to inhibit the valve access door at the bottom of the appliance. The
hearth need not conform to codes applicable to solid fuel appliances.
THE TAMARRON 36 SERIES
64"
FRONT VIEW
WALL OR CHASE INSTALLATION
The TR Series is a zero-clearance fireplace. The fireplace has spacers attached to
assist in a correct installation. Combustible materials may touch the spacers, but
must never be notched , cut, or modified to come closer to the appliance than the
spacers allow.
TR- 36 SERIES
Weight: 210 lbs
BTU Input: 31,000
33-1/2" Minimum
FLOOR LEVEL INSTALLATION
LEFT SIDE VIEW
20.5"
37-1/2" Minimum
File:U\user2\randy\TR36spec
