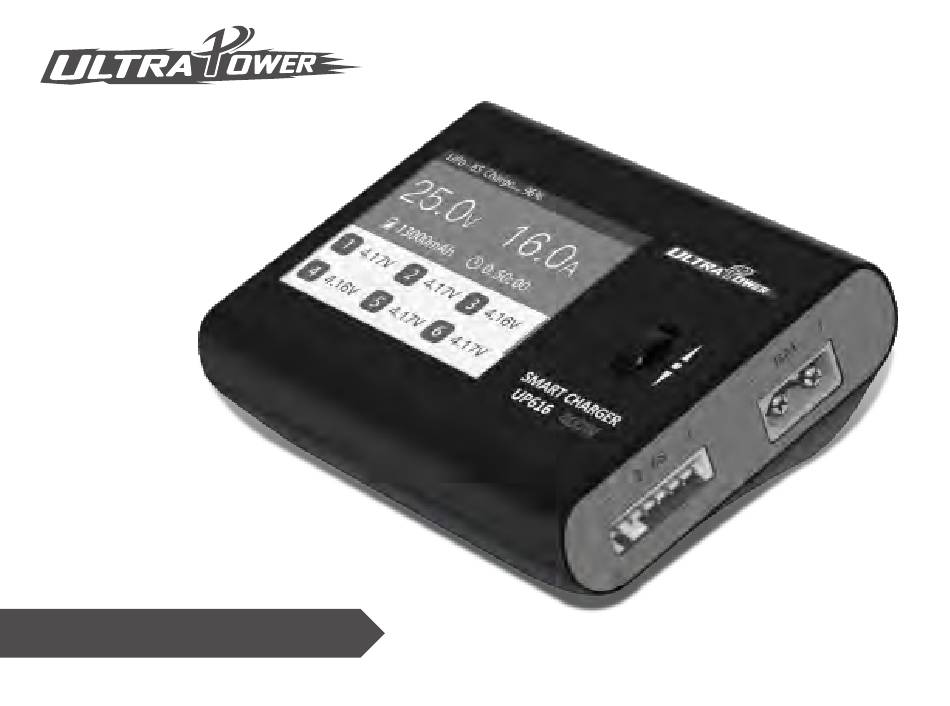

- Page 1 UP616 400W Smart Charger Instruction Manual www.ultrapower.hk...
- Page 2 Introduction Thank you for your purchase of Ultra Power’s UP616 Compact DC Smart Charger. This charger utilizes advanced synchronous DC power conversion technology to achieve an efficiency rating of over 90%. This means energy savings through efficiency, reduced heat build-up, and the ability to produce a small, compact and conveniently mobile charging device.
-
Page 3: Table Of Contents
Contents Warnings and Safety Notes Product Features and Component Layout Product Parameters and Characteristics Default Battery Types and Settings Confirming Charge Current System Settings Working Parameters Display System Default Settings Menu External Discharge Function Warnings and Error Messages Conformity Declaration... -
Page 4: Warnings And Safety Notes
Avoid leaving your charger or battery in direct sunlight or exposing them to intense vibration or shock. ALWAYS make certain to observe proper input and output polarity. The UP616 operates safely with input voltage between 9V-32V DC. ALWAYS place the charger on a heat-resistant, non-flammable surface when in use. Keep flammable materials away from charger when in use. - Page 5 Warnings and Safety Notes ALWAYS fully read all warnings and instructions on both charger and battery prior to use. Be aware of battery safety warnings. Make sure that all charging parameters are correctly setup prior to charging any battery. INCORRECT SETTINGS MAY CAUSE FIRE, PROPERTY DAMAGE AND/OR PERSONAL INJURY! ALWAYS press the roller wheel to terminate charge completely when battery is fully charged, and return to the standby screen on the LCD display.
-

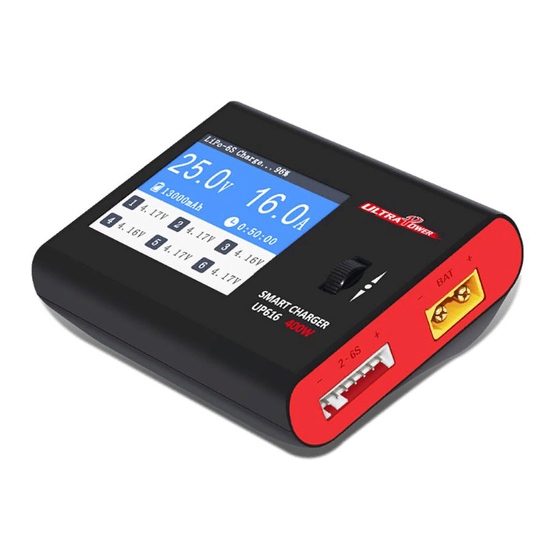

Page 6: Product Features And Component Layout
Product Features and Component Layout 1. 2.4” IPS LCD Display Screen 2. External Discharger Port Roller Wheel 3. Roller Wheel Long Press: Enter system settings/ 4. Battery Output terminate current task 5. Universal Balance Port Short Press: Enter system settings/ 6. -
Page 7: Product Parameters And Characteristics
Product Parameters and Characteristics SPECIFICATIONS : Input Voltage: DC 9-32V Dimensions: 90x70x42mm Output Voltage: 0.1-30V Weight: 130g Charging Current: 0.1-16.0A Discharge Current: 0.1-3.0A/0.1-15.0A (External Discharge Mode) Max Charge Power: 400W Max Discharge Power: 8W/200W (External Discharge Mode) Balance Current: 1000mA/cell 90MM Balance Cells: 6S Support Battery LiFe/LiIon/LiPo/LiHV (1-6S) -
Page 8: Default Battery Types And Settings
Default Battery Types and Settings LiFe LiIon LiPo NiCd/NiMH LiHV Rated Voltage 1.20V 2.00V 3.20V 3.60V 3.70V 3.80V Full Charge Voltage 1.40V 2.40V 3.60V 4.10V 4.20V 4.35V Storage Voltage Not supported Not supported 3.30V 3.70V 3.80V 3.90V Discharge Voltage 0.5-1.10V 1.80-2.00V 2.60-2.90V 2.90-3.20V... -
Page 9: Confirming Charge Current
Confirming Charge Current It is critically important to understand the maximum charging current for the battery pack to be charged. Excessive charge current can significantly reduce the life of a battery, or in severe cases a fire or explosion. The charge and discharge current of a lithium battery is determined by its “C” rating. -
Page 10: System Settings
System Settings Connect the UP616 to a 24V DC power supply or use an appropriate LiPo battery as an input power source. Connect the battery to be charged, then short press the roller wheel to activate the program setting menu. The items in the menu are as... - Page 11 Restoring an excessively discharged lithium battery pack If the UP616 detects internal cell voltages that are too low to safely begin the charging process, it will automatically default to a 0.1A charge rate until the voltage has risen to a level that allows it to safely accept a fast charge rate.
-
Page 12: Working Parameters Display
Working Parameters Display Working Mode Battery Cell Count Battery Type Battery Percentage LiPo - 6 S C h a rge... 9 6 % 25.0 16.0 Charge/Discharge Battery Voltage Current 13000mAh 0:50:00 Charge/Discharge Battery Capacity Time 4.17V 4.1 7 V 4.16V 4.16V 4.1 7 V 4.17V... -
Page 13: System Default Settings Menu
Return to last program or menu Back A note about Max Input Power: To insure stable and safe operation of the UP616, this value should be adjusted according to the input power source used for the charger. For example, when using a 24V/10A DC power supply, this value should... -
Page 14: External Discharge Function
External Discharge Function UP616 increases the function of external discharge to meet the users' demand for high-power discharge of batteries, UP616 connect a external discharger UP-D200 can achieve 200W discharge power, greatly improving the battery discharge speed and saving time. Meanwhile, compared with the traditional discharger, the UP616 has a balancing discharge function, which can effectively avoid single cell over discharge, which will be more safely and reliable. -
Page 15: Warnings And Error Messages
For example, if a 6S LiPo is used as an input source, the value should be set to 21V to guard against over-discharging the source battery. When the UP616 senses input voltage lower than required for the battery being charged, a warning will appear and all operations are terminated. -
Page 16: Conformity Declaration
Conformity Declaration The UP616 satisfy all relevant and mandatory CE directives and FCC Part 15 Subpart B: 2017. For EC directive: The product has been tested to meet the following technical standards: Testing standards Result EN 55014-1: 2006+A1:2009+A2:2011 EN 55014-2: 2015 This symbol means that you must dispose of electrical from the general household waste when it reaches the end of its useful life. - Page 18 Ultra Power Technology Limited Add: 6/F, Buliding D, Hui Qing Science and Technology Park, Guanguang Road, Guanlan,Longhua District, Shenzhen518110,China Tel: +86-755-23283358 Fax: +86-755-29183296 Web: www.ultrapower.hk E-mail: info@ultrapower.hk...
