TESTING 1.0334 Operating Manual

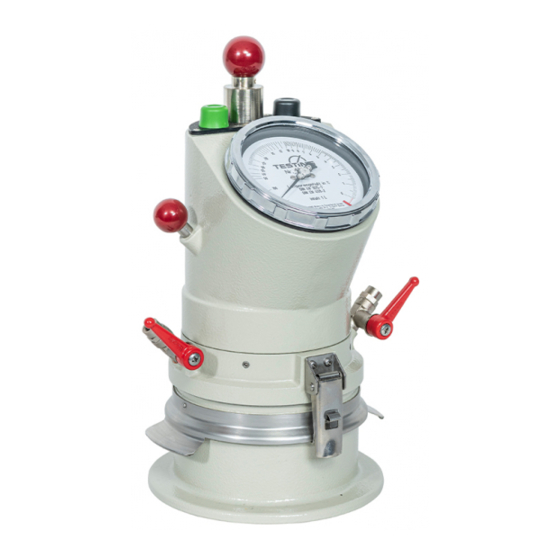

Air entrainment meter 0.5 litre, 0.75 litre, 1 litre, 5 litre, 7 litre and 8 litre
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
TESTING Bluhm & Feuerherdt GmbH
Production and distribution of
construction-material testing devices
0.5 litre, 0.75 litre, 1 litre, 5 litre, 7 litre and 8 litre
Operating Manual
Air Entrainment Meter
Model: TESTING, with hand pump
Motzener Str. 26b
DE - 12277 Berlin, Germany
Tel. +49 (0) 30 710 964 5-0
Fax +49 (0) 30 710 964 5-98
www.testing.de

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1.0334 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TESTING 1.0334

Summary of Contents for TESTING 1.0334

  • Page 1 TESTING Bluhm & Feuerherdt GmbH Production and distribution of construction-material testing devices Motzener Str. 26b DE - 12277 Berlin, Germany Tel. +49 (0) 30 710 964 5-0 Fax +49 (0) 30 710 964 5-98 www.testing.de Operating Manual Air Entrainment Meter 0.5 litre, 0.75 litre, 1 litre, 5 litre, 7 litre and 8 litre...

  • Page 2: Table Of Contents

    Cleaning and maintenance ................... 17 Checking and calibrating the air entrainment ............ 18 Determining the initial pressure ................. 18 Results of testing for the initial pressure ............19 Calibration ......................20 4.3.1 Determination of the volume of the test pot: ........... 20 4.3.2 Continuation of the calibration ................

  • Page 3: Basic Instructions

    This Operating Manual explains the operation of five air entrainment meters, all with identical functions. If a list of different technical data or parameters is given, then they shall apply to the three models as follows: 1. 0.5 litre; TESTING article no. 1.0334 2. 0.75 litre; TESTING article no. 1.0337 3. 1 litre;...
  • Page 4 Air Entrainment Meters 0.5 litre; model: TESTING 1.0334 0,75 litre; model: TESTING 1.0337 litre; model: TESTING 1.0335 5 litre; model: TESTING 2.0332 litre; model: TESTING 2.0337 8 litre; model: TESTING 2.0334 This Operating Manual contains the information required for operation of the products described here, for the purpose for which they have been designed.

  • Page 5: Purposes For Which This System May Not Be Used

    Air Entrainment Meters 0.5 litre; model: TESTING 1.0334 0,75 litre; model: TESTING 1.0337 litre; model: TESTING 1.0335 5 litre; model: TESTING 2.0332 litre; model: TESTING 2.0337 8 litre; model: TESTING 2.0334 Purposes for which this system may NOT be used Using the air entrainment meters in a manner not in accordance with the pertinent and valid standards.

  • Page 6: Weights Of The Air Entrainments Meters

    Air Entrainment Meters 0.5 litre; model: TESTING 1.0334 0,75 litre; model: TESTING 1.0337 litre; model: TESTING 1.0335 5 litre; model: TESTING 2.0332 litre; model: TESTING 2.0337 8 litre; model: TESTING 2.0334 Caution The mixing of cement with water causes the release of alkaline substances.

  • Page 7: Transport

    Air Entrainment Meters 0.5 litre; model: TESTING 1.0334 0,75 litre; model: TESTING 1.0337 litre; model: TESTING 1.0335 5 litre; model: TESTING 2.0332 litre; model: TESTING 2.0337 8 litre; model: TESTING 2.0334 If you assume or suspect transport damage, or if transport damage becomes apparent only after you have accepted the delivery, immediately make an exact report of the conditions and any damage as they exist.

  • Page 8: Items Delivered With The Air Entrainment Meters

    Air Entrainment Meters 0.5 litre; model: TESTING 1.0334 0,75 litre; model: TESTING 1.0337 litre; model: TESTING 1.0335 5 litre; model: TESTING 2.0332 litre; model: TESTING 2.0337 8 litre; model: TESTING 2.0334 Items delivered with the air entrainment meters: Article Article...
  • Page 9 Air Entrainment Meters 0.5 litre; model: TESTING 1.0334 0,75 litre; model: TESTING 1.0337 litre; model: TESTING 1.0335 5 litre; model: TESTING 2.0332 litre; model: TESTING 2.0337 8 litre; model: TESTING 2.0334 Available at an additional price: Description 0.5 litre 0.75 litre...

  • Page 10: Technical Data

    Air Entrainment Meters 0.5 litre; model: TESTING 1.0334 0,75 litre; model: TESTING 1.0337 litre; model: TESTING 1.0335 5 litre; model: TESTING 2.0332 litre; model: TESTING 2.0337 8 litre; model: TESTING 2.0334 Technical data 1.6.1 Operation of the system These air entrainment meters operate on the principle of Boyle-Mariott’s law. The system measures the air content of the fresh mortar or fresh concrete in accordance with a pressure-equalization process.

  • Page 11: Basic Elements And Characteristics Of The Air Entrainment Meters

    Air Entrainment Meters 0.5 litre; model: TESTING 1.0334 0,75 litre; model: TESTING 1.0337 litre; model: TESTING 1.0335 5 litre; model: TESTING 2.0332 litre; model: TESTING 2.0337 8 litre; model: TESTING 2.0334 1.6.2 Basic elements and characteristics of the air entrainment meters The air entrainment meters consist of 2 main components: I.
  • Page 12 Air Entrainment Meters 0.5 litre; model: TESTING 1.0334 0,75 litre; model: TESTING 1.0337 litre; model: TESTING 1.0335 5 litre; model: TESTING 2.0332 litre; model: TESTING 2.0337 8 litre; model: TESTING 2.0334 II. Test pot Test pot for filling the material to be tested; clamping ring with handles...
  • Page 13 0,75 litre; model: TESTING 1.0337 litre; model: TESTING 1.0335 5 litre; model: TESTING 2.0332 litre; model: TESTING 2.0337 8 litre; model: TESTING 2.0334 Technical data for the TESTING air entrainment meters: Filling 0.5 litre 0.75 litre 1 litre 5 litre...

  • Page 14: The Test Procedure

    Then slightly moisten the inner surfaces of the test pot with a moistened cloth or sponge.
  • Page 15 For the 0.5; 0.75-litre and 1-litre TESTING air entrainment meter: Adjust by making one complete turn of the hooks of the clamps. For the 5-litre,7-litre and 8-litre TESTING air entrainment meters: In making precision adjustment of the quick-release latches, one complete turn of the clamp hooks can often be too much.
  • Page 16 13. Now note the apparent air entrainment reading (A1) of the fresh mortar or fresh cement in percent. 14. After the testing is finished, slowly open both of the two ball shut-off valves. This will allow the pressure to be released from the test pot.

  • Page 17: Cleaning And Maintenance

    Air Entrainment Meters 0.5 litre; model: TESTING 1.0334 0,75 litre; model: TESTING 1.0337 litre; model: TESTING 1.0335 5 litre; model: TESTING 2.0332 litre; model: TESTING 2.0337 8 litre; model: TESTING 2.0334 18. For practical reasons, it is not necessary to apply the aggregate correction factor when you use normal and dense aggregate (G = 0).

  • Page 18: Checking And Calibrating The Air Entrainment

    This additional air volume will compensate for the loss of air volume during testing of the air entrainment (this loss of air volume is due to the technical design of the device). The initial pressure that applies to each device has already been set and marked by the red marking pointer during factory testing, before each air entrainment meter is shipped to its users.

  • Page 19: Results Of Testing For The Initial Pressure

    At the same time, tap with your finger gently against the dial of the pressure gauge until the pointer comes to rest. Results of testing for the initial pressure The following three test results are possible: If the black pressure-gauge pointer moves to 0 %, then the position of the red marking pointer is correct (for more details, please see Section 4.3).

  • Page 20: Calibration

    • To calibrate the 1-litre TESTING air entrainment meter, you will need to take 100 g of water as test volume from the water-filled meter. This corresponds to 10 % of the total water content of the test pot (total filling = 1000 g, which is 1 litre = 1000 cm³...

  • Page 21: Continuation Of The Calibration

    8 litre; model: TESTING 2.0334 • To calibrate the 5-litre TESTING air entrainment meter, you will need to take 250 g of water as test volume from the water-filled meter. This corresponds to 5 % of the total water content of the test pot (total filling = 5000 g of water, which is 5 litres =5000 cm³).
  • Page 22 Air Entrainment Meters 0.5 litre; model: TESTING 1.0334 0,75 litre; model: TESTING 1.0337 litre; model: TESTING 1.0335 5 litre; model: TESTING 2.0332 litre; model: TESTING 2.0337 8 litre; model: TESTING 2.0334 ml for the 7-litre meter, and at least 400 ml for the 8-litre meter). See Section 7.
  • Page 23 Air Entrainment Meters 0.5 litre; model: TESTING 1.0334 0,75 litre; model: TESTING 1.0337 litre; model: TESTING 1.0335 5 litre; model: TESTING 2.0332 litre; model: TESTING 2.0337 8 litre; model: TESTING 2.0334 Calculation of the displayed volume in percent Model Description...

  • Page 24: Troubleshooting

    Air Entrainment Meters 0.5 litre; model: TESTING 1.0334 0,75 litre; model: TESTING 1.0337 litre; model: TESTING 1.0335 5 litre; model: TESTING 2.0332 litre; model: TESTING 2.0337 8 litre; model: TESTING 2.0334 Note In the event that the air entrainment meter does not show the required 5 % or 10 %, check the initial pressure once again.

  • Page 25: After-Sales Service And Spare Parts

    With respect to the testing procedure, the relevant standards, directives, regulations, and instructions of the supervisor in charge will always apply.

  • Page 26: Contact For Help And Spare Parts

    Disposal and recycling These air entrainment meters be disposed of as special waste. The company TESTING Bluhm & Feuerherdt GmbH can also dispose of these meters, provided that they are transported to TESTING without cost to TESTING. If these air entrainment meters are disposed of by the owner or user, they must be scrapped in accordance with the pertinent legal regulations and the applicable regulations published by the professional associations involved.

  • Page 27: List Of Spare Parts For The 0.5-Litre

    TESTING 1.0335 5 litre; model: TESTING 2.0332 litre; model: TESTING 2.0337 8 litre; model: TESTING 2.0334 List of spare parts for the 0.5-litre 0,5-litre TESTING air entrainment meter, manual, model no.: 1.0334 Item Article no. Qty. Designation Parts, inclusive 1.0334...
  • Page 28 Air Entrainment Meters 0.5 litre; model: TESTING 1.0334 0,75 litre; model: TESTING 1.0337 litre; model: TESTING 1.0335 5 litre; model: TESTING 2.0332 litre; model: TESTING 2.0337 8 litre; model: TESTING 2.0334 Page 28 of 42 pages...

  • Page 29: List Of Spare Parts For The 0.75-Litre

    TESTING 1.0335 5 litre; model: TESTING 2.0332 litre; model: TESTING 2.0337 8 litre; model: TESTING 2.0334 List of spare parts for the 0.75-litre 0,75-litre TESTING air entrainment meter, manual, model no.: 1.0337 Item Article no. Qty. Designation Parts, inclusive 1.0337...
  • Page 30 Air Entrainment Meters 0.5 litre; model: TESTING 1.0334 0,75 litre; model: TESTING 1.0337 litre; model: TESTING 1.0335 5 litre; model: TESTING 2.0332 litre; model: TESTING 2.0337 8 litre; model: TESTING 2.0334 Page 30 of 42 pages...

  • Page 31: List Of Spare Parts For The 1-Litre

    TESTING 1.0335 5 litre; model: TESTING 2.0332 litre; model: TESTING 2.0337 8 litre; model: TESTING 2.0334 6.7 List of spare parts for the 1-litre 1-litre TESTING air entrainment meter, manual, model no.: 1.0335 Item Article no. Qty. Designation Parts, inclusive 1.0335...
  • Page 32 Air Entrainment Meters 0.5 litre; model: TESTING 1.0334 0,75 litre; model: TESTING 1.0337 litre; model: TESTING 1.0335 5 litre; model: TESTING 2.0332 litre; model: TESTING 2.0337 8 litre; model: TESTING 2.0334 Page 32 of 42 pages...

  • Page 33: List Of Spare Parts For The 5-Litre

    TESTING 1.0335 5 litre; model: TESTING 2.0332 litre; model: TESTING 2.0337 8 litre; model: TESTING 2.0334 List of spare parts for the 5-litre 5-litre TESTING air entrainment meter, manual, model no.: 2.0332 Parts, inclusive Item Article no. Qty.
  • Page 34 Air Entrainment Meters 0.5 litre; model: TESTING 1.0334 0,75 litre; model: TESTING 1.0337 litre; model: TESTING 1.0335 5 litre; model: TESTING 2.0332 litre; model: TESTING 2.0337 8 litre; model: TESTING 2.0334 Page 34 of 42 pages...

  • Page 35: List Of Spare Parts For The 7-Litre

    TESTING 1.0335 5 litre; model: TESTING 2.0332 litre; model: TESTING 2.0337 8 litre; model: TESTING 2.0334 List of spare parts for the 7-litre 7-litre TESTING air entrainment meter, manual, model no.: 2.0337 Item Article no. Qty. Designation Parts, inclusive 2.0337...
  • Page 36 Air Entrainment Meters 0.5 litre; model: TESTING 1.0334 0,75 litre; model: TESTING 1.0337 litre; model: TESTING 1.0335 5 litre; model: TESTING 2.0332 litre; model: TESTING 2.0337 8 litre; model: TESTING 2.0334 Page 36 of 42 pages...

  • Page 37: List Of Spare Parts For The 8-Litre

    TESTING 1.0335 5 litre; model: TESTING 2.0332 litre; model: TESTING 2.0337 8 litre; model: TESTING 2.0334 6.10 List of spare parts for the 8-litre 8-litre TESTING air entrainment meter, manual, model no.: 2.0334 Item Article no. Qty. Designation Parts, inclusive 2.0334...
  • Page 38 Air Entrainment Meters 0.5 litre; model: TESTING 1.0334 0,75 litre; model: TESTING 1.0337 litre; model: TESTING 1.0335 5 litre; model: TESTING 2.0332 litre; model: TESTING 2.0337 8 litre; model: TESTING 2.0334 Page 38 of 42 pages...

  • Page 39: Calibration Instructions

    Air Entrainment Meters 0.5 litre; model: TESTING 1.0334 0,75 litre; model: TESTING 1.0337 litre; model: TESTING 1.0335 5 litre; model: TESTING 2.0332 litre; model: TESTING 2.0337 8 litre; model: TESTING 2.0334 Calibration instructions Page 39 of 42 pages...
  • Page 40 Air Entrainment Meters 0.5 litre; model: TESTING 1.0334 0,75 litre; model: TESTING 1.0337 litre; model: TESTING 1.0335 5 litre; model: TESTING 2.0332 litre; model: TESTING 2.0337 8 litre; model: TESTING 2.0334 Page 40 of 42 pages...

  • Page 41: Possible Operator Mistakes For Testing Air-Entrainment Meters

    Air Entrainment Meters 0.5 litre; model: TESTING 1.0334 0,75 litre; model: TESTING 1.0337 litre; model: TESTING 1.0335 5 litre; model: TESTING 2.0332 litre; model: TESTING 2.0337 8 litre; model: TESTING 2.0334 Possible operator mistakes for TESTING air-entrainment meters Pressure drop as a result of screwing down the transport lock...
  • Page 42 Serial / type designations: 1.0334, 1.0335, 1.0337, 2.0332, 2.0334 and 2.0337 complies with all of the relevant provisions of the above named guidelines as well as the additional applied guidelines (following) - including any of the amendments thereto which are in force at the time of the declaration.

This manual is also suitable for:

1.03371.03352.03322.03372.0334
