TESTING Bluhm & Feuerherdt GmbH
Production and distribution of
construction-material testing devices

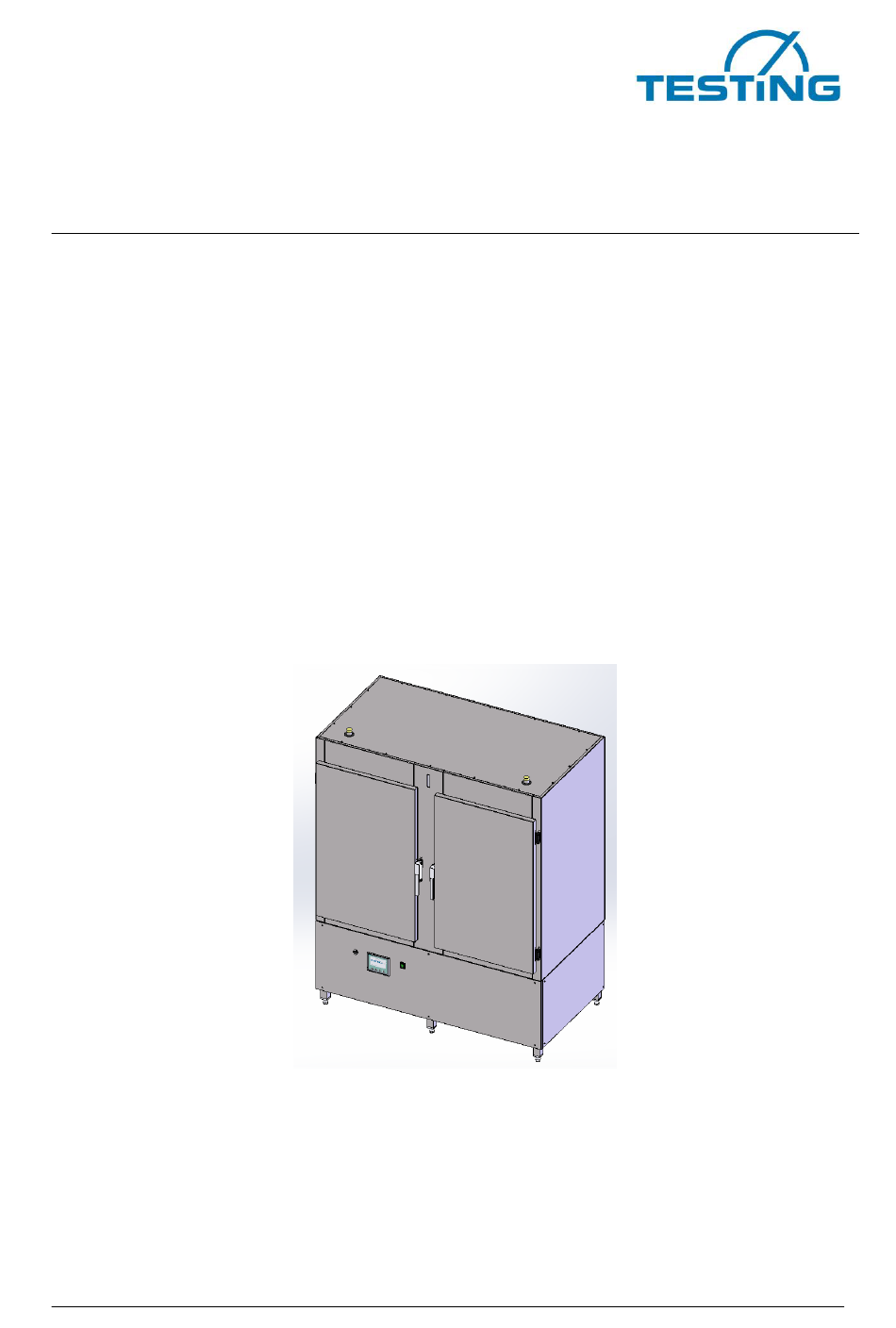

Operating Manual
Cabinet for Moist Storage
of Mortar Prisms in Triple Moulds
In accordance with EN 196
1
Motzener Str. 26b
DE - 12277 Berlin
Tel. +49(0)30/710 96 45-0
Fax +49(0)30/710 96 45-98
www.testing.de
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for TESTING 1.0321
Summary of Contents for TESTING 1.0321
- Page 1 TESTING Bluhm & Feuerherdt GmbH Production and distribution of construction-material testing devices Motzener Str. 26b DE - 12277 Berlin Tel. +49(0)30/710 96 45-0 Fax +49(0)30/710 96 45-98 www.testing.de Operating Manual Cabinet for Moist Storage of Mortar Prisms in Triple Moulds...
-
Page 2: Table Of Contents
Date of this version of the Operating Manual ............26 10.2 Copyright ........................26 10.3 Spare parts and technical help .................. 26 Attachments: Circuit diagram Hydraulic diagram Declaration of conformity Record of measurement and testing at the manufacturer’s plant Record of temp. and humidity... -
Page 3: Basic Instructions
The instructions contained in this Operating Manual are intended only for the correct use of the Cabinet for Moist Storage of Mortar Prisms in Triple Moulds. In order to perform the necessary testing correctly, the User must observe the specific standards for such testing. -
Page 4: Conditions Under Which This System May Not Be Used
Cabinet for Moist Storage of Mortar Prisms in Triple Moulds 1.0321 / 1.0321.01 / 1.0321.02 This Operating Manual must be considered as a constituent component of the product. It may be used only together with the system with which it has been de- livered. -
Page 5: Guarantee
Cabinet for Moist Storage of Mortar Prisms in Triple Moulds 1.0321 / 1.0321.01 / 1.0321.02 – Ice formation – Heat radiation – Formation of condensation water – Dust – Corrosive gases – Vibrations – Severe physical impact (jolts) – High relative humidity –... -
Page 6: Acceptance Of Delivery And Transport
Cabinet for Moist Storage of Mortar Prisms in Triple Moulds 1.0321 / 1.0321.01 / 1.0321.02 Before putting this system into operation, check to make sure that the ratings of your mains power voltage and current are the same as the electrical data specified on the rating plate (nameplate). -
Page 7: Setting Up The Cabinet
– unless you can assure that lateral forces will not act on the packing from the side or on any parts of the system while it is being lifted. The weight of the equipment is approx. 1.0321 app. 340 kg 1.0321.01... -
Page 8: Placing The Cabinet Into Operation
Cabinet for Moist Storage of Mortar Prisms in Triple Moulds 1.0321 / 1.0321.01 / 1.0321.02 The room must have a water drain (with ½" connection) to allow the condensed water produced by the Cabinet to flow away. The ½" connection for the water drain may not be more than 10 cm above the floor of the room. -
Page 9: Humidifier
Cabinet for Moist Storage of Mortar Prisms in Triple Moulds 1.0321 / 1.0321.01 / 1.0321.02 Humidifier The system in the Cabinet that produces the required moisture for the air must be filled with de-mineralized water acc. Standard VDE 0510. Normal water may not be used, since it would leave deposits inside the humid- ifier that would reduce the service life of the Cabinet. -
Page 10: Shelves Of The Cabinet
Cabinet for Moist Storage of Mortar Prisms in Triple Moulds 1.0321 / 1.0321.01 / 1.0321.02 The electrical socket must have a safety device that will protect the system against over-current. This safety device must satisfy the stipu- lations of the relevant standards, and must match the machine voltage. - Page 11 Cabinet for Moist Storage of Mor- tar Prisms in Triple Moulds. If the officially calibrated testing system measures values that are different from the display on the controller, you must use a correction factor in the controller to change the display reading to match the actually measured values.
-
Page 12: Characteristics Of The System
20°C 1°C / > 90% r.H. Controlled temp. / humidity: Dimensions: 1.0321 / 1.0321.01 = 1,400 x 750 x 1,730 mm high 1.0321.02 = 1,400 x 750 x 1,910 mm high Weight (mass) of the Cabinet: Approx. 340 - 390 kg... -
Page 13: Open- And Closed-Loop Control Equipment
Cabinet will be operated. The manufacturer will test and calibrate the Cabinet before it is delivered. The measuring equipment used for this testing and calibration is checked for accuracy at regular intervals by state institutes. - Page 14 Cabinet for Moist Storage of Mortar Prisms in Triple Moulds 1.0321 / 1.0321.01 / 1.0321.02 The controller has four operation levels START Home Display after switch on Level 0 Normal display Level 1 Level for parameter settings Level 2 Manual test level...
-
Page 15: Home Display
Cabinet for Moist Storage of Mortar Prisms in Triple Moulds 1.0321 / 1.0321.01 / 1.0321.02 Home display Page 01 Change to NORMAL DISPLAY Change to SETTINGS Change to EXTRAS Normal display Page 02 Status bar show activ elements Heating Cooling... -
Page 16: Parameterization
Cabinet for Moist Storage of Mortar Prisms in Triple Moulds 1.0321 / 1.0321.01 / 1.0321.02 Parameterization Page 11-13 Parameterization of the setpoint value. You can directly select the setpoint value for heat- ing, cooling, humidifying and dehumidyfing. You can increase or decrease the setpoint values. -
Page 17: Function Check
Cabinet for Moist Storage of Mortar Prisms in Triple Moulds 1.0321 / 1.0321.01 / 1.0321.02 Function check Here you can switch on/off all elements individually for a function test. The regulation must be switched off. Page 20 without function Next display... -
Page 18: Data Record Management
Cabinet for Moist Storage of Mortar Prisms in Triple Moulds 1.0321 / 1.0321.01 / 1.0321.02 Page 22 Lag time for the next turn min. time for a turn overrun time for fans ON / OFF for heating ON / OFF for cooling... -
Page 19: Extras
Cabinet for Moist Storage of Mortar Prisms in Triple Moulds 1.0321 / 1.0321.01 / 1.0321.02 After you exit the runtime a new window will appear. Select “TASKBAR” and then open the WINDOWS-EXPLORER by dobble click on the symbol MY COMPUTER. Select the directory of the Storage-Card SD and then LOGS. -
Page 20: Messages And Warnings On The Display
Cabinet for Moist Storage of Mortar Prisms in Triple Moulds 1.0321 / 1.0321.01 / 1.0321.02 Messages and warnings on the display Red field means: Standby Modi in Temperature and Humidity Press symbol to escape Yellow field means: Limit range overflow... -
Page 21: Calibration Of The Display Value
After the Cabinet has been set up, it is necessary to use an officially calibrated reference testing system to measure the exact temperature and humidity that actually occurs inside the Cabinet. This is necessary to compare the actual temperature and the humidity of the interior of the Cabinet with the values being displayed by the system. -
Page 22: Maintenance, Care, And Cleaning Of The System
Cabinet for Moist Storage of Mortar Prisms in Triple Moulds 1.0321 / 1.0321.01 / 1.0321.02 value will open. This will allow water to flow into the tank. When the water in the tank has reached the proper level, the float switch will go OFF and will close the solenoid valve. -
Page 23: Care Of The Indicator Instruments
Cabinet for Moist Storage of Mortar Prisms in Triple Moulds 1.0321 / 1.0321.01 / 1.0321.02 Every day, it is necessary to clean all parts and surfaces made of stainless steel with lukewarm soapy water. After cleaning, wipe off the cleaned parts with clear, warm water so that there is no soap remaining on the parts. -
Page 24: Care Of The Humidifier
Cabinet for Moist Storage of Mortar Prisms in Triple Moulds 1.0321 / 1.0321.01 / 1.0321.02 Care of the humidifier Never perform any maintenance or repair work on the Cabinet before shutting down the system. Before performing any repair or maintenance work, first switch off the power sup- ply to the system. -
Page 25: Placing The System Out Of Operation
Cabinet for Moist Storage of Mortar Prisms in Triple Moulds 1.0321 / 1.0321.01 / 1.0321.02 TROUBLE CAUSE SOLUTION The interior of the Cabi- The cooling system is defective. The Get in touch with the manufacturer. net is too warm. controller or the sensors are defective. -
Page 26: 10. After-Sales Service
Cabinet for Moist Storage of Mortar Prisms in Triple Moulds 1.0321 / 1.0321.01 / 1.0321.02 10. After-sales service Great care was taken to assure that this Operating Manual was properly prepared. We cannot, however, guarantee that it has no mistakes, or that all data are complete and correct in the event of technical modifications. - Page 27 Cabinet for Moist Storage of Mortar Prisms in Triple Moulds 1.0321 / 1.0321.01 / 1.0321.02...
- Page 28 Cabinet for Moist Storage of Mortar Prisms in Triple Moulds 1.0321 / 1.0321.01 / 1.0321.02...
- Page 29 Cabinet for Moist Storage of Mortar Prisms in Triple Moulds 1.0321 / 1.0321.01 / 1.0321.02 EC Declaration of Conformity in accordance with the Machinery Directive 2006/42/EC Appendix II 1.A The authorised representative established in the community, Mr. Feuerherdt hereby declares that the following product Manufacturer: TESTING Bluhm &...
