Electronics Line EL-2714 Quick Start Manual

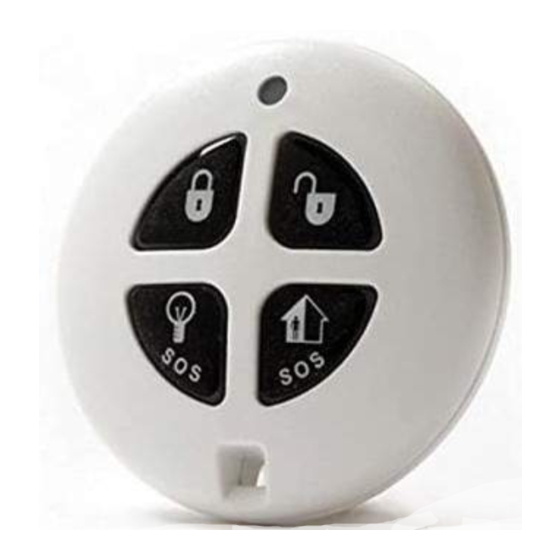

Figure 1: EL-2714/
Figure 1: EL-2714/
Figura 1: EL-2714

Battery Replacement

If the LED blinks during transmissions, this indicates
that the battery is low and need replacing.
To replace the battery:
1. Insert a small screwdriver into the pry-off
slot – see Figure 2. Carefully twist the
screwdriver to separate the front and back
of the casing.
2. Observing correct polarity, replace the battery.
3. Close the casing making sure that the front
and back click shut.
Caution:Risk of explosion if battery is replaced by
an incorrect type. Dispose of used batteries
according to the instructions.

Technical Specifications

Antenna: Built-in whip
Frequency: 868.35*, 433.92, or 418 MHz
Power: 3V Lithium Battery, Size CR2032
Current Consumption:
16mA (transmission),
0
µA (standby)
RFI Immunity: 40V/m
Operating Temperature: 0-60°C
Ø
Dimensions: 45 x13mm
* Complies with EN-50131 Grade 2 Class II
Power Supply Type C
English
The EL-2714 is a four-button keyfob transmitter designed for
use with Electronics Line 3000's supervised wireless range of
receivers.

Registration

To register the EL-2714:
1. Set the receiver to Registration mode.
2. Press one of the buttons, making sure that the LED lights
up when the button is pressed.
3. Wait for five seconds and press the same button again.
Alternatively, the EL-2714 can be registered to the receiver by
manually entering the transmitter's serial number.
EL-2714
Figure 2: Opening the casing/
Figure 2: Ouverture du boîtier/
Figura 2: Abriendo la tapa
Battery Holder/
Emplacement de
la Batterie/
Soporte de
la Batería
Figure 3: Rear view (casing open)/
Figure 3: Vue arrière (boîtier ouvert)/
Figura 3: Vista posterior (tapa abierta)
