Summary of Contents for airleben airLPT216

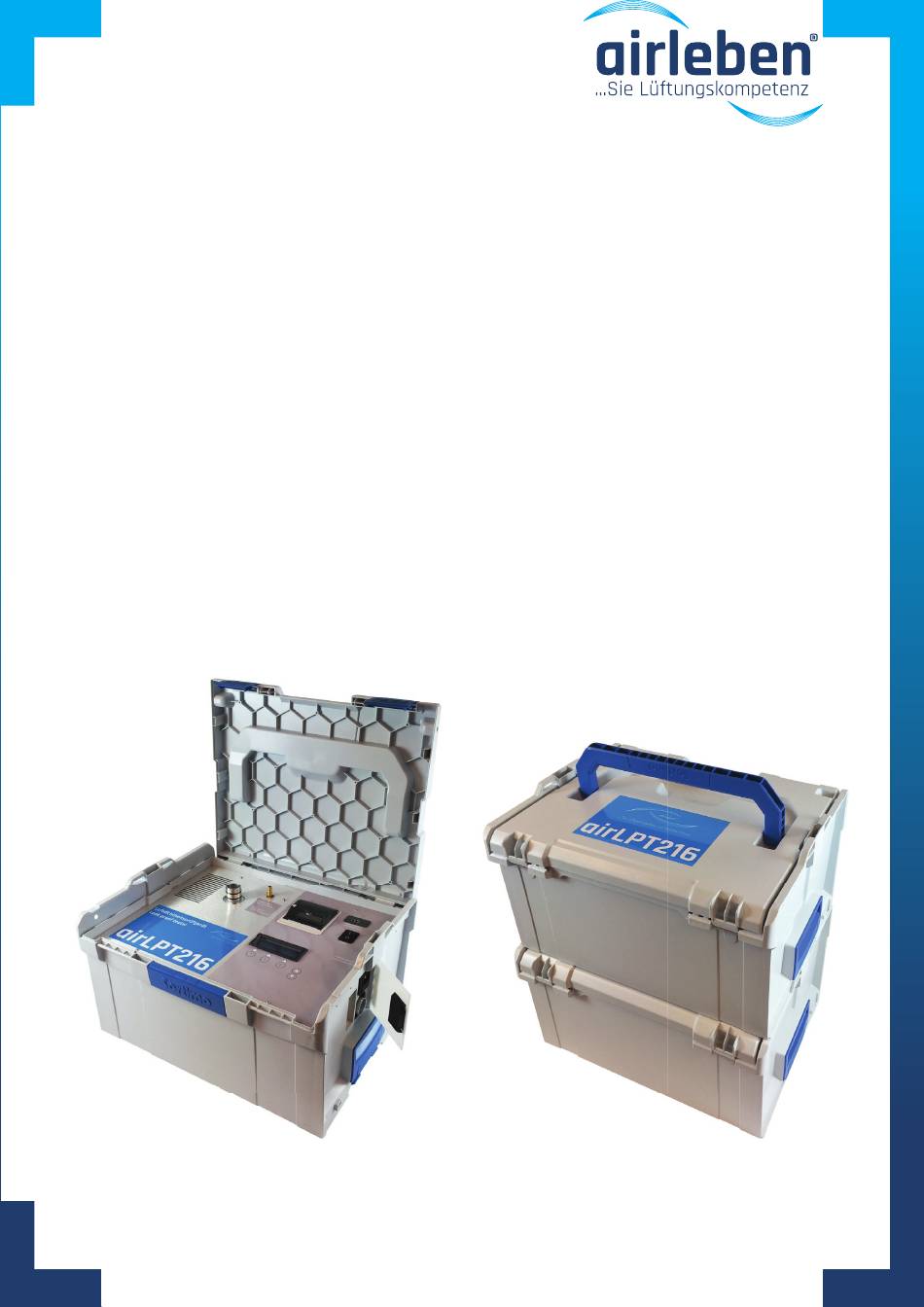

- Page 1 User manual airLPT216 Air leakproof tester...
-
Page 2: Table Of Contents
Language selection .........50 Entering the record header....51 Class Z ............52 Test duration ..........52 Record printer .............. 52 airLPT216 Android APP ..........53 Startup ..............53 Main menu ............54 Automatic test mode ........54 Manual test mode ..........56 Leak detection mode ........57 Setup mode ............57... - Page 3 The airLPT216 air leakproof tester is used to deter- mine the quantity of air leaked and the air tightness class achieved according to EN 13779, or EN 1507 and EN 12237, especially in HVAC systems.
-
Page 4: General Notes
The device should be transported, stored and used in a dust-free and dry environment. Avoid getting dirt The airLPT216 air leak proof tester may only be used (e.g. dust, moisture) on the connections for the air by competent personnel and only for its intended and pressure measuring hose. - Page 5 Manufacturer airleben GmbH Goldbacher Straße 37 99867 Gotha, Germany Tel.: +49 3621 51445-0 Fax: +49 3621 51445-219 www.airleben.de...
-
Page 6: Technical Data
TEchNIcAL DATA Technical data Equipment / scope of supply • 4-line illuminated display • 1 airLPT216 air leak proof tester integrated in the pla- • Power supply: 230 V / 50 Hz stic case • Power consumption: max. 1,900 W • 1 plastic transport case for accessories... -
Page 7: Controls
6. USB port (max 4 GB) 7. Air hose 8. Positive pressure air connection 9. Negative pressure air connection 10. Pressure measuring hose with removable adapter 11. Pressure measurement connection 12. Record printer Operating Instructions airLPT216 Version 1.2 Dated: 07.03.2017... -
Page 8: Startup
HWV 1.0 SWV 1.3 The corresponding mains connection cable (power cable) is Tests: 487 used to connect the airLPT216 air leak proof tester to the electrical system (230 V, 50 Hz) and the device is switched Arrow buttons on at the mains switch (4). - Page 9 A test is also performed on the USB drive (6), where- USB stick supplied by us with the device. by it does not matter whether a USB stick is plugged in or not. If an error occurs, a warning appears on the display Operating Instructions airLPT216 Version 1.2 Dated: 07.03.2017...
-
Page 10: Positive Pressure Measurement
200 Pa, 400 Pa or 1,000 Pa and lie in the middle of the In case of pressures higher than 2,000 Pa, the two average operating pressure. measuring connections (air connection, pressure measuring connection) must be additionally secured against coming off suddenly. Operating Instructions airLPT216 Version 1.2 Dated: 07.03.2017... -
Page 11: Negative Pressure Measurement
Pa or 1,000 Pa and lie in the middle of the average operating pressure. In case of pressures higher than 2,000 Pa, the two measuring connections (air connection, pressure measuring connection) must be additionally secured against coming off suddenly. Operating Instructions airLPT216 Version 1.2 Dated: 07.03.2017... -
Page 12: Main Menu
[MAIN | CHANGE | START] [ENTER] Remark: Air tightness class Z is an air tightness class that can be freely defined by the user. The corresponding leakage factor is defined in the setup menu. Operating Instructions airLPT216 Version 1.2 Dated: 07.03.2017... - Page 13 0.08 l/s” is then output. Remark: The test period is preset to 5 min. (300 sec.). In the setup menu the test period can be freely set bet- ween 30 and 300 sec. in 10 sec. increments. Operating Instructions airLPT216 Version 1.2 Dated: 07.03.2017...
- Page 14 WINDOWS Explorer. This file is only written on the USB stick once, regardless of how of- ten the paper copy of the record is printed. Operating Instructions airLPT216 Version 1.2 Dated: 07.03.2017...
-
Page 15: Contents Of The Record Printout
For details of configuration of these lines, see “Entering the record header” section. „LEAKAGE TEST” “airleben airLPT216” ; “Serial number”; “HW version 1.00” ; “SW version 1.07” • Consecutive test numbering since last inspection • Date • Time “Air leakage test on air ducts in compliance with standards EN 12237, EN... -
Page 16: Manual Test Mode
The same options for recording the test exist for TEST PRESS. 1503 Pa manual test mode as for automatic mode. (See also VOL FLOW 13.77 l/s page 46) TIME LEFT 5:00 min. MOTOR 805 M [STOP] Operating Instructions airLPT216 Version 1.2 Dated: 07.03.2017... -
Page 17: Leak Detection Mode
The [STOP] sTOP (F3) button can The arrow can be moved vertically using the arrow buttons also be used to end this F3 - sTART Start Leak Detection mode. mode beforehand. Operating Instructions airLPT216 Version 1.2 Dated: 07.03.2017... -
Page 18: Setup Mode
Main menu. Depending on the selected language, the date and time have the following format: → SET THE CLOCK YYYY-MM-DD hh:mm LANGUAGE SELECTION 2017-03-06 15:16 ENTER RECORD HEADER [BACK] [ENTER] [ZURÜCK] [ENTER] Operating Instructions airLPT216 Version 1.2 Dated: 07.03.2017... -
Page 19: Entering The Record Header
The “KOPF.TXT” file should be in the root directory. The “Enter Record Header” menu item is opened at the airLPT216. The user is then prompted to plug the USB stick into the USB port at the top of the de- vice. -
Page 20: Class Z
1.5 s, the value changes quickly. The test period is preset to 5 min (300 sec.) in the as-de- livered test device. ENTER RECORD HEADER TEST DURATION 5:00 min CLASS Z → TEST DURATION [ENTER] [ZURÜCK] [ENTER] Operating Instructions airLPT216 Version 1.2 Dated: 07.03.2017... -
Page 21: Airlpt216 Android App
The time is read out from the airLPT216 and is compa- red with the time of the mobile terminal. A warning is output if there is a difference of more than 1 minute. -
Page 22: Main Menu
ANDROID-APP airLPT216 Main menu The individual points of the Main menu can be rea- ched using the buttons on the Start page, the navi- gation bar on the left edge of the screen or the tabs of the menu bar. - Page 23 ANDROID-APP airLPT216 In the Surface field the surface area can be set between 0.1 and 2,000 m Alternatively, the di- mensions of a rec- tangular air duct can be entered in the Height, Width and Length fields. The Calculate button is...
-
Page 24: Manual Test Mode
ANDROID-APP airLPT216 Manual test mode After starting the test process the current pressure in Pa, the volume flow in l/s (with two decimal places), the test duration and the compressor (fan) speed are This corresponds to displayed continuously. automatic test mode,... -
Page 25: Leak Detection Mode
ANDROID-APP airLPT216 Leak detection mode setup-Mode This mode is used to apply a constant positive pres- The device data are sure to the duct system for a specific period of time, read out and display- to search for possible leaks during this time. -
Page 26: Service Interval
GUARANTEE service interval Guarantee The airLPT216 air leakproof tester is tested in the ma- The guarantee period is one year (12 months) from date nufacturer’s factory and is subjected to quality con- of sale and is subject to appropriate, proper and inten- trol. -
Page 27: Declaration Of Conformity
Tel.: +49 3621 51445-0 Fax: +49 3621 51445-219 declares that, based on independent measurements, the product: airLPT216 air leakproof tester complies with the fundamental protection requirements defined in the Directive 2014/30/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to electromagnetic compatibility. -
Page 28: Troubleshooting
If the error persists the device must be handed in to the service department. Note: Please contact the manufacturer in case of operating faults or errors, which you cannot correct your- self using these operating instructions. Operating Instructions airLPT216 Version 1.2 Dated: 07.03.2017... -
Page 29: Accessories / Wearing Parts
Adapter A32 for air hose for connection to RD32 Art. No.: 7300355 Adapter seal AD32 for adapter A32 Art. No.: 7300357 Adapter A21 for pressure measuring hose for connection to RD21 Art. No.: 7300356 Adapter seal AD21 for adapter A21 Operating Instructions airLPT216 Version 1.2 Dated: 07.03.2017... -
Page 30: Appendix
APPENDIx Appendix Measurement range limits of the airLPT216 air leakproof tester (theoretically testable surface area in m Test pressure (Pa) Air tightness class A Air tightness class B Air tightness class C Air tightness class D 50 Pa 2565 200 Pa... -
Page 31: Leakage Values
14,74 17,04 22,18 26,74 1,27 3,13 4,91 5,68 7,39 8,91 13,99 4,58 11,27 17,69 20,45 26,61 32,09 1,53 3,76 5,90 6,82 8,87 10,70 16,78 5,72 14,09 22,11 25,56 33,27 1,91 4,70 7,37 8,52 11,09 13,37 20,98 Operating Instructions airLPT216 Version 1.2 Dated: 07.03.2017... - Page 32 Use our airTool too! Available for Android Download: App-Store (iOS) Google-Play-Store (Android) The test pressure and the air duct surface area are entered in the air tightness class calculator (LDK calculator). The air leakage rate is then calculated according to the selected air tightness class. You can also send all data by email.
