Bradford White 50T Specification Sheet

Light Duty Commercial Atmospheric Vent

Energy Saver Gas Water Heater

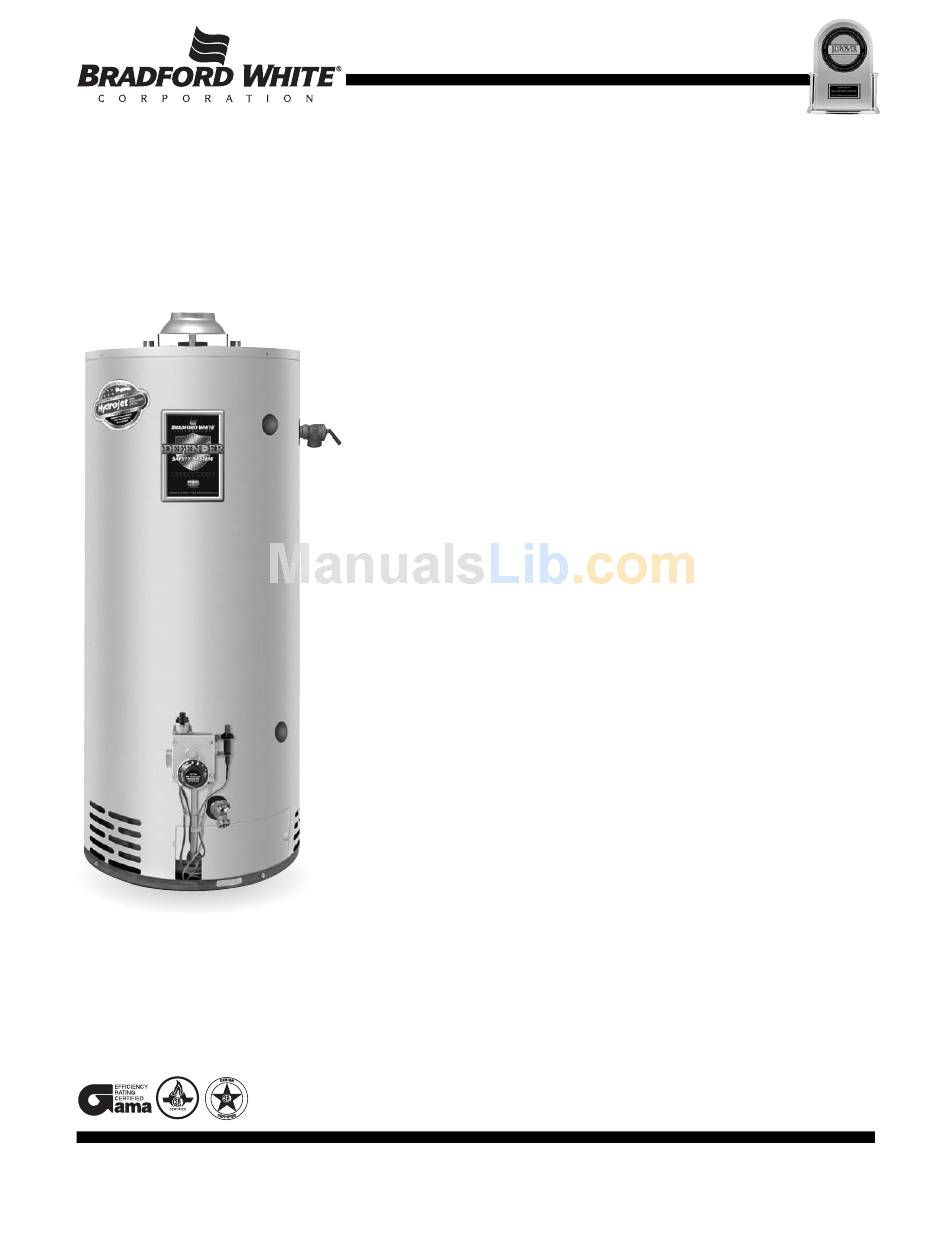

Photo is of
65T-65FB-3N
Bradford White received the highest numerical score among water heater/boiler manufacturers in the proprietary J.D. Power and Associates/ McGraw-Hill Construction 2006 HVAC and Water Heater/Boiler Subcontractor Satisfaction Study
Study based on 882 responses measuring 3 water heater/boiler manufacturers and measures opinions of subcontractors. Proprietary study results are based on experiences and perceptions of subcontractors surveyed in May through July 2006. Your
experiences may vary. Visit jdpower.com
MANUFACTURED UNDER ONE OR MORE OF THE FOLLOWING U.S. PATENTS: 7,063,133 B2; 5,954,492; 5,954,492; 5,761,379; 5,943,984; 5,081,696; 5,988,117; 6,142,216; 5,199,385; 5,574,822; 5,372,185;
5,485,879; 5,277,171; (B1)5,341,770; 5,660,165; 5,596,952; 5,682,666; 4,904,428; 5,023,031; 5,000,893; 4,669,448; 4,829,983; 4,808,356; 5,115,767; 5,092,519; 5,052,346; 4,416,222; 4,628,184; 4,861,968;
4,672,919; Re. 34,534. OTHER U.S. AND FOREIGN PATENT APPLICATIONS PENDING. CURRENT CANADIAN PATENTS: 1,272,914; 1,280,043; 1,289,832; 2,045,862; 2,112,515; 2,108,186; 2,107,012; 2,092,105.
Defender Safety System ® , ScreenLok ® , Vitraglas
"Highest in Subcontractor Satisfaction among Water Heater/Boiler Manufacturers"

The LD Atmospheric Vent FVIR Defender Safety System

(50T and 65T Models, Only):
Advanced ScreenLok
I
arrestor is designed to prevent ignition of flammable vapor outside of the
water heater.
Resettable Thermal Switch—Proven and reliable bimetallic switch prevents
I
burner and pilot operation in case of ongoing flammable vapor burn inside of
the combustion chamber or restricted air flow.
Piezo Igniter—Easy and quick lighting of the pilot burner by push button.
I
Pedestal Base—Rugged and durable base allows easy transport, positioning,
I
and provides corrosion resistant contact with floor.
Maintenance Free—No regular cleaning of air inlet openings or flame
I
arrestor is required under normal conditions.
Sight Window—Offers a view into the combustion chamber to observe the
I
operation of the pilot and burner.

All Light Duty Atmospheric Vent Models Feature:

Factory installed Hydrojet
I
sediment reducing device helps prevent sediment build up in tank. Increases
first hour delivery of hot water while minimizing temperature build up in tank
(100T-88 features Hydrojet
Vitraglas
I
corrosive effects of hot water by an exclusive ceramic porcelain-like coating.
The Bradford White high silica Vitraglas
surface for our water heater tanks.
Precise Temperature Control—Adjustable thermostat to any temperature up
I
to 180°F. An auto-reset Energy Cut-Off (ECO) shuts off all gas in the event of
an overheat condition (Not recommended for 180°F sanitizing).
Side Connections—3/4" NPT tappings allow easy connections for space
I
heating applications (potable water only).
2" Non-CFC Foam Insulation—Surrounds the tank surface, saving energy
I
by retarding loss of heat.
Water Connections—3/4" NPT factory installed true dielectric fittings extend
I
water heater life and eases installation. (75T has 1" NPT and 100T has 1
NPT factory installed dielectric water way fittings.)
Factory Installed Heat Traps—Design incorporates a flexible disk that
I
reduces heat loss in piping and eliminates the potential for noise generation.
(75T and 100T do not incorporate heat traps.)
Protective Magnesium Anode Rod—Provides added protection against
I
corrosion for long trouble free service.
"Snap Lock" Draft Diverter.
I
Flue Baffle—Maximizes the amount of heat absorbed by the tank and
I
reduces heat loss during standby periods.
Steel Tank—Heavy gauge steel automatically formed, rolled and welded.
I
T&P Relief Valve—Installed.
I
Brass Drain Valve.
I
Design Certified by CSA International (formerly AGA/CGA).
I
3 or 5-Year Limited Tank Warranties / 1-Year Limited Warranty on Component Parts.
For more information on warranty, please visit www.bradfordwhite.com
For products installed in USA, Canada and Puerto Rico. Some states do not allow limitations on warranties. See complete
copy of the warranty included with the heater.
® and Hydrojet ® are registered trademarks of Bradford White
® Technology Flame Arrestor Design—Flame
® Total Performance System—Cold water inlet
® Sediment Reduction System).
® Lining—Bradford White water heater tanks are protected from the
® Corporation.
® Models Feature
® lining provides a tough interior
⁄ "
1
4
SM .
700-B 0807
