Cable Management; Hardware Connection Steps; Connect Usb Camera - Lenovo ThinkSmart Hub 500 Deployment Manual

ThinkSmart Hub 500 Hardware Deployment Guide for all UC Platforms

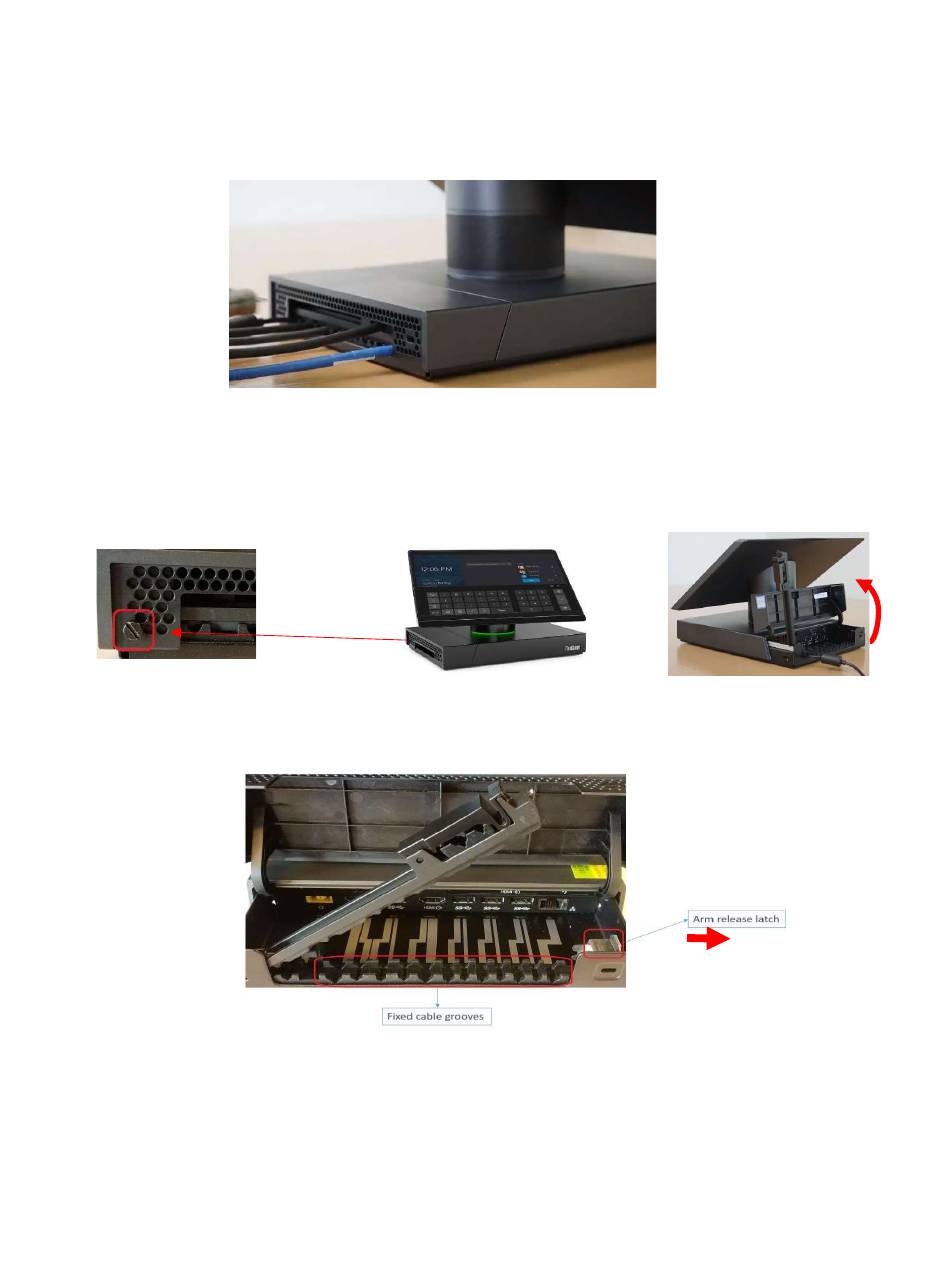

Cable Management

The ThinkSmart Hub 500 delivers a custom cable management solution designed to keep all connected
cables securely in place. On the back of the device, under a secured the door, there are two locking
arms. One is for the HDMI IN and (optional) 3.5mm cables, and the larger main arm secures the rest.

Hardware Connection Steps

1. Turn the screen so that it faces opposite the door for cables. To open the door, unfasten
the screw that holds the cover and flip the door up.
2. Release the main arm by sliding the larger latch to the right. Lift the arm out of the way.

Connect USB Camera

The Hub 500 has four standard USB 3.0 ports along the backplane that support any compatible USB
peripheral. You will be connecting a USB camera to the Hub 500 for video capture. In larger rooms, other
peripheral options are satellite/extended microphones. In most cases once a USB device is inserted into
the USB port, the Hub will automatically detect and install the corresponding drivers.
