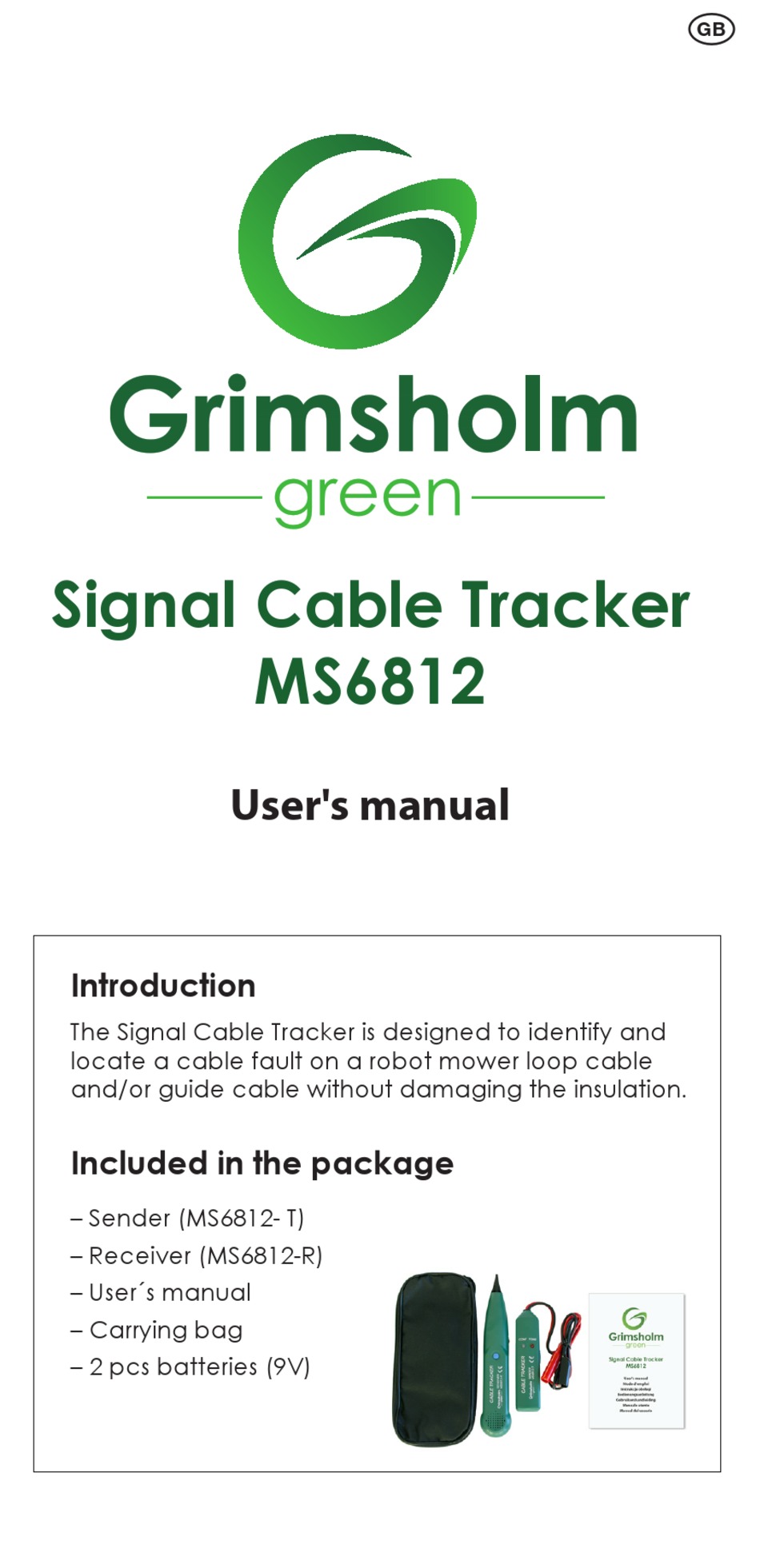

Signal Cable Tracker
MS6812
User's manual
Introduction
The Signal Cable Tracker is designed to identify and
locate a cable fault on a robot mower loop cable
and/or guide cable without damaging the insulation.
Included in the package

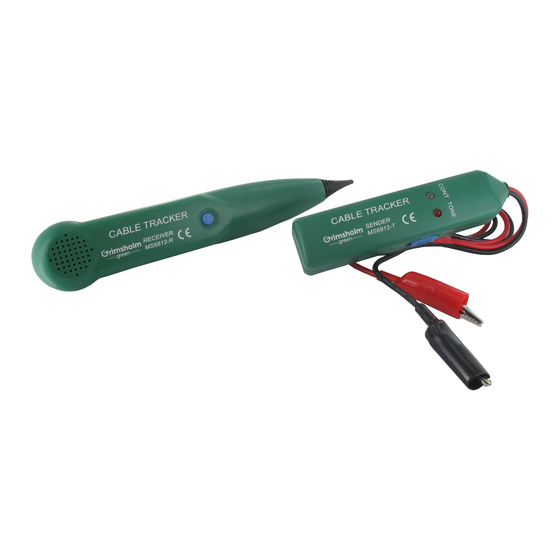

– Sender (MS6812- T)
– Receiver (MS6812-R)
– User´s manual
– Carrying bag
– 2 pcs batteries (9V)
Advertisement
Table of Contents
Summary of Contents for Grimsholm MS6812
- Page 1 The Signal Cable Tracker is designed to identify and locate a cable fault on a robot mower loop cable and/or guide cable without damaging the insulation. Included in the package – Sender (MS6812- T) – Receiver (MS6812-R) – User´s manual – Carrying bag...
- Page 2 Test if there is a fault on the loop cable Disconnect booth loop cable and guide cable (if any) from the robot mower station. Don’t forget this – your robot mower station and/or the MS6812 may get damaged. Connect the red and black cables on the sender to each of the loop cable like on the picture below.
- Page 3 Disconnect booth loop cable and guide cable (if any) from the robot mower station. Don’t forget this – your robot mower station and/or the MS6812 may get damaged. Connect the black cable to a metal piece that are put down in the lawn/soil (i.e. a screwdriver like on the picture) to make a ground connection.
- Page 4 145mmx43mmx26mm/9.4”x1.7”x1.0” Emitter Size 145mmx35mmx25mm/5.7”x1.38”x0.98” Receiver Weight 71g/0.16IB Emitter Weight 87g/0.2Ib Certificate CE/ETL/RoHS Grimsholm Products AB | Mellangårdsvägen 12 | 311 50 Falkenberg | SWEDEN Tel. +46 (0)346 73 80 00 | Fax. +46 (0)346 73 80 09 info@grimsholm.com | www.grimsholm.com...
