Summary of Contents for Conductix-Wampfler NC

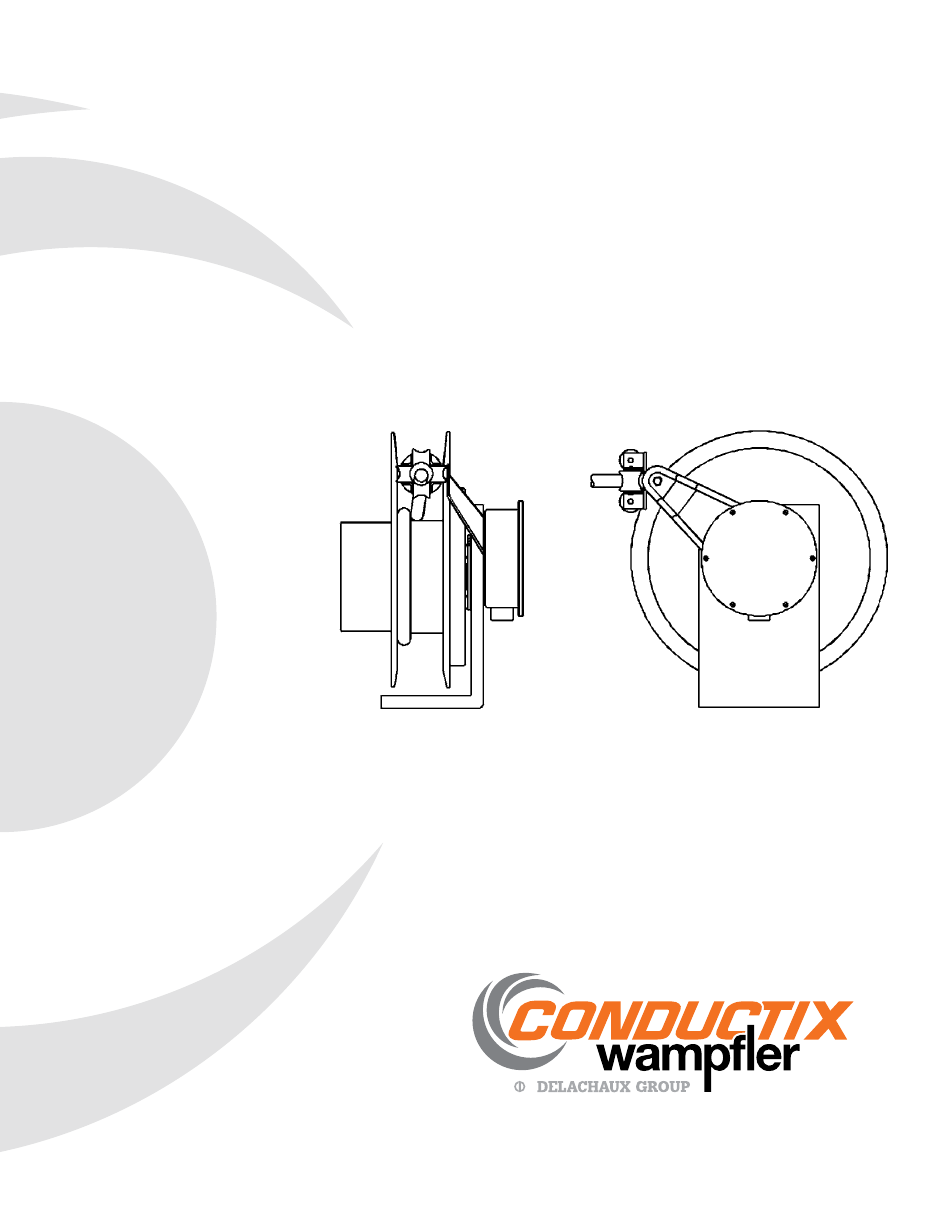

- Page 1 Cable reel NC & NY P/N 962400 2008.10.13 rev. 7 NC & NY Cable reel maNual...
- Page 2 Seller shall have the right to elect to defend any such suit or action for the account of Buyer. The foregoing shall be the exclusive remedies of the Buyer and all persons and entitles claiming through the Buyer. NC & NY Cable reel maNual P/N 962400 2008.10.13 rev. 7...
- Page 3 Index 1.0 Safety 2.0 Installation 3.0 adjustments 4.0 Storage 5.0 maintenance 6.0 Cable Data 7.0 Troubleshooting 8.0 replacement Parts NC & NY Cable reel maNual P/N 962400 2008.10.13 rev. 7...
-
Page 4: Electrical Warnings
1.3.3.4 The reel must be marked with the 90ºC temperature rating of the cord. NC & NY Cable reel maNual P/N 962400 2008.10.13 rev. 7... -
Page 5: Installation
2.2.2 In Pivot base mounting, the reel must turn and follow the hoist or crane as it moves through up to 330º arc of an open loop track. Mount the reel according to instructions in Section 2.2.1. All NC & NY REELS can be furnished with a pivot base mounting. -
Page 6: Cable Guides
15° 15° 2.4 ratchet (Optional) 2.4.1 Operation - The ratchet on the NC & NY Reel is spring loaded and designed to function whether the reel is mounted with base down, base up, or wall mounted. 2.4.2 ratchet removal - Remove the two 1/4”-28 x 7/16” hex head cap screws (see page 10). Drive the two ratchet pins (B1160) toward the spring housing until they drop free. -
Page 7: Maintenance
5.3.2.7 WarNING: exercise care to make sure that spring does not uncoil during removal. We recommend that a wire or tie wrap be slipped in and secured around the coils (from the center to the outside) so that it does not slip out of its coiled position. NC & NY Cable reel maNual P/N 962400 2008.10.13 rev. 7... - Page 8 5.6.1.7 Be sure reel brushes are free floating in the holders, that brush spring operates properly, and that the brush does not ride against the insulators of the slip ring. Check the brush surface for full contact seating on the slip ring surface. NC & NY Cable reel maNual P/N 962400 2008.10.13 rev. 7...
-
Page 9: Cable Data
SJOW-A/ SJOOW-A) with fine stranding for flex- ibility. White Green Black Resistant to oil, water and weather. Orange Black Orange Blue Black 600 Volts Blue Black Black NC & NY Cable reel maNual P/N 962400 2008.10.13 rev. 7... -
Page 10: Troubleshooting
4) Loss of brush contact with ring due to weak enclosure. brush spring, brush wear or excessive Rpm’s. 3) Check gasket seal. Addition of heater to prevent condensation. 4) Replace brush spring(s). NC & NY Cable reel maNual P/N 962400 2008.10.13 rev. 7... -
Page 11: Replacement Parts
8.0 Replacement Parts NC & NY Cable reel maNual P/N 962400 2008.10.13 rev. 7... - Page 12 Conductix-Wampfler 10102 F Street Omaha, NE 68127 Customer Support Phone: 800 521 4888 Fax: 800 780 8329 Phone: 402 339 9300 Fax: 402 339 9627 info.us@conductix.com www.conductix.com NC & NY Cable reel maNual P/N 962400 2008.10.13 rev. 7...
