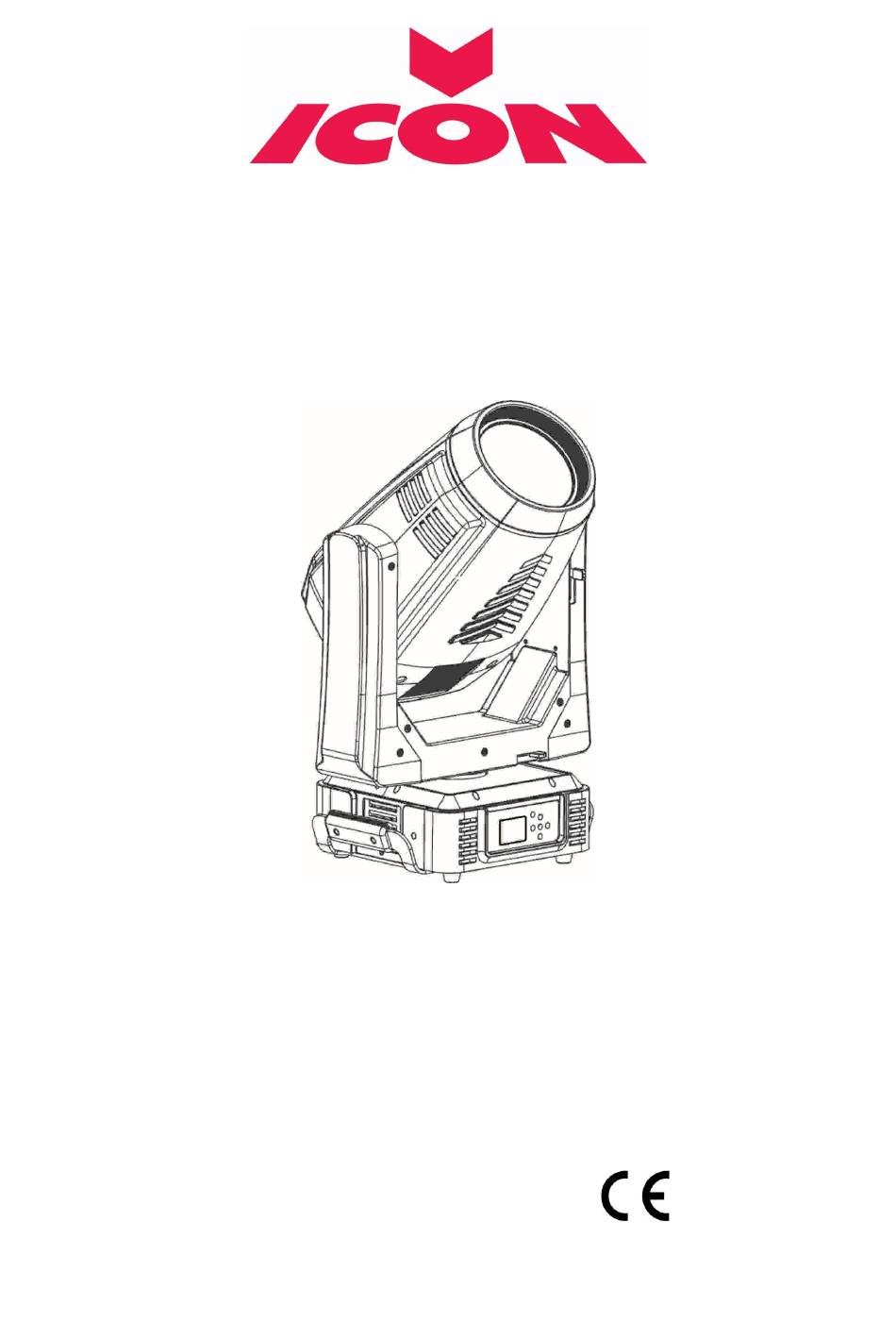

EDGE
USER MANUAL
KEEP THIS MANUAL FOR FUTURE NEEDS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EDGE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ICON EDGE

Summary of Contents for ICON EDGE

  • Page 1 EDGE USER MANUAL KEEP THIS MANUAL FOR FUTURE NEEDS...

  • Page 2: Table Of Contents

    CONTENTS SAFETY INSTRUCTIONS FEATURES FIXTURE OVERVIEW DIMENSIONAL DRAWINGS INSTALLATION INSTRUCTIONS DMX-512 CONTROL CONNECTION DMX-512 CONNECTION WITH DMX TERMINATOR DEVICE DMX START ADDRESS SELECTION DISPLAY 10. DMX PROTOCOL 11. ERROR MESSAGES 12. CLEANING AND MAINTENANCE ICON EDGE USER MANUAL...

  • Page 3: Safety Instructions

    If you are concerned, please contact your distributor. 9) Do not focus the beam onto flammable surfaces. The minimum distance between the exiting lens of the device and the illuminated surface must be greater than 10 metres. ICON EDGE USER MANUAL...
  • Page 4 If this device is operated in any way different to the ones described in this manual, the product may suffer damage and the warranty becomes void. Furthermore, any other operation may lead to short-circuits, burns, electric shocks etc. ICON EDGE USER MANUAL...

  • Page 5: Features

    Reset DMX address, remote lamp switch, reset can all be done by the controller Running time of fixture on display for reference OTHER SPEC Input signal isolation: guarantees stable signal transmission without interference Advanced RDM function WEIGHT Net weight: 29.8 kg ICON EDGE USER MANUAL...
  • Page 6 DMX CHANNEL DATA IMAGE ICON EDGE USER MANUAL...

  • Page 7: Fixture Overview

    1） Lens 2） Display 3） Mode/Esc-button 4） Left-button 5） Down-button 6） ENTER-button 7） Right-button 8） Up-button 9） RJ45 in 10） RJ45 out 11） DMX in 12） DMX out 13） Power in 14） Power out 15） Fuse ICON EDGE USER MANUAL...

  • Page 8: Dimensional Drawings

    DIMENSIONAL DRAWINGS ICON EDGE USER MANUAL...

  • Page 9: Installation Instructions

    Do not install lamps with a higher wattage. They generate higher temperatures than which the device was designed for. WARNING! THE BULB SHOULD BE REPLACED WHEN DAMAGED OR HEAT DISTORTION. CAUTION! DISCONNECT THE FIXTURE FROM POWER AND ALLOW IT TO COOL FOR ONE HOUR ICON EDGE USER MANUAL...
  • Page 10 7) Replace the back plate and tighten screw A, B, C, D. 8) Please reset the lamp life-time. Otherwise it is likely to trigger the protecting firmware of the system to make the replaced lamp close itself automatically. ICON EDGE USER MANUAL...
  • Page 11 If you lack these qualifications, do not attempt the rigging of this device yourself. Improper installation/ rigging can result in serious bodily injury.  Before rigging, make sure that the installation area can hold a minimum point load of 10 times the device’s weight. ICON EDGE USER MANUAL...
  • Page 12 Pull the safety cable through the holes on the bottom of the base and over the trussing system or another suitable rigging point. Insert the end into the carabiner and tighten the safety screw. Important: This step is very important to ensure safe rigging of the fixture. ICON EDGE USER MANUAL...
  • Page 13 If you lack these qualifications, do not attempt the rigging of this device yourself. Improper installation/ rigging can result in serious bodily injury. ICON EDGE USER MANUAL...
  • Page 14 Disassemble 3: Pull out the CMY module about 30mm, unplug power cord from socket J and signal wire from K. Install 2 or 5: Push along the CMY module into the slot about 90mm, plug the power cord into socket J and signal wire into socket K. ICON EDGE USER MANUAL...
  • Page 15 Disassemble 4: Pull out CMY module L until this bulkhead is separated from the fixture. This is all for the disassembling CMY module. Install 1 or 4: Push along the CMY module L into the slot steadily. Installation of CMY module is the backward procedure from 1-4. ICON EDGE USER MANUAL...
  • Page 16 Disassemble 6: Pull out the gobo assembly about 60mm, unplug the power cord from socket O, and signal wire from socket P. Install 2: Push along the gobo assembly into the slot about 50mm, plug the power cord into socket O and signal wire into socket P. ICON EDGE USER MANUAL...
  • Page 17 & color assembly disassembling. Install 1: Push along the gobo & color assembly Q into the socket. Pattern assembly installation is the backward procedure from 1-3. Last but not the least, install the CMY module in the end 4-7. ICON EDGE USER MANUAL...

  • Page 18: Dmx-512 Control Connection

    The DMX terminator is an XLR plug with a 120 Ω resistor connected between pins 2 and 3, which is then plugged into the output (female) XLR socket of the last fixture in the chain. Please see illustrations below. ICON EDGE USER MANUAL...

  • Page 19: Device Dmx Start Address Selection

    The Display does not need external power to operate. Hold down the -button for 3 seconds and the Display will turn on by using the unit’s battery built in battery. ICON EDGE USER MANUAL...
  • Page 20 Default Fade out 60 seconds Software Version V1.1.0…… ARTNET ARTNET XXX. XXX. XXX. XXX XXX. XXX. XXX. XXX Need Password 50 Info Cross load SW Default Total Run Time XXXX (Hours) Last Run Time XXXX (Hours) ICON EDGE USER MANUAL...
  • Page 21 Pan XXX Individual Function Tilt Tilt XXX … … Test Manual Control Pan, Tilt, …… Password Calibrate TILT Need Password 50 Strobe Color Wheel …… Clean Focus Clean 8 Prism Clean Mode Clean Line Prism Clean Zoom ICON EDGE USER MANUAL...
  • Page 22 “Pan and Tilt”. Press ENTER. 2． Press <Up/Down>, the display will show “Pan Reverse”. 3． Press< ENTER>, the display will show “Pan Reverse”. 4． The display show “OFF, Press <Up/Down>, the display will show “ON”. ICON EDGE USER MANUAL...
  • Page 23 Press ENTER. Tap the <Up/Down>button until the display will show “Automatic On”. Press ENTER, the display will show “Automatic On”. 2． Press <Up/Down>, the display will show “OFF”or“ON”. 3． Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu. ICON EDGE USER MANUAL...
  • Page 24 1． Tap <MODE/ESC> button ， access the main menu ， Press the <Up/Down>button until“Communication”is displayed. Press <ENTER>. Tap the <Up/Down>button until“Read DMX Value”is displayed. Press ENTER. 2． The display show “All Control……”. ICON EDGE USER MANUAL...
  • Page 25 Press ENTER. Tap the <Up/Down>button until the display shows “Total Run Time”. Press ENTER, the display will show “Total Run Time”. 2． The display will show “XXXXh” (Hours). 3． Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu. ICON EDGE USER MANUAL...
  • Page 26 2． Press <Up/Down>, until the display shows “Self Test”. 3． Press< ENTER>. 4． The display show“All”, Press <Up/Down>, the display will show“Internal Functions”, “Movement”, “Individual Function”. 5． Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu. ICON EDGE USER MANUAL...

  • Page 27: Dmx Protocol

    TILT Movement 8bit : 0-255 Tilt Movement Tilt Fine 16bit 0-255 Fine control of Tilt movement Color Wheel and colour change to any position: Colour change to any position 0-209 Color 1 13-15 Color 2 27-29 Color 3 41-43 ICON EDGE USER MANUAL...
  • Page 28 Beam mode 128-255 Spot mode Rotating gobos, cont. rotation : 0-21 Open/hole 22-31 Rot. gobo 1 32-41 Rot. gobo 2 42-51 Rot. gobo 3 52-61 Rot. gobo 4 62-71 Rot. gobo 5 72-81 Rot. gobo 6 ICON EDGE USER MANUAL...
  • Page 29 Gobo 2 shake slow to fast 118-123 Gobo 3 shake slow to fast 124-129 Gobo 4 shake slow to fast 130-135 Gobo 5 shake slow to fast 136-141 Gobo 6 shake slow to fast 142-147 Gobo 7 shake slow to fast ICON EDGE USER MANUAL...
  • Page 30 Counter clock-wise rotation from slow to fast Rotating linear prism indexing Fine 0-255 Fine indexing Zoom : 0-255 Zoom adjustment from small to big Zoom Fine: 0-255 Zoom adjustment Fine Focus : 0-255 Continuous adjustment from near to far ICON EDGE USER MANUAL...
  • Page 31 Dimmer intensity fine Frost: 0-127 Disable frost 128-255 Enable frost Control: 0-29 no function 30~39 blackout by movement 40-59 Lamp on 60-79 Lamp switch off 80-139 All motor reset 140-199 Pan/TILT reset 200-255 other motor reset ICON EDGE USER MANUAL...

  • Page 32: Error Messages

    (Fix Gobo wheel- error) This message will appear after the reset of the fixture if the head’s magnetic-indexing circuit malfunctions (sensor failed or magnet missing) or the stepper motor is defective (or its driving IC on the main PCB). The GOBO2- movement is not located in the default position after the ICON EDGE USER MANUAL...
  • Page 33 (sensor failed or magnet missing) or the stepper motor is defective (or its driving IC on the main PCB). The FOCUS - movement is not located in the default position after the reset. ICON EDGE USER MANUAL...

  • Page 34: Cleaning And Maintenance

    We recommend frequent cleaning of the device. Please use a moist, lint- free cloth. Never use alcohol or solvents. Please refer to the instructions under “Installation instructions”. Should you need any spare parts, please order genuine parts from your local dealer. ICON EDGE USER MANUAL...
