Kystar KS8000 User Manual

Multi-picture stitching processor

Advertisement

Quick Links

Multi-picture stitching processor
KS8000
user's manual
Beijing Kystar Technology Co., Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KS8000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Kystar KS8000

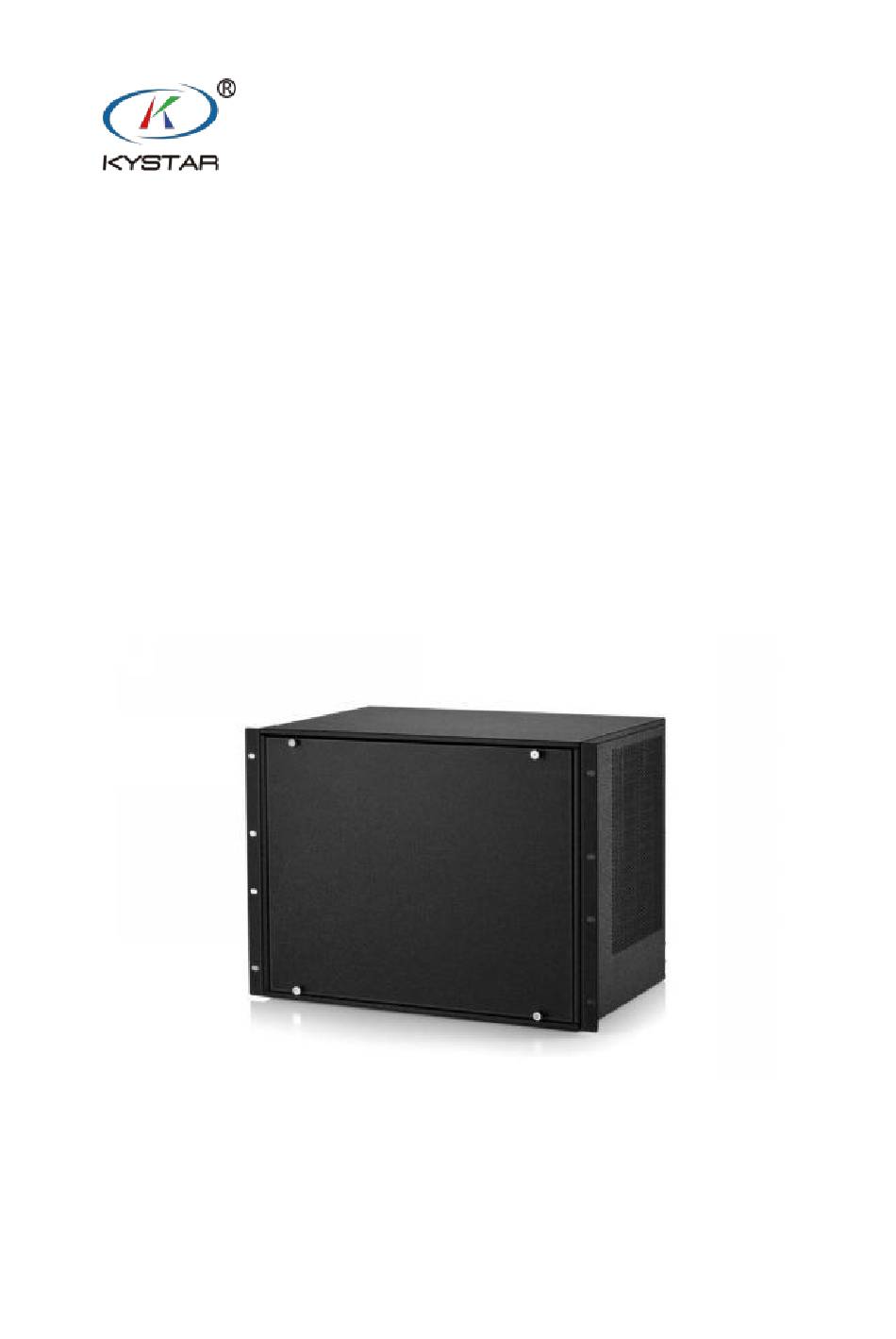

  • Page 1 Multi-picture stitching processor KS8000 user's manual Beijing Kystar Technology Co., Ltd.
  • Page 2 Safety Precautions Danger ● There is high voltage in the equipment. Non-professional maintenance personnel must not open the back cover to avoid danger. Warning ● This equipment is not waterproof, please do waterproof treatment in humid environment; ● The device must not be near fire or high temperature environment; ●...
  • Page 3: Table Of Contents

    Directory 1、Introduction ......................2 2、Hardware introduction ..................... 3 1、Introduction of the rear panel ................3 2、Connection diagram ..................4 3、Software installation ....................5 4、Device connection ....................6 1、Open the Software ................... 6 5、Software settings ....................10 1、Output settings ....................10 2、Establishment of paintings ................
  • Page 4: 1、Introduction

    KS8000 manual www.kystar.com.cn Introduction This product is the industry's first truly multi-window splicer. It is a professional video processing and control device. It is a splicing controller specially designed for large-screen, projection, LCD and other devices. The multi-screen mosaic processor developed by our company adopts FPGA pure hardware architecture without any operating system.
  • Page 5: 2、Hardware Introduction

    KS8000 manual www.kystar.com.cn 2.Hardware introduction 1. Introduction of the rear panel ① ② ③ ④ 1. Input board: It can support DVI, VGA, CVBS, HDMI, SDI, IP stream, 4K and other signal inputs, and can expand up to 216 channels.
  • Page 6: 2、Connection Diagram

    KS8000 manual www.kystar.com.cn Connection diagram...
  • Page 7: 3、Software Installation

    KS8000 manual www.kystar.com.cn 3.Software Installation Insert the CD-ROM included in the product's junction box into the CD-ROM drive. You can view the contents of the CD-ROM in the file manager. Double-click to enter the following installation interface: After selecting the installation language, click OK to enter the installation wizard...
  • Page 8: 4、Device Connection

    KS8000 manual www.kystar.com.cn 4.Device connection 1.open the software Double-click the software shortcut on the desktop to open the software and enter the software startup page, as shown in the figure below: Just click OK without password for the first time. If you set a password, you need to enter the password correctly to enter the software.
  • Page 9 KS8000 manual www.kystar.com.cn Click "Connect Device", the "Communication Settings" window pops up, as shown in the figure below: This software can choose NET or COM two connection methods, choose different connection methods to prepare different work. (1) Select NET connection...
  • Page 10 KS8000 manual www.kystar.com.cn I. Wiring Use a CAT5 network cable, with one end connected to the processor's LAN port and one end connected to the PC's network port (can also be connected through a switch). II. Modify the IP of the local connection Under Windows 7 system, you can find the local connection through Start →...
  • Page 11: 5、Software Settings

    KS8000 manual www.kystar.com.cn Use the supplied RS232-RJ11 connection cable. One end is connected to the COM1 port of the processor, and the other end is connected to the serial port of the PC (supports USB to nine-pin serial port). II. Modify COM port In software communication, "optional COM connection":...
  • Page 12 KS8000 manual www.kystar.com.cn After the device is successfully connected, click "Screen Configuration" under the "Main Function Area" to pop up the screen parameter setting interface. The six dotted field boxes in the operation area correspond to the device output ports (from left to right as seen from the back).
  • Page 13: 2、Establishment Of Paintings

    KS8000 manual www.kystar.com.cn P: "Synchronize all screen brightness" This option is marked with a check mark to indicate that the modified color value is for all output ports. Remove the check mark to adjust the color for a single output port.
  • Page 14 KS8000 manual www.kystar.com.cn With the above settings, the entire large screen has been stitched together. The gray area represents the entire large screen. How to display it on the large screen requires the creation of a picture. Here is an example of how to create a picture with 2 rows and 2 examples.
  • Page 15 KS8000 manual www.kystar.com.cn classification Function description Archive the currently set parameters, a total of 12 gears Save settings Sticky Bring the current window to the top Set at the end Bring the current window to the bottom Attributes Set the properties of the current window Panorama →...
  • Page 16 KS8000 manual www.kystar.com.cn The property settings mainly include the following three items: signal source selection, picture parameters, and partial display. Signal source selection is to select the desired signal source for the current window, or you can directly click the signal source in the signal source column on the left to switch the signal.
  • Page 17: 3、Mode Saving And Recall

    KS8000 manual www.kystar.com.cn Mode saving and recall I.Model save Click the save mode in the main function area, and the save mode setting window pops up, as shown in the figure below: In this interface, you can change the mode ID according to your needs, that is, the mode you want to save to, or you can change the mode name according to your needs.
  • Page 18: 6、Frequently Asked Questions

    KS8000 manual www.kystar.com.cn II. Mode call Click the left side of the software interface, and double-click the corresponding mode to invoke the mode. P: Right-click the user mode to modify the name of this mode, which is more intimate and convenient.
  • Page 19 KS8000 manual www.kystar.com.cn source is generally a camera, DVD, TV box, karaoke machine, video matrix and other equipment; USB:Universal Serial Bus is an external bus standard used to regulate the connection and communication between computers and external devices. It is an interface technology applied in the field of PC.
  • Page 20 KS8000 manual www.kystar.com.cn Q6:The large screen of the graphics card directly connected to the sending card is normal, and the screen will be black after connecting to the video processor. A: Observe whether the sending card indicates that the green light is blinking normally.
  • Page 21: Attachment:settings For Graphics Card Copy Mode And Extended Mode

    KS8000 manual www.kystar.com.cn Attachment:Settings for graphics card copy mode and extended mode 1、AMD graphic card(XP system) Right-click on a blank space on the desktop → Properties → Settings → Advanced → Enter the graphics driver control panel → Monitor management → Right-click →...
  • Page 22 KS8000 manual www.kystar.com.cn 2、NVIDA graphic card(XP system) Right-click on the blank space on the desktop → Properties → Settings → Advanced → Enter the graphics driver control panel → Set “Multiple Monitors” → Select Copy / Extended Mode.
  • Page 23: 3、Win7、Win8 System

    KS8000 manual www.kystar.com.cn 3、Win7、Win8 system Right click on the computer desktop-screen resolution-multiple monitors-check the copy / horizontal pan mode. Note: Please make sure that the graphics card driver is installed properly. The graphics card driver can be downloaded from the official website of the graphics card...
