  • Page 1: Quick Start Guide

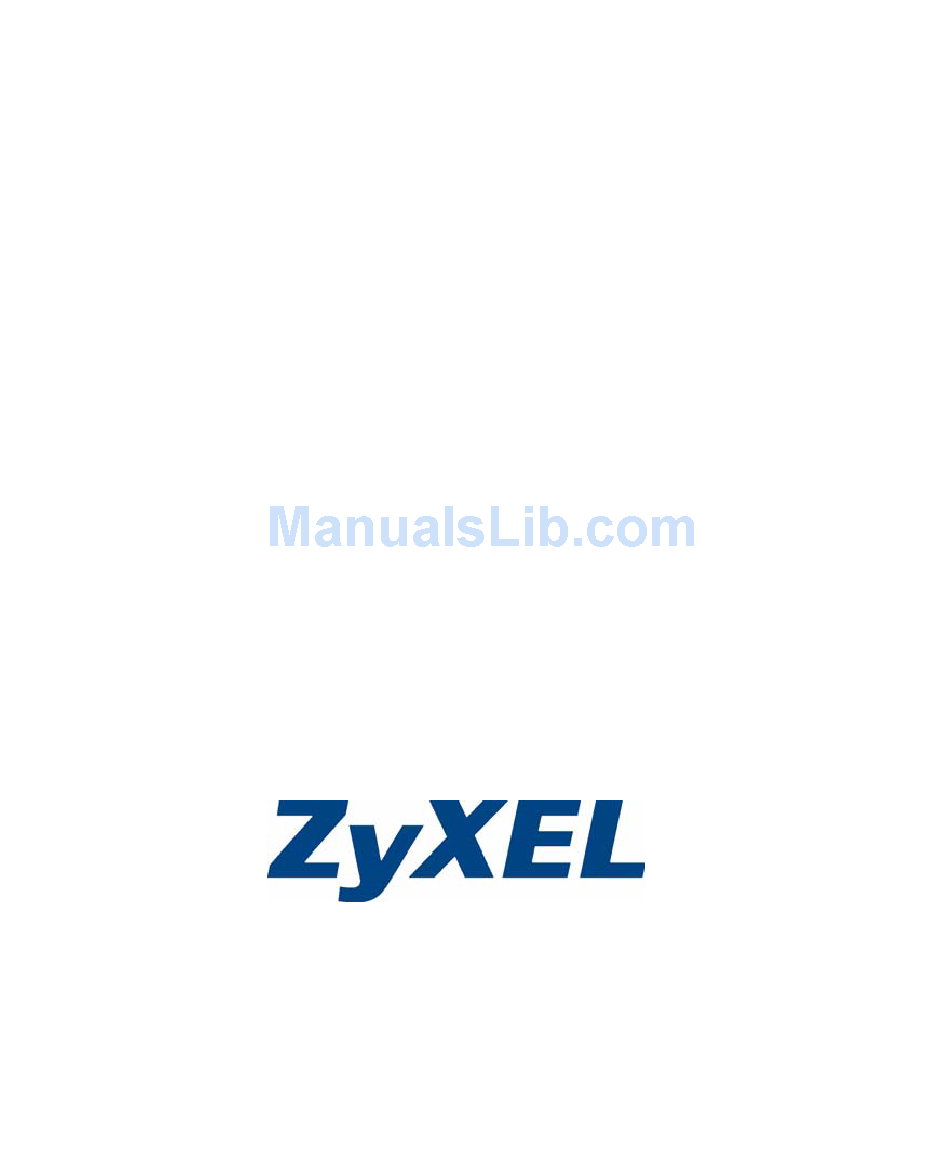

    G-3000H 802.11g Wireless Access Point Quick Start Guide Version 3.50 11/2005...

  • Page 2: Hardware Connections

    Overview The ZyAIR G-3000H offers highly secured wireless connectivity to your wired network with IEEE 802.1x, Wi-Fi Protected Access, WEP data encryption and MAC address filtering. This Quick Start Guide shows how to set up and configure the ZyAIR to allow wireless clients to access your wired network. See your User’s Guide for more information.

  • Page 3: Accessing The Web Configurator

    Do the following to make hardware connections for initial setup. 1 Using an Ethernet cable, connect the ETHERNET port to a computer for initial configuration. 2 Connect the POWER 12VDC socket to a power source using only the included power adaptor for your region.
  • Page 4 2.1 Set Up Your Computer’s IP Address This section shows you how to assign your computer a static IP address in the 192.168.1.2 to 192.168.1.254 range with a subnet mask of 255.255.255.0. This ensures that your computer can communicate with your ZyAIR.
  • Page 5 Note: Even though you can connect to the ZyAIR wirelessly, it is recommended that you connect your computer to the ETHERNET port for initial configuration. 1 Launch your web browser. Enter 192.168.1.2 (the ZyAIR’s default IP address) as the address. 3 Change the login password by entering a new password and clicking Apply.

  • Page 6: Internet Access Setup

    5 Click WIZARD SETUP in the MAIN MENU screen. 3 Internet Access Setup Use the setup wizard to configure your ZyAIR for wireless stations to access your wired LAN. Note: Click Next in each screen to continue or click Back to return to the previous screen. Your settings are not saved when you click Back.
  • Page 7 Note: The wireless stations and ZyAIR must use the same SSID, channel ID and WEP encryption key (if WEP is enabled) for wireless communication. Enter a descriptive name to identify the ZyAIR in the wireless LAN. Click Scan to have the ZyAIR automatically select a channel and display it in the Channel ID field.

  • Page 8: Attaching Antennas

    4 Change the wireless parameter settings in the wireless stations to match those of the ZyAIR. Refer to your wireless adapter’s documentation. This is the final wizard screen. You may return to the MAIN MENU and continue to configure your ZyAIR. 4 Hardware Installation 4.1 Attaching Antennas Note: When facing the front of the ZyAIR, the right antenna (main antenna) transmits and receives, the...
  • Page 9 Free-standing Place your ZyAIR on a flat, level surface (on a desk or shelf) that is strong enough to support the weight of the ZyAIR with connection cables. Wall-mounted Follow the steps to attach your ZyAIR to a wall. 1 Locate a high position on the wall that is free of obstructions. 2 Connect two screws (not included) in the wall 60mm apart.

  • Page 10: Power Over Ethernet (Poe)

    4 Align the holes on the back of the ZyAIR with the screws on the wall. Hang the ZyAIR on the screws. 5 Power over Ethernet (PoE) Power over Ethernet (PoE) is the ability to provide power to your ZyAIR via an 8-pin CAT 5 Ethernet cable, eliminating the need for a nearby power source.
  • Page 11 Problem Corrective Action The ETHN LED is off. Check the cable connection to the ZyAIR ETHERNET port. Make sure your computer’s network card is working properly. I cannot access the Make sure the IP addresses and subnet masks of the ZyAIR and the computer are in web configurator.
