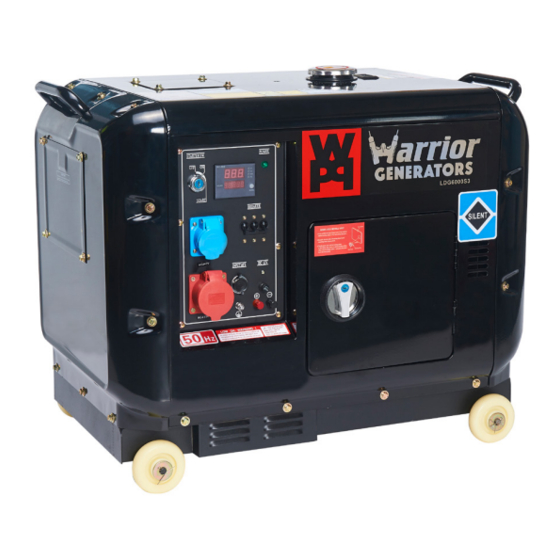

FOR MODELS:
6000S, 6000S3, 65000SV, 65000SV3
SAVE THESE INSTRUCTIONS. This manual contains important safety precautions which should be read and understood before operating
the product. Failure to do so could result in serious injury. This manual should remain with the product.
Specifications, descriptions and illustrations in this manual are as accurate as known at the time of publication but are subject to change
without notice.
REV 20200811
phone TECHNICAL SUPPORT: +44 (0)1942 715 407
Warrior Power Equipment, Unit 17-18, Bradley Hall Trading Estate,Bradley Lane, Standish, Wigan, WN6 0XQ, United Kingdom
Operating Manual
Diesel Generators
ENGLISH
SVENSKA
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for WARRIOR 6000S
Summary of Contents for WARRIOR 6000S
- Page 1 Specifications, descriptions and illustrations in this manual are as accurate as known at the time of publication but are subject to change without notice. REV 20200811 Warrior Power Equipment, Unit 17-18, Bradley Hall Trading Estate,Bradley Lane, Standish, Wigan, WN6 0XQ, United Kingdom...
- Page 2 INTRODUCTION WPE DIESEL GENERATORS INTRODUCTION IMPORTANT Thank you for purchasing our product. This product is guaranteed against faulty manufacture Children should be kept at a safe distance from the for a period of 24 months from the date of purchase. generator and NEVER allowed to operate it.
- Page 3 FEATURES WPE DIESEL GENERATORS FEATURES IMPORTANT WPE Diesel generator possesses the following features: Please read and understand this operation manual to This series diesel generator adopts super-light type, air insure safe operation, and pay high attention to the cooled, 4-stoke direct injection diesel engine and has two following main points of operation otherwise it may starting options: cause personal injury and damage to equipment.
-
Page 4: Preparation Before Start
PREPARATION BEFORE START WPE DIESEL GENERATORS Batteries generate hydrogen gas, which can flames or – Make sure to check the oil level and to refill with oil to sparks near a battery, especially during charging. the specified level before starting the generator, even though it is equipped with a low oil pressure warning Charge the battery in a fully ventilated area. -
Page 5: Break-In Operation
OPERATION WPE DIESEL GENERATORS Break-in operation position, so that the receptical sockets can be used for operating equipment. While your generator is still new, application of heavy – NEVER try to switch between voltages when the AC loads may shorten the life of the engine. Follow the break- circuit breaker is ON and equipment plugged IN. -
Page 6: Operating Your Generator
OPERATION WPE DIESEL GENERATORS 5. If the starter motor doesn’t engage and turn over the 2. The speed of generator must reach rated speed engine after 10 seconds, please wait for about 30 (lever at top). seconds before attempting to start again and repeat 3. -
Page 7: Stopping The Generator
MAINTENANCE WPE DIESEL GENERATORS you should disconnect the cables at the generator WARNING first. If Generator doesn’t start after 3 attempts, 5. Charge the battery in a well ventilated place. Before steps 1-3 need to be REPEATED as well as general charging, remove the cap from each cell of the maintenance of oil level and fuel level need to be battery. - Page 8 STORAGE WPE DIESEL GENERATORS (ONLY). Remove the lock nut, end cap and diffuser EVERY 300 HOURS OR 6 MONTHS discs and clean the carbon deposit. — Tighten head bolts on engine* Checking and replenishing battery fluid and charging — Replace oil filter and battery (Monthly) —...
-
Page 9: Troubleshooting
TROUBLESHOOTING WPE DIESEL GENERATORS TROUBLESHOOTING Problem Cause Solution No fuel. Add fuel. The switch is not at “ON” position Turn it to “ON” position The high pressure fuel pump, Remove the injection nozzle out and repair injection nozzle cannot inject or it or bleed the fuel injection system. -
Page 10: Technical Specifications
TECHNICAL SPECIFICATIONS WPE DIESEL GENERATORS TECHNICAL SPECIFICATIONS MODEL: 6000S 6500S 6000S3 6500S3 Type Single Phase A.C Three Phase A.C Frequency (Hz) 50/60 50/60 Rated Power (kW) 5.0/5.5 5.6kVA 6.3/6.9kVA Max Power (kW) 5.5/6.0 6.2kVA 6.9/7.5kVA Voltage (A.C) 110, 115, 220, 230, 240, 11/220, 115/230, 120/240 240/415 Voltage (D.C) - Page 11 Specifications, descriptions and illustrations in this manual are as accurate as known at the time of publication but are subject to change without notice. REV 20200811 Warrior Power Equipment, Unit 17-18, Bradley Hall Trading Estate,Bradley Lane, Standish, Wigan, WN6 0XQ, United Kingdom...
- Page 12 INTRODUKTION WPE DIESEL GENERATORS INTRODUKTION VIKTIGT! Tack för att du köpte vår produkt. Barn bör hållas utom räckhåll från elverket Denna produkt garanteras mot felaktig tillverkning under Ditt nya elverk kräver en inkörning under ca 10 en period av 24 månader från inköpsdatumet. Förvara timmar.
- Page 13 FUNKTIONER WPE DIESEL GENERATORS FUNKTIONER VIKTIGT! WPE Dieselelverk innhar följande funktioner: Vänligen läs och förstå instruktionerna i denna manual Serien med dieselelverk är av supertyst, lättvikt, luftkyld för att kunna använda ditt elverk på ett säkert sätt. och direktinsprutad 4-takts motor. De är utrustade med Användande på...
- Page 14 FÖRBEREDESLSER INFÖR START WPE DIESEL GENERATORS innan start - även om elverket har en automatisk VARNING! avstängning vid låg olja. Lär dig hur du stoppar elverket snabbt och hur – Om motorn inte startar på femte försöket eller startar reglagen fungerar.
- Page 15 Rester av detta kan dock finnas eftersom varje 3. Dra i startsnöret tills du känner ett motstånd och för Warrior-elverk testkörs innan det säljs för att du som det sedan tillbaka. kund skall vara trygg i att det fungerar.
- Page 16 DRIFT WPE DIESEL GENERATORS Batteriet omfattas endast av ett års garanti. 2. Starta motorn 3. Anslut laddningskablaget till batteripoolerna och till Användande elverket. Anslut pluspoolen till pluspoolen på elverket. Förväxla inte polariteten - det kan skada både batteri 1. Värm upp motorn utan att koppla in last under tre och elverk.
- Page 17 UNDERHåLL WPE DIESEL GENERATORS VARNING! VAR 300:E TIMME ELLER VAR SJÄTTE MåNAD — Skruva åt bultar* När elverket inte används eller är avstängt skall — Byt oljefilter nyckeln alltid stå i läge OFF. — Byt luftfilter VARNING! — Rengör bränslefilter ...
- Page 18 FÖRVARING WPE DIESEL GENERATORS 2. Lossa de små clipsen på bränsleledningarna. Ta bort bränslefiltret och spola igenom slangarna med ny diesel. 3. Öppna bränslefiltret och gör rent det. Avlägsna all smuts och orenheter. Kontrollera och fylla på batterivätska samt ladda batteriet (månatligen) Detta dieselelverk har ett 12V startbatteri.
- Page 19 FELSÖKNING WPE DIESEL GENERATORS FELSÖKNING Problem Orsak åtgärd Inget bränsle Fyll på bränsle Brytaren är inte i läge ON Vrid den till ON Bränslepumpen eller spridarna Rengör insprutningen eller töm systemet kan inte ge tillräckligt med bränsle på bränsle alt bränslet är inte tillräckligt Gasreglaget är inte i läge RUN För det till läge RUN Motorn startar ej...
- Page 20 TECHNICAL SPECIFICATIONS WPE DIESEL GENERATORS TECHNICAL SPECIFICATIONS MODEL: 6000S 6500S 6000S3 6500S3 Type Single Phase A.C Three Phase A.C Frequency (Hz) 50/60 50/60 Rated Power (kW) 5.0/5.5 5.6kVA 6.3/6.9kVA Max Power (kW) 5.5/6.0 6.2kVA 6.9/7.5kVA Voltage (A.C) 110, 115, 220, 230, 240, 11/220, 115/230, 120/240 240/415 Voltage (D.C)
-
Page 21: Wiring Diagram
WIRING DIAGRAM WPE DIESEL GENERATORS WIRING DIAGRAM... -
Page 22: Engine Parts Diagram
ENGINE PARTS DIAGRAM WPE DIESEL GENERATORS ENGINE PARTS DIAGRAM... -
Page 23: Engine Parts List
ENGINE PARTS LIST WPE DIESEL GENERATORS ENGINE PARTS LIST... -
Page 24: Parts Diagram
PARTS DIAGRAM WPE DIESEL GENERATORS PARTS DIAGRAM... -
Page 25: Parts List
PARTS LIST WPE DIESEL GENERATORS PARTS LIST...
