CycleSafe WallRack Accessories Installation Manual

Advertisement

WallRack
Accessories
1. WallRack
"Wall-Plate"
A. Tools & Fasteners
• 3/8" Power Drill
• 1/8" x 3" Long Carbide Drill Bit
• T-30 Torx Bit {5/16" Screw}
• (3) 5/16" x 2-1/2" Long
Part #17505
• Pencil
• Tape Measure
• Stud Finder
• Blue Line or Laser Level
B. Installation:
a) Locate center of stud with Stud
Finder for placement of the first
WallRack #17502
b) Snap a line with the Blue Line or Laser and make a mark with pencil at
approximately 60" from the floor to the first mounting hole position
c) Hold rack straight and center hole over first mark position, the bottom hole and
mark the upper hole at 12" center to center, which would be the 1st hole down
from the top
d) Remove the rack and drill approximately 2-1/2" deep into drywall and stud with
1/8" x 3" Drill Bit on center of the (2) rack holes & (1) bottom hole
e) Align the
Wall-Plate #17621
& T-30 Torx Driver screw the
f) Now offset the next bottom Plate & Rack hole down by 12" vertical and 16"
center-to-center horizontal, depending on stud placement, yielding
approximately 48" from the rack bottom hole to the floor
g) Repeat steps "c" thru "e" completing on set of racks
h) Repeat steps "a" thru "g" as necessary to complete the wall installation using a
Blue Line or Laser Level

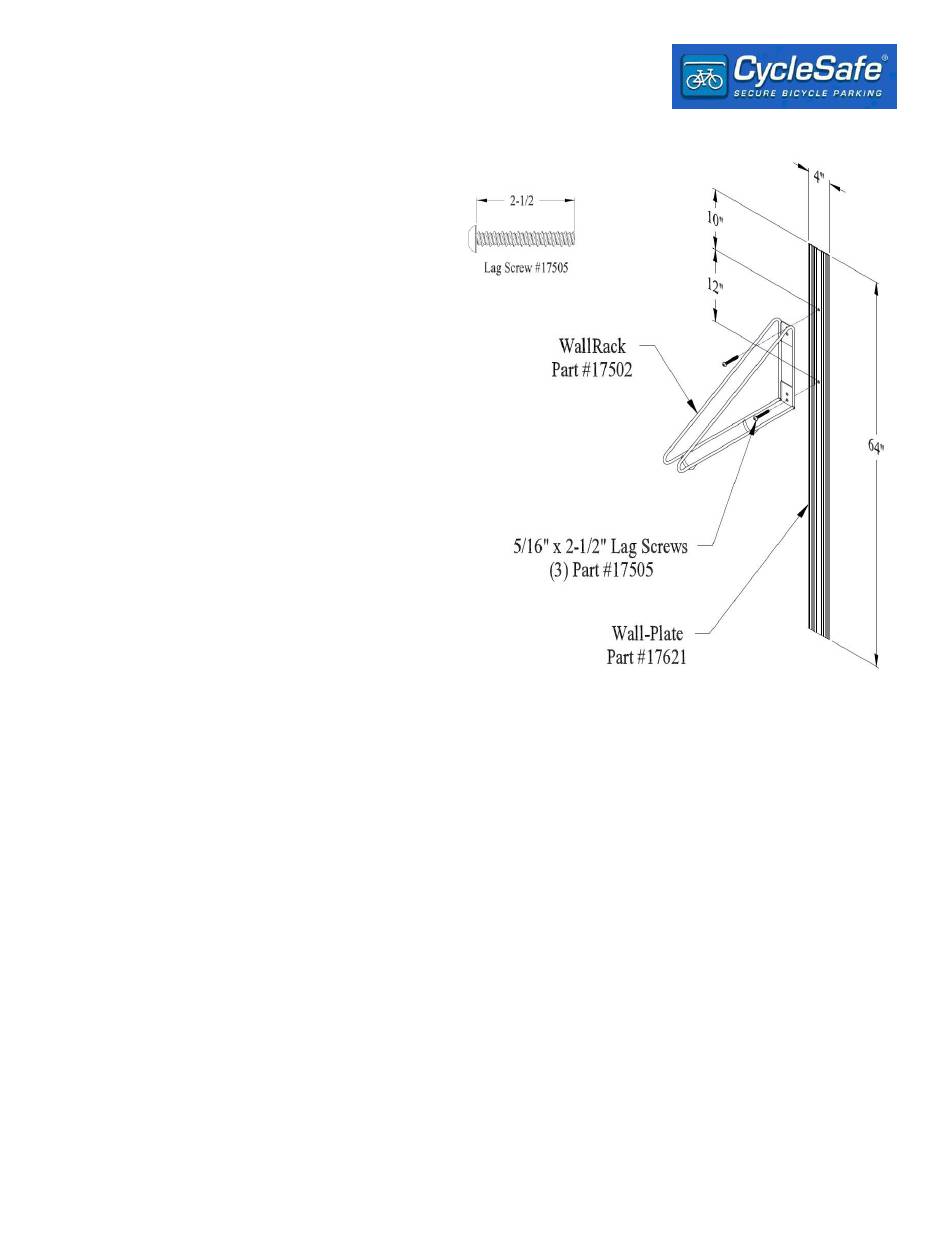

Installation:
Lag Screws
{Included}
Powder Coated or
&
WallRack #17502
(3) Lag Screws #17505
Page 1 of 5
WallRack #17503
Stainless Steel
with its holes and using the Drill
into the wall tightly
