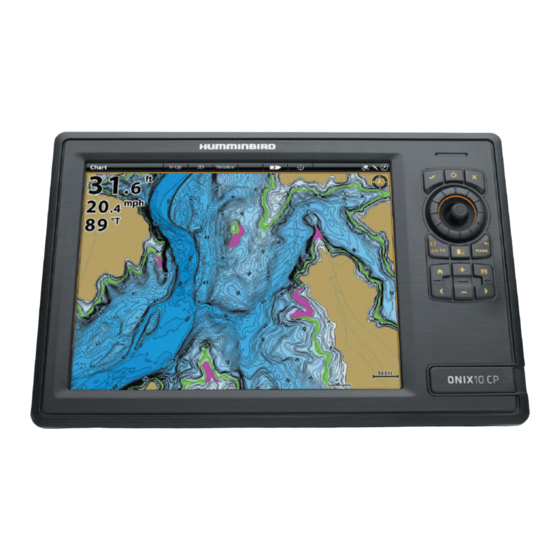

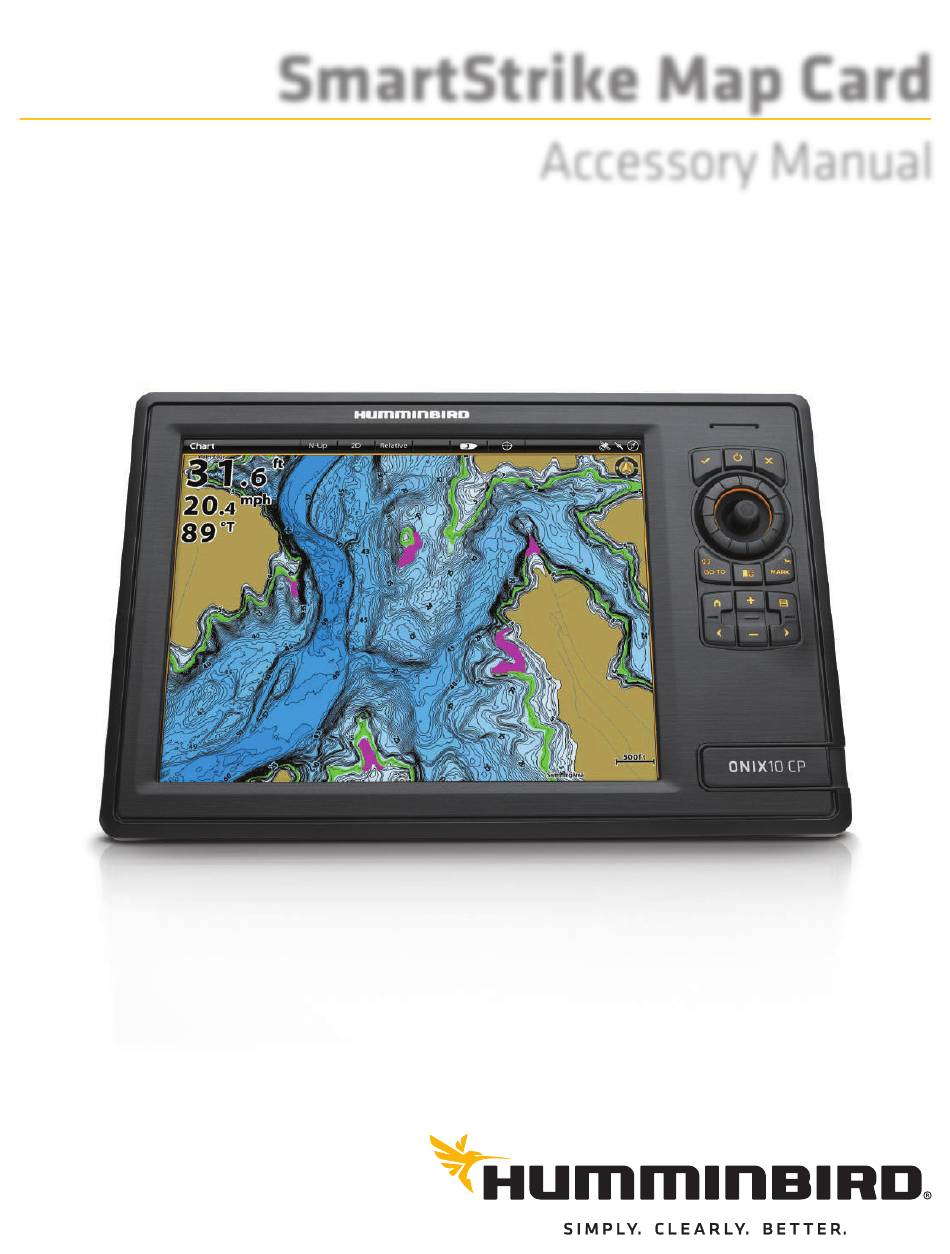

  • Page 1 SmartStrike Map Card Accessory Manual 532321-1EN_A...
  • Page 2 HANK Thank you for choosing Humminbird®, the #1 name in marine electronics. Humminbird has built its reputation by designing and manufacturing top quality, thoroughly reliable marine equipment. Your Humminbird is designed for trouble-free use in even the harshest marine environment. In the unlikely event that your Humminbird does require repairs, we offer an exclusive Service Policy.
  • Page 3 Cross Touch®, Humminbird®, i-Pilot® Link™, ION™, LakeMaster®, Minn Kota®, ONIX®, and SmartStrike™ are trademarked by or registered trademarks of Johnson Outdoors Marine Electronics, Inc. Adobe, Acrobat, Adobe PDF, and Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.

  • Page 5: Table Of Contents

    SmartStrike ..........8 Humminbird LakeMaster ........8 i-Pilot Link .
  • Page 7 Map Card to set specific search parameters, such as fish species and time of day, to locate fish. Search results will be highlighted in pink on the chart display. WARNING! Do NOT delete or change the lakes or LkMaster folders on the SmartStrike Map Card. Changing these folders will permanently damage the SmartStrike Map Card.

  • Page 8: Features

    EATURES SmartStrike The following features are exclusive to the SmartStrike Map Card and can be applied to Chart View and Chart Combo Views: Preset Searches allow you to choose a preselected search based on water depth and Preset Searches underwater structure. Also, use the Preset Searches menu to access your saved searches.

  • Page 9: Preparation

    REPARATION Perform the procedures in the following section to prepare your fishing system to use the SmartStrike Map Card. | Update your Control Head Software It is important to install the latest software update on your control head to enable SmartStrike.

  • Page 10: Getting Started

    ETTING TARTED Use the instructions in this section to get started using SmartStrike on your ONIX or ION control head. | Open the Chart View SmartStrike features are available in Chart View and Chart Combo views. You can open the Chart View from the Favorites bar or the Views tool.
  • Page 11 Open the Chart View from the Views Tool 1. From the Home screen, tap the Views tool. Use the Joystick to select the Views tool and press the ENTER key. 2. Under Groups, select Chart. 3. Tap the Chart View to display it on-screen. Use the Joystick to select the Chart View and press the ENTER key to display it on-screen.

  • Page 12: Open The Smartstrike Main Menu

    Proceed to procedure 3, Select Lake. NOTE: If SmartStrike is not displayed under the Info menu, confirm the SmartStrike Map Card is properly installed in one of the SD card slots on the control head. For additional assistance, visit our Web site at humminbird.com or contact Customer Service.

  • Page 13: Select Lake

    | Select Lake To use SmartStrike, you must first select the lake where you will be fishing. For larger lakes, there may be multiple menu options available for specific areas of the lake. You will be prompted to select a lake every time you power on your control head and open the SmartStrike menu. To change the selected lake during operation, see Changing the Selected Lake.

  • Page 14: The Smartstrike Main Menu

    MART TRIKE It is important to consider the following tips when using the SmartStrike Main Menu: • Menu Categories are displayed on the left side of the SmartStrike main menu. See the table SmartStrike Menu Categories for more information. • The currently selected menu category will display its menu options in the center of the SmartStrike main menu. •...

  • Page 15: Smartstrike Menu Categories

    SmartStrike Menu Categories Use Preset Searches to choose and execute a search with preselected search settings based on water Preset Searches depth and underwater structure. Also, use the Preset Searches menu to access your saved searches. See SmartStrike Preset Searches. Use Species Search to search the selected lake for a specific fish species.

  • Page 16: Smartstrike Preset Searches

    MART TRIKE RESET EARCHES Use SmartStrike Preset Searches to select and execute a search with preselected search criteria based on depth and underwater structure (see Preset Searches), or a previously saved search (see Saved Searches). The preset searches include preselected search settings (or search criteria), however, the settings can be customized. See Preset Searches: Execute a Preset Search for more information.

  • Page 17: Preset Searches

    Preset Searches SmartStrike Preset Searches include preselected search settings based on water depth and underwater structure. The search criteria is pre-selected, however, it can be customized before you execute the search. The available Preset Searches will vary based on the selected lake. For example, if you select a lake where the deepest water is 25 feet, the deep water Preset Searches may not be available.

  • Page 18: Saved Searches

    Saved Searches See the instructions below to select and execute a saved search. For more information about saving searches, or editing or deleting a saved search, see Managing your SmartStrike Searches. Execute a Saved Search Touch Screen Keypad 1. From the SmartStrike menu, tap Preset Searches. 1.
  • Page 19 Execute a Preset Search Use the following instructions to select and execute a Preset Search. 1. Select the Preset Search Touch Screen Keypad 1. From the SmartStrike menu, tap the Preset Searches 1. From the SmartStrike menu, use the Joystick to select menu tab.
  • Page 20 Selecting a Preset Search preset searches menu tab Under the chosen depth category (shallow, mid-depth, deep, or other), select a preset search. Executing a Preset Search After selecting the preset search, the Advanced Search The currently selected search menu will open. settings are displayed in yellow next to the menu option.

  • Page 21: Smartstrike Species Search

    MART TRIKE PECIES EARCH Use Species Search to search the selected lake for a specific fish species. The available fish species will vary based on the currently selected lake. NOTE: Species Searches cannot be saved. Species Search Menu selected lake close species search...

  • Page 22: Species Search Menu Options

    Species Search Menu Options See the table below for the available Species Search menu options. See Execute a Species Search for instructions on how to execute a Species Search. The available menu options will vary based on the currently selected lake. NOTE: Other Conditions and Time of Day will be grayed out in the Species Search menu until the Target Species and Time of Year have been selected.
  • Page 23 2. Select the Time of Year Touch Screen Keypad 1. From the Species Search menu, tap Time of Year to 1. From the Species Search menu, select Time of Year. open the submenu. 2. Press the ENTER key to open the submenu. 2.
  • Page 24 Selecting the Fish Species species search menu tab Select a fish species. Executing a Species Search The currently selected search settings are displayed in yellow next to the menu option. clear search settings execute search Tap to Select Select Confirm SmartStrike Species Search...

  • Page 25: Smartstrike Advanced Search

    MART TRIKE DVANCED EARCH Use Advanced Search to select your own search criteria. If you selected a Preset Search, the Advanced Search menu will automatically open after the Preset Search selection. This allows you to edit or add to the Preset Search settings (optional). See SmartStrike Preset Searches for more information. Advanced Search Menu selected lake close...

  • Page 26: Advanced Search Menu Options

    Advanced Search Menu Options See the table below for the available Advanced Search menu options. See Execute an Advanced Search for instructions on how to select settings and execute an Advanced Search. The available settings and values for some menu options will vary based on the selected lake. For example, the maximum depth value displayed under Depth will change to reflect the maximum depth of the currently selected lake.

  • Page 27: Execute An Advanced Search

    Execute an Advanced Search Use the following instructions to execute an Advanced Search. 1. Select the Search Settings Touch Screen Keypad 1. From the Advanced Search menu, tap a menu option 1. From the Advanced Search menu, use the Joystick to to open the submenu.
  • Page 28 Selecting a Menu Option to Open the Submenu advanced search menu tab advanced search menu options Selecting Search Settings selected menu option back close available search settings Tap to Select Select Confirm SmartStrike Advanced Search...

  • Page 29: Smartstrike Search Results

    MART TRIKE EARCH ESULTS After executing a SmartStrike search, the search results will be displayed in pink in the Chart View. See the illustration below. You can display or hide search results and adjust the transparency of the search results from the SmartStrike main menu. See below for instructions.

  • Page 30: Center The Search Results On The Display

    Center the Search Results on the Display To locate search results on the Chart View, select Center Data. Depending on the number of identified of search results and the size of the selected lake, the chart scale will automatically adjust to fit all identified search results on the display. 1.

  • Page 31: Executing Multiple Searches: Add Or Replace Search Results

    Executing Multiple Searches: Add or Replace Search Results When executing multiple searches, you can choose to either replace the previous search results with the new search results or combine the new search results and the existing search results displayed on screen. See the illustration below. 1.

  • Page 32: Changing The Selected Lake

    HANGING THE ELECTED You will be prompted to select the lake whenever you power on your unit and open the SmartStrike main menu. To change the selected lake during operation, use the instructions below. 1. Under the SmartStrike main menu, tap Select Lake. Use the Joystick to select Select Lake and press the ENTER key.

  • Page 33: Managing Your Smartstrike Searches

    ANAGING YOUR MART TRIKE EARCHES See the following sections for information and instructions on saving, editing, and deleting your SmartStrike searches. NOTE: Species Searches cannot be saved. Save a SmartStrike Search Save your customized Preset Searches or Advanced Searches using the instructions Selecting a Saved Search Slot in this section.

  • Page 34: Edit A Search Name Or Delete A Saved Search

    Edit a Search Name or Delete a Saved Search Use the following instructions to edit a saved search name or delete a saved search. Open the Edit Searches Menu 1. Open the SmartStrike main menu. 2. Select the Preset Searches menu. 3.

  • Page 35: Contact Humminbird

    ONTACT UMMINBIRD Contact Humminbird Customer Service in any of the following ways: Web site: humminbird.com E-mail: service@humminbird.com Telephone: 1-800-633-1468 Direct Shipping: Humminbird Service Department 678 Humminbird Lane Eufaula, AL 36027 USA Hours of Operation: Monday - Friday 8:00 a.m. to 4:30 p.m. (Central Standard Time) Social Media Resources: Facebook.com/HumminbirdElectronics...
