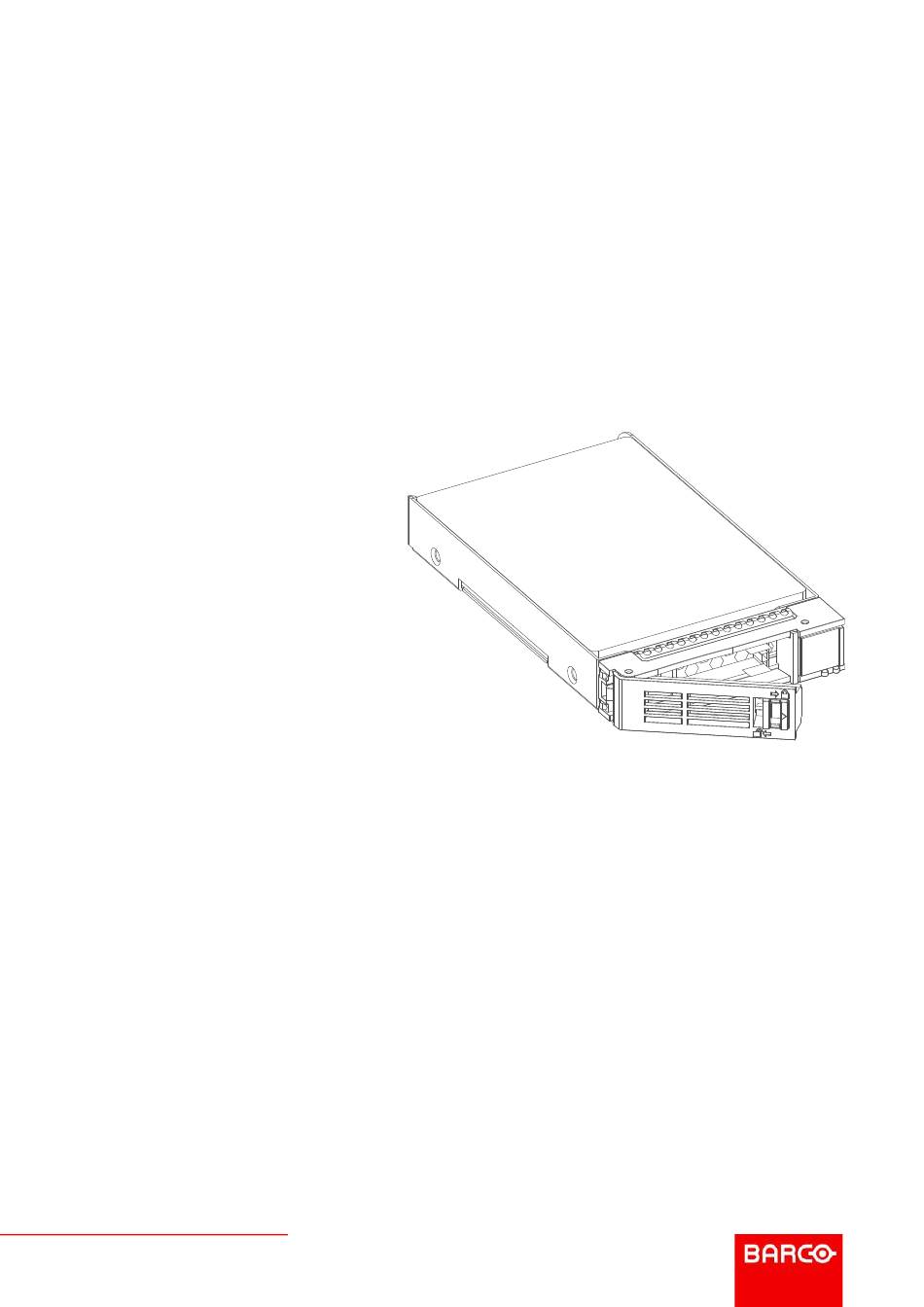

- Page 1 ICMP/ICMP-X HDD Installation manual ENABLING BRIGHT OUTCOMES...
- Page 2 Barco NV Beneluxpark 21, 8500 Kortrijk, Belgium www.barco.com/en/support www.barco.com Registered office: Barco NV President Kennedypark 35, 8500 Kortrijk, Belgium www.barco.com/en/support www.barco.com...
- Page 3 Changes Barco provides this manual 'as is' without warranty of any kind, either expressed or implied, including but not limited to the implied warranties or merchantability and fitness for a particular purpose. Barco may make improvements and/or changes to the product(s) and/or the program(s) described in this publication at any time without notice.
- Page 4 Barco. If the purchaser or a third party carries out modifications or repairs on goods delivered by Barco, or if the goods are handled incorrectly, in particular if the systems are operated incorrectly or if, after the transfer of risks, the goods are subject to influences not agreed upon in the contract, all guarantee claims of the purchaser will be rendered invalid.
-
Page 5: Table Of Contents
Table of contents 1 HDD(s) on ICMP ........................................7 General........................................8 ICMP HDD .......................................9 What are the possible HDD swaps ............................11 HDD status LEDs....................................12 Removing a HDD from the ICMP.............................14 Installing a HDD into the ICMP..............................15 R5905769 /04 ICMP/ICMP-X HDD... - Page 6 R5905769 /04 ICMP/ICMP-X HDD...
-
Page 7: Hdd(S) On Icmp
This installation manual explains how to replace malfunction HDD(s) of the Barco ICMP (Integrated Cinema Media Processor) installed in the field. Clarification of term “ICMP” used in this document When referring in this document to the term “ICMP” means that the content is applicable for following Barco products: •... -
Page 8: General
1.1 General Document overview This document gives a brief introduction into the ICMP HDD, provides in a table a summary of all types of HDD swaps available, describes the LED status of the HDD and describes the HDD removal and installation instructions. -
Page 9: Icmp Hdd
1.2 ICMP HDD About ICMP HDD The three HDDs (local storage) in the ICMP, are set up in a RAID 5 configuration. This storage technique, that combines multiple HDD components into a logical unit, manages enough redundancy information to continue to operate properly after the loss of one HDD. - Page 10 HDD storage capacity Make sure that all HDDs in the ICMP HDD set have the same storage capacity. See label on top of the HDD to know the storage capacity.
-
Page 11: What Are The Possible Hdd Swaps
HDD(s) on ICMP HDD models validated by Barco Only the original HDD spare parts provided by Barco or models validated by Barco (see list below) can be used in the ICMP. All deviations from this rule void warranty. HDD model... -
Page 12: Hdd Status Leds
HDD Status HDD idle / disk in RAID OK. Blinking green HDD I/O activity / disk in RAID OK. Blinking green Slow blinking HDD disks not (yet) initialized (not supported on ICMP with GEN1 storage controller). R5905769 /04 ICMP/ICMP-X HDD... - Page 13 HDD idle / Disk error. Consult the following troubleshooting table for curative actions. When entering a new HDD in an ICMP, the HDD RAID LED will be full red for a short time. This is not an error, the HDD has not yet been “recognized” by the projector and ICMP.
-
Page 14: Removing A Hdd From The Icmp
If problem remains contact Service for further instructions. In case the ICMP has to be returned to factory (e.g. for repair) the non defective HDDs should be removed and kept. 1.5 Removing a HDD from the ICMP In case the ICMP has to be returned to factory (e.g. -
Page 15: Installing A Hdd Into The Icmp
Re-initialization or rebuild of RAID Installing or exchange one or several HDDs into ICMP has an impact on data presents on the already inserted drives. RAID integrity depends on the type of HDD swap. Refer to the chapter “What are the possible HDD swaps ”, page 11. - Page 16 Image 1-11 Switch on the projector. In case you replace one HDD (e.g. degraded mode) the ICMP automatically starts with the RAID recovery process. The red LED of the HDD which has to be rebuilt is blinking. This process takes about 200 GB per hour.
- Page 17 HDD(s) on ICMP R5905769 /04 ICMP/ICMP-X HDD...
- Page 18 R5905769 /04 | 2019–10–21 Barco NV | Beneluxpark 21, 8500 Kortrijk, Belgium Registered office: Barco NV | President Kennedypark 35, 8500 Kortrijk, Belgium www.barco.com...
