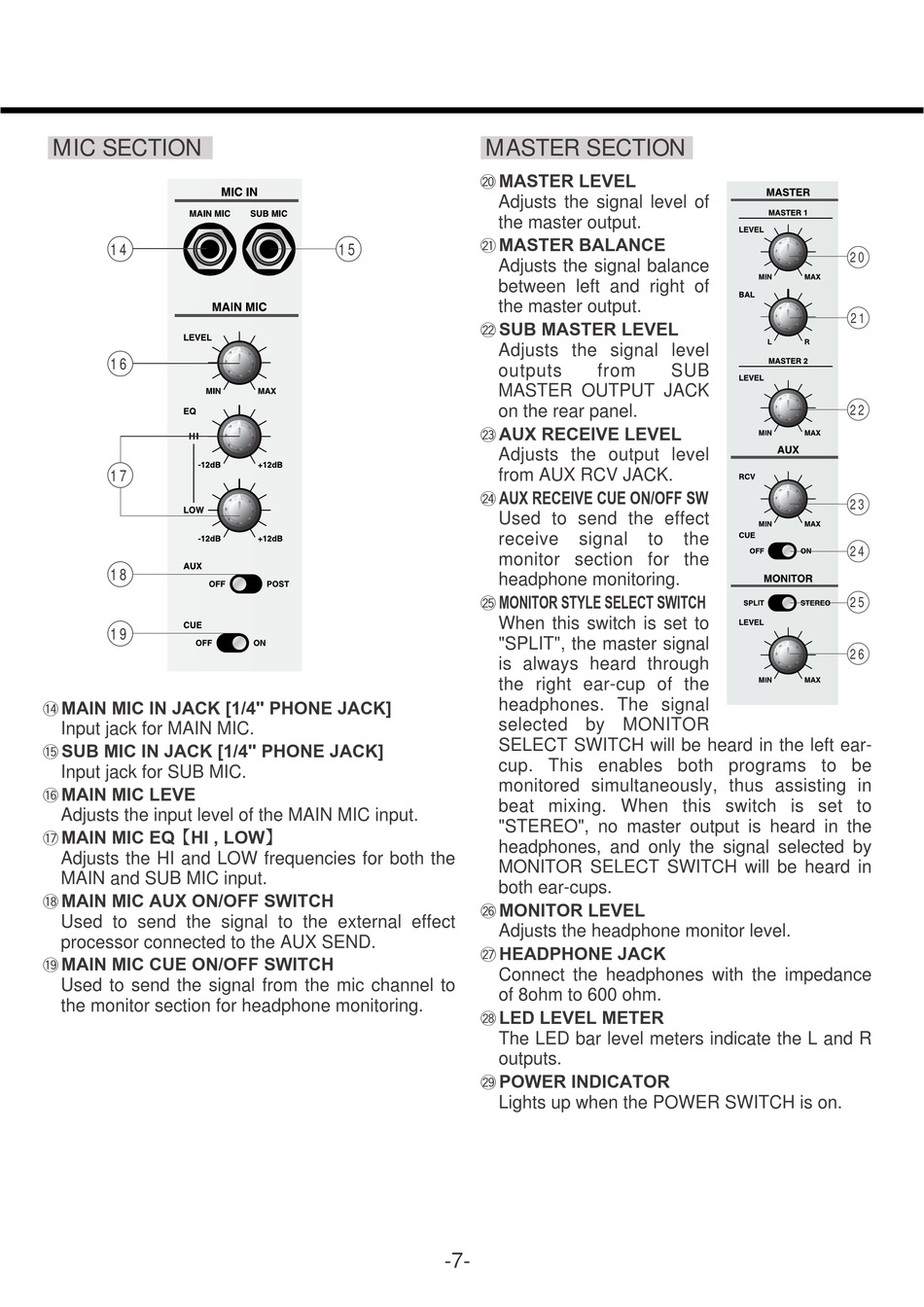

MIC SECTION

14
16
17
18
19
MAIN MIC IN JACK [1/4" PHONE JACK]
!4
Input jack for MAIN MIC.
SUB MIC IN JACK [1/4" PHONE JACK]
!5
Input jack for SUB MIC.
MAIN MIC LEVE
!6
Adjusts the input level of the MAIN MIC input.
MAIN MIC EQ 【HI , LOW】
!7
Adjusts the HI and LOW frequencies for both the
MAIN and SUB MIC input.
MAIN MIC AUX ON/OFF SWITCH
!8
Used to send the signal to the external effect
processor connected to the AUX SEND.
MAIN MIC CUE ON/OFF SWITCH
!9
Used to send the signal from the mic channel to
the monitor section for headphone monitoring.

MASTER SECTION

MASTER LEVEL
@0
Adjusts the signal level of
the master output.
MASTER BALANCE
@1
15
Adjusts the signal balance
between left and right of
the master output.
SUB MASTER LEVEL
@2
Adjusts the signal level
outputs
MASTER OUTPUT JACK
on the rear panel.
AUX RECEIVE LEVEL
@3
Adjusts the output level
from AUX RCV JACK.
AUX RECEIVE CUE ON/OFF SW
@4
Used to send the effect
receive
monitor section for the
headphone monitoring.
MONITOR STYLE SELECT SWITCH
@5
When this switch is set to
"SPLIT", the master signal
is always heard through
the right ear-cup of the
headphones. The signal
selected by MONITOR
SELECT SWITCH will be heard in the left ear-
cup. This enables both programs to be
monitored simultaneously, thus assisting in
beat mixing. When this switch is set to
"STEREO", no master output is heard in the
headphones, and only the signal selected by
MONITOR SELECT SWITCH will be heard in
both ear-cups.
MONITOR LEVEL
@6
Adjusts the headphone monitor level.
HEADPHONE JACK
@7
Connect the headphones with the impedance
of 8ohm to 600 ohm.
LED LEVEL METER
@8
The LED bar level meters indicate the L and R
outputs.
POWER INDICATOR
@9
Lights up when the POWER SWITCH is on.
-7-
