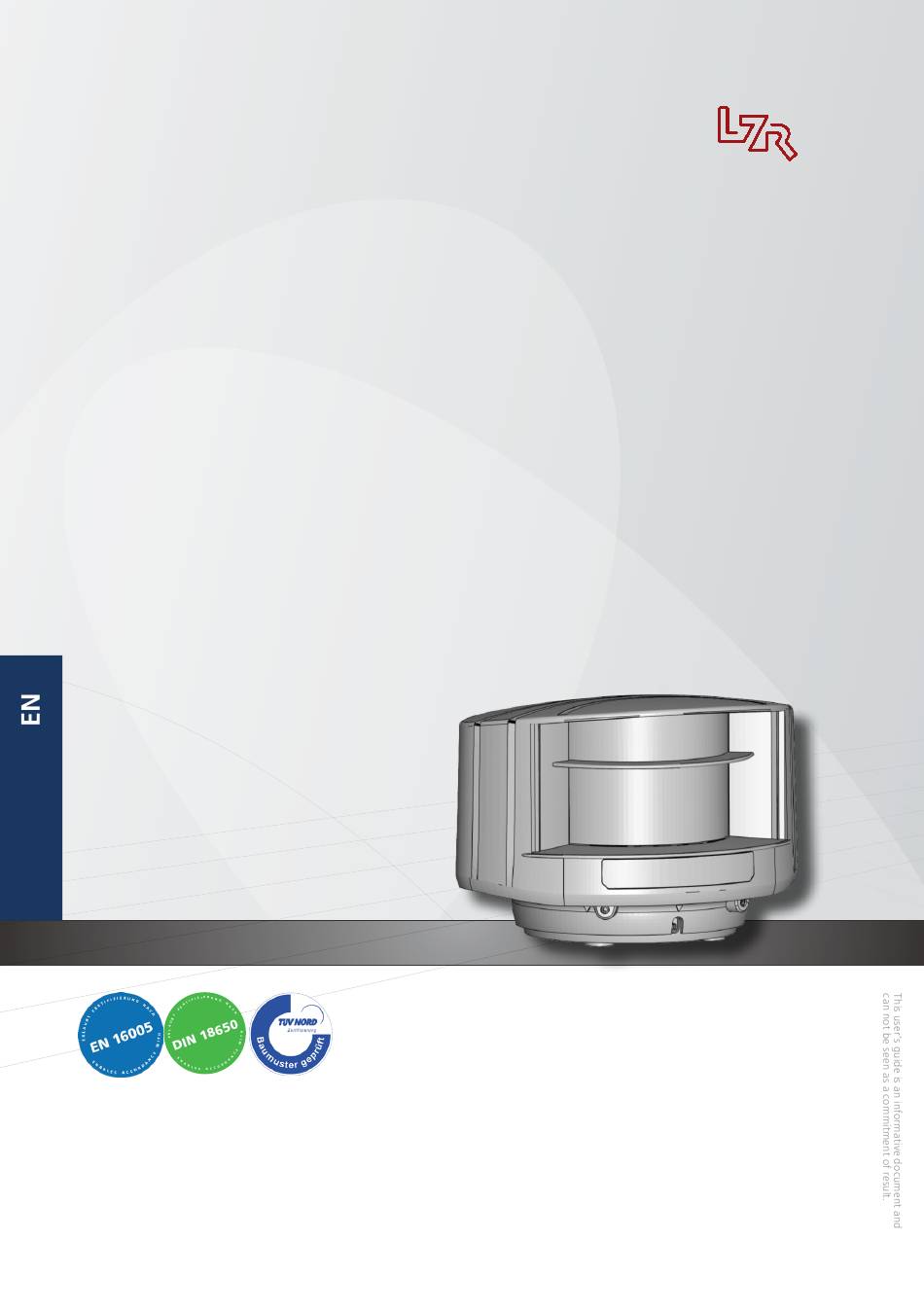

- Page 1 -P220 ® SAFETY SENSOR FOR SECURING THE CLOSING EDGE ON REVOLVING DOORS User’s Guide for software version 0300 and more (refer to tracking label on product)
- Page 3 DESCRIPTION laser sweep emission protection cover laser sweep reception visible laser beam (3) LED-signal (4) notch for tilt angle adjustment (2) screw for position lock (2) adjustable bracket connector cable conduit (4) LED-SIGNAL 1. Not used LED flashes quickly 2. Detection LED: safety field 3.
-
Page 4: Installation And Maintenance
SAFETY The device emits invisible (IR) and visible laser radiation. IR laser: wavelength 905 nm; output power <0.10 mW (Class 1 according to IEC 60825-1) Visible laser: wavelength 635 nm; output power <1 mW (Class 2 according to IEC 60825-1) The visible laser beams are inactive during normal functioning. - Page 5 MOUNTING The curtain should be positioned alongside The LBA can be used to mount the closing edge. the sensor to the ceiling. Use the adhesive mounting Pass the cable +/- 10 cm though Drill 4 holes as indicated on the template to position the sensor the cable opening.
- Page 6 Door control without test: connect red and blue wires to power supply without polarity (excludes conformity with DIN 18650 and EN 16005). IRIS ON C RETROFIT If replacing an IRIS ON C sensor, use the retrofit cable kit (sold as accessory) to connect the LZR -P220 ®...
- Page 7 POSITIONING Unlock the sensor and activate the visible laser beams. The visible laser beams indicate approximately the postion of the first curtain and limit the angle of the detection field. The visible laser beams stay activated for 15 minutes or can be turned off the same way they were activated.
- Page 8 REMOTE CONTROL ADJUSTMENTS (OPTIONAL) FIELD WIDTH 10 cm 100 cm 25 cm < 20 cm does not allow conformity with EN 16005 / DIN 18650 FIELD HEIGHT no safety field 10 cm 500 cm 400 cm > 400 cm does not allow conformity with EN 16005 / DIN 18650 MOUNTING POSITION right right...
-
Page 9: How To Use The Remote Control
HOW TO USE THE REMOTE CONTROL After unlocking, the red If the red LED flashes quickly after unlocking, you To end an adjustment session, LED flashes and the sensor need to enter an access code from 1 to 4 digits. always lock the sensor. -
Page 10: Troubleshooting
TROUBLESHOOTING There is no power. No blue LED Check cable and connexion. The polarity of the power Check the polarity of the power supply. supply is inverted. Only the blue LED The test input is not Check wiring. is on. connected. -
Page 11: Technical Specifications
TECHNICAL SPECIFICATIONS Technology: laser scanner, time-of-flight measurement Detection mode: motion and presence Max. detection range: 5 m x 1 m (at max. 4 m according to EN 16005, DIN 18650) Remission factor: > 5 % IR laser wavelength Angular resolution: 0,3516 °... - Page 12 BEA SA | LIEGE SCIENCE PARK | ALLÉE DES NOISETIERS 5 - 4031 ANGLEUR [BELGIUM] | T +32 4 361 65 65 | F +32 4 361 28 58 | INFO@BEA.BE | WWW.BEA-SENSORS.COM BEA hereby declares that the LZR ® -P220 is in conformity with the European directives 2011/65/EU, 2014/30/EU and 2006/42/EC. Notified Body for EC inspection: 0044 - TÜV NORD CERT GmbH, Langemarckstr. 20, 45141 D-Essen...
