Summary of Contents for koban KMD-S04

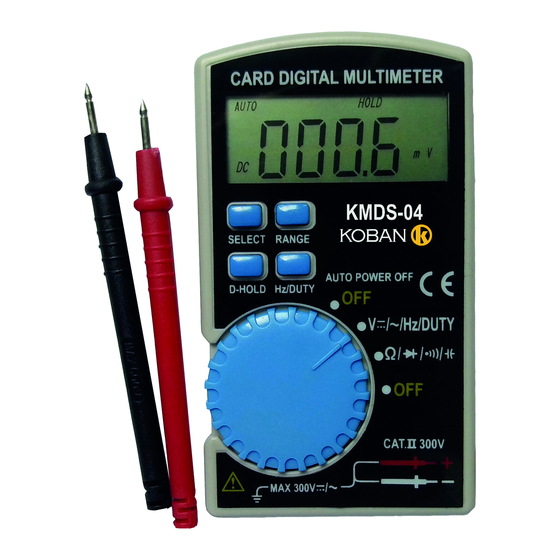

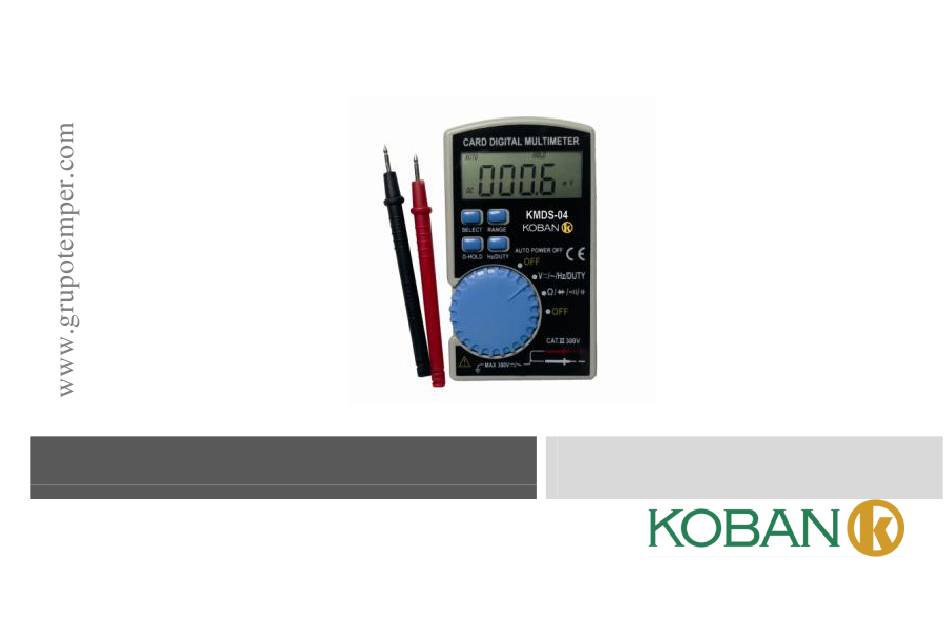

- Page 1 KMD-S04 Multímetro de bolsillo...
-
Page 2: Table Of Contents
KMD-S04 Table of Contents Title Page Overview ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ Unpacking Inspection ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ Safety Information ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ Rules For Safe Operation ~~~~~~~~~~~~~~~~~~~~~~~~ International Electrical Symbols ~~~~~~~~~~~~~~~~~~~~~~~~ The Meter Structure ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ Functional Buttons ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ Measurement Operation ~~~~~~~~~~~~~~~~~~~~~~~~ A. DC Voltage Measurement ~~~~~~~~~~~~~~~~~~~~~~~~ B. AC Voltage Measurement ~~~~~~~~~~~~~~~~~~~~~~~~ C. - Page 3 KMD-S04 Title Page Sleep Mode ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ General Specifications ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ Accuracy Specifications ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ A. Resistance Test~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ B. DC Voltage ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ C. AC Voltage ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ D. Frequency ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ E. Diodes and Continuity Test~~~~~~~~~~~~~~~~~~~~~~~~~ F. Duty Cycle ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ G. Capacitance ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ Maintenance ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ A.
-
Page 4: Overview
Overview Warning To avoid electric shock or personal injury, read the “Safety Information” and “Rules for Safety Operation” carefully before using the Meter. Pocked-Sized Digital Multimeter (hereafter referred to as “the Meter”) is a 3 3/4 digits with steady operations, fashionable structure, low power consumption and highly reliable hand-held measuring instrument. - Page 5 KMD-S04 This Meter complies with the standards IEC61010: in pollution degree 2, overvoltage category (CAT. II 300V) and double insulation. CAT. II: Local level, appliance, PORTABLE EQUIPMENT etc., with smaller transient voltage overvoltages than CAT. III Use the Meter only as specified in this operating manual, otherwise the protection provided by the Meter may be impaired.
-
Page 6: Rules For Safe Operation
KMD-S04 Rules For Safe Operation Warning To avoid possible electric shock or personal injury, and to avoid possible damage to the Meter or to the equipment under test, adhere to the following rules: Before using the Meter inspect the case. Do not use the Meter if it is damaged or the case (or part of the case) is removed. - Page 7 KMD-S04 explosive, inflammable and strong magnetic field. The performance of the Meter may deteriorate after dampened. When using the test leads, keep your fingers behind the finger guards. Disconnect circuit power and discharge all high-voltage capacitors before testing resistance, continuity, diodes or capacitance.
-
Page 8: International Electrical Symbols
KMD-S04 been using for some time, replace the battery as soon as leaking appears. A leaking battery will damage the Meter. International Electrical Symbols AC (Alternating Current). DC (Direct Current). Important safety information. Refer to the manual. Dangerous voltage may be present. -
Page 9: Functional Buttons
KMD-S04 4. D-HOLD Button Figure 1 5. Hz/DUTY Button 6. Rotary Switch 7. Black Test Lead 8. Red Test Lead Functional Buttons Below table indicated for information about the functional button operations Button Operation Performed SELECT Presses SELECT to switch between resistance, capacitance, continuity buzzer and diode measurement modes;... - Page 10 KMD-S04 frequency and duty cycle measurement mode. Therefore it is necessary to turn the rotary switch or turn off and on the Meter to resume to auto ranging mode when measuring higher voltage. RANGE AC/DC voltage and Resistance measuring ranges can be selected manually or automatically by pushing the range control button.
-
Page 11: Measurement Operation
KMD-S04 Measurement Operation Make sure the Sleep Mode is not on if you found there is no display on the LCD after turning on the Meter. Make sure the Low Battery Display is not on, otherwise false readings may be provided. -
Page 12: Ac Voltage Measurement
KMD-S04 Warning To avoid harms to you or damages to the Meter from electric shock, please do not attempt to measure voltages higher than 300V although readings may be obtained and take extra care when measuring high voltage. To measure DC voltage, connect the Meter as follows: 1. -
Page 13: Measuring Resistance
KMD-S04 2. Connect the test leads across with the object being measured. The measured value shows on the display Note When AC voltage measurement has been completed, disconnect the connection between the testing leads and the circuit under test. C. Measuring Resistance (see figure 4) Figure 4 www.grupotemper.com... - Page 14 KMD-S04 Warning To avoid damages to the Meter or to the devices under test, disconnect circuit power and discharge all the high-voltage capacitors before measuring resistance. Note The test leads can add 0.1Ω to 0.3Ωof error to the resistance measurement.
-
Page 15: Frequency And Duty Cycle Measurement
KMD-S04 D. Frequency and Duty Cycle Measurement (see figure 4) Warning To avoid harm to you or damages to the Meter, do not attempt to measure voltages higher than 60V in DC or 30V rms in AC although readings may be obtained. - Page 16 KMD-S04 and discharge all high-voltage capacitors before measuring diodes and continuity. Never attempt to input over 60V in DC or 30V rms in AC to avoid personal dangerous. Testing Diodes Use the diode test to check diodes, transistors, and other semiconductor devices.
-
Page 17: Capacitance Measurement
KMD-S04 When diode testing has been completed, disconnect the connection between the testing leads and the circuit under test. Testing for Continuity To test for continuity, connect the Meter as below: 1. Set the rotary switch to Ω range. -
Page 18: Sleep Mode
KMD-S04 2. Press SELECT button to select capacitance test. 3. Connect the test leads across with the object being measured. The measured value shows on the display. Note For testing the capacitor with polarity, connect the red test lead to anode & black test lead to cathode. -
Page 19: General Specifications
KMD-S04 General Specifications Maximum voltage between any Terminals and Grounding: 300V rms or 300DCV Range: Auto ranging or manual ranging. Maximum Display: 3999. (3 3/4 digits) Measurement Speed: Updates 3 times/second. Operating Temperature: 0ºC~40ºC (32ºF~104ºF), Relative Humidity: 75% Storage Temperature: -10ºC~50ºC (14ºF~122ºF), Relative Humidity: 80% Altitude: Operating: 2000m;... -
Page 20: Resistance Test
KMD-S04 Relative humidity: <75%. Temperature coefficient: 0.1 x (specified accuracy) / 1ºC A. Resistance Test Overload Range Resolution Accuracy Remarks Protection 400Ω 0.1Ω ±(1.2%+2) 4kΩ 1Ω 40kΩ 10Ω ±(1.0%+2) Open circuit voltage: 250V AC approx. 0.45V 400kΩ 100Ω 4MΩ 1kΩ... -
Page 21: Ac Voltage
KMD-S04 Overload Range Resolution Accuracy Remarks Protection 400mV 0.1mV ±(0.8%+3) 300V DC Input Impedance: 10MΩ 300V AC. 10mV ±(0.8%+1) 300V 100mV C. AC Voltage Overload Range Resolution Accuracy Remarks Protection Input Impedance: 10MΩ Frequency response: 300V DC 40Hz~400Hz. 10mV ±(1.2%+3) 300V AC. -
Page 22: Frequency
KMD-S04 D. Frequency Overload Range Resolution Accuracy Remarks Protection The inputted voltage is 99.99Hz 0.01Hz ±(1.2%+2) sine wave When 10Hz ~10kHz: 999.9Hz 0.1Hz 250V AC 1V rms 9.999KHz ±(0.5%+3) When 10kHz~100kHz: 30V rms. 99.99KHz 10Hz F. Diodes and Continuity Test... -
Page 23: Duty Cycle
KMD-S04 Approx. ≤70Ω buzzer beeps continuously E. Duty Cycle Overload Range Resolution Remarks Protection Press Hz/DUTY button at ACV 0.1% ~ range to select Duty Cycle 0.1% 250V AC 99.9% measurement mode. Reading is only for reference G. Capacitance Overload... -
Page 24: Maintenance
KMD-S04 around 0.45V 40nF 0.01nF Measuring under Relative 400nF 0.1nF mode. ±(4.0%+3) When the tested capacitor is greater than 100uF, the reading is only 40uF 10nF for reference 200uF 100nF ±(5.0%+10) Maintenance Warning Do not attempt to repair or service your Meter unless you are qualified to do so and have the relevant calibration, performance test, and service information. -
Page 25: Replacing The Battery
KMD-S04 Periodically wipe the case with damp cloth and mild detergent. Do not use chemical solvent. To clean the terminals with cotton bar with detergent, as dirt or moisture in the terminals can affect readings. Turn the Meter OFF when it is not in use and take out the battery when not using for a long time. - Page 26 KMD-S04 replace the battery as soon as the battery indicator appears. To replace battery: 1. Disconnect the connection between the testing leads and the circuit under test 2. Turn the Meter OFF. 3. Remove the screw from the case bottom; separate the case bottom from the case top.
- Page 27 KMD-S04 www.grupotemper.com...
