Summary of Contents for SMA Solar Technology AG STORAGE PACKAGE - BUSINESS

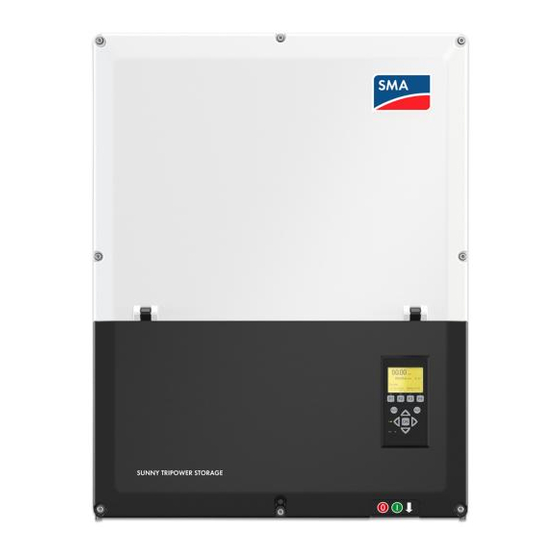

- Page 1 System Manual SMA STORAGE PACKAGE - BUSINESS with SUNNY TRIPOWER STORAGE STPS60-10 ENGLISH SPBusiness-SH-en-10 | Version 1.0...
- Page 2 SMA Solar Technology AG Legal Provisions The information contained in these documents is the property of SMA Solar Technology AG. No part of this document may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, be it electronic, mechanical, photographic, magnetic or otherwise, without the prior written permission of SMA Solar Technology AG.
-
Page 3: Table Of Contents
SMA Solar Technology AG Table of Contents Table of Contents Information on this Document..........Validity ........................Target Group......................Content and Structure of this Document ..............Levels of Warning Messages ..................Symbols in the Document ..................Typographical Elements in the Document .............. - Page 4 Table of Contents SMA Solar Technology AG Configuration of the storage system with LCS-Tool..........21 6.7.1 Making the Main Configuration............21 6.7.2 Capturing the Janitza UMG 604-PRO..........22 6.7.3 Setting the Peak Load Shaving Function (optional)......22 6.7.4 Setting Time-of-Use (optional) ..............24 Configuring the Overall System with the SMA Data Manager ......
-
Page 5: Information On This Document
1 Information on this Document Information on this Document Validity This document is valid for: • SMA Storage Package - Business Target Group The tasks described in this document must only be performed by qualified persons. Qualified persons must have the following skills: •... -
Page 6: Symbols In The Document
1 Information on this Document SMA Solar Technology AG CAUTION Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. NOTICE Indicates a situation which, if not avoided, can result in property damage. Symbols in the Document... - Page 7 SMA Solar Technology AG 1 Information on this Document Title and information content Type of information Hyperlink and QR-Code SUNNY TRIPOWER STORAGE 60 Installation manual STPS60-IA-xx-12.pdf Detailed manual of the battery inverter SMA INVERTER MANAGER / SMA Installation manual IMVIOBOX-IA-xx-16.pdf DIGITAL I/O BOX / LCS-TOOL Detailed manual of the SMA In-...
- Page 8 1 Information on this Document SMA Solar Technology AG Title and information content Type of information Hyperlink and QR-Code SMA DATA MANAGER M Operating manual https://manuals.sma.de/ EDMM-10/index.html Detailed manual of the SMA Data Man- ager SMA ENERGY METER Installation manual EMETER-20-IA-de-15.pdf Detailed manual SMA Energy Meter...
-
Page 9: Safety
2 Safety Safety Intended Use The SMA Storage Package - Business is a storage system that can be optionally extended by a PV system. The SMA Storage Package - Business optimizes self-consumption of PV energy by the following measures: • Intermediate storage of PV energy in the battery •... -
Page 10: System Components
3 System Components SMA Solar Technology AG System Components Check the scope of delivery for completeness and any externally visible damage. Contact the Service if the delivery is incomplete or damaged. S M A I N V E R T E R... - Page 11 SMA Solar Technology AG 3 System Components Position Quantity Designation Sunny Tripower Storage 60 (STPS 60-10) Battery inverter that controls charging and discharging of the battery by means of the specifications of the SMA Inverter Manager. SMA Inverter Manager Data logger for the control of the storage system. The SMA In- verter Manager transmits the data of the storage system to the...
-
Page 12: System Overview
4 System Overview SMA Solar Technology AG System Overview SUNNY PORTAL UTILITY powered by ennexOS GRID Solar energy Alternating current Communication optional CUSTOMER SYSTEM JANITZA POWER METER SMA DATA MANAGER SMA PV SYSTEM* SMA STORAGE SYSTEM ENERGY METER* Figure 2: Design of the system... -
Page 13: Circuitry Overview Overall System
SMA Solar Technology AG 4 System Overview Circuitry Overview Overall System UTILITY GRID DISTRIBUTION BOARD INVERTER MANAGER MEDIUM VOLTAGE TRANSFORMER POWER SUPPLY UNIT SMA DATA MANAGER M CLCON-PWRSUPPLY JANITZA 604-PRO GRID CONNECTION POINT with energy meter 6 ... 16 A... -
Page 14: Communication Overview
4 System Overview SMA Solar Technology AG Communication Overview SUNNY PORTAL powered by DIRECT ennexOS GRID OPERATOR MARKETER Public Internet Ethernet LAN1 Ethernet LAN2 Ripple control signal Digital signal optional INTERNET SMA DATA INVERTER RIPPLE CONTROL MANAGER M MANAGER ROUTER... -
Page 15: Installation
☐ For the SMA Energy Meter: one or three current transformer(s) (depending on the electric circuit design) ☐ One router for the connection to the Internet. SMA Solar Technology AG recommends using an Internet flat rate. ☐ One terminal block with sufficient terminals for the voltage supply with 24 V DC of three devices ☐... -
Page 16: Installation Procedure
5 Installation SMA Solar Technology AG Signal cable requirements: The cable length and quality affect the quality of the signal. Observe the following cable requirements: ☐ Number of wires: at least 2 ☐ Conductor cross-section: 0.2 mm² to 1.5 mm² ☐ Maximum cable length: 30 m ☐... -
Page 17: Installing The Janitza Umb 604-Pro
SMA Solar Technology AG 5 Installation 2. Connect the LAN1 of the Inverter Manager to network switch 1 using a network cable 3. Connect the LAN2 of the Inverter Manager to network switch 2 using a network cable Installing the Janitza UMB 604-PRO 1. -
Page 18: 5.10 Connecting Dc Cables To The Battery
5 Installation SMA Solar Technology AG 5.10 Connecting DC Cables to the Battery • Connect the DC cables to the terminals CHARGER. 5.11 Installing the PV Inverter (optional) 1. Mount the PV inverters and make the electrical connections. 2. Connect the PV inverters with each other in line topology using a network cable. Connect the first or last PV inverter in the line to network switch 1 using a network cable. -
Page 19: Commissioning
If you would like to use the support, contact Service (see Section 7, page 28). For the commissioning support on site, you will receive an order form from SMA Solar Technology AG. Fill out the order form and send it to Systempackage@SMA.de. After receipt of the order form, you will receive an appointment confirmation from SMA Solar Technology AG. -
Page 20: Configuring The Janitza Umg 604-Pro
6 Commissioning SMA Solar Technology AG Procedure Configure the storage system with the LCS-Tool. Section 6.7, page 21 • Carry out the main configuration. • Capture the Janitza UMG 604-PRO. • Set the peak load shaving function. • Set the time of use. -
Page 21: Configuration Of The Storage System With Lcs-Tool
SMA Solar Technology AG 6 Commissioning Procedure: 1. Turn the DC load-break switch to ON. 2. Switch on the AC circuit breaker. ☑ All three LEDs light up. The start-up phase begins. All three LEDs go out again after approximately 90 seconds. -
Page 22: Capturing The Janitza Umg 604-Pro
6 Commissioning SMA Solar Technology AG • In the drop-down list Select Grid Code select the entry Germany_MV. • In the drop-down list Confirm Grid Code select the entry Germany_MV. 13. Select [Next]. A summary of your settings is displayed. The main configuration is complete and the values are transmitted to the battery inverter. - Page 23 SMA Solar Technology AG 6 Commissioning Consumption Limit Purchased Electricity D D D Discharge Setpoint = 30 Charge Setpoint = 10 Time C C C C C C Charge Grid Discharge Feed-In Load peak Figure 5: Battery is charged from local generation...
-
Page 24: Setting Time-Of-Use (Optional)
6 Commissioning SMA Solar Technology AG 4. Enter all the data of the Janitza UMG 604-PRO. This is necessary so that the SMA Inverter Manager can control the storage system according to the data of the power analyzer. 6.7.4 Setting Time-of-Use (optional) The function Time of Use allows the reduction of energy costs by effectively using different electricity tariffs throughout the day. -
Page 25: Configuring The Overall System With The Sma Data Manager
SMA Solar Technology AG 6 Commissioning In order to optimally adapt the charging behavior to the different conditions over the course of the year, the settings can be made separately for two periods (Season 1 and Season 2). For these periods, separate charging profiles can be defined for each day of the week. -
Page 26: Registering The System In Sunny Portal Powered By Ennexos
6 Commissioning SMA Solar Technology AG 3. Register Modbus devices (Sunny Tripower Storage and Janitza UMG 604-PRO). While doing so, select the Modbus profile Janitza Power Analyser UMG 604 for the Janitza UMG 604-PRO and for the storage system select the Modbus profile STPS-60. -
Page 27: Configuring Sma Spot In Sunny Portal Powered By Ennexos (Optional)
SMA Solar Technology AG 6 Commissioning 2. Select System parameter assistant. 3. Select all PV inverters. 4. Select [Next]. 5. Select the parameter External communication and set to No. 6. Select [Next]. 7. Click on [Save]. 6.11 Configuring SMA SPOT in Sunny Portal powered by ennexOS (optional) 1. -
Page 28: Contact
7 Contact SMA Solar Technology AG Contact If you have technical problems with our products, please contact the SMA Service Line. The following data is required in order to provide you with the necessary assistance: • Inverters: – Device type – Serial number –... - Page 29 SMA Solar Technology AG 7 Contact United Kingdom SMA Solar UK Ltd. Milton Keynes +44 1908 304899 SMA Online Service Center: www.SMA-Service.com Deutschland SMA Solar Technology AG Niestetal +49 561 9522‑1510 SMA Online Service Center: www.SMA-Service.com System Manual SPBusiness-SH-en-10...
- Page 30 www.SMA-Solar.com...
