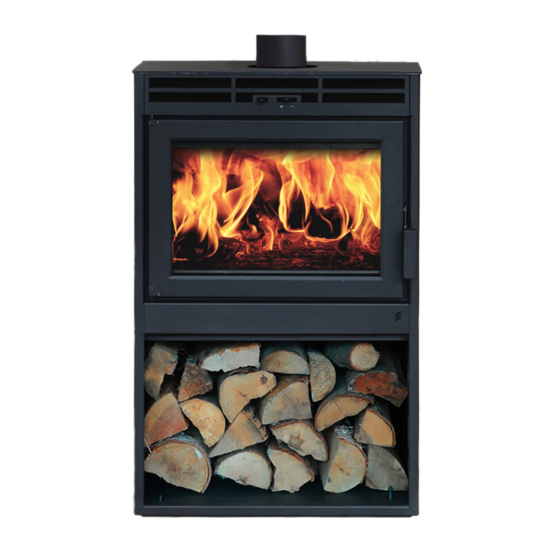

- Page 1 Novo 18 Novo 24 Novo 38 Owner’s Manual This product is proudly developed and manufactured in North America by SUPREME FIREPLACES INC. 3594 Jarry East, Montreal, QC H1Z 2G4 T: 877-593-4722, F: 514-593-4424 www.supremem.com Revised: November 2018 IMPORTANT: Keep the owner’s manual for future use.
-
Page 2: Table Of Contents
CONTENTS SAFETY ..............................1 GENERAL INFORMATION ........................2 Overall Dimensions ..........................2 2.1.1 Novo 18 ............................2 2.1.2 Novo 24 ............................2 2.1.3 Novo 38 ............................3 Specifications ............................4 Combustion Air Control ........................5 Cold Hand Key ............................ 5 Chimney Sweeping Cap ........................ - Page 3 First Fires ............................15 Operating the Combustion Air Control ....................15 Starting a Fire ............................ 16 Adding a New Load of Wood ......................17 Blower Operation ..........................17 TROUBLESHOOTING ..........................18 Backdraft / Smoking .......................... 18 Over Firing ............................18 MAINTENANCE ............................
-
Page 4: Safety
SAFETY SUPREME FIREPLACES INC. congratulates you on purchasing a Novo wood burning stove. This manual describes the installation and operation of the Novo non-catalytic wood heater. This heater meets the 2020 U.S. Environmental Protection Agency’s crib wood emission limits for wood heaters sold after May 15, 2015. -
Page 5: General Information
GENERAL INFORMATION 2.1 Overall Dimensions 2.1.1 Novo 18 2.1.2 Novo 24... -
Page 6: Novo 38
2.1.3 Novo 38... -
Page 7: Specifications
CSA B415.1-10 CSA B415.1-10 Protocol: WARRANTY REGISTRATION Please register your SUPREME product online at http://www.supremem.com/registration.php to ensure full warranty coverage. Proof of purchase is required for all warranty claims. Depending on combustion air control setting (see Section 5.3 for further details). -
Page 8: Combustion Air Control
2.3 Combustion Air Control The Combustion Air Control is a patented mechanism (Patent No: US 7,325,541 B2) that regulates the air flow into the firebox based on the temperature of the unit. It is located on the top of the firebox, at the front center of the unit. -
Page 9: Blower Kit
4.2 for installation instructions. Contact your local building official regarding mandatory fresh air kit installations within your area. CAUTION: Only a fresh air kit provided by SUPREME FIREPLACES INC. can be installed onto the stove. Substituting the fresh air kit may result in overheating and will void the warranty. -
Page 10: Installation Instructions
Equipment (Canada) or the ANSI NFPA 211 Standard for Chimneys, Fireplaces, Vents and Solid Fuel-Burning Appliances (USA). CAUTION: Modifications/alterations to the unit/installation without written authorization from SUPREME FIREPLACES INC. are strictly forbidden and will void the warranty. Refer to Section 1 for further safety information. Carefully read the instructions below before installing your Novo stove. -
Page 11: Clearances To Combustibles
3.3 Clearances to Combustibles The Novo stove has been certified under the ULC S627 (Canada), UL 1482 (USA), and UL 737 (USA) safety standards. The clearances below must be respected to ensure safe operation of the unit under normal and extreme conditions. - Page 12 Table 3-1: Clearances to Combustibles - Single Wall Chimney Connector Single Wall Canada Connector Novo 18 Novo 24 Novo 38 Novo 18 Novo 24 Novo 38 14 ⅞” 14 ⅞” 14 ⅞” 14 ⅞” 18” 18” 26 ½” 26 ½” 26 ½”...
-
Page 13: Clearances To Combustibles For Direct Floor Installation
3.3.1 Clearances to Combustibles for Direct Floor Installation Figure 3-6: Novo Installation at H2 Figure 3-8: Novo Installation at H1 Figure 3-7: Novo Installation at H3 Table 3-3: Clearances to Combustibles Direct Floor Installation Figure 3-5: Novo Installation Floor Installation... -
Page 14: Venting Installation
3.4 Venting Installation The Novo is approved with a Type HT 6” chimney that is listed under the UL 103 / ULC S629 standards. WARNING: Mixing chimney components from different brands is a safety hazard and will void the warranty on the unit. When connecting the unit to an existing chimney, thoroughly inspect the condition of the chimney and that the installation conforms to the requirements of the chimney manufacturer and the building codes. - Page 15 • The joints of the chimney connector should overlap 1.25’’ (30 mm). • Fasten each joint in the assembly with a minimum of three screws. • If applicable, allow for expansion of the assembly in the elbows. For straight assemblies, include telescopic section or an inspection wrap (pipe coupler) with one end...
-
Page 16: Connecting To A Masonry Chimney
3.4.3 Connecting to a Masonry Chimney The Novo stove can be connected to a masonry chimney that complies with current national and municipal building codes. A 6” chimney liner that complies with ULC S635 M2000 (Canada) or UL 1777 (US) standards must be installed within the existing masonry chimney. -
Page 17: Options
Use the SUPREME FIREPLACES INC. Stove Fresh Air Adaptor. • Use the SUPREME FIREPLACES INC. Fresh Air Kit (UPEA4) or any other HVAC type fresh air kit that meet the ULC S110 or UL 181 class 0 or class 1. -
Page 18: Operation Instructions
When the wood starts to burn properly, the amount of air can be reduced depending on the heating requirements. Refer to Section 2.2 regarding the maximum log length for a specific stove of the Novo series. -
Page 19: Starting A Fire
The left combustion control lever is the Activator. When starting a fire or adding a new load of wood, the Activator must be pushed in to allow maximum air to enter the firebox. The right combustion control lever is the Burn Rate Selector. -
Page 20: Adding A New Load Of Wood
using an air exchanger unit or simply by opening a window or a door near the stove partially for a few minutes. Make sure that other equipment such as the kitchen exhaust fans or oil central heating systems does not affect the stove functionality. -
Page 21: Troubleshooting
TROUBLESHOOTING 6.1 Backdraft / Smoking Draft is the force created by a difference in pressure, which moves air from the appliance up through the chimney. It is important to operate the Novo with proper draft to ensure optimal performance of the unit. Draft is depended on the length of the chimney, local geography, nearby obstructions and other factors. -
Page 22: Maintenance
MAINTENANCE 7.1 Disposal of Ashes Ashes should be placed in a metal container with a tight fitting lid. The closed container of ashes should be placed on a non-combustible floor or on the ground, well away from all combustible materials, pending final disposal. -
Page 23: Cleaning Of Glass
WARNING: Do not operate the unit with any of the panels missing. 7.5 Replacement of Door Gasket SUPREME FIREPLACES INC. assembles heat resistant graphite coated gaskets on the doors of all products, allowing for a proper seal of the unit at extreme temperatures (up to 1000 F). -
Page 24: Replacement Of Glass
7.6 Replacement of Glass Table 7-1: Parts List of Door Assembly Item Code Description SUPREME FIREPLACES INC. uses a high quality 5mm thick Door frame assembly Pyroceram III / Keralite ceramic glass that can withstand Horizontal metallic bracket temperatures up to 1300 F. -
Page 25: Paint
7.8 Paint Paint touch-ups can be performed on the unit using a high temperature paint (in aerosol spray can format) by Stove Bright®. Refer to your invoice to determine the precise color of your unit. Contact your local hearth shop for further information on purchasing this paint. - Page 26 Speed Control Electrical rating: 2.5 Amps, 115VAC – B6518 50/60Hz Certification: UL, ULC PA5000 Combustion Air Control (specify color) CM0020 Cold Hand Key CPSP0301 Removable Ashlip (specify color) Soapstone Panel 18SF1175 13” X 10.125” X 1.25” Cast Iron Panel 18SFC1175 13”...
-
Page 27: Warranty
EXCLUSIONS: SUPREME FIREPLACES INC. shall not be responsible for any labor costs for the replacement or repair of any electrical components, painted/plated parts, secondary air burning system, and the combustion air control. The following parts are guaranteed for 90 days: ceramic glass (thermal breakage ONLY). - Page 28 In the case of a return for repair or replacement, it is the responsibility of the customer to adequately package the component/unit to prevent further damage during transport. Items sent to the SUPREME FIREPLACES INC. without an open warranty claim will be returned to the sender. Warranty claims should be addressed to: SUPREME FIREPLACES INC.
