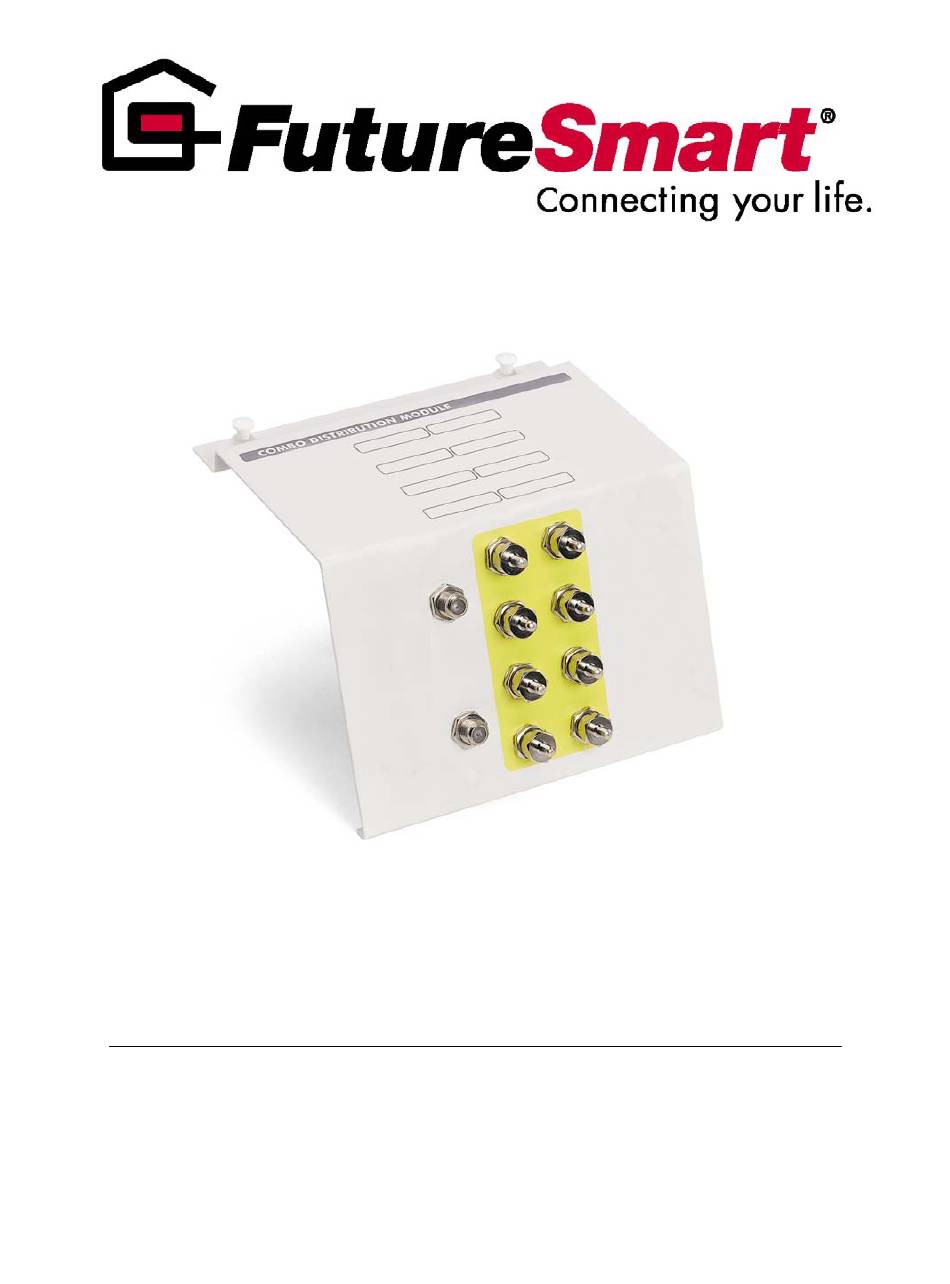

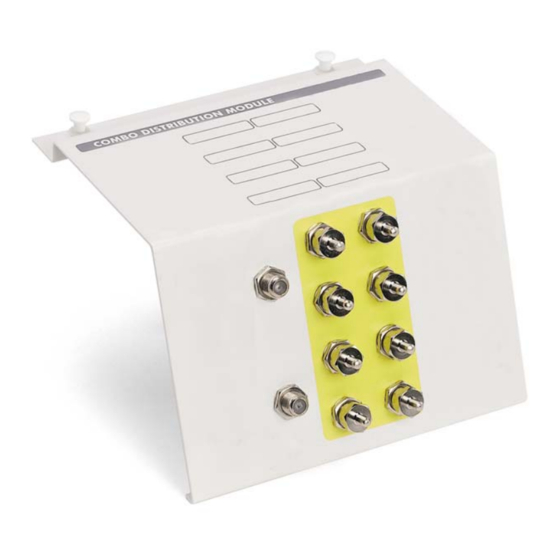

- Page 1 N S T A L L A T I O N U I D E M D C - 1 0 8 Coax Distribution Module 12382 south gateway park place, 700, draper, utah 84020 1.801.617.3100 www.futuresmart.com...
- Page 2 Connecting TV, and Cable TV Run a RG6 coax cable from the video source (antenna or Cable TV) to the MDC-108 coax distribution module. Connect the RG6 coax cable to the input on the rear of the MDC-108 coax distribution module. Input for...
- Page 3 FutureSmart Connecting Satellite TV (KU Band Only) Run 2 RG6 coax cables from the Satellite Dish to the MDC-108 coax distribution module. One will be designated as LNB A and the other as LNB B. Connect the LNB A and LNB B RG6 coax cables coming from the Satellite dish to the SATV inputs on the back of the MDC-108 coax distribution module.
