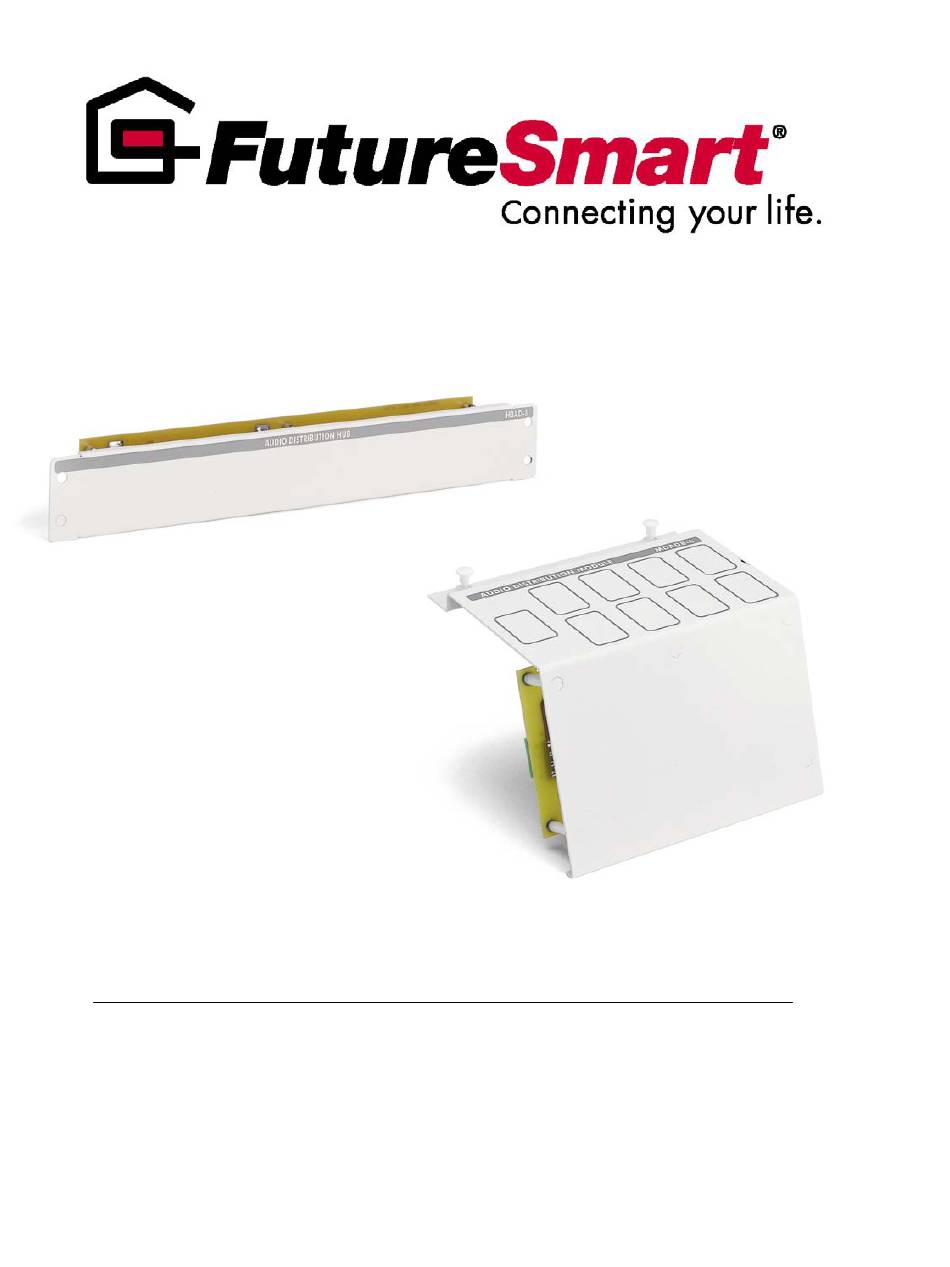

- Page 1 N S T A L L A T I O N U I D E M D A D 8 - 6 / H B A D - 8 Audio Distribution 12382 south gateway park place, 700, draper, utah 84020 1.801.617.3100 www.futuresmart.com...
- Page 2 • Up to 8 pairs of 14AWG cable • Automatic load protection • Will work with 35 or 75 watt volume controls • FutureSmart recommends a 100 watt amplifier for best performance Input Port • For use with 8Ω speakers Installation 1.
-
Page 3: Installation Overview
FutureSmart MDAD8-6/HBAD-8 Audio Distribution Installation Guide Installation overview If volume control is not used the output cable will connect directly to the speakers. Stereo Receiver 102.7 CD PLAYER TAPE PLAYER Volume control 2 conductor speaker cable 2 conductor speaker cable...
