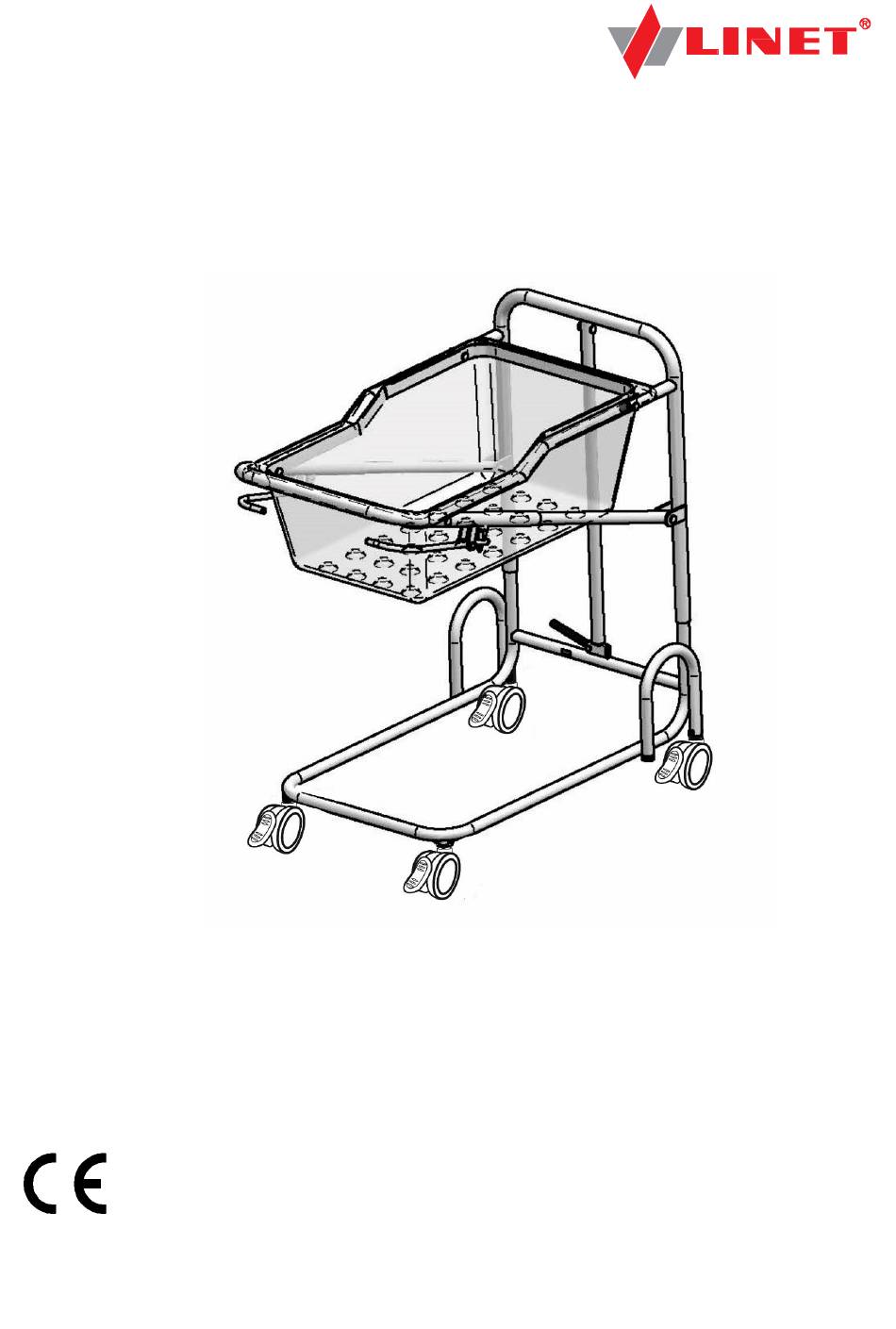

- Page 1 User manual and technical description MANUAL AND TECHNICAL DESCRIPTION MIMI Infant bed D9U001310-0101 Version 04 Publication Date: 2019-08...
- Page 2 All rights reserved. All trademarks or names are the property of the respective owners. LINET, s.r.o. reserves the right to change the specifications at any time without warning. The information included in this document is presented by LINET in an attempt to accurately and correctly inform the customer.
- Page 3 Dear Customer, Thank you that you have decided to buy a product of our company and we believe that you will be satisfied with it throughout the whole period of its use. Thanks to careful selection of materials, up-to-date technologies and careful work of our employees our products achieve parameters that guarantee high quality, reliability and permanent utility value.
-
Page 4: Table Of Contents
Table of Contents Introduction ........................5 Manual direction ..........................5 Application ............................5 Mattress ............................5 Delivery ..........................5 Safety instructions ......................6 Technical parameters ....................... 7 Environmental conditions ....................7 Transport and storage conditions: ....................7 Description ........................8 Function ............................ -
Page 5: Introduction
Application Mimi is mechanically positionable pediatric bed for hospital and home care. It is intended for safe laying of neonate or small infant in bed. The bed provides safe position and positioning of child and easy transport of child in bed. -
Page 6: Safety Instructions
It is important to read this safety instruction prior any use of infant bed and to observe it. Mimi bed should be left in its lowest position when the patient is unattended in order to reduce risk of injury due to falls! -
Page 7: Technical Parameters
Technical parameters ca. l = 92 cm Dimensions w = 57 cm h = 102 cm 64 – 94 cm (continuous by gas spring) Height adjustment Weight ca.21 kg including infant tub ca.14° / 14° Trendelenburg / anti–Trendelenburg ca. l = 79,5 cm w = 46,5 cm Infant tub h = 22 -29 cm... -
Page 8: Description
Tilting Infant tub 4 braked castors Picture No.1 — Description of Mimi bed Function According to the modification the following positions of infant bed can be set by tub or height adjustments: Height (due to gas spring) Trendelenburg / Anti-Trendelenburg (due to mechanical spring) Adjustments are done mechanically –... -
Page 9: Positions Adjustment
Positions adjustment Height adjustment Picture No.2 — Height adjustment by Mimi Tread on pedal (1) and pull the metal frame vertically (arrow 2) and set the required height of basket. -
Page 10: Trendelenburg / Anti-Trendelenburg Tilting
Trendelenburg / anti-Trendelenburg tilting Picture No.3 — TR/ATR. Tilting adjustment Head rest down • Drag safety lock (1) towards the handle in arrow direction, release the handle lock, pull up and set the required position. Leg rest down • Release handles safety lock, push down and set the required position. -
Page 11: Castors Braking
Castors braking Picture No.4 — Castors braking • released – see detail 1 • braked – see detail 2... -
Page 12: Assembly
Assembly As need can be (to change parts), the simple assembly can be done by persons trained by service staff. Cleaning instructions Prior first use clean the infant bed by dry cloth. Germicide / sterilization Prior to any use the infant bed the germicide should be done. First disconnect the bed from electric power. The bed can be completely cleaned and germicide done by usual detergents and germicides in concentrations stipulated for medical care (0,5% PERSTERIL, 1% CHLORAMIN etc). -
Page 13: Maintenance
Check castor functions and remove dust, threads, hairs or other winded up materials. 13 Environmental Protection The company LINET, spol. s r.o. is aware of the necessity to protect the environment for future generations and therefore devotes great attention to the development, innovation – planning, production and use of such technology and materials that are environmentally friendly. -
Page 14: Information For The Users Of Electric And Electronic Equipment (See Chart)
The product may contain lead accumulators (AKB) marked with this graphic symbol: Once the service life of these accumulators ends, deliver them to a person authorized for recollection (you will not have to pay a recollection charge!). The product is not designed for removal as part of communal waste! 13.1 Information for the users of electric and electronic equipment (see CHART) This symbol on the product or accompanying documentation means that the electric or... -
Page 15: Ec Declaration Of Conformity
14 EC Declaration of Conformity... -
Page 16: Appendix I - Record Of Service Checks And Routine Maintenance
15 Appendix I - Record of service checks and routine maintenance PURPOSE AND DESCRIPTION OF WORK DATE TECHNICIAN... -
Page 17: Appendix Ii - Mattress System Handover Protocol
16 Appendix II – Mattress System Handover Protocol Order No.: Purchaser: Model No.: Supplier: Handover date: Serial No.: I confirm that the training of attending staff on the use of the mattress system has been completed. Warranty period: ........................
