Thank you for purchasing SHINPO Smokeless Roaster.
●Before operating this product, please read and understand the instructions contained
in this manual.
●Keep this manual in a place where it can be reached for immediate references.
●If necessary, please contact your distributor from whom you have purchased the
product or us for clarification and/or further instructions
◆Parts Identification-Main Unit
◆Parts identification-Parts & Accessories
◆Safety Precautions
◆Preparation before Use
◆Control Box
◆Daily Inspections & Maintenance
◆Safety Features
◆Specifications
◆Interval
SERW_ENGLISH 101

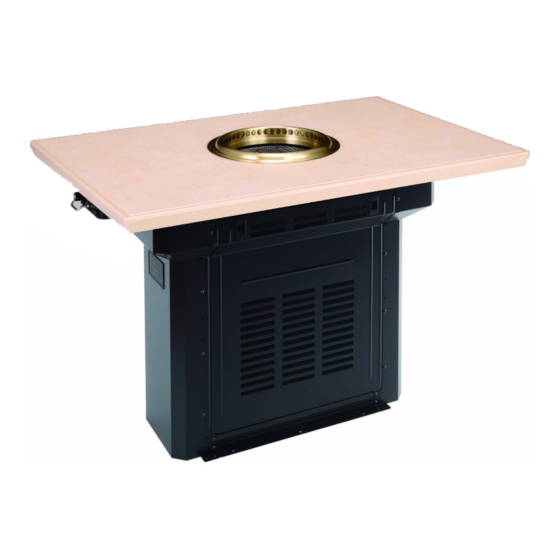

Smokeless Roaster
Operational Manual
ＳＥＲＷ
J21E1E1 J21E1E2
１
２
３
7
8
9
12
13
14
Advertisement
Table of Contents
Related Manuals for SHINPO SERW
Summary of Contents for SHINPO SERW
- Page 1 Operational Manual ＳＥＲＷ J21E1E1 J21E1E2 Thank you for purchasing SHINPO Smokeless Roaster. ●Before operating this product, please read and understand the instructions contained in this manual. ●Keep this manual in a place where it can be reached for immediate references.
-
Page 2: Parts Identification-Main Unit
SERW_ENGLISH 101 Parts Identification-Main Unit Table Top Cabinet Main Switch Circuit Protector Main Switch Lump Heat Volume Control... - Page 3 SERW_ENGLISH 101 Parts Identification-Parts & Accessories Grill Holder Grill Net Top Ring Heater Cover Heater Mount Inner Casing 3D Filter Heater (Consumables) Outer Casing...
-
Page 4: Safety Precautions
Safety Precautions SERW_101 Safety Precautions We are providing these instructions with illustrations for clarity and easy understanding in order to avoid any harm to the users or damage to the properties. Insure proper installation and servicing. Have the product installed and grounded by a qualified technician. Please make sure to understand fully the meaning of each illustration before you proceed further. -
Page 5: Power Source
Safety Precautions SERW_101 WARNING Power Source ▽Do not use other than the power source specified for this product. ▼Failure to observe this may result in a risk of fire or explosion. Fire Prevention ▽ Do not place flammables, except food items to be cooked, near the heating surface. -
Page 6: Proper Use
Safety Precautions SERW_101 WARNING Emergencies ▽ In an emergency such as earthquake or fire, immediately stop the use of this product. Before you use the product again, contact your distributor or us for inspection and, if necessary, repair. ▼ Failure to observe these may result in a risk of explosion or fire. ▽... - Page 7 Safety Precautions SERW_101 WARNING Disassembling ▽ Do not disassemble this roaster, removable parts excepted. (See P.2 for the list of removable parts) ▼ Failure to observe this may result in a damage to the product, electric shock or injury. ...
-
Page 8: Preparation Before Use
SERW_ENGLISH 101 Preparation before Use ◆Refer to P.1~2 to set up the parts. 1. Set the Grease Filter o the bottom of the Outer Casing. 2. Mount the Inner Casing onto the Outer Casing. 3. Place the Heater Mount onto the Inner Casing. 4. -
Page 9: Control Box
SERW_ENGLISH 101 Control Box Main Switch Main Power Lump Circuit Protector Heat Volume Control ① Turn [ON] the Circuit Protector, and turn [ON] the Main Switch. Main Power Lump will turn on. ② Turn [ON] the Heat Volume Control to position [10], and heat up the heater. -
Page 10: Daily Inspections & Maintenance
SERW_ENGLISH 101 Daily Inspections & Maintenance ▼ For safe operation of this product, make sure to carry out daily inspections and maintenance. ▼ Make sure to turn off the power, check the Exhaust Fan is not operating and allow the appliance to cool down before you attempt any inspections or maintenance. - Page 11 SERW_ENGLISH 101 ◆Heater Cleaning ① Turn the Heat Volume Control to position [10], and burn the dirty oil. ② Turn off the Switch, and after 5 minutes spray water with sprayer.
- Page 12 SERW_ENGLISH 101 ③ Then brush the heater with brush.
-
Page 13: Safety Features
SERW_ENGLISH 101 Safety Features ▽Overheating Detector Water is not present in the Drain Pan・Parts are soiled with grease and burner flames are being sucked into the exhaust duct. ・Exhaust Fan is not operating properly. ・The exhaust air volume is low due to filter clogging, etc. -
Page 14: Specifications
SERW_ENGLISH 101 Specifications Model SERW Product Smokeless Roaster 200V（ Power Source Single Phase ） Power Consumption Safety Feature Overheat Warning Device ・Overcurrent Prevention Device ・Electrical leakage Device... - Page 15 SERW_ENGLISH 101 Interval ▽ The appliances must be installed as below. Unit: mm Roaster Roaster over over over Side Face...
- Page 16 ＳＨＩＮＰＯ ＣＯ.，ＬＴＤ． ＯＶＥＲＳＥＡＳ ＤＥＰＡＲＴＭＥＮＴ ２－３０－２ ＭＩＴＳＵＩ ＳＵＭＩＴＯＭＯ ＫＡＩＪＯ ＯＨＪＩ ＢＬＤＧ.，８/Ｆ.，ＯＨＪＩ，ＫＩＴＡ-ＫＵ，ＴＯＫＹＯ １１４－０００２，ＪＡＰＡＮ TEL：８１-３-５９５９-６７６１／FAX：８１-３-５９５９-６８３０ ＨＥＡＤ ＱＵＡＲＴＥＲＳ １１０ ＷＡＫＡＢＡＤＡＩ，ＭＥＩＴＯ ＫＵ，ＮＡＧＯＹＡ ４６５－００１５，ＪＡＰＡＮ TEL：８１-５２-７７６ ２２３１／FAX：８１ ５２ ７７６ ２２６３ ＮＡＧＯＹＡ ＦＡＣＴＯＲＹ ３－１ ＴＯＩＡＧＥ，ＭＩＹＯＳＨＩ-ＣＨＯ，ＮＩＳＨＩＫＡＭＯ-ＧＵＮ，ＡＩＣＨＩ ４７０－０２２５，ＪＡＰＡＮ TEL：０５６１３-２-３２２１／FAX：０５６１３-２-３１７７ Ｔｅｃｈｎｏｌｏｇｙ＆Ｄｅｖｅｌｏｐｍｅｎｔ Ｄｅｐｔ． ３－１ ＴＯＩＡＧＥ，ＭＩＹＯＳＨＩ-ＣＨＯ，ＮＩＳＨＩＫＡＭＯ-ＧＵＮ，ＡＩＣＨＩ ４７０－０２２５，ＪＡＰＡＮ TEL：０５６１３-２-３２６７／FAX：０５６１３-２-９５８０ SALES AGENT・DISTRIBUTOR...
