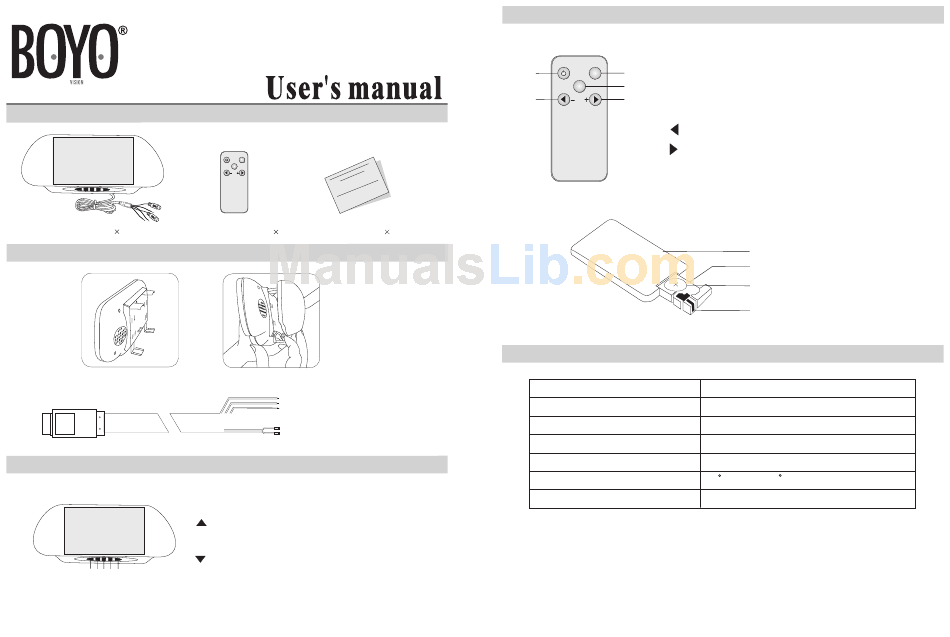

Boyo VTM600M User Manual

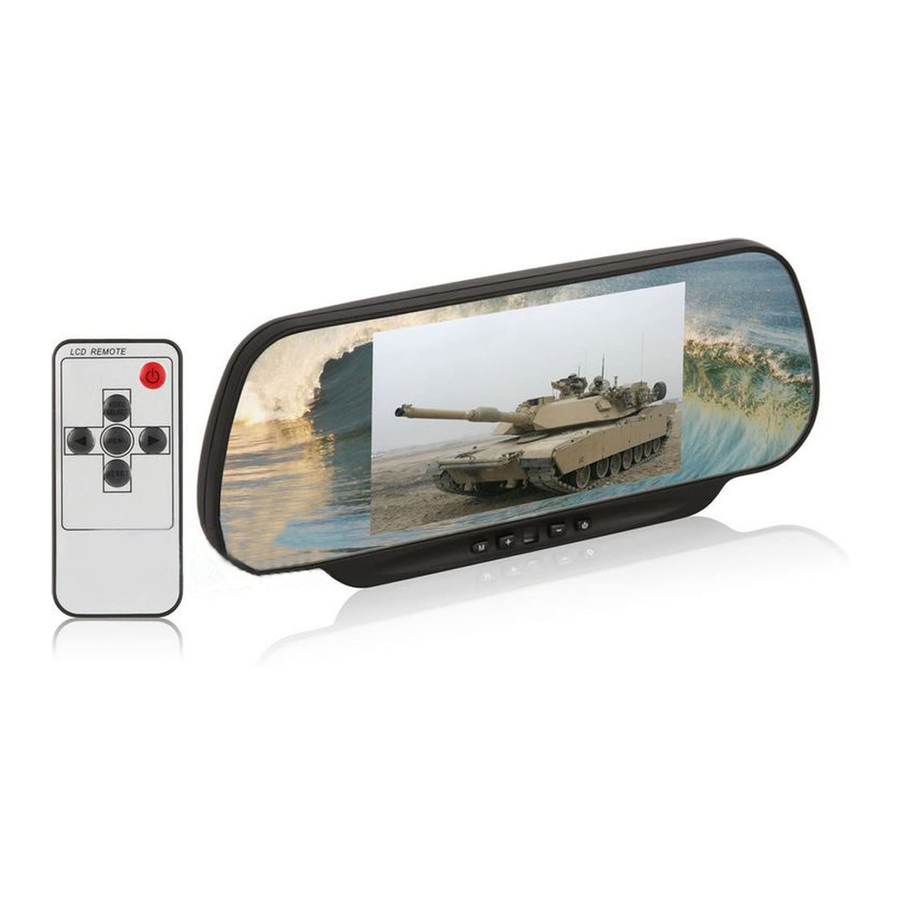

Rear view 6" TFT-LCD Monitor
1.Parts list
A.6" TFT monitor
1
2.Diagram of installation
A:
Figure (1)
B:Connection
3.Functions of Button
1 2 3 4 5
MODE
MENU
B.Remote controller 1
C.User's manual 1
Figure (2)
Red wire connects anode +12v
Black wire grounded
blue wire connects to reversing lamp 12v
Video Av1 connects VCD/DVD signal input
Video Av2 connects camera singnal input
1.Menu: menu options (press MENU to shift different menus
2. :Analog +/- (adjust brightness,contrast,color,pos:DN Normal
(reverse image),etc.)
3.Power: power on/of(when the monitor is powered on,press
POWER button to close menu,press and hold it for
1 second to power it off)
4. :Analog +/-(adjust brightness,contrast,color,pos:DN Normal
(reverse image),etc.)
5.AV: change the Av1 or Av2
-1-
4.Remote controller
A:operations of remote controller
2
1
MODE
1.Power: power on/of(when the monitor is powered on,press
3
MENU
4
5
2.Mode: change the Av1 or Av2
3.Menu: menu options (press MENU to shift different menus
4. :Analog +/- (adjust brightness,contrast,color,
Normal (reverse image),
5. :Analog +/-(adjust brightness,contrast,color,
Normal (reverse image),
B:Installation of batteries
Back of remote controller
5.Specification
Model
Display resolution
System
Power consumption
Monitor dimension
Storage temperature
Operation Voltage
Care instruction
1.We strongly recommend have qualified technician or maintenance to install this device.
2.If this monitor does not work well, please check the connection
3.For your safety, please do not watch the monitor entertainment while you are driving
POWER button to close menu,press and hold it for
1 second to power it off)
etc.)
pos:DN
etc.)
Battery slot
Battery
Card bolt
VTM600M
520(W)*288(H)
PAL/NTSC
8W (MAX)
10.46"(W)*4.17"(H)*1.03"(D)
-4 F ~ ++149 F
DC12V
first.
-2-
pos:DN
