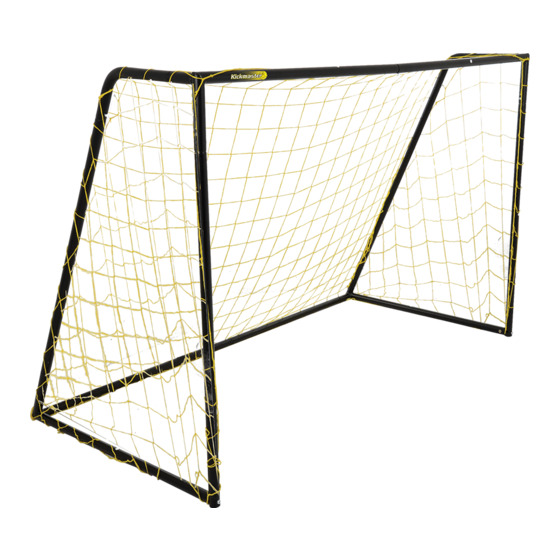

MV Sports & Leisure Kickmaster Pro-lite Goal Quick Manual

PLEASE READ BEFORE ASSEMBLY
Pro-lite Goal
WARNINGS
To be assembled & dismantled by an adult.
To be used on a flat surface.
Check the frame assembly is securely
located before use.
Ensure frame is securely pegged to ground
before use.
Do not leave outdoors in adverse weather
conditions.
Do not climb or hang from the structure.
Check regularly for wear and tear.
discontinue use if any breakage is found.
failure to do this may result in injury.
Keep away from fire.
Keep away from heat sources.
THIS PRODUCT IS NOT SUITABLE FOR
CHILDREN UNDER 3 YEARS
DUE TO SMALL PARTS
Please retain this leaflet for reference to the
manufacturer
Carefully made in China to European
Safety Standard
DISTRIBUTED BY
MV SPORTS & LEISURE LTD
35 Tameside Drive • Castle Bromwich
Birmingham • B35 7AG • UK
Email: info@mvsports.com
www.mvsports.com
CUSTOMER HELPLINE
We make every effort to ensure that this product
reaches you in satisfactory condition.
However if you have any queries, need
assistance, or find this product defective,
please call our Customer Helpline:
0870 8404255
(UK ONLY)
Product No. M06042
CONTENTS:
A (x3)
B (x3)
C (x2)
D (x2)
E (x1)
F (x1)
NOTE: WHEN JOINING TUBES TO
CONNECTORS ALWAYS ENSURE
THAT THE HOLES IN THE TUBES
ALIGN PROPERLY WITH THE HOLES
IN THE CONNECTORS BEFORE
SECURING WITH TUBE FASTENERS.
1. Connect the frame tubes with letters
together, as illustrated.
2. Apply tube fasteners (5) to each
tube connection point, as illustrated.
NOTE: Fasteners lock after one
quarter turn.
3. Fit the plugs (8) into the bottom front
elbow joints
B
E
1
1. Net support tubes (x4)
2. Straight connectors (x6)
3. Elbow connectors (x6)
4. Net support tube connectors (x2)
5. Tube fasteners (x24)
6. Net securing clips (x30)
7. Metal pegs (x4)
8. Plugs (x2)
A
C
C
B
B
8
Please ensure
tube fasteners are only turned a quarter turn.
2
3
4
A A
D
D
F
5
5
6
7
8
03.03 - ISSUE 1
