DRILL 13⁄8" (35MM )HOLE FOR FAUCET
You will need to use or drill a 1 3⁄8" (35mm) diameter hole
in the counter-top or sink where you would like to place
the faucet.
IMPORTANT
Draw tabs
INSTALLING FAUCET BASE ASSEMBLY
Fold base clamping plate to allow it to pass through the 13⁄8"
(35mm) diameter hole and locate the O-ring seal under the
base assembly.
Base clamp
Insert base clamp assembly thought the 13⁄8" (35mm)
diameter hole, and pull up on "tabs" to draw the clamping
plate into position under the bench.
IMPORTANT
Rotate the base assembly to the correct orientation as
illustrated so that the dispenser's faucet handle will face the
correct way once installed.
®
Faucet Installation
FAUCET FITTING KIT FOR DISPENSER
Faucet base and clamp assembly
Base assembly clamping screws
Set screw and Allen key
Faucet base O-ring
Advertisement
Table of Contents
Related Manuals for Joneca ReadyHot
Summary of Contents for Joneca ReadyHot

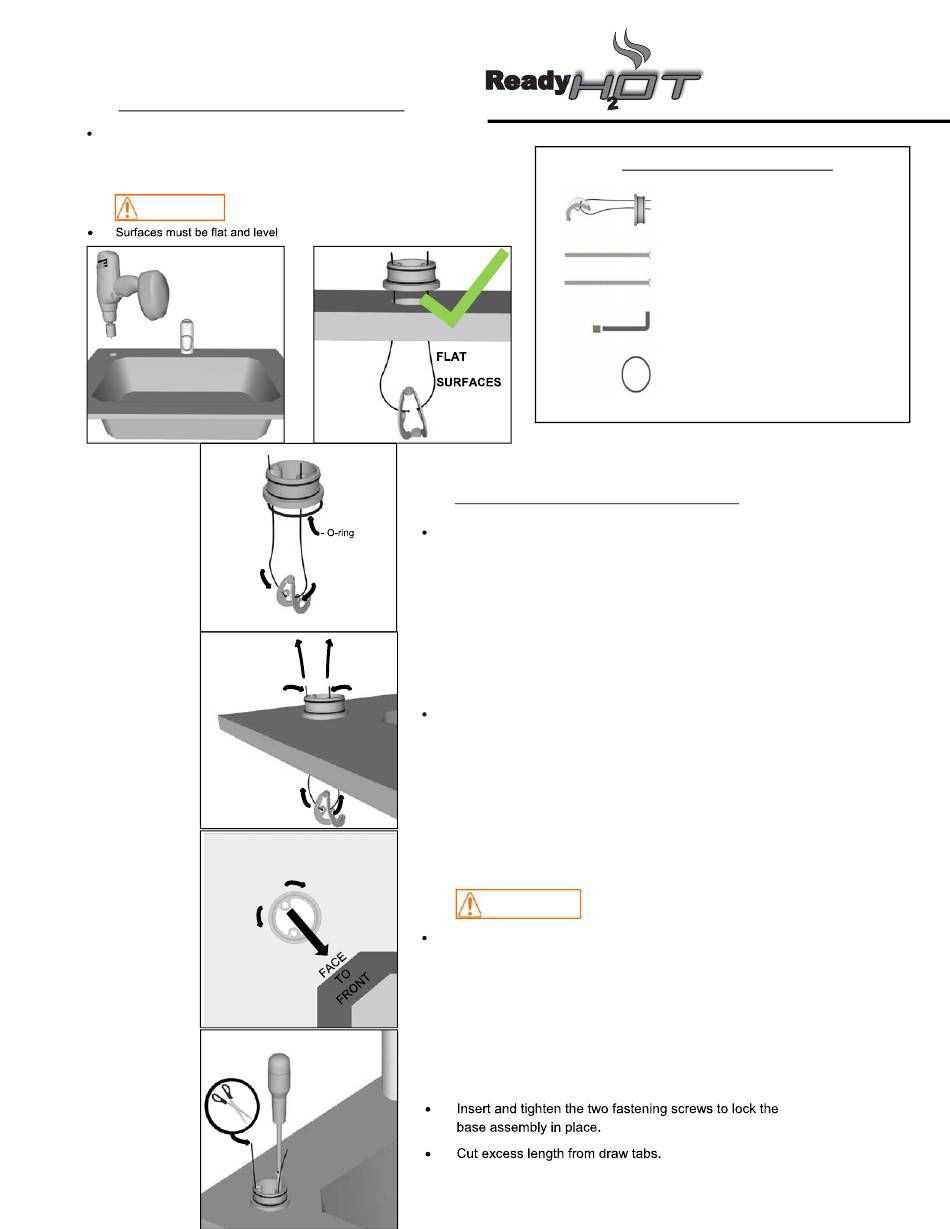

- Page 1 ® Faucet Installation DRILL 13⁄8” (35MM )HOLE FOR FAUCET You will need to use or drill a 1 3⁄8” (35mm) diameter hole in the counter-top or sink where you would like to place FAUCET FITTING KIT FOR DISPENSER the faucet. IMPORTANT Faucet base and clamp assembly Base assembly clamping screws...
