Summary of Contents for Planet Networking & Communication IHD-410 Series
- Page 2 Verify The Contents Inside Package Box The package should contain the following items plus IHD-410 series. If any item is missing or damaged, please contact the seller immediately. IR Emitter Cable IR Receiver Cable Quick Installation Guide (Comes with Transmitter)

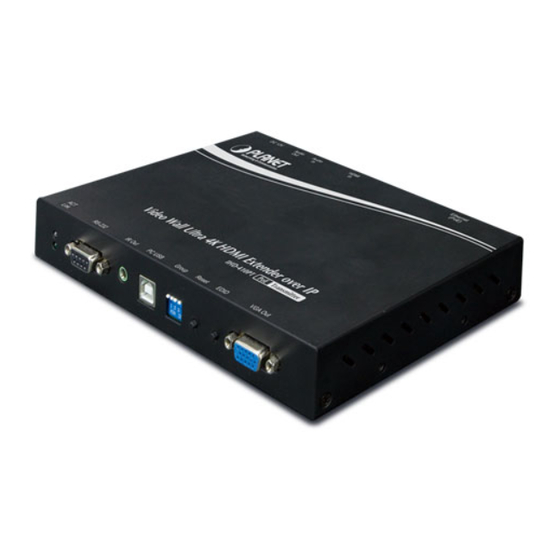

- Page 3 11 12 Transmitter (IHD-410PT) 10 11 12 Receiver (IHD-410PR) Position Description Function Connect to a LAN Switch. IGMP snooping Jumbo Frame supported Gigabit IEEE 802.3af/at PoE+ Ethernet switch is recommended. LED: Ethernet 1. LAN LED (green color): (PoE) This LED will be flashing while network is accessing via Ethernet.
- Page 4 Position Description Function Transmitter: HDMI Type-A female connector for connecting to the HDMI source. HDMI Receiver: HDMI Type-A female connector for video output. 3.5mm jack for connecting an external active Audio In microphone. 3.5mm jack for connecting an active loud Audio Out speaker.
- Page 5 Position Description Function Restore to factory default setting: 1. Turn on the device first. 2. Press and hold the button for over 15 seconds. Once the device is operational again, it has restored to default settings. Stop connecting to video source: Reset 1.
- Page 6 4. Connect the USB cables from Transmitter to PC, and connect the USB additional devices such as USB mouse, USB keyboard and USB pen drive to Receiver. 5. Use Cat5e/6 cables (EIA/TIA 568B industry standard compliant) for connection between Transmitter/Receiver and the IEEE 802.3af/at PoE+ switch.
- Page 7 2. Multicasting: Multiple HDMIs and USB over IP Interaction Application Video PC/Server IHD-410PT (Transmitter 1) Video Video PC/Server IHD-410PT (Transmitter 2) Video Video IHD-410PR Video (Receiver 1) IHD-410PR Video PC/Server IHD-410PT (Transmitter 3) (Receiver 2) IHD-410PR Video (Receiver 3) Video IHD-410PR (Receiver 4) IHD-410PR...
