Instructions
Seed drill
RAPID
series
RD 300-450 F
No. 10 026-11 999
Ver.1.3 07/06/01
900107-en

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RAPID RD F Series and is the answer not in the manual?

Questions and answers

Related Manuals for Vaderstad RAPID RD F Series

Summary of Contents for Vaderstad RAPID RD F Series

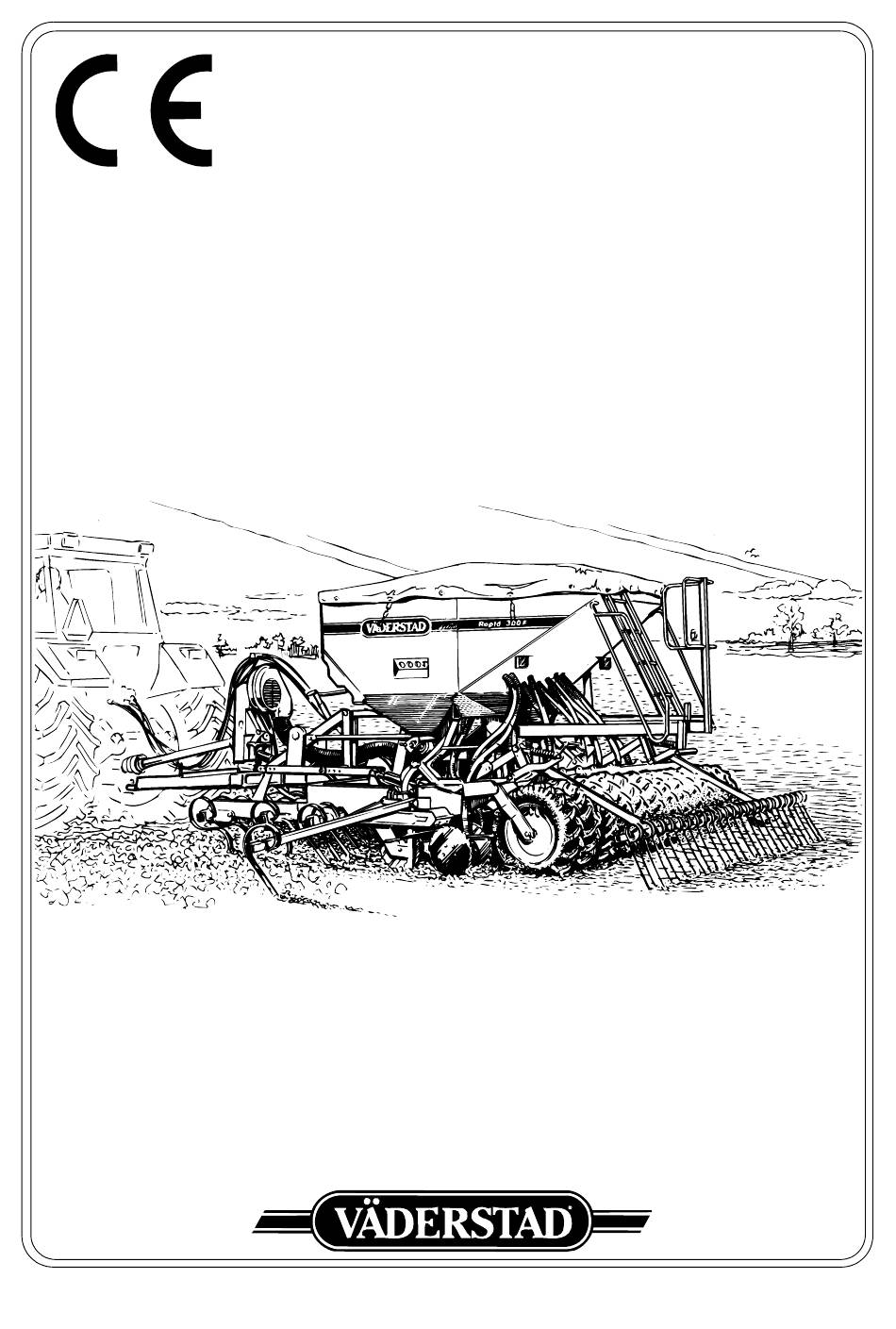

  • Page 1 Instructions Seed drill RAPID series RD 300-450 F No. 10 026-11 999 Ver.1.3 07/06/01 900107-en...
  • Page 2 Ver.1.3 07/06/01...
  • Page 3 Table, Tabelle, Tableau 98- Tag alltid ett utmatningsprov. Såtabellens innehåll skall endast RD 300-800 F No. 10 000- ses som riktvärden. Vid små ut- matningsmängder bör ett nytt ut- matningsprov tas regelbundet. Vete Råg Korn Havre Bönor Ärtor Lupiner Vicker Majs Gräs Raps...

  • Page 4: Table Of Contents

    Safety regualtions Before using the drill ................8 Warning decals: .................. 8 Other safety precautions ..............9 Location of warning decals on the machine ........... 10 Data plates ..................10 Assembly instructions Lifting and unloading the drill .............. 11 Moving the tool bar tines ..............12 Fitting the pre-implements ..............
  • Page 5 Advice on sowing Sowing depth ..................69 Checking the seed feed ..............70 Sowing headlands ................71 Engaging the drill ................71 Tramlining ..................72 Bout markers ..................72 Obstructions ..................72 Turning with Low lift ................72 Autumn sowing ................. 73 4.10 Direct drilling ..................
  • Page 6 Ver.1.3 07/06/01...
  • Page 7 RD 300-450 F IMPORTANT! This instruction manual is based on experience and results obtained during development of the Rapid series of drills. Hints and guidelines are to be regarded as general advice, entail- ing no responsibility whatsoever on the part of Väderstad-Verken AB and/or its represen- tative.

  • Page 8: Safety Regualtions

    Safety regualtions Safety regualtions Before using the drill Figure 1.1 ! Always pay extra attention to paragraphs or figures bearing the following symbol: ! Learn to handle the drill correctly and with care. The drill can be dangerous in inexperienced or careless hands.

  • Page 9: Other Safety Precautions

    RD 300-450 F Drill with PTO driven fan: Pay attention to the rotating transmission shaft. Do not stride across or stay close to the rotating transmission shaft. Keep the shaft and the protectors in pro- per condition. Carefully read the instruction handbook supplied with the transmission shaft. Drills with a PTO driven hydraulic pump: Pay attention to the rotating transmission for the hydraulic pump.

  • Page 10: Location Of Warning Decals On The Machine

    Safety regualtions Location of warning decals on the machine A,B,H,I Figure 1.3 Data plates 1.5.1 Serial number plate Figure 1.4 Model number Manufacturing Number. Always state this number in connection with orders of spare parts, ser- vice or warranty claims. 1.5.2 CE plate Figure 1.5...

  • Page 11: Assembly Instructions

    RD 300-450 F Assembly instructions On delivery, the drill may be almost fully assembled depending on the method of transport etc. Use the following instructions where necessary. The drill can also be delivered with extras not co- vered by these instructions. If in any doubt, contact Väderstad-Verken AB or your dealer. Lifting and unloading the drill Figure 2.1 Figure 2.2...

  • Page 12: Moving The Tool Bar Tines

    Assembly instructions Moving the tool bar tines Figure 2.3 Prior to delivery, two or more tines have been removed from the centre section tool bar to aid lo- ading and unloading. Check carefully that these tines have been replaced in the correct positions before attaching the drawbar.

  • Page 13: Fitting The Drive Wheel Lifting Ram

    RD 300-450 F Fitting the drive wheel lifting ram Figure 2.5 Fit the drive wheel lifting ram as shown. Raise the drive wheel if the piston rod is fully out. Bolts (A) must be tightened until there is a freeplay of a few millimetres. Check that the drive wheel can be raised and lowered by hand without the lifting ram jamming between the links.

  • Page 14: Fitting The Air Hose

    Assembly instructions Fitting the air hose Figure 2.7 Figure 2.8 Fit the ejector elbow on the seed housing. Twist the elbow in well towards the centre of the drill so that there is sufficient room for the rate test bag. Fitting the PTO shaft Figure 2.9 (Only applicable to machines with a PTO-driven fan.)

  • Page 15: Fitting The Hose Bracket

    RD 300-450 F Fitting the hose bracket Figure 2.10 Fit the hose bracket on the fan. Connect the fan transmitter and area meter to the cable harness. The cables are numbered and the corresponding number is on the cable harness. Attach the outer tubing on the area meter cable to the hydraulic hoses so that the control box can- not fall down and get damaged on the drill frame.
  • Page 16 Assembly instructions Ver.07/06/01 07/06/01...

  • Page 17: Installing The Control Box In The Tractor

    RD 300-450 F 2.10 Installing the Control Box in the tractor Figure 2.11 Mount the Control Box securely using the screws on the back of the Box. Place the Box so that it is clearly within the range of vision of a forward-facing driver. NOTE! Check for hidden cables before drilling holes in the tractor cab.

  • Page 18: Fitting The Bout Markers

    Assembly instructions 2.11 Fitting the bout markers Figure 2.12 2.11.1 RD 400-450 F, -10 949 Drive out the pin (A) from the marker shaft and dismount the cirplip (K). Raise the marker and introduce the upper end (B) of the marker shaft into the upper mounting lug (C). Lower the marker and introduce the lower end (D) of the marker shaft into the lower mounting lug (E).
  • Page 19 RD 300-450 F 2.11.2 RD 400-450 F, 10 950- Figure 2.13 Fit the bout marker arm (A) in the wing bracket (B). Fold in the bout marker arm and check that the catch of the arm (C) fits against the roller (D) on the wing.

  • Page 20: Fitting The Platform

    Assembly instructions 2.12 Fitting the platform 2.12.1 Installing the rear platform (mfg. no. -10 309) Figure 2.14 Fit the platform, ladder and handrails. Ensure that the brackets (A) are fitted parallel to each other when they are attached to the platform (B).

  • Page 21: Fitting The Scrapers

    RD 300-450 F 2.13 Fitting the scrapers Figure 2.16 For transport reasons, some models may be delivered with the scrapers folded up. In such cases, half of the fixing screws for the arm (B) are packed inside the hopper. The distance between the scraper blade and the tyre should be at least 5 mm. To check this: Let the drill rest on the discs, with the wheels a few centimetres over the ground.

  • Page 22: Fitting The Following Harrow

    Assembly instructions 2.14 Fitting the following harrow Figure 2.17 Fit the shafts with the spring assemblies in place. Mount the single shafts on the centre section. Fit the bolt (A) through the links (B) and the inter- mediate sleeve (C), the wheel beam's mounting lug (D) and shaft lug (E). NOTE! this is threaded.
  • Page 23 RD 300-450 F Ver.1.3 07/06/01...

  • Page 24: Fitting The Pre-Emergence Bout Marker, Mfg. No. -10 309

    Assembly instructions 2.15 Fitting the pre-emergence bout marker, mfg. no. -10 309 Place the seed drill unfolded on a firm surface and hitched to a tractor. Raise or lower the seed drill to bring the seed coulters about a centimetre or so above the ground. Then select the floating po- sition or switch off the tractor and release the hydraulic pressure so that the seed drill sinks to the ground.
  • Page 25 RD 300-450 F 2.15.2 Installing the pre-emergence bout marker for side tramlining (option on RD 450 F) Figure 2.20 Uninstall the shaft (K) connected to the double shaft on the left-side following harrow. Install the pre-emergence bout marker arm (L) on the right side of the following harrow of the double shaft together with the new shaft (M).

  • Page 26: Fitting The Pre-Emergence Bout Marker, Mfg. No. 10 310

    Assembly instructions 2.16 Fitting the pre-emergence bout marker, mfg. no. 10 310- Place the seed drill unfolded on a firm surface and hitched to a tractor. Raise or lower the seed drill to bring the seed coulters about a centimetre or so above the ground. Then select the floating position or switch off the tractor and release the hydraulic pressure so that the seed drill sinks to the ground.

  • Page 27: Instructions And Settings

    RD 300-450 F Instructions and settings NOTE! All basic adjustments must be carried out with the Rapid drill on a level surface, with the wing sections lowered and with the drill hitched to a tractor. Tractor Figure 3.1 Figure 3.2 To reduce damaging soil compaction, the tractor in use during sowing should be fitted with extra wide tyres, e.g.

  • Page 28: Hitching The Seed Drill

    Instructions and settings Hitching the seed drill Figure 3.3 Hitch the drill to the tractor. Connect the power transmission shaft and check its length. (Applicable to drills with a power-dri- ven fan, also see section ”2.8 Fitting the PTO shaft” on page 14.) Mount the hydraulic pump on the tractor’s hydraulic connector and connect the torque rod.

  • Page 29: Adjusting Hose Length And Connecting Intermediate Cable

    RD 300-450 F 3.2.2 Connecting hoses to the hydraulic fan, 3-hose version, mftg. no. 10 324-: Figure 3.5 Figure 3.6 Connect the two thin hoses to a two-way hydraulic connector designed for continuous operation of a hydraulic motor. If available, use a priority connector. The thicker hose of these two hoses is the pressure hose to the hydraulic motor, while the thinner is the oil leakage hose.

  • Page 30: Changing Between Transport Position And Working Position, Rd 400-450 F

    Instructions and settings Changing between transport position and working po- sition, RD 400-450 F 3.4.1 Changing to working position Figure 3.8 Lift the seed drill to its top position. Folding the wing sections in and out must always be car- ried out with the seed drill fully raised.
  • Page 31 RD 300-450 F Figure 3.13 Figure 3.14 Note! Keep the hydraulic lever on the tractor in the lowering position ( "Floating" position must not be used) until the ram ("folding ram") is fully refilled, locking the wing sections in the unfolded position. See “Figure 3.13”. Figure 3.15 Always drive forwards when the seed drill is lowered to its working position, to prevent the seed coulters becoming clogged.

  • Page 32: Horizontal Alignment

    Instructions and settings Horizontal alignment Figure 3.16 The pitch of the drill is adjusted in the field using the push rod (A). The outer side plates must be completely parallel to the ground when the drill is sowing at the correct depth. Check the horizo- ntal alignment by ensuring that the forward seed coulters sow at the same depth as those at the rear.

  • Page 33: Adjusting Sowing Depth

    RD 300-450 F Adjusting sowing depth Figure 3.18 3.6.1 RD 300 F Adjustment of the seeding depth is carried out with the depth stop (A). The numbers on the scale do not represent absolute values of the seeding depth in centimetres but serve as an index only. In the case of larger adjustment of the seeding depth, it may be necessary to adjust the horizontal alignment, see ”3.5 Horizontal alignment”...

  • Page 34: Adjusting The Wing Sections

    Instructions and settings Adjusting the wing sections 3.7.1 RD 400-450 F Figure 3.19 A hydraulic lock is used to lock the extending/retracting ram automatically in the extended posi- tion, to keep the machine "rigid". This is to ensure even performance across the entire operating width.

  • Page 35: Adjusting The Tool Bars

    RD 300-450 F Adjusting the tool bars The depth of the tool bar is controlled by means of a ram on the centre section. 3.9.1 RD 400-450 F Figure 3.21 If the depth of the tool bar on the centre and wing sections is not the same, adjust this by slackening and moving the sleeve (G) along the slot in the side section's coupling arm (H).

  • Page 36: Setting The Seed Rate

    Instructions and settings 3.10 Setting the seed rate Figure 3.23 Figure 3.24 ! The seed boxe should be set according to the sowing table prior to filling the seed hopper. Use the crank to set the desired value on the scale. On machines with mftg. no. -10 610, use the supplied 10 mm wrench.
  • Page 37 RD 300-450 F Figure 3.27 ! For calibrations, be sure to use the supplied calibration bag. Prior to calibration, reset the scale when the calibration bag is empty. The bag should be pushed up under the seed box through the spring-loaded rate test hatch. H= 12 L= 26 Figure 3.28...

  • Page 38: Prior To Filling The Hopper

    Instructions and settings 3.12 Prior to filling the hopper Check that: ! the machine is empty, clean and dry ! the seed housing is set as shown in the Sowing Table. ! the emptying hatch is closed. 3.12.1 Filling from bulk sacks Figure 3.30 NOTE! Pay attention to safety.
  • Page 39 RD 300-450 F Mfg. no. 10 310-: The safest way to fill the hopper is diagonally from the rear with the wing in the retracted position (RD 400-450). If filling from the front, do so diagonally from the right with the tractor turned away in order to allow access to the platform without having to pass under the lifting arm.

  • Page 40: Emptying The Seed Hopper

    Instructions and settings 3.13 Emptying the seed hopper Figure 3.33 The hopper can be emptied by a single action. Remove the sliding hatch completely. If emptying a bit at a time, slide the hatch up gradually. Do not forget to replace the hatch after emptying. 3.14 Operation test Figure 3.34 To check the actual output, a running test can be performed.
  • Page 41 RD 300-450 F Ver.1.3 07/06/01...

  • Page 42: Adjusting The Air-Flow

    Instructions and settings 3.15 Adjusting the air-flow 3.15.1 Mechanical fan, Mfg. No. -10 158 Figure 3.35 The air-flow is regulated by a draught damper. 1/1: The damper is fully open. This setting must always be used. The only possible exception to this is for very light grass seed, in which case a reduced air-flow can be required.
  • Page 43 RD 300-450 F 3.15.3 Hydraulic fan "Fenix", Mfg. No. 10 159-10 259 Figure 3.37 The air quantity is regulated by the fan rev counter which is set using the rev counter regulator (A) on the fan support. On tractors with a constant pressure hydraulic system, the regulator (A) is set to its highest value and the fan rev speed is then adjusted using the flow valve on the hydraulic system of the tractor..
  • Page 44 Instructions and settings 3.15.4 Hydraulic fan "Fenix", manufacturing no. 10 260- The air volume is adjusted using the fan speed. The fan speed can be adjusted in various ways, depending on the tractor on which it is mounted: The fan is controlled using the tractor’s flow valve. A flow valve is available on most tractors with a constant pressure hydraulic system.
  • Page 45 RD 300-450 F 3.15.5 PTO driven hydraulic fan, mftg. no. 10 199-10 949 (accessory) The fan is designed to be driven at a PTO speed of 1000 rpm. The upper alarm limit of the control box is for a fan speed set to 4800 rpm, which is reached at approx.1100 rpm of the power connec- tor.
  • Page 46 Instructions and settings Operation: Figure 3.44 The air volume is adjusted by using the sliding damper. The damper has four positions. Refer to the table below for recommended settings. Table 3.3 Table of sliding damper settings Rev speed RD 300 F RD 400 F RD 450 F 4300 rpm...
  • Page 47 RD 300-450 F Ver.1.3 07/06/01...
  • Page 48 Instructions and settings 3.15.6 PTO driven hydraulic fan, mftg. no. 10 950- (option) Connection of the hydraulic pump to the PTO shaft: Connect the hydraulic pump as explained below. Items 3 and 4 should only be performed during initial installation or when the pump is moved from one tractor to another. 1 Install the hydraulic pump on the tractor's 1000 rpm PTO shaft.
  • Page 49 RD 300-450 F 5 Clamp the top rod to eliminate any lateral play. If necessary, use the enclosed spacers between the rod and the top rod mount. Lock the bolt with the locking nut on the outside. Figure 3.49 Operation: The fan is designed to be driven at 1000 rpm via the PTO shaft of the tractor.
  • Page 50 Instructions and settings Operation: Figure 3.50 The air volume is adjusted by using the sliding damper. The damper has four positions. Refer to the table below for recommended settings. Table 3.4 Table of sliding damper settings Rev speed RD 500 F RD 600 F RD 800 F 4300 rpm...

  • Page 51: Electronic Control Box

    RD 300-450 F 3.16 Electronic Control Box 3.16.1 Control Box Figure 3.51 The Control box is an electronic control system for operating the bout markers, the seed feed unit, tramlining etc. Memory The Control Box has a memory which can retain various settings: sown area, tramlining, selected markers, actual sowing bout etc.
  • Page 52 Instructions and settings 3.16.2 Functions of the Control Box 6A 6B 8A 8B 12 13 14 15 16 17 18 19 20A 20B 21 22 Figure 3.52 1 Manual bout marker switch 2 Function selector for markers off, both up, left out, alternating, right out, both out. 3 Indicator lights for bout marking in progress 4 Tramline guard.
  • Page 53 RD 300-450 F 24 Reset area meter. Press area button, hold RESET (24) down until the numbers stop flashing 25 Power light. Green light = voltage 12 V or more: OK Red flashing light: = voltage under 12 V: TOO LOW 26 Electric adjustment of the seed volume.
  • Page 54 Instructions and settings 3.16.3 Programming the Type III Control Box 9 10 11 12 13 14 15 Figure 3.54 The Box is always preset at Väderstad for the machine model and size with which it is supplied. If the Box is replaced or has lost the settings, it must be reset. The procedure for changing the settings such as alarm times, area metering etc is also described here.
  • Page 55 RD 300-450 F 4 Area meter. Button 13. The RH display shows the value entered. The area meter on the Box receives a signal from the drive wheel once per rotation. The cir- cumference of the drive wheel has been stored in the memory of the Control Box and the Box converts to area covered.
  • Page 56 Instructions and settings 7 BOX Type Button 9 Type 3, mftg. no. -10 949 Type 4, mftg. no. 10 950- Press button 9 once or twice until the correct type is displayed. Complete by pressing ENTER. NOTE! After completing programming, be sure to switch off the power switch on the control box.
  • Page 57 RD 300-450 F 9 Calibration of electric adjustment of the sown amount (option) The control box is normally calibrated against the electric setting device. Calibration should be performed when the equipment is post-fitted or if the control box or the setting device is repla- ced.
  • Page 58 Instructions and settings 3.16.4 Settings and functions Setting the bout markers 6A 6B 8A 8B 12 13 14 15 16 17 18 19 20A 20B 21 22 Figure 3.56 Set the bout marker function selector (2) to alternating for automatic changeover of the mar- kers.
  • Page 59 RD 300-450 F Alarms The Control Box has inbuilt alarms, which warn of faults occurring in the machine. The alarms are signalled by buzzers and/or flashing lights. Table 3.5 Alarm Buzzer Light Display Low seed level Low fertilizer level Low/high fan revs Left/ fore feed sensor Right/rear feed sensor Fuse fault...
  • Page 60 Instructions and settings 3.16.5 Electric adjustment of the sown amount (Option) E1 E2 Figure 3.57 The sown amount can be increased or decreased in steps of 10% from the default value. Setting the default value: Set the handle A to the position B. Set the default value using the switch C. The scale value is shown in the right part of the display, D.
  • Page 61 RD 300-450 F 3.16.6 Fuses Figure 3.58 On the RH side there are six trip fuses. Fuse faults are indicated by Err4 in the left and FUSE in the right display. Fuse layout is shown in ”3.16.2 Functions of the Control Box” on page 52, points 29-34. It is not possible to see which fuse has tripped since the white buttons do not pop out.
  • Page 62 Instructions and settings 3.16.8 Tramline options The RD 300-450 F models are supplied with equipment for centre marking installed. The RD 450 F models are fitted to order with either centre marking or side marking. In centre mar- king the lines will be symmetrical in relation to the centre line of the drill. In side marking a line is marked on the left-hand side of the seed drill in the course of two consecutive bouts.
  • Page 63 RD 300-450 F Table 3.8 The most common tramlining systems (centre marking) Machine Tramlining Multiple selector Start Remarks width value RD 300 F First bout half overlapped by the second bout.* RD 300 F 12 m First bout half overlapped by the second bout.* RD 300 F 15 m RD 300 F...

  • Page 64: Tramlining

    Instructions and settings 3.17 Tramlining 3.17.1 Adjusting track width Figure 3.62 The Rapid drill is usually supplied with the row shutoff and track width specified by the customer. However, it is possible to change these if necessary: ! A different track width can be obtained by shifting the feed hoses to the seed coulters. Example: A track width of 1.75 m can be increased to 2.0 m by moving the front left and rear right one step outwards.

  • Page 65: Adjusting The Following Harrow

    RD 300-450 F 3.18 Adjusting the following harrow Figure 3.64 Figure 3.65 Fit the following harrow, see ”2.14 Fitting the following harrow” on page 22 1 Select a suitable operating angle using the series of holes (B) 2 Check that the tines of the following harrow are centred midway between the wheels and in the centre of the wheel tracks respectively.

  • Page 66: Folding Platform, Mfg. No. -10 309

    Instructions and settings 3.20 Folding platform, mfg. no. -10 309 Figure 3.67 The platform can be folded back to allow access for service and maintenance work. Secure the platform with R-clips on both sides. If a rear railing is fitted, this must first be removed. Be safety conscious, replace the rail once work is completed.

  • Page 67: Adjusting The Seed Coulters

    RD 300-450 F 3.22 Adjusting the seed coulters Figure 3.70 Figure 3.71 NOTE! Before carrying out any work under the drill, make sure it is fully secure. To ensure a satisfactory sowing result, it is important that the seed boxes are correctly installed on the drill.

  • Page 68: Scrapers

    Instructions and settings 3.23 Scrapers Figure 3.72 The scrapers have two positions. When the scraper blade (A) can no longer be adjusted, the play of the scraper itself (B) can be adjusted . NOTE! Under no circumstances should the distance between the edge of the scraper blade and the tyre be less than 5 mm.

  • Page 69: Advice On Sowing

    RD 300-450 F Advice on sowing Sowing depth Figure 4.1 See ”3.6 Adjusting sowing depth” on page 33. The most important task for the Rapid operator is to carefully and continually check the sowing depth. The sowing depth is set using the depth stop on the lifting ram. The numbers on the scale do not represent absolute values of sowing depth in centimetres.

  • Page 70: Checking The Seed Feed

    Advice on sowing Checking the seed feed Figure 4.2 The seed feed should be checked at the same time as the sowing depth, i.e. after every 4 hectares or once an hour. When checking the seed feed, you must ensure that the drill appear to be delivering the same quantity from each coulter.

  • Page 71: Sowing Headlands

    RD 300-450 F Sowing headlands Figure 4.3 In dry and fine conditions, the headlands should be sown first. In wet conditions or on soils susceptible to compaction, higher yields can be obtained if the headlands are sown last. The headlands can be marked out by finishing off the last tillage operation before sowing (e.g. au- tumn harrowing) by harrowing the headlands last.

  • Page 72: Tramlining

    Advice on sowing Tramlining The tramline options possible and the settings on the Control Box are described in ”3.16.3 Pro- gramming the Type III Control Box” on page 54 and ”3.16.8 Tramline options” on page 62. During sowing, the most important thing to remember about tramlining is to shut off Autostep before doing anything other than normal sowing or turning in headlands between bouts.

  • Page 73: Autumn Sowing

    RD 300-450 F Autumn sowing All tillage operations must be able to deal with soil compaction, trash and weeds. Before sowing, these factors must be considered and dealt with. If the soil is very compacted, it must be loosened, and if there is a lot of chopped straw present it must be incorporated. This can be done either by conventional ploughing or by ploughless cultivation, using the right equipment and techniques.

  • Page 74: Spring Sowing

    Advice on sowing 4.13 Spring sowing To ensure good emergence after spring tillage, the following points should be observed: ! Level the soil in the autumn until the surface variation is 10 cm or less. ! Sow early, this requires good capacity and technology ! Ensure a uniform sowing depth ! Avoid incorporating dry soil into the germination zone ! Re-compact very loose soil...

  • Page 75: Cultivating Silty Soils

    RD 300-450 F 4.16 Cultivating silty soils 4.16.1 Spring sowing on silty soils Silty soils are very slow to dry out and warm up in the spring. This is mainly due to the excellent capacity of these soils for capillary transport of water to the surface. Autumn ploughed silty soils have time to consolidate during the winter and this produces the continuity of pores which creates good capillarity and resultant slow surface drying in the spring.

  • Page 76: Maintenance And Service

    Maintenance and service Maintenance and service Figure 5.1 Figure 5.2 Figure 5.3 NOTE! During all work under the drill or where there is a danger of crushing, the drill must be completely and securely supported. Secure the drill on trestles or stands and lock all lifting rams with their yellow locking devices.

  • Page 77: Seed Feed Housing And Rape Brush

    RD 300-450 F Seed feed housing and rape brush Figure 5.5 Figure 5.6 The inside of the seed feed housing must be cleaned out regularly and frequent checks must be made for signs of wear on plastic and rubber components. It is specially important to ensure that seed additive deposits do not build up in the scoops, reducing their volume.

  • Page 78: Fan And Fan Transmission, Mfg. No. -10 158

    Maintenance and service Fan and fan transmission, Mfg. No. -10 158 Figure 5.8 After 300-500 hectares work, we recommend a thorough inspection of the fan, fan belt, the bea- rings and axle of the lower fan pulley and the drive axle. Drive wheel transmission Figure 5.9 Remove the chain casing and check the tension in the chain and the condition of the chain.

  • Page 79: Push Rod/ Push Rod Ram

    RD 300-450 F Push rod/ push rod ram Figure 5.11 Dismantle the push rod at the end of the season and grease the threaded ends of the rod and the cylinder. Measure the total length of the push rod unit before dismantling it so that it can be reas- sembled to the correct length.

  • Page 80: Storing The Drill

    Maintenance and service Storing the drill Figure 5.16 The drill should be stored indoors when not in use. This is particularly important because the drill contains electronic equipment. The electronic components are of very high quality and can withstand a lot of moisture but we still recommend that the drill be stored indoors. The Control Box should be stored at room temperature during the winter and between seasons.

  • Page 81: Changing Discs

    RD 300-450 F 5.11 Changing discs Make sure that the drill is securely supported on trestles. When changing discs, use a ratchet spanner or preferably a nut runner. Turn the disc so that the completely flat side faces the seed coulter. NOTE! The discs have sharp edges, so wear gloves! Adjust the coulter if necessary, see ”3.22 Adjusting the seed coulters”...

  • Page 82: Changing Seed Coulter Mounting Bolts

    Maintenance and service 5.13 Changing seed coulter mounting bolts Figure 5.20 Figure 5.21 The disc arm has two recessed bolts for the coulter mounting. If these cannot be driven out, they must be cut and ground level with the arm. It may be necessary to remove the entire disc arm to do this.

  • Page 83: Changing The Seals On The Hydraulic Rams

    RD 300-450 F 5.15 Changing the seals on the hydraulic rams Figure 5.23 NOTE! During service work on the hydraulic system, the wing sections (RD 400-450 F) and the drill must be fully lowered, with no pressure in their hydraulic systems Remove the rams completely from the drill before changing the seals.

  • Page 84: Changing The Valve Seals On The Lifting Ram

    Maintenance and service 5.16 Changing the valve seals on the lifting ram Figure 5.24 NOTE! When servicing the hydraulic system, the side sections and the seed drill should be lowe- red, with zero pressure in the respective hydraulic circuit Remove hose (F), with care if there is any pressure left in the system. Remove the seat (E), the guide (C) and the piston (A).

  • Page 85: Repairing And Replacing Seed Hoses

    RD 300-450 F 5.17 Repairing and replacing seed hoses Figure 5.25 Repair If a seed hose is worn or bent, it can be patched with a joint, Part No. 415397 for Ø32 mm hose. This dimension refers to the internal diameter of the hose and the external diameter of the joint. Cut the hose in the centre of the damaged area.

  • Page 86: Pto Driven Hydraulic Fan, Mftg. No. -10 949

    Maintenance and service 5.18 PTO driven hydraulic fan, mftg. no. -10 949 The fan design includes a built-in oil system filled with special oil and fitted with an oil filter. The system capacity is about 10 litres of oil. Use SHS 46 quality oil. Be careful during maintenance to prevent impurities entering the oil.
  • Page 87 RD 300-450 F 5.18.3 Draining condensed water: Before the fan is used at the beginning of a new season and when the fan has not been used for a long time, condensed water should be drained from the tank. ! Place the equipment to allow the tank to rest at an angle towards the drain at the bottom. ! Remove the drain hose (B) from the coupling at the bottom of the tank (hold the nipple in po- sition with a wrench when the hose is loosened), and drain water from the system.

  • Page 88: Pto Driven Hydraulic Fan, Mftg. No. 10 950

    Maintenance and service 5.19 PTO driven hydraulic fan, mftg. no. 10 950- The fan has an inherent oil system with a special oil and a separate filter. The system has a capacity of approx. 40 liters of oil (SHS 46 quality). During maintenance work, always pay attention that the oil does not become contaminated.
  • Page 89 RD 300-450 F 5.19.3 Draining condensing water Prior to first use each season or following extended interruption, be sure to drain condensing water from the tank. ! Park the machine on an inclination to have the tank inclined towards the drain connector at its bottom.

  • Page 90: Troubleshooting

    Troubleshooting Troubleshooting General information on troubleshooting Many of the functions of the drill are controlled by a series of electrical, hydraulic and mechanical components. A good way to exclude many of the sources of faults from the start is to first deter- mine whether the fault is electrical.

  • Page 91: Troubleshooting List

    RD 300-450 F Troubleshooting list Control box not working! - See ”6.1.1 Electrical faults” on page 90. Marker/s cannot be extended! - Check the current to the 2 central solenoid valves on the top of the valve block, see Hydraulic valves under ”6.3 Notes on troubleshooting”...
  • Page 92 Troubleshooting Automatic changeover of mar- kers and/or tramlining fails to operate! - See Autostep function under ”6.3.1 Some functions of the Control Box” on page 99. - Is the Autostep switch up (on)? - Is the multiple selector for the markers at alternating (up)? - Is tramlining set correctly? - Is the Low lift switch set correctly ? See ”3.19 Adjus-...
  • Page 93 RD 300-450 F The fan indicator lights and the buzzer sounds! NOTE! No warning is given if a fan hose becomes de- tached or if the ejector elbows are out of place. - Mechanical fan: - Check that the PTO is connected and turned on - Check that rev count of the PTO is correct - Check the fan transmission belt.
  • Page 94 Troubleshooting Sensor faults: - Check sensor function, see ”6.3 Notes on troubles- hooting” on page 97. - Check that the toothed plate in the housing is undama- ged. - Check that the inductive sensor is sufficiently close to the plate, adjust if necessary. - Check the sensor connections to the cable harness in the connection unit of the seed feed housing as fol- lows:...
  • Page 95 RD 300-450 F If the damper sticks in one posi- tion: - Is there seed or debris blocking the damper? - If so, remove the glass lid of the distributor head and clean. Sowing depth varies from centre to wings! (RD 400-450 F)! - Check that the long piston rod of the folding ram is fully out and does not creep in during work.
  • Page 96 Troubleshooting Leakage from the shaft seal on the fan's hydraulic motor! - Leakage from the shaft seal of the hydraulic motor may be caused by: - Damage caused during fitting. - Wear due to dirt. - Wear due to too high pressue in the drain line. - A damaged seal caused by very high pressure in the drain line.

  • Page 97: Notes On Troubleshooting

    RD 300-450 F Notes on troubleshooting Hydraulic solenoid valves Figure 6.1 Figure 6.2 A solenoid has a coil which acts as an electromagnet when a current is passed through the sole- noid. It is easy to see if current is getting to the solenoid since the connector diode light comes on and the coil becomes warm after a few minutes.
  • Page 98 Troubleshooting Inductive sensor Figure 6.4 Responds to metal objects passing within 1 - 1.5 mm. Easily tested since a diode on the back edge of the sensor lights up every time it registers an object. Capacitive sensor Figure 6.5 Responds to objects containing moisture - seed, a hand, etc. Easily tested since a diode on the rear edge of the sensor lights up every time it registers an object.
  • Page 99 RD 300-450 F 6.3.1 Some functions of the Control Box Control Box 37-pole connector Figure 6.6 The location of the poles is marked on the face of the connector, see Fig 6.3. Output signals The output signal voltage is +12 V. The output signals are sent via poles 12, 13, 14, 15, 25, 26, 27, 28, 29, 30, 31, 32 and 33.

  • Page 100: Appendices 7.1 Sowing Table

    Table, Tabelle, Tableau 98- Tag alltid ett utmatningsprov. Såtabellens innehåll skall en- RD 300-800 F No. 10 000- dast ses som riktvärden. Vid små utmatningsmängder bör ett nytt utmatningsprov tas re- Vete Råg Korn Havre Bönor Ärtor Lupiner Vicker Majs Gräs Raps Klöver...

  • Page 101: Calibration Results

    RD 300-450 F Calibration Results Table 7.2 Crop kg/dm³ High/low gear Scale reading Ver.1.3 07/06/01...

  • Page 102: Hydraulic Diagram

    Appendices Hydraulic diagram 7.3.1 Hydraulic diagram, RD 300 F Figure 7.1 307330 1 Lifting and seed depth setting 2 Hydraulic ram, drive wheel 3 Hydraulic ram, RH bout marker 4 Hydraulic ram, LH bout marker 5 Hydraulic ram, pre-emergence bout marker 6 Hydraulic ram, tool bar 7 Valve block, Lift stop, bout markers, pre-emergence markers 8 Tractor...
  • Page 103 RD 300-450 F 7.3.2 Hydraulic diagram, RD 400-450 F Figure 7.2 307331 1 Lifting and seed depth setting 2 Hydraulic ram, drive wheel 3 Hydraulic ram, RH bout marker 4 Hydraulic ram, LH bout marker 5 Hydraulic ram, pre-emergence bout marker 6 Hydraulic ram, tool bar 7 Hydraulic ram, folding 8 Valve block, Lift stop, bout markers, pre-emergence markers...
  • Page 104 Appendices 7.3.3 Fenix fan, standard, mftg. no. -10 259 Figure 7.3 Flow valve Hydraulic motor Choke valve Manometer Radiator Tractor 7.3.4 Fenix fan, standard, mftg. no. 10 260-10 323 Figure 7.4 Cut-off valve Hydraulic motor Radiator Tractor Ver.07/06/01 07/06/01...
  • Page 105 RD 300-450 F 7.3.5 Fenix fläkt, standard, 3-hose design, mftg. no. 10 324-10 622 Hydraulic motor Radiator Tractor 7.3.6 Fenix fläkt, standard, 3-hose design, mftg. no. 10 623- Figure 7.5 Hydraulic motor Valve block Tractor Ver.1.3 07/06/01...
  • Page 106 Appendices 7.3.7 Fenix fan, PTO, mftg. no. -10 949 Figure 7.6 Hydraulic pump Hydraulic motor Choke valve Radiator Air filter Oil filter Waste valve Hydraulic tank Tractor Ver.07/06/01 07/06/01...
  • Page 107 RD 300-450 F 7.3.8 Fenix fan, PTO, mftg. no. 10 950- Figure 7.7 Hydraulic pump Hydraulic motor Choke valve Radiator Air filter Oil filter Contamination indicator Hydraulic tank Tractor Ver.1.3 07/06/01...

  • Page 108: Electrical Diagram

    Appendices Electrical diagram Figure 7.8 307335 Ver.07/06/01 07/06/01...
  • Page 109 RD 300-450 F 7.4.1 Electric wiring diagram for RD 300-450 F "Normal" in this regard refers the position of the electric unit when it has no electric load and is free of any cam and magnetic forces. Area measurement is performed using the detector on the drive wheel Magnetic valve, right bout marker.
  • Page 110 Appendices Figure 7.9 7.4.2 Pole numbering, Control Box connector Table 7.3 Pole Switch Function Colour, cable Remark harness Variable sown amount 5 V Ground Blue A6-7 Ground Blue A8-9 Ground Blue Ground Blue Variable sown amount 0 V Black Tramlining, OFF Yellow/grey Output signal =+12V Tramlining, ON...

  • Page 111: Connector, Mftg. No. 10950

    RD 300-450 F Connector, mftg. no. 10950 - 7.5.1 Device - Tachometer for fan and area meter Cabling: Table 7.4 Fan detector configuration Connector pole Cabling pole Cable colour Function Grey Signal Brown +12V Blue Ground Table 7.5 Area meter configuration Connector pole Cabling pole Cable colour Function Green Signal...
  • Page 112 Appendices 7.5.2 Device - Tramline motor and tramline monitoring Cabling: Table 7.7 Configuration - Tramline motor and tramline monitoring Connector pole Cabling pole left Function Tramlining off Tramlining on Ground Signal +12V Ground Tramline motor and tramline detector Table 7.8 Configuration Connector pole Cable - Colour Function Motor - Green Tramlining off...

  • Page 113: Technical Data

    RD 300-450 F Technical data Table 7.11 Machine RD 300 F RD 400 F RD 450 F Working width (m) Transport width (m) Transport height (m) 2,55 2,55 2,55 Hopper capacity (litres) 2000 2000 2000 Max. load in hopper (kg) 2000 2000 2000...
