Overview

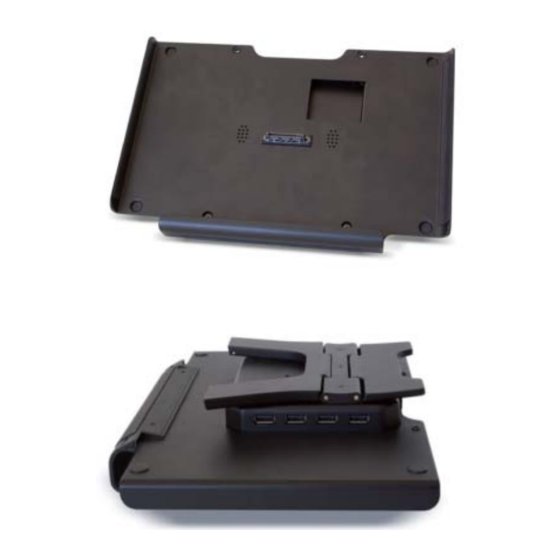

Vantage's Pedestal Mounting Dock is designed to allow the
TPT1210-1 touchscreen to be docked and undocked by simply
setting or lifting on and off the dock. The dock has multiple
positioning stand legs that allow different tilt angles for
custom viewing. The mounting legs are also removable
allowing the dock to be connected to any VESA mount device
using 100mm or 75mm VESA mounting solutions. If using the
VESA mount solution you must also order the optional Quick-
Release Lock, part number TPT1210-1-QR. The dock provides
pass-thru of all ports, including power. Make the transition
from docked workstation to mobile companion effortlessly. It
Includes an AC Adapter with power cord.

Specifications/Requirements

Description
Overall Dimensions,
HWD
Weight
Mounting
Optional
Screen Locking Device
Power Connection
Input: 100~240V, AC 50~60Hz, 1.7A
AC Adapter
Network Connection Standard RJ45 Network Connector
VGA External Monitor
IEEE 1394
USB Ports
Operating
Temperature
Ambient Operating
Humidity
System Requirements

Installation

Installation of Vantage products should be performed or
supervised by a Certified Vantage Installer.
Mac Address
If using the hard-wired Ethernet connection in your installation,
be sure to record the MAC address of the TPT1210-1 PEDESTAL
MOUNTING DOCK. This information may be needed in setting
up the local network.
Specification
8.25" x 12.25" x 2.25"
210mm x 311mm x 57mm
1lb. 11.6 oz. – 782 g
Free Stand or VESA mount
100/75mm
Locks Screen to Dock for VESA
Mounting Options
AC Adaptor connection on dock
Output: 20V DC, 3.25A
Standard VGA Monitor Port
IEEE 1394 Port (Fire Wire)
4, USB ports
5°C ~ 35°C (41° F ~ 95° F)
5-95% non-condensing
This dock is compatible with all
Vantage TPT1210-1 tablets
I N S T A L L A T I O N
TPT1210-1 PEDESTAL MOUNTING DOCK — MODEL: TPT1210-1-PED

Location / Electrical:

•
Connect the barrel connector into the bottom of the
VESA mount section on the back of the dock
•
Connect the plug side to a 120/240VAC Outlet
•
Connect an RJ45 network cable into the bottom of the
VESA mount section on the back of the dock
•
Connect any additional USB items, e.g., keyboard,
mouse, etc. to the available USB ports – 4 USB ports
total
•
One IEEE 1394 port for video cameras etc.

Mounting / Dismounting TPT1210-1

MOUNT:
•
Set the TPT1210-1 in the dock by inserting the bottom
first into the self guiding cupped tray
•
Carefully press back the top of the touchscreen tablet
until it comes to its resting point in the dock
•
Make sure it is setting flush with the back of the dock
REMOVE:
•
Pull the TPT1210-1 forward at the top until it clears the
docking connector
•
Finish by carefully lifting the touchscreen from the dock
tray

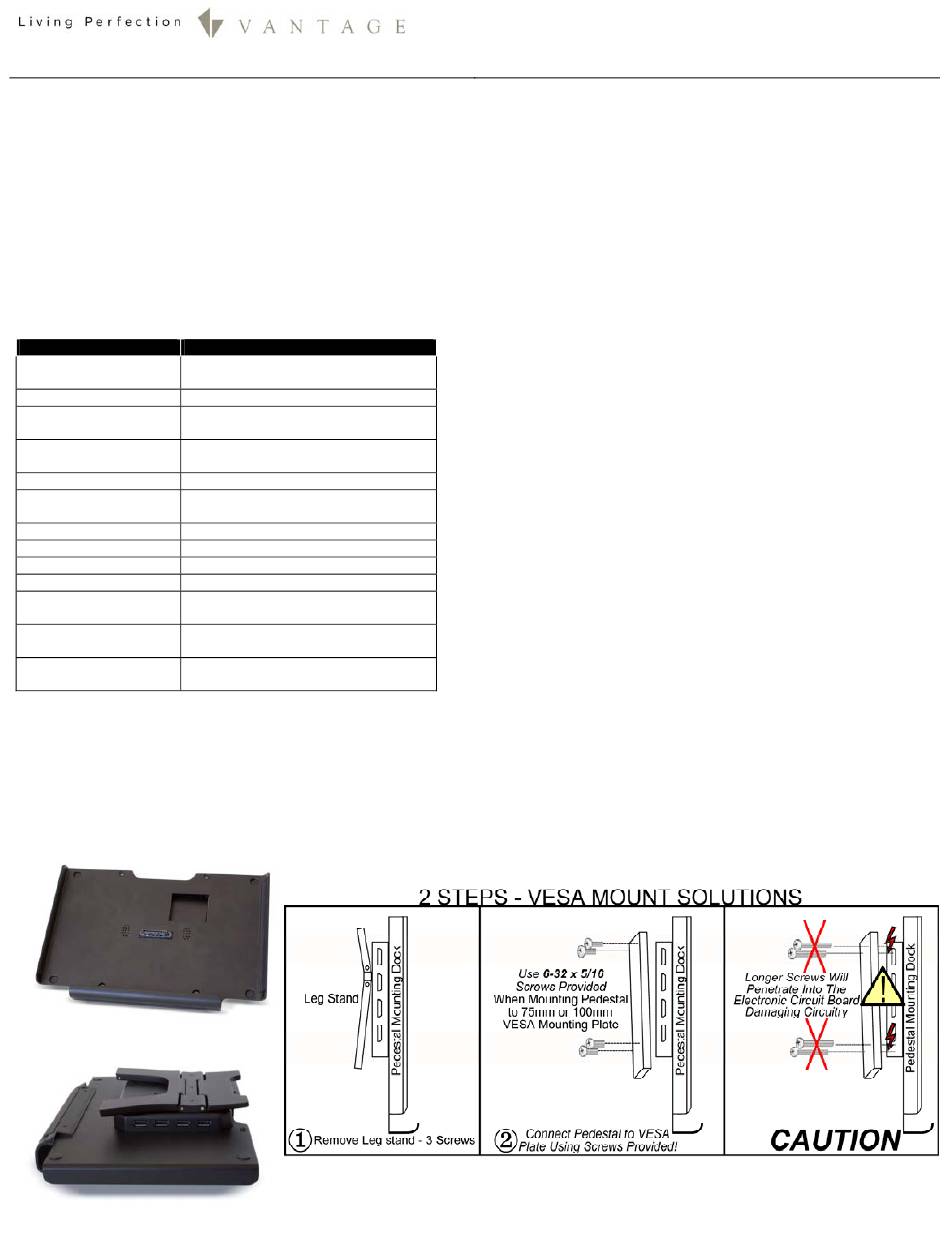

VESA Mounting

The dock will connect to any 100mm or 75mm VESA mounting
solution by removing the dock leg stand via the three screws
holding the leg stand on (see drawing on back). Screws used
to connect the Pedestal to any VESA mount must be the
proper length to avoid damage to the circuit board in the
Pedestal. NOTE: when connecting to a VESA mount please
connect the locking device to the top of the dock using the
screws enclosed with the locking device. The Quick Release
Locking device must be ordered separately, part number
TPT1210-1-QR.

VESA Mounting KIT

A VESA mounting KIT is also available. This KIT comes with the
proper length screws so damage to the circuit board in the
Pedestal can be avoided. The VESA mounting device then
connects to this VESA plate. Part number for VESA Mounting
KIT: <coming soon>
