Change the ROWASHER Microbe Filter Mat EVERY MONTH
................................................................................

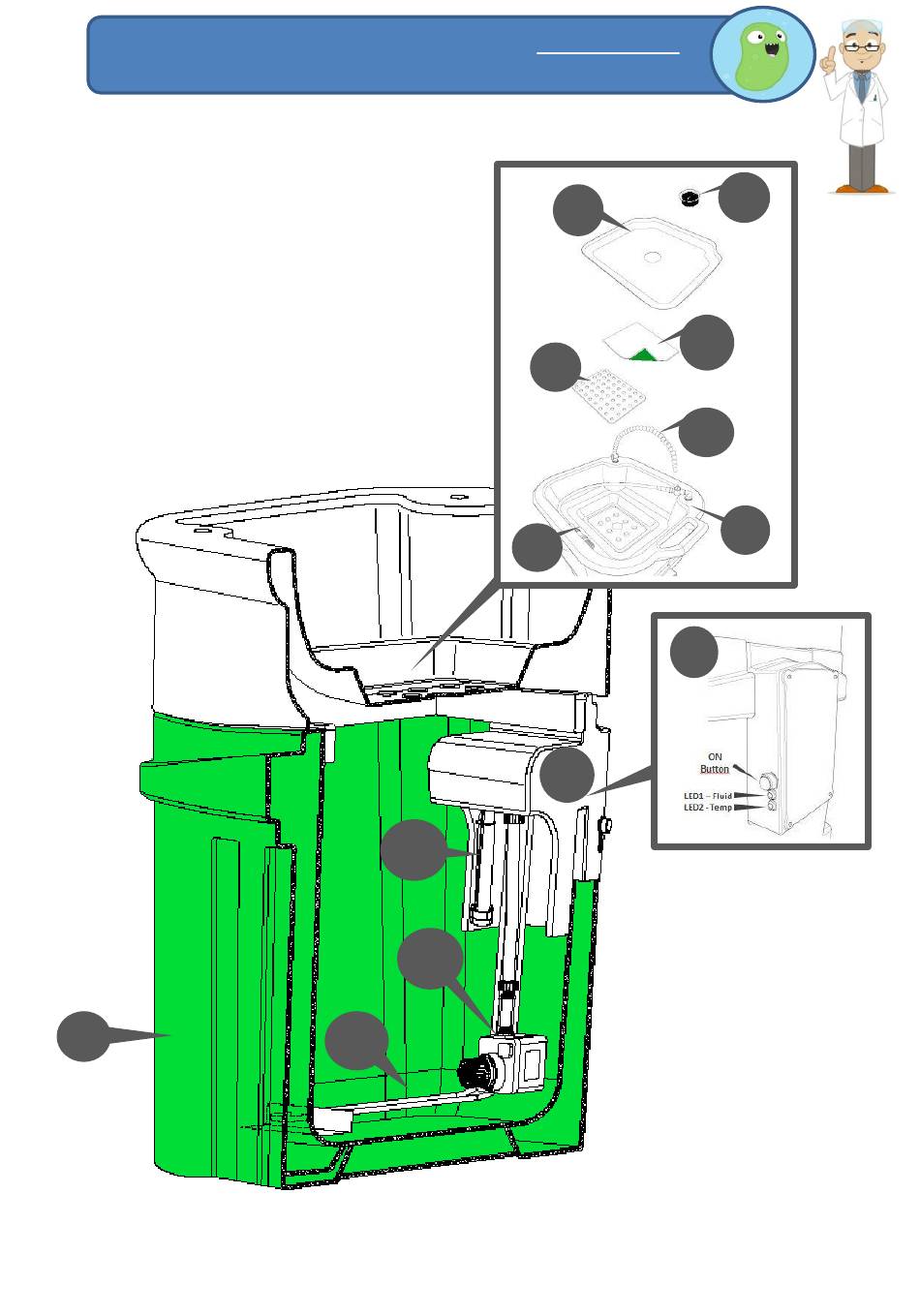

5. MACHINE DIAGRAM AND PARTS

1. Sink Top
Part No. 11090802 XL : 11090804
2. Nozzle
Part No. 11090857
3. Brush
Part No. 11090855 XL : 11090856
4. Filter Support Grid
Part No. 11090826
5. ROWASHER Microbe Filter Mat
Part No.
6. Sink Tray
Part No. 11090805 XL : 11090806
7. Basket Filter Part No. 11090538
8
To Maintain Cleaning Performance
0
1
0
11
12
For Technical Support or to order more consumables
Tel: +44 (0)121 526 8181 www.rozone.co.uk
6
5
4
2
3
1
9
9
8. ROWASHER Tank Base
Part No. 11090800
XL : 11090807
9. Control Box
Part No. 11090803
10. Fluid Sensor
Part No. 11090840
11. Pump
Part No. 11090878
12. Heater
Part No. 11090828
