- Page 1 Air Brake Manual www.drzamps.com...
- Page 2 The Z Air Brake has two major applica�ons. One is for stage use, the other is for studio or home use. For stage use, the Z Air Brake is a useful tool to limit your overall dB level at any �me during a performance.

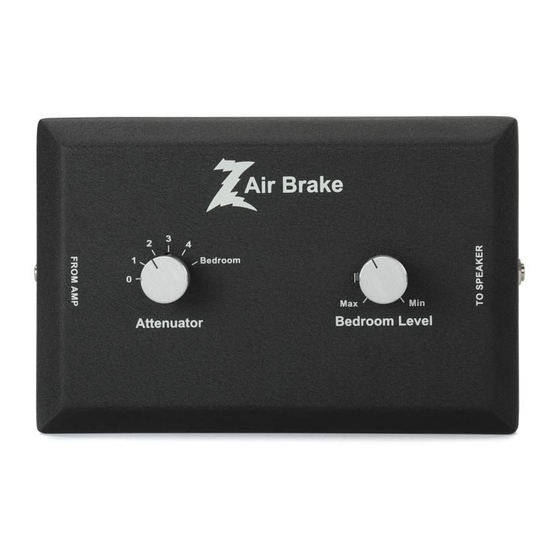

- Page 3 Specifica�ons Max Wa�age 100 wa�s Controls A�enua�on, Bedroom Level Colors Black Dimension & Weight 9” W x 3” H x 6” D, 3 lbs.
- Page 4 You are able to fine tune the amount of a�entua�on between posi�ons 1 and 2, posi�ons 2 and 3, and posi�ons 3 and 4 by opening the Air Brake up.* A�enua�on levels between 0 and 1 and 4 and Bedroom are fixed se�ngs and can not be adjusted.
- Page 5 (Figure C). 8. A�er making sure the clamp indent is making contact with the resistor winding (Figure C), secure the back panel onto your Air Brake with a 1/4” nut driver, plug in and enjoy. Figure C *Dr.
