Summary of Contents for Darkglass ELEMENT

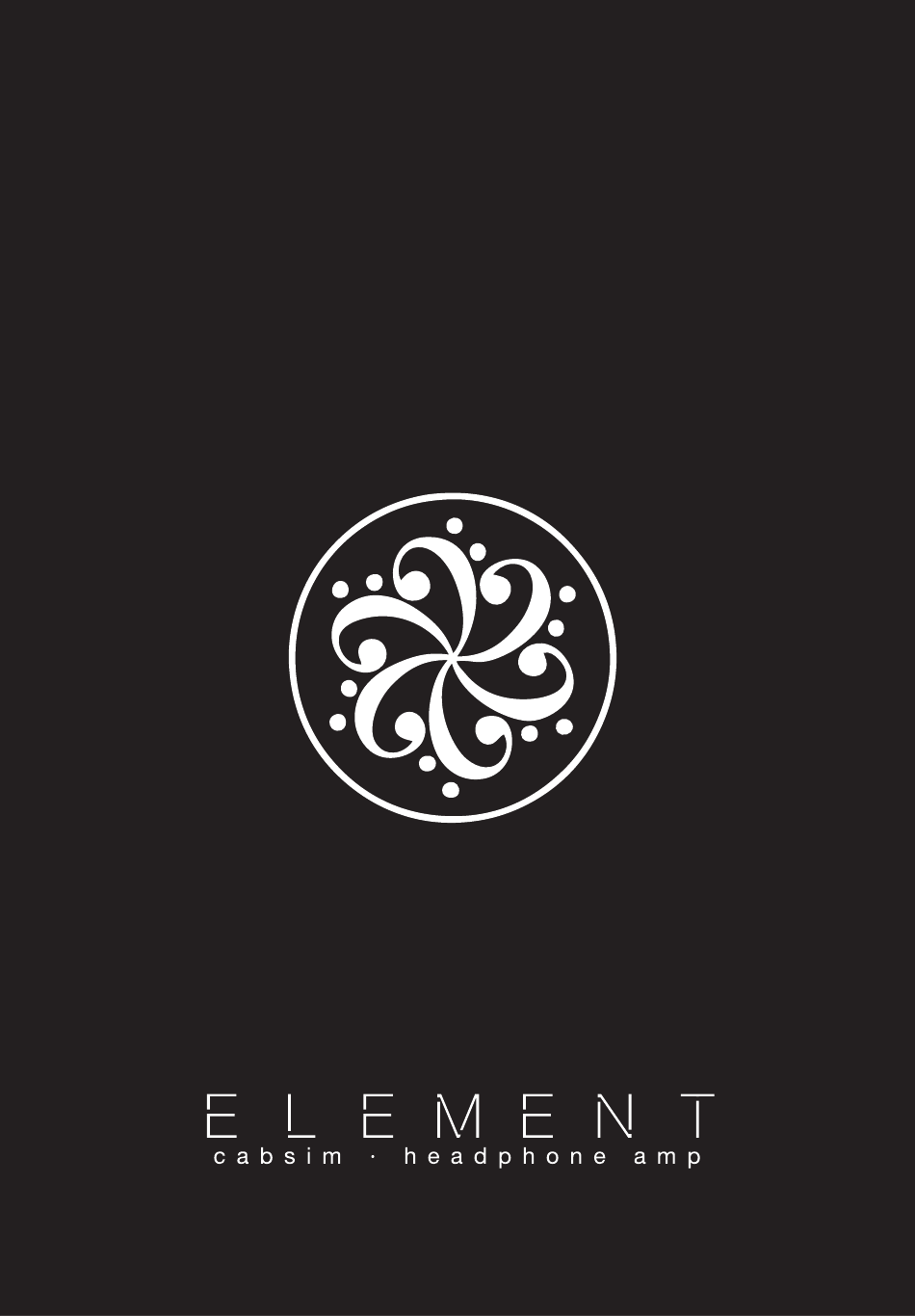

  • Page 1 User Manual...
  • Page 2 Warning The Element has a current draw of 250mA. Only use a regulated 9V DC adapter with a center-negative plug. Due to ecological reasons, it does not accept batteries.

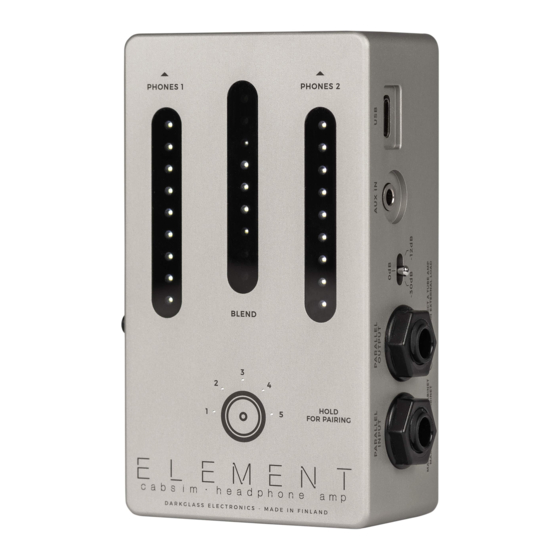

  • Page 3 Controls Phones: Two touch sensitive volume control sliders, one for each headphone output. Blend: A touch sensitive slider to set the blend between the main input (Intrument/Amp in) and the backing track (Bluetooth/Aux in) for the headphone out mix. Technical Specifications Input Impedance 2 Mohm, 18 kohm, 12 kohm Current Consumption...
  • Page 4 You can connect the line/headphone out of your laptop/keyboard/mixer etc. into the 3.5 mm aux input on the Element . Use the blend control slider to set the mix between the instrument/amp input and the aux in audio for your headphones.
  • Page 5 Element at the end of the signal chain. Use the input labelled “INSTRUMENT IN” on the Element You can now choose the impulse response from slots 1-5 or the bypass signal. From here the signal is passed through to the XLR output and via the blend and volume controls to the headphone outputs.
  • Page 6 Use the input labelled “AMP IN” for the amplifier and the output labelled “SPEAKER OUT” to connect the speaker cabinet to the Element . You can now choose the impulse response from slots 1-5 or the bypass signal. From here the signal is passed through to the XLR output and via the blend and volume controls to the headphone outputs.
  • Page 7 firmware updates. Darkglass Suite comes with a selection of cabinet IRs made by some of our artists. It also allows you to load your own IRs in WAV and AIFF formats and organize your IR files.
  • Page 8 Darkglass Electronics OY. Helsinki, Finland www.darkglass.com...
