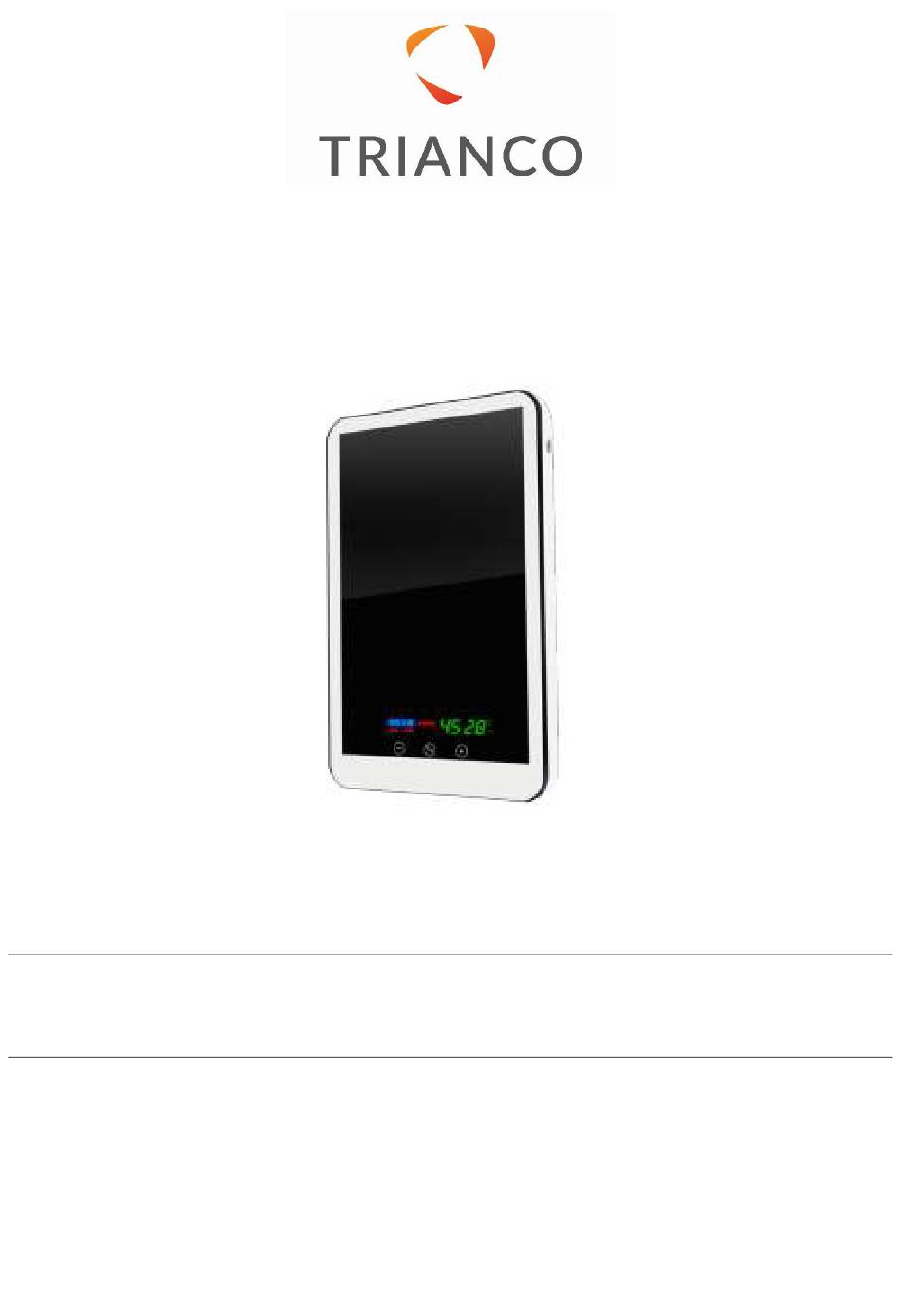

- Page 1 Aztec Instant Water Heater INSTALLATION AND OPERATION INSTRUCTIONS Please read these instructions carefully before installing and operating this appliance TO BE RETAINED BY HOUSEHOLDER...
-
Page 2: Table Of Contents
CONTENTS Health and Safety Pre-Install Notes After Sales Service Safety Notes User Instructions Fault Finding Installation Technical Details... -
Page 3: Health And Safety
HEALTH AND SAFETY INFORMATION FOR THE USER, INSTALLER AND SERVICE ENGINEER Under the Consumer Protection Act 1987 and the Health and Safety at Work Act 1974, it is a requirement to provide information on substances hazardous to health (COSHH Regulations 1998). TR Engineering takes every reasonable care to ensure that its products are designed and constructed to meet these safety requirements when the products are properly installed and used. -
Page 4: Pre-Install Notes
IMPORTANT PRE-INSTALLATION NOTES Before installation, it is imperative that the following guidelines are heeded to ensure the trouble-free and efficient operation of the boiler: Siting The water heater should not be installed in a shower compartment or bathroom. When siting the boiler, consider the potential requirement for future access to the cold-water inlet. The supplied in line filter should be cleaned either on an annual basis or when a reduction in water flow is noticed. -
Page 5: Safety Notes

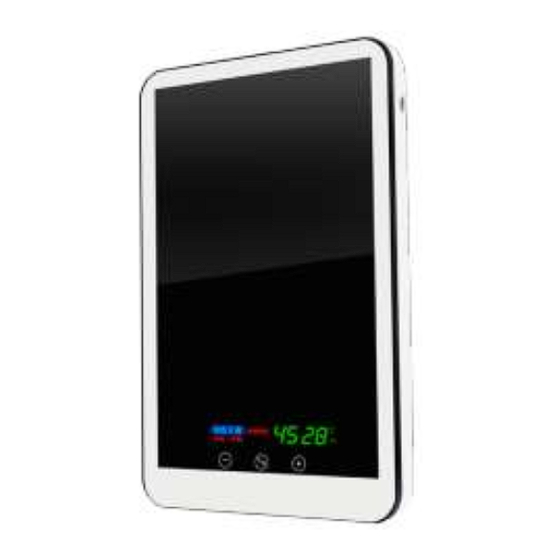

INTRODUCTION The Aztec Instant Water Heater is a wall mounted instantaneous electric water heater. Once the water heater is switched on it is fully controlled by an automatic management system which monitors the safety and running functions. Designed to provide instantaneous hot water. -
Page 6: User Instructions
INSTRUCTIONS The Trianco Aztec Instant Water Heater has been designed and constructed to give years of trouble-free service and these instructions are provided to assist you in obtaining the best performance with the least trouble and cost. The water heater is fully automatic in operation and requires little attention other than the setting of the hot water temperature. -
Page 7: Installation
INSTALLATION INSTALLATION Installation of the water heater must comply with the following British Standards and Regulations: Current I.E.E. Regulations Local water undertaking By-laws. Health and Safety at Work Act The installer should be aware of his responsibilities under the Act and provide where necessary, appropriate protection for persons carrying out the installation. -
Page 8: Technical Details
TECHNICAL DETAILS Power 12KW Phase Voltage 220V-240V ,50Hz/60Hz Current(A) 36.4 54.6 Circuit Breaker Requirement(A) ≥40 ≥60 Minimum Cable Size 6m ㎡ 10m ㎡ Temperature Range 30℃-55℃ Water Pressure 0.02-0.6Mpa Overheat Protection 60℃ Thermal cut-off 90℃ Pipe Connection G 1/2‘’ IP Rating IPX4 Safety level IPX25... - Page 9 S35 2PH Tel: (0114) 2572300 Fax: (0114) 2571419 www.trianco.co.uk © TR Engineering Limited Copyright in this brochure and the drawings and illustrations contained in it is vested in TR Engineering Limited and neither the brochure nor any part thereof may be reproduced without prior written consent.
