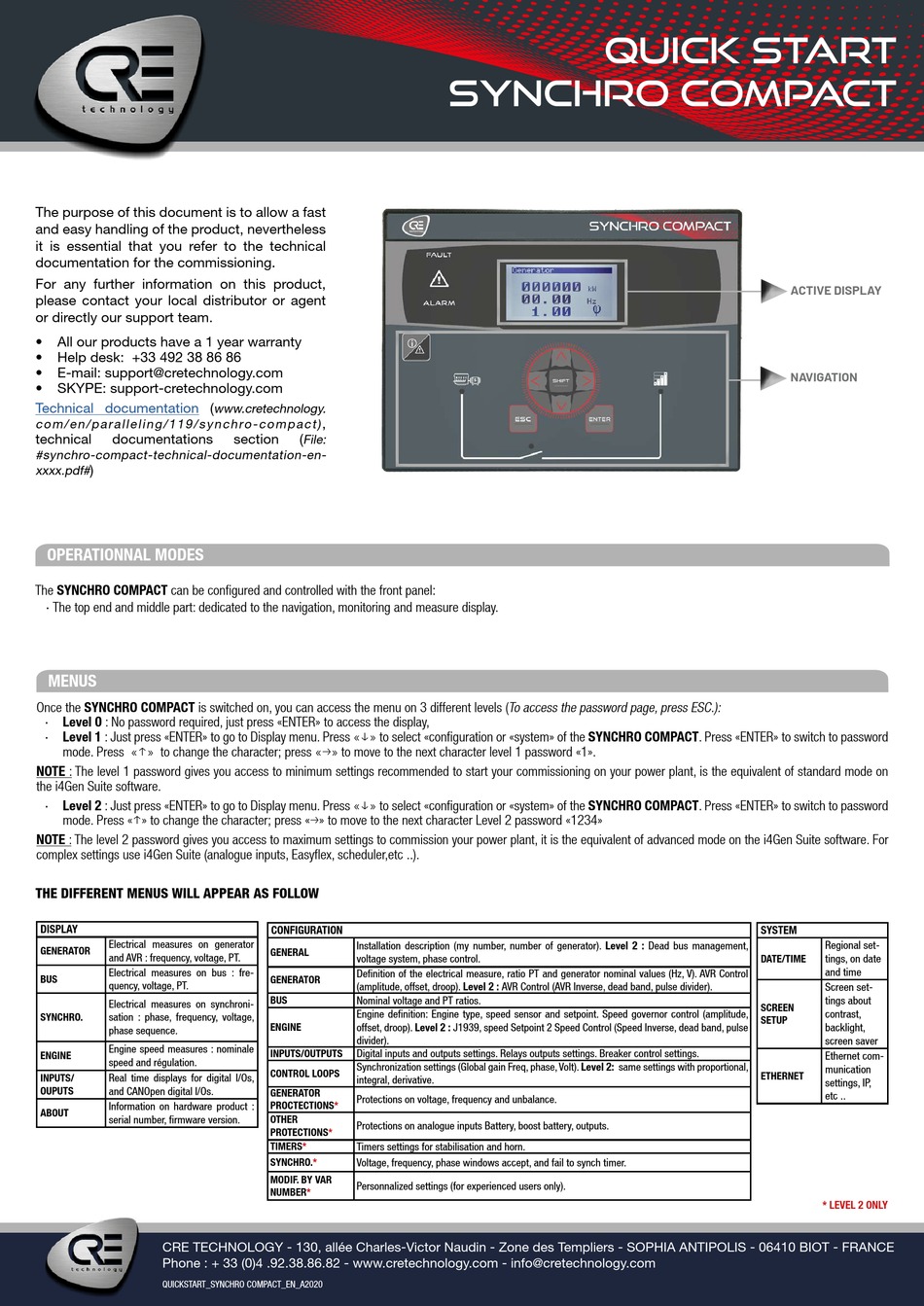

CRE synchro compact Quick Start

The purpose of this document is to allow a fast
and easy handling of the product, nevertheless
it is essential that you refer to the technical
documentation for the commissioning.
For any further information on this product,
please contact your local distributor or agent
or directly our support team.
• All our products have a 1 year warranty
• Help desk: +33 492 38 86 86
• E-mail: support@cretechnology.com
• SKYPE: support-cretechnology.com
Technical documentation
c o m / e n / p a r a l l e l i n g / 1 1 9 / s y n c h ro - c o m p a c t )
technical documentations
#synchro-compact-technical-documentation-en-
)
xxxx.pdf#

OPERATIONNAL MODES

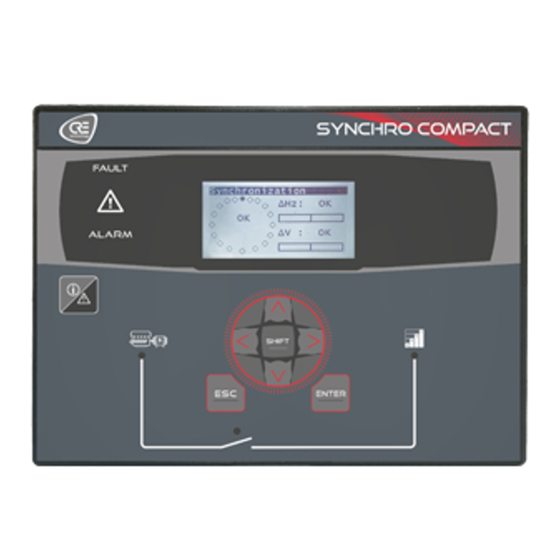

The SYNCHRO COMPACT can be configured and controlled with the front panel:
· The top end and middle part: dedicated to the navigation, monitoring and measure display.

MENUS

Once the SYNCHRO COMPACT is switched on, you can access the menu on 3 different levels ( To access the password page, press ESC.):
· Level 0 : No password required, just press «ENTER» to access the display,
· Level 1 : Just press «ENTER» to go to Display menu. Press «↓» to select «configuration or «system» of the SYNCHRO COMPACT. Press «ENTER» to switch to password
mode. Press «↑» to change the character; press «→» to move to the next character level 1 password «1».
NOTE : The level 1 password gives you access to minimum settings recommended to start your commissioning on your power plant, is the equivalent of standard mode on
the i4Gen Suite software.
· Level 2 : Just press «ENTER» to go to Display menu. Press «↓» to select «configuration or «system» of the SYNCHRO COMPACT. Press «ENTER» to switch to password
mode. Press «↑» to change the character; press «→» to move to the next character Level 2 password «1234»
NOTE : The level 2 password gives you access to maximum settings to commission your power plant, it is the equivalent of advanced mode on the i4Gen Suite software. For
complex settings use i4Gen Suite (analogue inputs, Easyflex, scheduler,etc ..).
THE DIFFERENT MENUS WILL APPEAR AS FOLLOW

DISPLAY

Electrical measures on generator
GENERATOR
and AVR : frequency, voltage, PT.
Electrical measures on bus : fre-
BUS
quency, voltage, PT.
Electrical measures on synchroni-
SYNCHRO. sation : phase, frequency, voltage,
phase sequence.
Engine speed measures : nominale
ENGINE
speed and régulation.
INPUTS/ Real time displays for digital I/Os,
OUPUTS and CANOpen digital I/Os.
Information on hardware product :
ABOUT
serial number, firmware version.
CRE TECHNOLOGY - 130, allée Charles-Victor Naudin - Zone des Templiers - SOPHIA ANTIPOLIS - 06410 BIOT - FRANCE
Phone : + 33 (0)4 .92.38.86.82 - www.cretechnology.com - info@cretechnology.com
QUICKSTART_SYNCHRO COMPACT_EN_A2020
(
www.cretechnology.
,
section (
File:

CONFIGURATION

Installation description (my number, number of generator). Level 2 : Dead bus management,
GENERAL
voltage system, phase control.
Definition of the electrical measure, ratio PT and generator nominal values (Hz, V). AVR Control
GENERATOR
(amplitude, offset, droop). Level 2 : AVR Control (AVR Inverse, dead band, pulse divider).
BUS Nominal voltage and PT ratios.
Engine definition: Engine type, speed sensor and setpoint. Speed governor control (amplitude,
offset, droop). Level 2 : J1939, speed Setpoint 2 Speed Control (Speed Inverse, dead band, pulse
ENGINE
divider).
INPUTS/OUTPUTS Digital inputs and outputs settings. Relays outputs settings. Breaker control settings.
Synchronization settings (Global gain Freq, phase, Volt). Level 2: same settings with proportional,
CONTROL LOOPS
integral, derivative.
GENERATOR
Protections on voltage, frequency and unbalance.
PROCTECTIONS*
OTHER
Protections on analogue inputs Battery, boost battery, outputs.
PROTECTIONS*
TIMERS* Timers settings for stabilisation and horn.
SYNCHRO.* Voltage, frequency, phase windows accept, and fail to synch timer.
MODIF. BY VAR
Personnalized settings (for experienced users only).
NUMBER*
quick start
synchro compact
ACTIVE DISPLAY
NAVIGATION

SYSTEM

Regional set-
DATE/TIME tings, on date
and time
Screen set-
tings about
SCREEN
contrast,
SETUP
backlight,
screen saver
Ethernet com-
munication
ETHERNET
settings, IP,
etc ..
* LEVEL 2 ONLY
