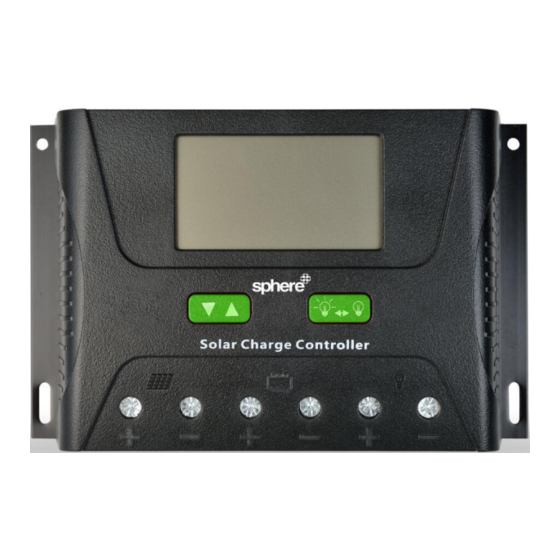

Sphere PWM Series User Manual

Solar charge controller
Hide thumbs

Advertisement

Table of Contents

PWM Solar Charge Controller
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PWM Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sphere PWM Series

Summary of Contents for Sphere PWM Series

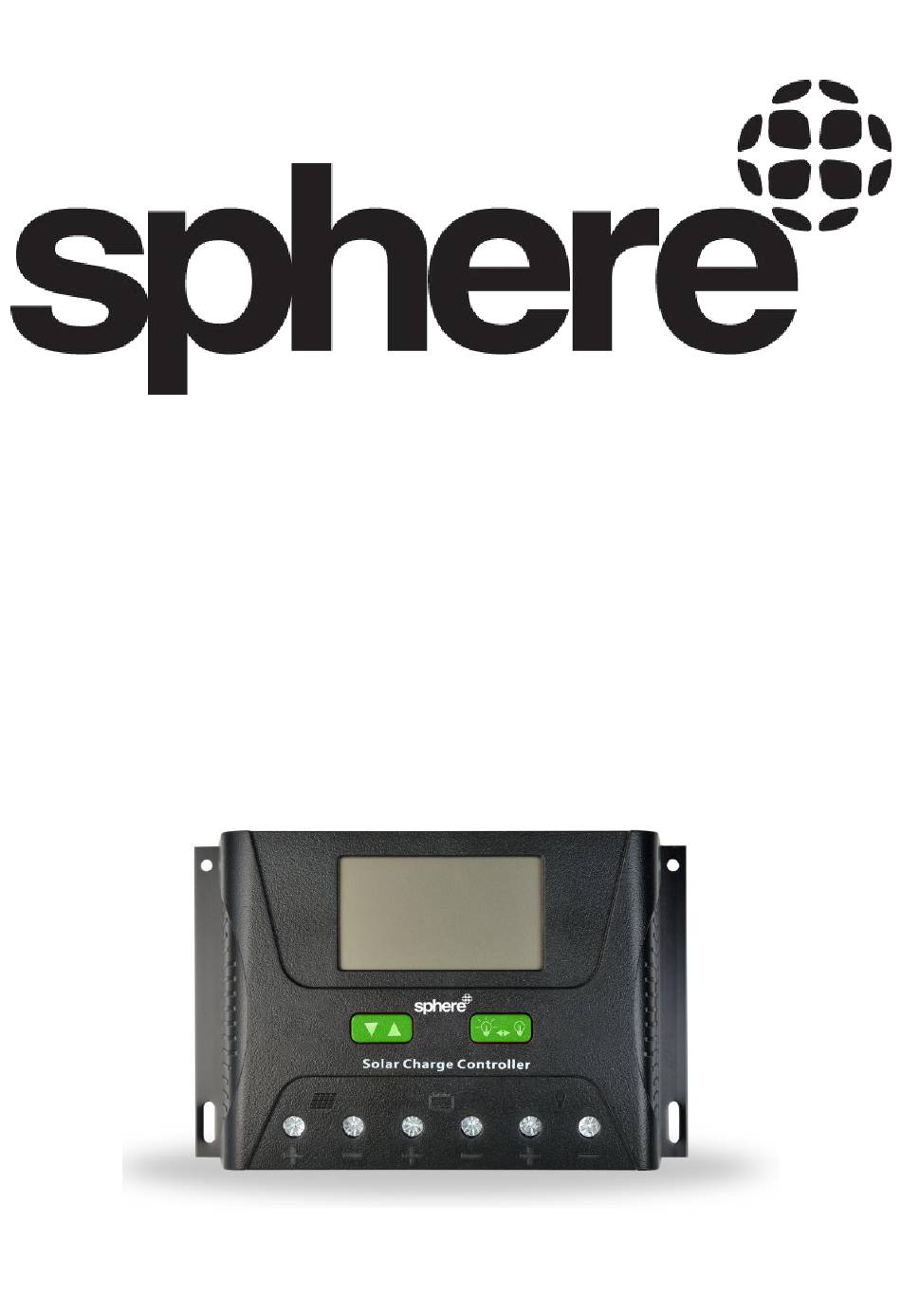

  • Page 1 PWM Solar Charge Controller User Manual...

  • Page 2: Product Features

    Thank you for choosing our product. Before using the product, please read this manual in full. 1. Product Features Automatic system voltage identification 2. Charging program options for sealed, GEL (DEFAULT), Sealed, flooded lead-acid batteries and lithium batteries types are available. 3.

  • Page 3: Lcd Indicators

    3. LCD Indicators Indicated Meaning LCD Icon State Object Steady on Day time recognition Night Steady on Night time recognition Solar panel Steady on Solar panel indication BOOST Steady on Boost charging FLOAT Charging state Steady on Floating charging EQUATIZE Steady on Equalizing charging Quick flashing...

  • Page 4: Safety Advice

    Mode Mode Display Display Light control + time Pure light control mode control (9 hours) Light control + time Light control + time control (1 hour) control (10 hours) Light control + time Light control + time control (2 hours) control (11 hours) Light control + time Light control + time...
  • Page 5 3) In the 48V system, separate reverse connect battery or separate reverse connection of solar panel controller will not damage; but if in reverse connection of the battery and is connected solar panels, or solar panels on the reverse connection is connected to the battery may cause damage to the controller.
  • Page 6 2). When "load mode" is displayed, long press to enter into the load mode setting. Press to adjust the mode, and long press for 2s to save and exit; or else, the system will not save the setting that was just made and automatically exit the setting interface after 12s. 10.
  • Page 7 Short-circuit automatic recovery time: 1st time, 5 s; 2nd time, 10 s; 3rd time, 15 s; 4th time, 20 s; 5th time, 4 hours or automatic recovery the next day; or long press to make the load resume output. 13. Communication Port Line Sequence (Only for Controllers with Communication Functions) Controller communication port RJ12 (6-pin) 14.

  • Page 8: Error Code List

    3. Precautions: ①If it is 12V system, the bottom left corner of LCD display will show '12V', 24V system will show' 24V', ② The first step is to connect the battery. If the connection is made correctly, the controller screen will light up;...

  • Page 9: Common Problems And Solutions

    16. Common Problems and Solutions Symptoms Causes and Solutions LCD screen does not light up Check whether the battery is correctly connected. Check whether the ambient temperature is too low and whether the Incomplete display or no renewal on LCD screen display recovers when the temperature rises.
  • Page 10 Parameters Battery Type Sealed Lithium Default Flooded Overvoltage protection 16．0V Equalizing charging voltage 14.6 14.8 Boost charging voltage 14.4 14.2 14.4 14.6 ×1/12V； Floating charging voltage 13.8 ×2/24V； Charging recovery voltage 13.2V Over-discharge recovery 12.5V（settable with the keys） voltage Over-discharge voltage 11.0V（settable with the keys）...

  • Page 11: Warranty Against Defects

    Coast RV Pty Ltd trading as Coast to Coast RV Services ABN 49 097 104 492 - ACN 101 461 330 PO Box 415, Regents Park NSW 2143 Ph (02) 9645 7600 - Fax (02) 9645 7699 Email: warranty@coastrv.com.au Web: www.coastrv.com.au Warranty Against Defects WHAT THIS WARRANTY RELATES TO This warranty covers goods supplied by Coast RV Pty Ltd T/A Coast to Coast RV Services ("Supplier") to the...
  • Page 12 WARRANTY LIMITATIONS The Supplier makes no warranties or representations other than those set out in this warranty document except as is required by law. The Supplier will not be liable under this warranty:- to the Client or any other person for any consequential, direct or indirect loss, damage or costs incurred or suffered by the Client or any other person, including but not limited to damage to persons, other property, loss of turnover, loss of profits, loss of business or goodwill;...

  • Page 13: Warranty Claim Form

    WARRANTY CLAIM FORM Warranty Providers Name: Coast RV Pty Ltd trading as Coast to Coast RV Services ABN 49 097 104 492 - ACN 101 461 330 Warranty Providers Address: PO Box 415 Regents Park NSW 2143 Client: Contact No. Description of Goods provided: ...

This manual is also suitable for:

Pwm40
