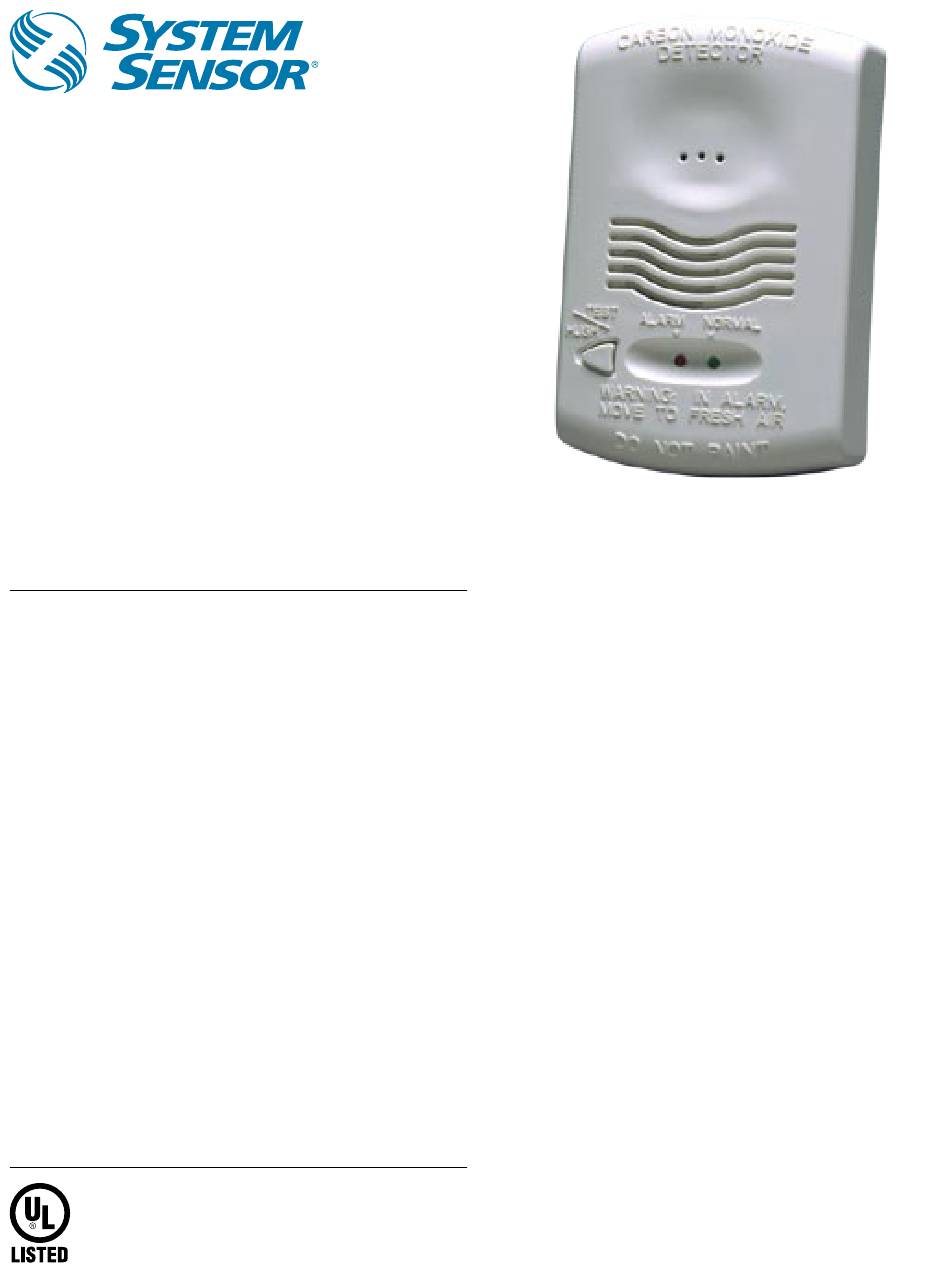

CO1224T
Carbon Monoxide
Detector
with RealTest

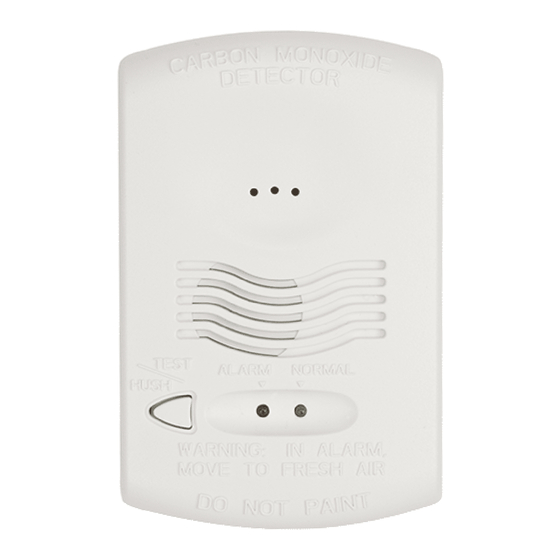

The System Sensor CO1224T CO detector provides early
warning by using electrochemical sensing technology
to measure carbon monoxide levels in the air.
Features
™
• RealTest technology allows installer to test detector with CO gas
• Full compliance with UL 2075
• A code required trouble relay
• Wiring supervision with SEMS terminals
• A six year end-of-life timer
• 12/24 VDC
• A current draw of 20mA in standby and 40mA in alarm
• Versatile mounting for wall and ceiling
• Electrochemical sensing technology
Agency Listings
BR Alarmseg Equipamentos Eletrônicos
Fone/Fax: (41) 3287-1364
home page: www.bralarmseg.com.br
email: bra@bralarmseg.com.br
2075
™
Technology
With RealTest ™ technology, the CO gas sensing cell of the
CO1224T CO detector can be tested using a carbon monoxide gas
agent. Simply hold the test button for two seconds. After the alarm
cycle (temp 4) the green LED will flash about once per second,
indicating that the detector is ready to accept CO for testing.
Spray a small amount of CO into the detector per the installation
instructions, and within seconds the detector will alarm, indicating
successful gas entry.
If dangerous amounts of carbon monoxide is detected, the CO1224T
detector will alert residents by sounding and flashing a temp-4 signal
alarm. Protection is guaranteed 24/7 by a central station, regardless
of whether residents are away from home, sleeping or already
suffering from the effects of CO.
This specific device is designed for system operation. The detector is
fully listed to UL 2075. It offers a code required trouble relay to send
a sensor failure or end-of-life signal to the control panel and the
central station. It also uses SEMS-type terminal Philips head screws
to provide a quicker and more positive wiring connection and code
required wiring supervision. The CO1224T detector offers a low
current draw, allowing more devices to be connected to the panel
without having to purchase a more expensive panel or an extra
power supply.
The CO1224T model will operate on most industry security and fire
alarm control panels because it is is a 12/24 VDC detector.
