Installation AND MAINTENANCE INSTRUCTIONS
CO1224T/CO1224TR

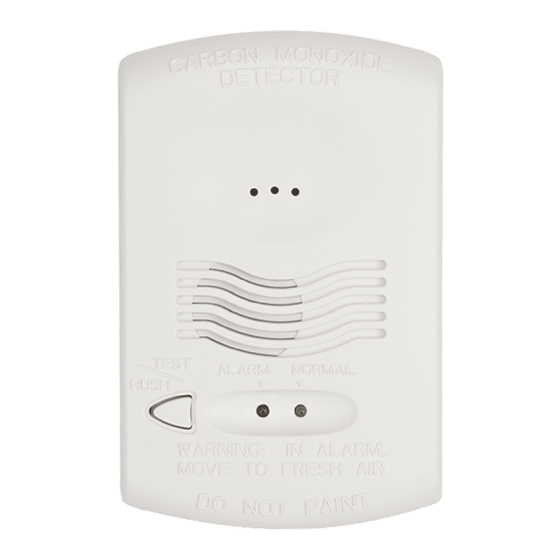

Carbon Monoxide Detector

SPECIFICATIONS

Electrical Specifications
System Voltage
Avg. Standby Current:
Max Alarm Current:
Alarm Contact Ratings:
Trouble Contact Ratings:
Audible Signal (temp 4 tone):
Max. Start-up Capacitance:
NOTICE: This manual shall be left with the owner/user of this equipment.
This product is intended for use in ordinary indoor locations.

GENERAL DESCRIPTION

• Listed to standard 2075
• Round shape allows for mounting in aesthetically demanding areas
• Six-wire, system monitored
• Optional CO detector replacement plate for previously installed detectors
• Local sounder
• Low current draw
• Alarm relay, Form C
• Trouble relay, Form A
• Dual LED's
• Test/Hush button
• SEMS wiring terminals
• Mount to single gang electrical box or surface mount to wall or ceiling
• Optional drywall anchors included

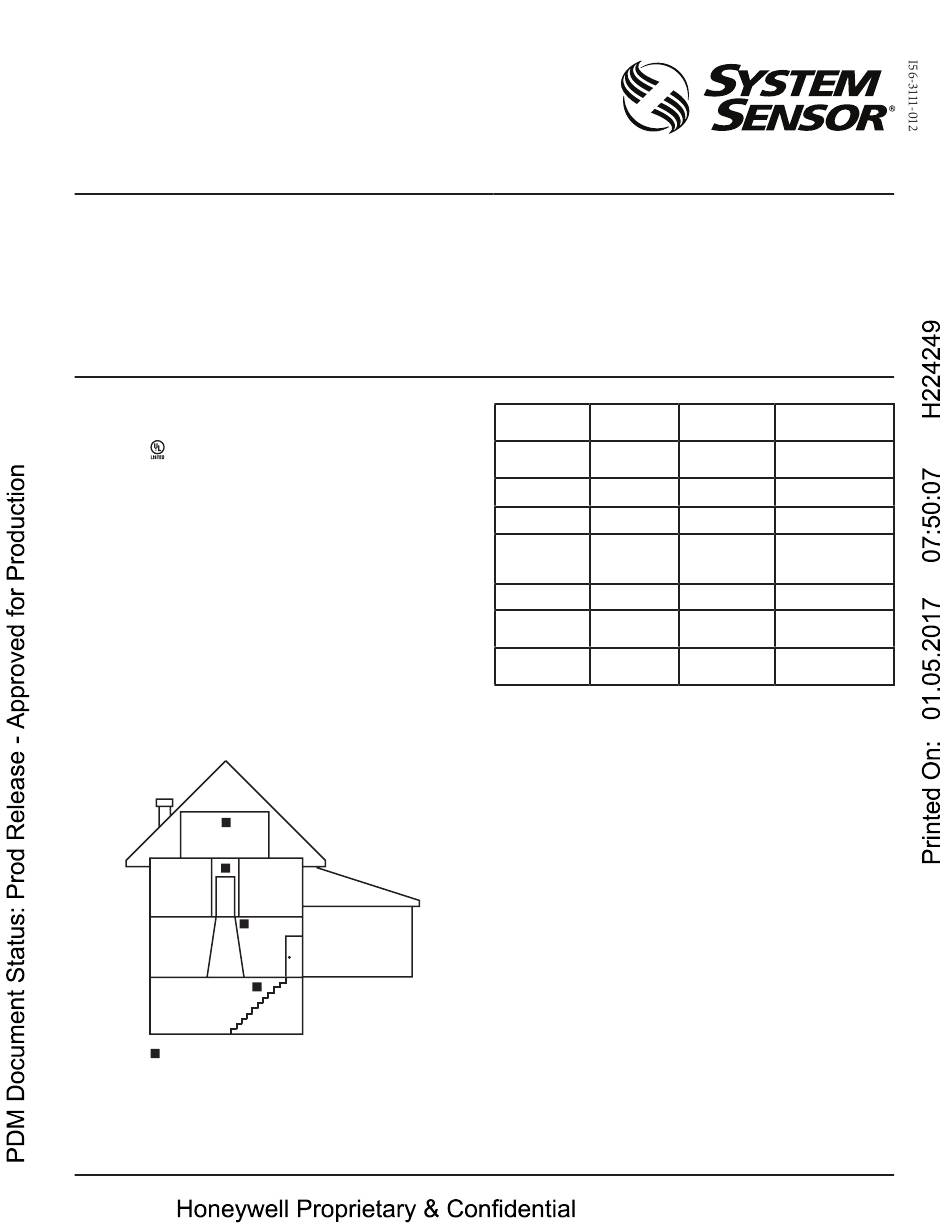

FIGURE 1. ALARM LOCATION DIAGRAM:
BEDROOM
TO
BR
BEDROOM BEDROOM
KITCHEN
LIVING
ROOM
BASEMENT
–
CARBON MONOXIDE/SMOKE ALARM
LOCATION FOR MULTI-LEVEL RESIDENCE
Nominal: 12/24 VDC
Min: 10 VDC
Max: 33 VDC
20 mA
40 mA (75 mA test)
30 VDC @ 0.5 A
30 VDC @ 0.5 A
85 dBA min. in alarm (at 10ft)
20 uF
GARAGE
CLOSED
DOOR
S0295-01
3825 Ohio Avenue, St. Charles, Illinois 60174
Physical Specifications
Operating Temperature Range:
Operating Humidity Range:
Diameter:
Height:
Weight:
Wire Gauge Acceptance:
TABLE 1. DETECTOR OPERATION MODES:
OPERATION
GREEN LED
MODE
Normal
Blink 1
(standby) per minute
Alarm OFF
Alarm Test OFF
RealTest® Blink 1
Mode per second
End of Life
OFF
CO Trouble
OFF
Power Loss/
OFF
Cell Fault
Alarm Test: Will send alarm signal to panel.
Hush feature/Alarm Silence: If required, the audible alarm can be silenced
for 5 minutes by pushing the button marked "Test/Hush". The red alarm light
will continue to flash in temp-4 pattern. If carbon monoxide is still present
after the 5 minute hush period, the audible alarm will sound. The hush facility
will not operate at levels above 350 ppm (parts per million) carbon monoxide.
RealTest® Alarm Silence: Alarm will automatically silence after about 20 sec-
onds of alarm from spraying canned CO into the detector. Alarm Reset: Alarm
automatically resets after CO has cleared from the sensor.
Trouble feature: When the sensor supervision is in a trouble condition (e.g.
such as a sensor that has been tampered with, or the cell itself has prema-
turely dried out due to environmental conditions, etc.), the detector will send
a trouble signal to the panel. The detector must then be replaced. The green
LED turns off and the red LED blinks every minute when the detector is in
trouble.
End of Life Timer feature: When the detector has reached the end of its life,
the trouble contact will open. This indicates that the CO sensor inside the
detector has passed the end of its life and must be replaced. This detector's
lifespan is approximately ten years from the date of manufacture. The green
LED turns off when the detector is in trouble. Periodically check the "Replace
by" sticker located under the detector cover. The detector must be replaced by
this date. Refer to Detector Replacement on page 3.
Per UL 2075, it is mandatory that a trouble signal be sent to the panel
upon CO cell trouble or cell end of life. Refer to Figure 4 for wiring of the
trouble relay.
1
1-800-SENSOR2, FAX: 630-377-6583
www.systemsensor.com
0° to 40°C (32° to 104°F)
22 – 90% %RH
6.0˝
1.25˝
7 oz
14-22 AWG
RED LED SOUNDER
OFF OFF
Temp 4*pattern Temp 4* pattern
Temp 4 pattern Temp 4 pattern
Temp 4 pattern
OFF
(after CO is sprayed)
OFF OFF
Blink 1
OFF
per minute
OFF OFF
