JL Audio 12W3v2 Series Owner's Manual page 2

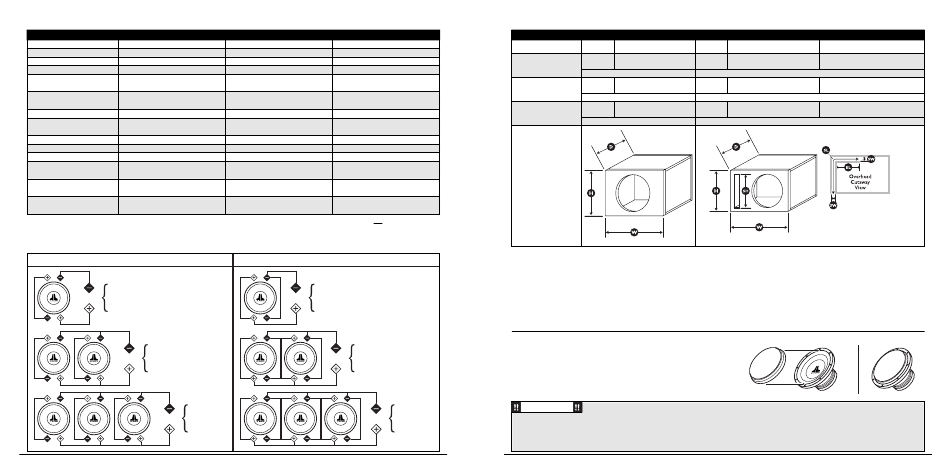

SUBWOOFER SPECIFICATIONS
SUBWOOFER: 12W3v2-D2
Free Air Resonance (Fs): 24.3 Hz
Electrical "Q" (Qes): 0.475
Mechanical "Q" (Qms): 8.483
Total Speaker "Q" (Qts): 0.449
Equiv. Compliance (Vas): 3.65 ft 3
103.4 litres
One-way, Linear Excursion: 0.513 in
(Xmax)* 13.0 mm
Efficiency (1W/1m)**: 86.7 dB
Effective Piston Area (Sd): 81.5 in 2
0.0526 m 2
DC Resistance (Re)***: 3.82Ω
Nominal Impedance: Dual 2Ω
Power Handling (continuous) : 300W
Mounting Depth: 6.56 in
167 mm
Mounting Hole Diameter: 11.06 in
281 mm
Driver Displacement: 0.07 ft 3
1.98 litres
*Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied. **Efficiency (1W/1m) is not an accurate indicator
of a subwoofer's output capability and should not be used as a comparison to other subwoofers to determine which one is "louder". ***Re (DC resistance) is
measured with the voice coils in series, for parallel-wired specification divide Re by 4. All other specifications remain the same.
WIRING OPTIONS
W 3 v 2 VO I C E C O I L S I N S E R I E S :
W3v2-D6: 12.0Ω
AMPLIFIER W3v2-D4: 8.0Ω
W3v2-D2: 4.0Ω
W3v2-D6: 6.0Ω
AMPLIFIER W3v2-D4: 4.0Ω
W3v2-D2: 2.0Ω
W3v2-D6: 4.0Ω
W3v2-D4: 2.7Ω
AMPLIFIER
W3v2-D2: 1.3Ω
2
12W3v2-D4 12W3v2-D6
24.0 Hz 24.4 Hz
0.443 0.489
8.483 8.483
0.421 0.463
3.65 ft 3 3.65 ft 3
103.4 litres 103.4 litres
0.463 in 0.473 in
11.8 mm 12.0 mm
86.9 dB 86.7 dB
81.5 in 2 81.5 in 2
0.0526 m 2 0.0526 m 2
7.35Ω 10.32Ω
Dual 4Ω Dual 6Ω
300W 300W
6.56 in 6.56 in
167 mm 167 mm
11.06 in 11.06 in
281 mm 281 mm
0.07 ft 3 0.07 ft 3
1.98 litres 1.98 litres
W 3 v 2 VO I C E C O I L S I N PA R A L L E L :
W3v2-D6: 3.0Ω
AMPLIFIER W3v2-D4: 2.0Ω
W3v2-D2: 1.0Ω
W3v2-D6: 1.5Ω
AMPLIFIER W3v2-D4: 1.0Ω
W3v2-D2: 0.5Ω
W3v2-D6: 1.0Ω
W3v2-D4: 0.7Ω
AMPLIFIER
W3v2-D2: 0.3Ω
JL AUDIO 12W3v2
RECOMMENDED ENCLOSURES
SUBWOOFER SEALED ENCLOSURE
Volume External Dimensions
(net int.) (Width x Height x Depth)
1.25 ft 3 23" x 14" x 10"
12W3v2-D2 35.4 litres 584mm x 356mm x 254mm
Fc: 48.1 Hz F3: 40.2 Hz Qtc: 0.89
1.25 ft 3 23" x 14" x 10"
12W3v2-D4 35.4 litres 584mm x 356mm x 254mm
Fc: 47.4 Hz F3: 41.3 Hz Qtc: 0.83
1.25 ft 3 23" x 14" x 10"
12W3v2-D6 35.4 litres 584mm x 356mm x 254mm
Fc: 48.3 Hz F3: 39.7 Hz Qtc: 0.92
• The enclosure recommendations listed above are displacement and brace displacement must be
external dimensions which assume the use of 3/4" added to obtain the final gross internal volume.
(19mm) thick material. If you are using 5/8" All enclosure dimensions above have already taken
(16mm) thick material, subtract 1/4" (6.5mm) from this into account.
each dimension. Do not use any material with a • When using multiple subwoofers in a common
thickness of less than 5/8" (16mm) as this may enclosure you will need to recalculate the
compromise the rigidity of the enclosure. enclosure and port dimensions. For assistance
• All enclosure volumes listed above are net please contact your authorized JL Audio dealer
internal volumes! Driver displacement, port or JL Audio Technical Support at 954-443-1100.
GRILLE RECOMMENDATIONS
If you would like to put protective grilles on your W3v2, please make sure they allow
sufficient clearance for the suspension of the speaker to operate properly (many "universal"
grilles do not).
One way to be sure is to use the grille mesh inserts engineered by JL Audio for your
woofer. These sturdy steel mesh inserts mount securely into the rubber gasket of the W3v2
and offer ample clearance for the suspension. Ask your dealer for details and pricing.
C A U T I O N
Prolonged exposure to sound pressure levels in excess of 100dB can cause permanent hearing loss. This high-performance speaker
can exceed this level. Please exercise restraint in its operation in order to preserve your ability to enjoy its fidelity.
When installing a subwoofer in your vehicle, it is extremely important to secure the enclosure firmly. We recommend bolting the enclosure through the metal
of the floorpan or the frame of the vehicle with large diameter washers for reinforcement. If an enclosure is not firmly attached, it can become a projectile in a
collision.This is particularly important in a hatchback, station wagon, sports utility vehicle, or van.
JL AUDIO 12W3v2
PORTED ENCLOSURE
Volume External Dimensions Slot Port Int. Dimensions
(net int.) (Width x Height x Depth) (Slot Width x Slot Height x Slot Length)
1.75 ft 3 29" x 14" x 12.25" 1.375" x 12.5" x 21.5"
49.6 litres 737mm x 356mm x 311mm 35mm x 318mm x 546mm
Recommended Port Tuning: 30.8 Hz
1.75 ft 3 29" x 14" x 12.25" 1.375" x 12.5" x 23.75"
49.6 litres 737mm x 356mm x 311mm 35mm x 318mm x 603mm
Recommended Port Tuning: 30.3 Hz
1.75 ft 3 29" x 14" x 12.25" 1.375" x 12.5" x 21.5"
49.6 litres 737mm x 356mm x 311mm 35mm x 318mm x 546mm
Recommended Port Tuning: 30.8 Hz
"EL" (Port Extension Length):
12W3v2-D2: 9.25" (235mm)
12W3v2-D4: 11.5" (292mm)
12W3v2-D6: 9.25" (235mm)
• We recommend the use of this speaker in a
bi-amplified system using high-quality satellite
speakers and a high-quality amplifier. We do not
recommend the use of this subwoofer with a
passive crossover (coil), as this type of device will
adversely affect performance.
• All specifications are subject to change
without notice.
3
