JL Audio 12W3v2 Series Owner's Manual

RECOMMENDED CONTINUOUS (RMS) POWER RANGE FOR ONE SUBWOOFER DRIVER:
2 5 W 7 5 W 1 5 0 W
1 2 W 3 v 2
L E G E N D :
M I N I M U M O P T I M U M
MEDIUM GRAY (MINIMUM): LIGHT GRAY (OPTIMUM):
From a reliability standpoint, this zone represents This zone represents the best compromise
a very comfortable operating power range for each between long-term reliability, high-output and low-
driver. This level of power will not stress the distortion performance and is centered on each
woofer but will not extract all of its performance woofer's continuous power rating (as published in
potential, either. its specifications). In this zone, you will be taking full
Use of less than the minimum power level will advantage of the woofer's optimum, low-distortion
not damage the woofer, but may result in performance range without undue risk of failure.
unsatisfactory performance.
JL Audio offers an extensive line of high-performance subwoofer drivers to fit a wide variety of enclosure and power applications.When designing systems with our drivers, it is very important
to achieve a good power match between the subwoofer amplifier and the subwoofer driver's capabilities. The power levels listed in the above chart represent continuous (RMS) amplifier power
per woofer and assume that the user will regularly make full use of that power without drastically overdriving the amplifier(s). Make sure you factor system impedance and the total
number of subwoofers into your calculations. Adhering to these power recommendations will result in systems that are both reliable and enjoyable.
JL AUDIO LIMITED WARRANTY (USA)
Automotive Subwoofer Components
JL AUDIO warrants this speaker to be free of defects in materials and workmanship for a period of two (2) years from the original date of purchase, contingent upon installation
being performed or approved by an authorized JL AUDIO dealer, in writing, on the original sales receipt. If the preceding condition is not met, the warranty term is
limited to ninety (90) days from the original purchase date.
This warranty is not transferrable and applies only to the original purchaser of the product from an authorized JL AUDIO dealer. Should service be necessary under this warranty
for any reason due to manufacturing defect or malfunction, JL AUDIO will, at its discretion, repair or replace the defective product with new or remanufactured product at no charge.
Damage caused by the following is not covered under warranty: accident, misuse, abuse, product modification or neglect, failure to follow installation instructions, unauthorized
repair attempts, misrepresentations by the seller. This warranty does not cover incidental or consequential damages and does not cover the cost of removing or reinstalling the
unit(s). Cosmetic damage due to accident or normal wear and tear is not covered under warranty.
Any applicable implied warranties are limited in duration to the period of the express warranty as provided herein beginning with the date of the original purchase at retail, and
no warranties, whether express or implied, shall apply to this product thereafter. Some states do not allow limitations on implied warranties, therefore these exclusions may not
apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
If you need service on your JL AUDIO product:
All warranty returns should be sent to JL AUDIO freight prepaid through an authorized JL AUDIO dealer and must be accompanied by proof of purchase (a copy of the original
sales receipt.) Direct returns from consumers or non-authorized dealers will be refused unless specifically authorized by JL AUDIO with a valid return authorization number.
Warranty expiration on products returned without proof of purchase will be determined from the manufacturing date code. Coverage may be invalidated as this date is previous
to purchase date. Return only defective components. Non-defective items received will be returned freight-collect. Customer is responsible for shipping charges and insurance in
sending the product to JL AUDIO. Freight damage on returns is not covered under warranty. Always include proof of purchase (sales receipt).
For Service Information in the U.S.A. please call:
JL Audio customer service: (954) 443-1100 during normal business hours (Eastern Time)
10369 North Commerce Parkway, Miramar, FL 33025
Products purchased outside the United States of America are covered only by that country's distributor and not by JL Audio, Inc.
Printed in USA
3 0 0 W 6 0 0 W 1 0 0 0 W
M A X I M U M W A R R A N T Y V O I D
DARK GRAY (MAXIMUM): BLACK (WARRANTY VOID):
In this zone, low-distortion output and long-term We do not recommend operating woofers at
reliability will be compromised (especially by an this level of power. In this zone, there is a very high
aggressive user). Slightly more SPL will be gained by probability that the driver will fail due to excessive
pushing the power into this zone, but typically not heat and/or mechanical stress.
more than 2dB, compared to the light gray zone. Subwoofer drivers operated at these levels of
The closer you are to the black zone, the higher the power are NOT covered under warranty.
likelihood of driver failure. Operate with caution.
JL Audio, Inc
International Warranties:
JL12W3v2-08-2002
12W3v2
Subwoofers
o w n e r ' s m a n u a l

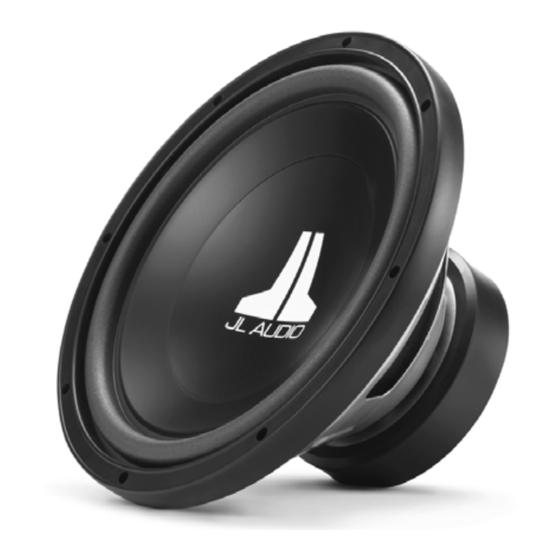

Congratulations on your purchase of a JL Audio subwoofer component. Your JL Audio subwoofer is a
precision loudspeaker which has been engineered to produce the highest quality sub-bass performance in
your vehicle. Authorized JL Audio dealers have extensive technical information for many different
applications of your new speaker. They also have the knowledge, skills and tools to build a high-quality
enclosure that will maximize the performance of your speaker. We highly recommend that you have
your enclosure built by an authorized JL Audio dealer.
Inside you will find specifications and two recommended enclosures for your speaker; one is a sealed
enclosure, the other is a ported design. Both types of enclosures will give you excellent sound quality and
low-frequency extension. The sealed enclosure is a better choice if space is extremely tight, but the ported
enclosure will produce 3dB more output at the same power if you have the extra space to work with.
If you decide to build one of these enclosures yourself, you must have the construction of the box
inspected and approved by your authorized JL Audio dealer in order for the 2 year limited warranty to
be valid. Please read the warranty information carefully.
