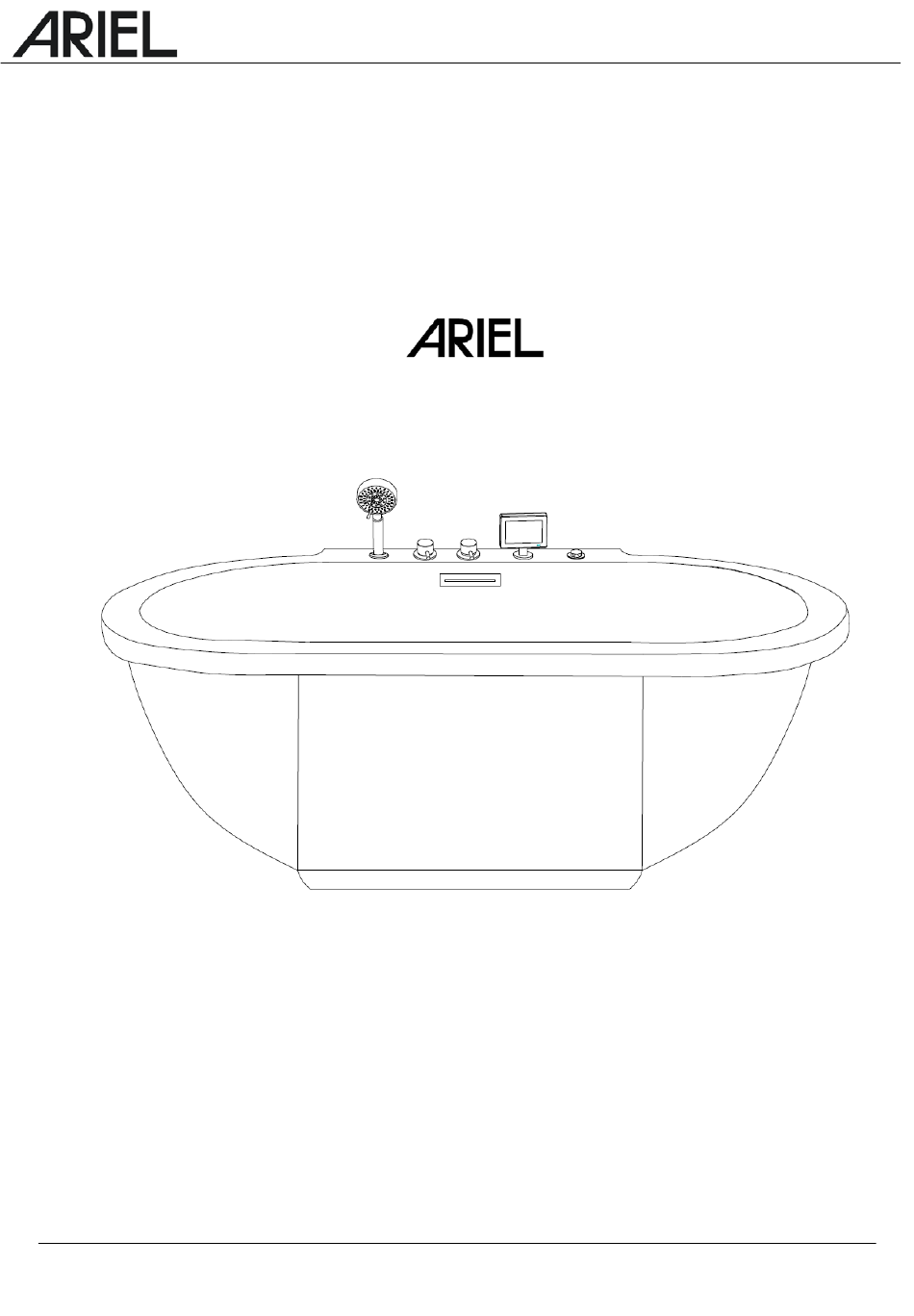

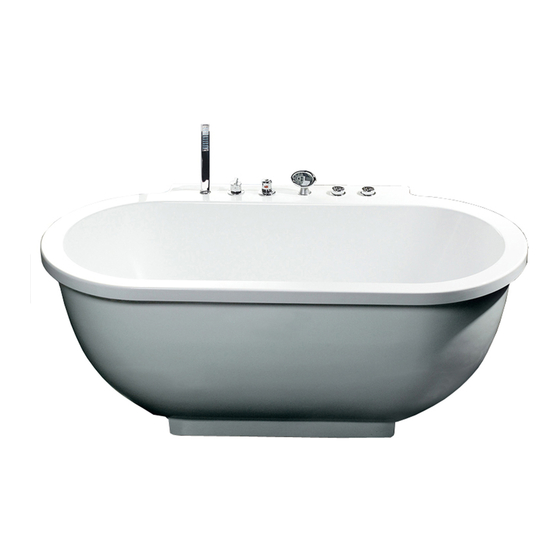

- Page 1 Whirlpool User Manual AM128 Serial Number:...
- Page 2 C-Series Whirlpool User Manual with Bluetooth Foreword: This manual is for use with all AM-series Whirlpool Bathtubs. This user manual describes general safety procedures, operating instructions, and basic maintenance. Please take your time to read this manual in its entirety before installation and before using this product. Please save this manual for future reference.
- Page 3 C-Series Whirlpool User Manual with Bluetooth Before Installation: Ensure electrical connections, water supply lines and waste connections are both compatible with this product, and their installation completed and ready for connection the before installation of this product. Review the specifications within this document, other documentation supplied, specifications listed on the packaging of this product, and technical specifications listed on the individual components.
- Page 4 C-Series Whirlpool User Manual with Bluetooth After Installation: 1. Before supplying any power to the product, you should inspect the power cables to ensure the power leads are properly connected. 2. After installation and before starting the product for the first time, you should inspection all the connections to ensure they are properly connected;...
- Page 5 C-Series Whirlpool User Manual with Bluetooth Turn on/off the Display: This system remains on “standby” when power is supplied to the whirlpool system. If the system is in “standby” mode, the 'Power Standby' on/off icon will be partially visible on the dark screen. On standby, if any portion of the screen is touched the backlight will display at 50% strength.
- Page 6 C-Series Whirlpool User Manual with Bluetooth Radio / Bluetooth Music Feature: While the computer system is on, press the Music button to activate either the FM radio or Bluetooth functions. When the radio function is selected, a “3 dB” will first show on the display panel, indicating a volume adjustment; to adjust the volume, press the Volume/Parameter “UP”...
- Page 7 C-Series Whirlpool User Manual with Bluetooth Faucet Operation: A: Selector Valve (clock-wise) B: Temperature Valve OFF-position H = Hotter. Rotate in the direction of the arrow. Waterfall faucet C = Colder. Rotate in the direction of the arrow. ...
- Page 8 C-Series Whirlpool User Manual with Bluetooth Air Bubble Regulator Valve: This valve is used to control the amount of air bubbles in the Water Jet feature. Maintenance: The drain can be clogged by hair or soap scum and should be cleaned regularly. ...
- Page 9 C-Series Whirlpool User Manual with Bluetooth Technical Parameters: Electrical Operational Parameters Rated voltage AC110V~120V Rated frequency 60HZ Rated current 10.2A Rated power 1125W GFCI-Protected 15A Recommended Power Service Waterproof level IPX5 ＞20M Insulating resistance Component Parameters Type of Load Rated Load Voltage Rated Load Frequency Rated Load Power Water pump...
- Page 10 Do not trash. Keep these instructions for future reference. Some features explained within this user guide maybe optional and/or may not be applicable for your specific model.
