Griffon Telephonics RDR-1500B+ Installation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

RDR-1500B+ AND
RDR-1700A SYSTEMS
INSTALLATION
MANUAL
for the
364-0000-002 System
Configuration
MARCH 2010
Prepared by:
TELEPHONICS CORPORATION
815 Broad Hollow Road
Farmingdale, New York 11735
USA
TM113806 (3/10)
The document reference is online, please check the correspondence between the online documentation and the printed version.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Telephonics RDR-1500B+ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Griffon Telephonics RDR-1500B+

Summary of Contents for Griffon Telephonics RDR-1500B+

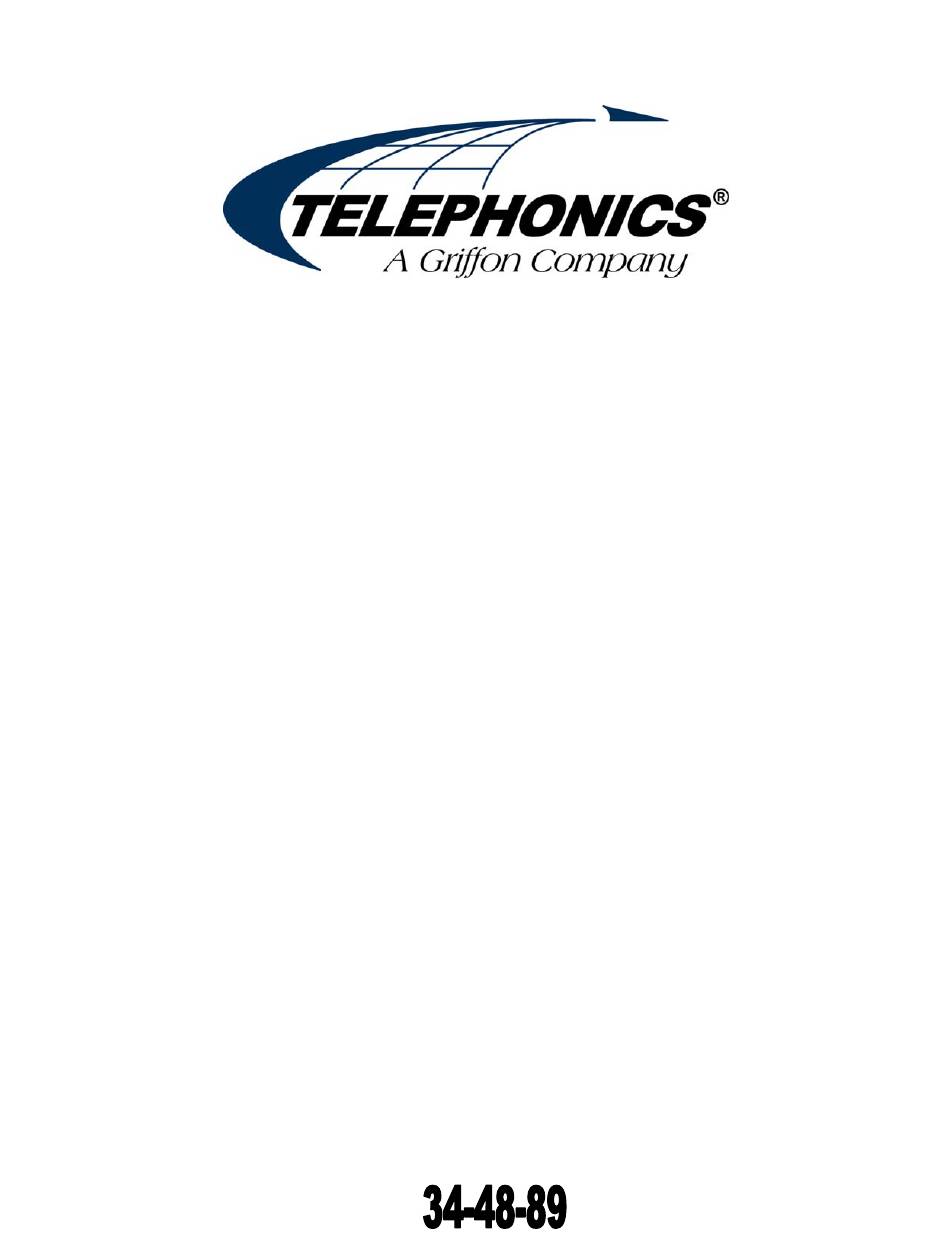

  • Page 1 RDR-1500B+ AND RDR-1700A SYSTEMS INSTALLATION MANUAL for the 364-0000-002 System Configuration MARCH 2010 Prepared by: TELEPHONICS CORPORATION 815 Broad Hollow Road Farmingdale, New York 11735 TM113806 (3/10) The document reference is online, please check the correspondence between the online documentation and the printed version.
  • Page 2 The document reference is online, please check the correspondence between the online documentation and the printed version.
  • Page 3 RDR-1500B+ AND RDR-1700A SYSTEMS INSTALLATION MANUAL for the 364-0000-002 System Configuration Copyright ©2007 Telephonics Corporation Publication No.: TM113806 All Rights Reserved Printed in U.S.A. Telephonics Corporation, Radar Systems Division (RSD) 815 Broad Hollow Road, Farmingdale, New York 11735 Telephone: (631) 755-7000 Fax: (631) 755-7278 This publication may not be reproduced in part or in whole without the expressed written consent of Telephonics Corporation.
  • Page 4 The document reference is online, please check the correspondence between the online documentation and the printed version.

  • Page 5: Table Of Contents

    Telephonics Corporation A D A R Y S T E M S I V I S I O N TABLE OF CONTENTS PARAGRAPH TITLE PAGE GENERAL INFORMATION ................ 1-1 GENERAL......................1-1 1.1.1 Basic System Functions ..................1-1 1.1.1.1 Radar System Components ................1-1 1.1.1.2 Radar System Basic Operation .................
  • Page 6 Telephonics Corporation A D A R Y S T E M S I V I S I O N TABLE OF CONTENTS [Continued] PARAGRAPH TITLE PAGE 2.4.3 Lighting Bus ....................2-27 2.4.4 Power Requirements ..................2-27 2.4.5 Roll and Pitch Information ................2-27 INSTALLATION OF EQUIPMENT .............
  • Page 7 Telephonics Corporation A D A R Y S T E M S I V I S I O N LIST OF FIGURES TITLE PAGE Figure 1.0 RDR-1500B+ and RDR-1700A Systems............1-0 Figure 1.3.2-1 Waveguide ......................1-9 Figure 2.4.1-1 DA-1503B Antenna Drive Unit 071-01593-0100, Outline Drawing (071-01593-90 Rev A)..................
  • Page 8 Telephonics Corporation A D A R Y S T E M S I V I S I O N LIST OF TABLES TITLE PAGE Table 1.2-1 System Components ..................1-6 Table 1.3.1-1 Connector Part Numbers................... 1-7 Table 1.3.4-1 AHRS ARINC 429 Data Labels ..............1-10 Table 1.3.5-1 Navigation ARINC 429 Data Labels ..............
  • Page 9 Telephonics Corporation A D A R Y S T E M S I V I S I O N NOTE IF ANY UNUSUAL OR SPECIAL SERVICE PROBLEMS ARISE, CONTACT TELEPHONICS CUSTOMER SUPPORT DEPARTMENT. PROPRIETARY NOTICE This document contains proprietary information and such information may not be disclosed to others for any purpose, nor used for manufacturing purposes without written permission from Telephonics.
  • Page 10 Telephonics Corporation A D A R Y S T E M S I V I S I O N MAXIMUM PERMISSIBLE EXPOSURE LEVEL (MPEL) In order to avoid the envelope in which the radiation level exceeds the U.S. Government standard of 10 mw per square centimeter, all personnel should remain beyond the distance indicated in the illustration below.
  • Page 11 Telephonics Corporation A D A R Y S T E M S I V I S I O N TM113806 (3/10) The document reference is online, please check the correspondence between the online documentation and the printed version.
  • Page 12 Telephonics Corporation A D A R Y S T E M S I V I S I O N viii TM113806 (3/10) The document reference is online, please check the correspondence between the online documentation and the printed version.
  • Page 13 Telephonics Corporation A D A R Y S T E M S I V I S I O N TM113806 (3/10) The document reference is online, please check the correspondence between the online documentation and the printed version.
  • Page 14 Telephonics Corporation A D A R Y S T E M S I V I S I O N TM113806 (3/10) The document reference is online, please check the correspondence between the online documentation and the printed version.
  • Page 15 Telephonics Corporation A D A R Y S T E M S I V I S I O N TM113806 (3/10) The document reference is online, please check the correspondence between the online documentation and the printed version.
  • Page 16 Telephonics Corporation A D A R Y S T E M S I V I S I O N TM113806 (3/10) The document reference is online, please check the correspondence between the online documentation and the printed version.
  • Page 17 Telephonics Corporation A D A R Y S T E M S I V I S I O N ELECTROSTATIC DISCHARGE SENSITIVE LABELS AND SYMBOLS CAUTION THIS EQUIPMENT CONTAINS ELECTROSTATIC DISCHARGE SENSITIVE (ESDS) DEVICES. ALL SCHEMATICS AND ASSEMBLY DRAWINGS CONTAINING ESDS DEVICES ARE IDENTIFIED.
  • Page 18 Telephonics Corporation A D A R Y S T E M S I V I S I O N THIS PAGE IS RESERVED. TM113806 (3/10) The document reference is online, please check the correspondence between the online documentation and the printed version.
  • Page 19 Telephonics Corporation A D A R Y S T E M S I V I S I O N RECORD OF REVISIONS REVISION DATE REVISION DATE REV. NO. REV. NO. DATE INSERTED DATE INSERTED TM113806 (3/10) The document reference is online, please check the correspondence between the online documentation and the printed version.
  • Page 20 Telephonics Corporation A D A R Y S T E M S I V I S I O N RECORD OF TEMPORARY REVISIONS DATE DATE TR. NO. DATE INSERTED REMOVED TM113806 (3/10) The document reference is online, please check the correspondence between the online documentation and the printed version.
  • Page 21 Telephonics Corporation A D A R Y S T E M S I V I S I O N SERVICE BULLETIN LIST The Service Bulletins listed below have been incorporated in this manual. MANUAL MANUAL ATA NUMBER REVISION REVISION COVERAGE (TELEPHONICS NO.) NUMBER DATE...
  • Page 22 Telephonics Corporation A D A R Y S T E M S I V I S I O N LIST OF EFFECTIVE PAGES Table 1.3.4-1 Pg. 1-12 Table 1.3.5-1 Pg. 1-17 xviii TM113806 (3/10) The document reference is online, please check the correspondence between the online documentation and the printed version.
  • Page 23 The document reference is online, please check the correspondence between the online documentation and the printed version.

  • Page 24: Figure 1.0 Rdr-1500B+ And Rdr-1700A Systems

    Telephonics Corporation A D A R Y S T E M S I V I S I O N JS-1702A Joystick, R/T & IU Mounting Trays not shown. Figure 1.0 RDR-1500B+ and RDR-1700A Systems TM113806 (3/10) The document reference is online, please check the correspondence between the online documentation and the printed version.

  • Page 25: General Information

    Telephonics Corporation A D A R Y S T E M S I V I S I O N SECTION 1 GENERAL INFORMATION GENERAL The RDR-1700A Radar System is a lightweight digital color radar system designed primarily for fixed or rotary wing aircraft engaged in maritime patrol, surveillance, rescue missions, and precision terrain mapping.

  • Page 26: Operational Modes

    Telephonics Corporation A D A R Y S T E M S I V I S I O N display techniques to achieve a high-contrast TV-type display of the operational modes at the color indicator. Digital techniques permit a full-time presentation to the pilot without distracting sweep decay as the antenna scans.

  • Page 27: Weather Avoidance Modes (Wx And Wxa)

    Telephonics Corporation A D A R Y S T E M S I V I S I O N Nine range scales are selectable by the operator, each with either four or five equidistant range rings. They are as follows: AUTO SEARCH RANGE RINGS RANGE (NM)

  • Page 28: Beacon Mode

    Telephonics Corporation A D A R Y S T E M S I V I S I O N path and can also distinguish corridors of relative calm through the storms. The system detects the strong returns from high-density rainfall and converts them into red areas on the radar display. These areas are usually surrounded by yellow areas, which represent areas of lower rainfall rates.

  • Page 29: Display Modes

    Telephonics Corporation A D A R Y S T E M S I V I S I O N 1.1.2.5.1 RDR Mode Whenever RDR mode is selected, navigation information is deleted from screen. Range mark spacing for the selected range is shown in lower left corner. RADAR and DISPLAY modes may be selected. Aircraft heading is displayed in upper right corner of screen and GMT (Greenwich Mean Time) is displayed in lower corner if the NAV input is connected.

  • Page 30: Offset Mode

    Telephonics Corporation A D A R Y S T E M S I V I S I O N 1.1.2.6.3 GND Stabilized Mode In the GND stabilized mode, the scene remains as a stationary display, while the aircraft symbol and concentric range rings on the screen move over the stationary display.

  • Page 31: Additional Equipment Required For Complete Installation

    Telephonics Corporation A D A R Y S T E M S I V I S I O N EQUIPMENT TELEPHONICS DESCRIPTION TYPE NUMBER PART NUMBER IN-1702B 364-1000-0009 The radar display has a 9 inches diagonal LCD display. This display has 18 soft keys that control all radar functions.

  • Page 32: Figure 1.3.2-1 Waveguide

    Telephonics Corporation A D A R Y S T E M S I V I S I O N UNIT MODEL NAME TELEPHONICS P/N MANUFACTURERS P/N J2013 24243-0005 Plug BNC-UG88/U J2014 24243-0005 Plug BNC-UG88/U Waveguide quick-disconnect 4005095-0501 4 Hex Socket Head Screw 46068-0808S 8-32 x ½...

  • Page 33: Waveguide

    Telephonics Corporation A D A R Y S T E M S I V I S I O N 1.3.2 Waveguide Flexible or rigid waveguide may be used between the RT and the DA. The following types of waveguide shall be used: WR90 MIL-W 85E RG52/U (Copper/Bronze)

  • Page 34: Table 1.3.4-1 Ahrs Arinc 429 Data Labels

    Telephonics Corporation A D A R Y S T E M S I V I S I O N Table 1.3.4-1 AHRS ARINC 429 Data Labels UPDATE POSITIVE NAVIGATION TRACKER LABEL DEFINITION UNITS RESOLUTION NOTES RATE (HZ) SENSE OVERLAY MODE True Heading .0055 CW from...
  • Page 35 Telephonics Corporation A D A R Y S T E M S I V I S I O N UPDATE POSITIVE NAVIGATION TRACKER LABEL DEFINITION UNITS RESOLUTION NOTES RATE (HZ) SENSE OVERLAY MODE Roll Angle .011 Right Wing Required for Antenna Stabilization. If not Down present then an “AT FAULT”...
  • Page 36 Telephonics Corporation A D A R Y S T E M S I V I S I O N UPDATE POSITIVE NAVIGATION TRACKER LABEL DEFINITION UNITS RESOLUTION NOTES RATE (HZ) SENSE OVERLAY MODE Vertical Ft/Min Not required for antenna stabilization, Velocity Navigation Overlay, or target Marker.

  • Page 37: Navigation System

    Telephonics Corporation A D A R Y S T E M S I V I S I O N 1.3.5 Navigation System The RDR-1700A Radar System requires aircraft Navigation information to provide input to the tracker based upon aircraft movement and used for the Target Marker function. Navigation data is also displayed on the Radar Indicator for operator convince.

  • Page 38: Table 1.3.5-1 Navigation Arinc 429 Data Labels

    Telephonics Corporation A D A R Y S T E M S I V I S I O N Table 1.3.5-1 Navigation ARINC 429 Data Labels TX RATE NAVIGATION TRACKER LABEL DEFINITION UNITS RESOLUTION NOTES (HZ) OVERLAY MODE Data Record Number of Once per Required for Waypoint Navigation Overlay –...
  • Page 39 Telephonics Corporation A D A R Y S T E M S I V I S I O N Table 1.3.5-1 Navigation ARINC 429 Data Labels (Cont) TX RATE NAVIGATION TRACKER LABEL DEFINITION UNITS RESOLUTION NOTES (HZ) OVERLAY MODE Time Hr-Min-Sec 1 Sec Label 150 is the primary Time label and Label 125 is a...
  • Page 40 Telephonics Corporation A D A R Y S T E M S I V I S I O N Table 1.3.5-1 Navigation ARINC 429 Data Labels (Cont) TX RATE NAVIGATION TRACKER LABEL DEFINITION UNITS RESOLUTION NOTES (HZ) OVERLAY MODE Message Data Type Waypoints Only Required for Waypoint Navigation Overlay –...
  • Page 41 Telephonics Corporation A D A R Y S T E M S I V I S I O N Table 1.3.5-1 Navigation ARINC 429 Data Labels (Cont) TX RATE NAVIGATION TRACKER LABEL DEFINITION UNITS RESOLUTION NOTES (HZ) OVERLAY MODE Ground Speed 0.125 KT If not present then the ground speed will not be displayed in Navigation Overlay mode.
  • Page 42 Telephonics Corporation A D A R Y S T E M S I V I S I O N Note: The Radar System shall monitor SSM and only accept Normal data. All other SSM conditions will be considered a failure. Note 1: GAMA Standard FMS --- Labels 074 and 075 are transmitted once per flight plan (Header).
  • Page 43 Telephonics Corporation A D A R Y S T E M S I V I S I O N Table 1.3.6-1 Air Data System ARINC 429 Data Labels TX RATE NAVIGATION TRACKER NOTES LABEL DEFINITION UNITS RESOLUTION (HZ) OVERLAY MODE Baro Altitude 1 Ft Not required for Navigation Overlay mode or Target Marker...
  • Page 44 Telephonics Corporation A D A R Y S T E M S I V I S I O N Table 1.3.6-1 Air Data System ARINC 429 Data Labels (Cont) TX RATE NAVIGATION TRACKER NOTES LABEL DEFINITION UNITS RESOLUTION (HZ) OVERLAY MODE Baro Altitude 1 Ft...
  • Page 45 Telephonics Corporation A D A R Y S T E M S I V I S I O N Table 1.3.6-1 Air Data System ARINC 429 Data Labels (Cont) TX RATE NAVIGATION TRACKER NOTES LABEL DEFINITION UNITS RESOLUTION (HZ) OVERLAY MODE Vertical Ft/Min...

  • Page 46: Leading Particulars

    Telephonics Corporation A D A R Y S T E M S I V I S I O N LEADING PARTICULARS The leading particulars of the RDR-1700A Radar System are listed in Table 1.4-1. Table 1.4-1 Leading Particulars CHARACTERISTIC DESCRIPTION SYSTEM Power Requirements 28 VDC, 9 Amps, 252 Watts with dual indicators.
  • Page 47 Telephonics Corporation A D A R Y S T E M S I V I S I O N Table 1.4-1 Leading Particulars (Cont) CHARACTERISTIC DESCRIPTION RT-1501A RECEIVER TRANSMITTER Power Requirements 28 VDC, 2 Amps Transmitter RF Power Output 10 kW peak (nominal) 9375 ±...
  • Page 48 Telephonics Corporation A D A R Y S T E M S I V I S I O N Table 1.4-1 Leading Particulars (Cont) CHARACTERISTIC DESCRIPTION DA-1503B ANTENNA DRIVE UNIT Power Requirements 115 VAC 400 Hz 50 mA (same reference as vertical stabilization source) ±...
  • Page 49 Telephonics Corporation A D A R Y S T E M S I V I S I O N Table 1.4-1 Leading Particulars (Cont) CHARACTERISTIC DESCRIPTION IU-1707A INTERFACE UNIT Power Requirements 28 VDC, 4 Amps 115 VAC, 400 Hz, 200 mA fan power (to MT-1508A Interface Unit Mounting Tray) Display Storage Digital Memory...
  • Page 50 Telephonics Corporation A D A R Y S T E M S I V I S I O N Table 1.4-1 Leading Particulars (Cont) CHARACTERISTIC DESCRIPTION IN-1502R INDICATOR Power Requirements 28 VDC, 1.1 Amps Light Bus 0 to 5 Vdc, 20 mWatts Video Interface –...

  • Page 51: System Component Description

    Telephonics Corporation A D A R Y S T E M S I V I S I O N SYSTEM COMPONENT DESCRIPTION 1.5.1 General The RDR-1700A Radar System consists of six basic units: an RT-1501A Radar Receiver-Transmitter, DA-1503B Antenna Drive Unit with an AA-1504A flat-plate array, an IN-1502R 6.4" LCD Display, an IN-1702A 15"...

  • Page 52: Iu-1507B Interface Unit

    Telephonics Corporation A D A R Y S T E M S I V I S I O N upon signals from the aircraft vertical gyro. The drive unit provides a boresight (0 degrees azimuth) signal for feedback to the interface unit to maintain azimuth-pointing accuracy within the system. The antenna drive unit is capable of operation at two speeds (45 degrees/second and 90 degrees/second) that are selectable at the control unit.

  • Page 53: In-1502R, In-1702A, And In-1702B Radar Indicators

    Telephonics Corporation A D A R Y S T E M S I V I S I O N Detailed theory of operation, assembly, list of materials, and test procedures for the IU-1707A Interface Unit can be found in the RDR-1700A Radar System Maintenance Manuals, TM114306. 1.5.5 IN-1502R, IN-1702A, and IN-1702B Radar Indicators The Radar Indicator is the primary pilot interface with the radar system.

  • Page 54: Operating Precautions

    Telephonics Corporation A D A R Y S T E M S I V I S I O N WARNING: Do not allow personnel within the MPEL (maximum permissible exposure level) boundary of the antenna when operating the airborne radar system on the ground. Telephonics recommends a safe distance of 7 feet.

  • Page 55: Installation

    Telephonics Corporation A D A R Y S T E M S I V I S I O N SECTION 2 INSTALLATION GENERAL This section contains information for the installation of the RDR-1700A Radar System. Included in this section are equipment outline drawings, installation pictorials, and an electrical interconnect diagram of the system configuration.
  • Page 56 The document reference is online, please check the correspondence between the online documentation and the printed version.

  • Page 57: Figure 2.4.1-1 Da-1503B Antenna Drive Unit 071-01593-0100, Outline Drawing (071-01593-90 Rev A)

    Telephonics Corporation A D A R Y S T E M S I V I S I O N Figure 2.4.1-1 DA-1503B Antenna Drive Unit 071-01593-0100, Outline Drawing (071-01593-90 Rev A) 2-3/2-4 blank TM113806 (3/10) The document reference is online, please check the correspondence between the online documentation and the printed version.
  • Page 58 The document reference is online, please check the correspondence between the online documentation and the printed version.

  • Page 59: Figure 2.4.1-2 Aa-1504A Antenna Array P/N 4001943-0404, Outline Drawing (4001943 Rev K)

    Telephonics Corporation A D A R Y S T E M S I V I S I O N Figure 2.4.1-2 AA-1504A Antenna Array P/N 4001943-0404, Outline Drawing (4001943 Rev K) 2-5/2-6 blank TM113806 (3/10) The document reference is online, please check the correspondence between the online documentation and the printed version.
  • Page 60 The document reference is online, please check the correspondence between the online documentation and the printed version.

  • Page 61: Figure 2.4.1-3 Rt-1501A Receiver-Transmitter Outline Drawing (4001973 Rev T Sheet 1)

    Telephonics Corporation A D A R Y S T E M S I V I S I O N Figure 2.4.1-3 RT-1501A Receiver- Transmitter Outline Drawing (4001973 Rev T Sheet 1) 2-7/2-8 blank TM113806 (3/10) The document reference is online, please check the correspondence between the online documentation and the printed version.
  • Page 62 The document reference is online, please check the correspondence between the online documentation and the printed version.

  • Page 63: Figure 2.4.1-4 Mt-1501A R-T Unit Mounting Tray, Outline Drawing (2040401 Rev D)

    Telephonics Corporation A D A R Y S T E M S I V I S I O N Figure 2.4.1-4 MT-1501A R-T Unit Mounting Tray, Outline Drawing (2040401 Rev D) 2-9/2-10 blank TM113806 (3/10) The document reference is online, please check the correspondence between the online documentation and the printed version.
  • Page 64 The document reference is online, please check the correspondence between the online documentation and the printed version.

  • Page 65: Figure 2.4.1-5 Iu-1707A Interface Unit Outline Drawing (364-2000-001)

    Telephonics Corporation A D A R Y S T E M S I V I S I O N Figure 2.4.1-5 IU-1707A Interface Unit Outline Drawing (364-2000-001) 2-11/2-12 blank TM113806 (3/10) The document reference is online, please check the correspondence between the online documentation and the printed version.
  • Page 66 The document reference is online, please check the correspondence between the online documentation and the printed version.

  • Page 67: Figure 2.4.1-6 Mt-1508A Interface Unit Mounting Tray, Outline Drawing (3614258 Rev E)

    Telephonics Corporation A D A R Y S T E M S I V I S I O N Figure 2.4.1-6 MT-1508A Interface Unit Mounting Tray, Outline Drawing (3614258 Rev E) 2-13/2-14 blank TM113806 (3/10) The document reference is online, please check the correspondence between the online documentation and the printed version.
  • Page 68 The document reference is online, please check the correspondence between the online documentation and the printed version.

  • Page 69: Figure 2.4.1-7 In-1502R Indicator Outline Drawing (364-1000-001)

    Telephonics Corporation A D A R Y S T E M S I V I S I O N Figure 2.4.1-7 IN-1502R Indicator Outline Drawing (364-1000-001) 2-15/2-16 blank TM113806 (3/10) The document reference is online, please check the correspondence between the online documentation and the printed version.
  • Page 70 The document reference is online, please check the correspondence between the online documentation and the printed version.

  • Page 71: Figure 2.4.1-8 In-1502R Indicator And Mounting Tray Outline Drawing (364-1000-015)

    Telephonics Corporation A D A R Y S T E M S I V I S I O N Figure 2.4.1-8 IN-1502R Indicator and Mounting Tray Outline Drawing (364-1000-015) 2-17/2-18 blank TM113806 (3/10) The document reference is online, please check the correspondence between the online documentation and the printed version.
  • Page 72 The document reference is online, please check the correspondence between the online documentation and the printed version.

  • Page 73: Figure 2.4.1-9 Rdr-1700A Radar System Inter-Wiring Diagram

    Telephonics Corporation A D A R Y S T E M S I V I S I O N NOTE 4 NOTE 2 Aircraft DA-1503B RT-1501A IN-1502R IN-1702A IU-1507B Telephonics RDR-1700A System Wiring Diagram MT-1508A 364-0000-002 Configuration Part Number: WD 364-0000-002 Date: 30 April 2007 Rev: G Page 1 of 4...
  • Page 74 The document reference is online, please check the correspondence between the online documentation and the printed version.
  • Page 75 Telephonics Corporation A D A R Y S T E M S I V I S I O N NOTE 4 NOTE 2 Aircraft DA-1503B P2013 P2014 RT-1501A IN-1502R IN-1702A P5005 P5006 IU-1507B Telephonics RDR-1700A System Wiring Diagram 364-0000-002 Configuration Part Number: WD 364-0000-002 Date: 30 April 2007 Rev: G...
  • Page 76 The document reference is online, please check the correspondence between the online documentation and the printed version.
  • Page 77 Telephonics Corporation A D A R Y S T E M S I V I S I O N NOTE 6 NOTE 8 NOTE 6 NOTE 2 100 101 102 103 104 105 106 107 108 109 110 111 Aircraft DA-1503B RT-1501A IN-1502R...
  • Page 78 The document reference is online, please check the correspondence between the online documentation and the printed version.
  • Page 79 Telephonics Corporation A D A R Y S T E M S I V I S I O N NOTE 9 NOTES: MINIMUM WIRE SIZE SHALL BE 22 AWG UNLESS OTHERWISE SPECIFIED 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 NOTE 2 FUNCTION WIRE NUMBERS ARE FOR REFERENCE ONLY...
  • Page 80 The document reference is online, please check the correspondence between the online documentation and the printed version.

  • Page 81: Location Of Equipment

    Telephonics Corporation A D A R Y S T E M S I V I S I O N 2.4.2 Location of Equipment The locations chosen for units of the RDR-1700A Radar System, and the method of installation, will vary with each particular type of aircraft. The units should be installed in a convenient location for ease of operation and accessibility for inspection and maintenance.

  • Page 82: Installation Of Equipment

    Telephonics Corporation A D A R Y S T E M S I V I S I O N INSTALLATION OF EQUIPMENT 2.5.1 DA-1503B Antenna Drive Unit and AA-1504A Antenna Array 2.5.1.1 Assembly of Antenna Array and Antenna Drive Unit (a) Remove the V-band coupling assembly (see Figure 2.4.1-1) from the antenna drive assembly.
  • Page 83 Telephonics Corporation A D A R Y S T E M S I V I S I O N 2.5.1.2.3 Orientation The mounting position of the antenna drive unit must satisfy the following conditions: Centerline of antenna must be aligned with aircraft horizontal centerline. Azimuth scan axis of antenna must parallel spin axis of the stabilizing vertical gyro.

  • Page 84: Rt-1501A Receiver-Transmitter

    Telephonics Corporation A D A R Y S T E M S I V I S I O N • Side lobes with levels in the range of -21 to -25 dB with respect to the main beam with the radome installed should not have been increased by more than 3 dB of the levels measured with the radome NOT installed.

  • Page 85: Waveguide

    Telephonics Corporation A D A R Y S T E M S I V I S I O N Shields on shielded wires should not be grounded to the airframe. Ordinarily, shields will be carried through any obstruction via a thru-bulkhead connector and grounded internally to the R-T unit or associated unit.
  • Page 86 Telephonics Corporation A D A R Y S T E M S I V I S I O N have a choke flange and a cover flange at its opposite ends, where possible. Carefully avoid specifying nonstandard flanges, such as cover flanges with tapped screw holes. Axial twists in rigid waveguide, up to 90 degrees, should be considered as being made in approximately an 8-inch length of waveguide.

  • Page 87: Post-Installation Check

    Telephonics Corporation A D A R Y S T E M S I V I S I O N POST-INSTALLATION CHECK WARNING: Tests involving radiation of RF energy by the radar antenna must not be made in the vicinity of refueling operations, or when personnel are standing directly in front of the radar antenna.

  • Page 88: Antenna Stabilization Check

    Telephonics Corporation A D A R Y S T E M S I V I S I O N (3) Change the RATE to 90 deg/SEC is displayed along the left edge of the display. Antenna should now scan at 7.5 rpm (45 degrees per second). Press rate pushbutton again to return antenna scan rate to 15 rpm.

  • Page 89: Roll Calibration Check

    Telephonics Corporation A D A R Y S T E M S I V I S I O N (b) With the RADAR mode set to STBY, manually position the antenna to zero degrees azimuth using the Vernier scale on the antenna drive unit. (See Figure 2.6.4.3-2.) Adjust the TILT control on the control unit to position the antenna exactly at zero degrees in elevation.

  • Page 90: Figure 2.6.4.3-1 Da-1503B Pitch And Roll Gain Controls

    Telephonics Corporation A D A R Y S T E M S I V I S I O N Figure 2.6.4.3-1 DA-1503B Pitch and Roll Gain Controls Figure 2.6.4.3-2 DA-1503B Azimuth Markings 2-36 TM113806 (3/10) The document reference is online, please check the correspondence between the online documentation and the printed version.

  • Page 91: Rf Operation Check

    Telephonics Corporation A D A R Y S T E M S I V I S I O N Figure 2.6.4.3-3 DA-1503B Elevation Markings Position the aircraft vertical gyro to zero degrees pitch and 10 degrees right roll. The antenna elevation position should be 10 deg ±...

  • Page 92: Interference Check

    Telephonics Corporation A D A R Y S T E M S I V I S I O N NOTE: It may not be possible to accomplish this test on bottom-mounted antenna installations. (1) After the system has been in STBY or TEST for at least one minute, change the RADAR mode to (2) Ensure that HOLD function is off.
  • Page 93 Telephonics Corporation A D A R Y S T E M S I V I S I O N Energize the radar bus and vertical gyro reference bus. Ensure that 28 volts dc and 115 volts ac power is being supplied to the system. Check that the vertical (stabilization) gyro is erected. Vary the external panel lighting voltage (dim control) for maximum panel brightness.

  • Page 94: Flight Check

    Telephonics Corporation A D A R Y S T E M S I V I S I O N Adjust the TILT control up (+ degrees) in small increments until a clear picture develops of any local weather. Close-in ground targets may also appear in the display. (In bottom-mounted antenna installation, this test may not be possible.) Repeat TILT control adjustment to check remaining ranges.

  • Page 95: Figure 2.8-1. Typical Video Pattern Level Flight, Antenna Mounting Reference And Stab. Satisfactory

    Telephonics Corporation A D A R Y S T E M S I V I S I O N (3) Press STAB pushbutton to disable antenna stabilization. (4) While flying level (0 degree pitch, 0 degree roll), adjust the TILT control on the radar indicator to obtain the video pattern shown in Figure 2.8-1.

  • Page 96: Figure 2.8-2. Typical Video Pattern, With Stabilization Error

    Telephonics Corporation A D A R Y S T E M S I V I S I O N (a) Reset the TILT control under the flight conditions of step (4) with stabilization on. Then roll the aircraft 20 degrees right. (b) If the pattern shifts per Figure 2.8-2, slowly adjust the roll trim on the control unit until the terrain band display is as shown in Figure 2.8-1.

  • Page 97: Figure 2.8-4. Typical Video Pattern, No Stabilization

    Telephonics Corporation A D A R Y S T E M S I V I S I O N Figure 2.8-4. Typical Video Pattern, No Stabilization NOTE: Normally, the procedure outlined above is sufficient to adjust antenna stabilization. However, it is possible that the pitch trim potentiometer on the control unit requires adjustment as well to obtain the results of step (10).
  • Page 98 Telephonics Corporation A D A R Y S T E M S I V I S I O N THIS PAGE INTENTIONALLY LEFT BLANK. 2-44 TM113806 (3/10) The document reference is online, please check the correspondence between the online documentation and the printed version.

  • Page 99: System Test

    Telephonics Corporation A D A R Y S T E M S I V I S I O N SECTION 3 SYSTEM TEST The RDR-1700A Radar System requires Special Test Equipment to conduct System Testing. All test equipment requirements and test procedures are located in the RDR-1700A System Acceptance Test Procedure 364-0000-002 Configuration (P/N: INTR-364-G621-STP04).
  • Page 100 The document reference is online, please check the correspondence between the online documentation and the printed version.

  • Page 101: Maintenance Practices

    Telephonics Corporation A D A R Y S T E M S I V I S I O N SECTION 4 MAINTENANCE PRACTICES Maintenance practices described below cover a preventive maintenance program, component checkout, and general repair. Under normal operating conditions, periodic inspection and maintenance of the radar system should not exceed a two-year period.

  • Page 102: Radome

    Telephonics Corporation A D A R Y S T E M S I V I S I O N 4.1.4 Radome Inspect that the Radome for the following: Radome is grounded with no corrosion Lightning Arrestors are grounded and in proper condition Radome is not pitted and absorbing water Excessive layers of paint Metallic particles in paint...

  • Page 103: 1503B

    Telephonics Corporation A D A R Y S T E M S I V I S I O N 4.2.2 DA-1503B Table 4.2.2-1 below states the recommended maintenance schedule for the DA-1503B. At every 500 hours (500, 1000, 1500 …) the 500 Hour Interval tasks should be performed. At every 3000 hours (3000, 6000, 9000 …) the 3000 Hour Interval tasks should be performed.
  • Page 104 The document reference is online, please check the correspondence between the online documentation and the printed version.
