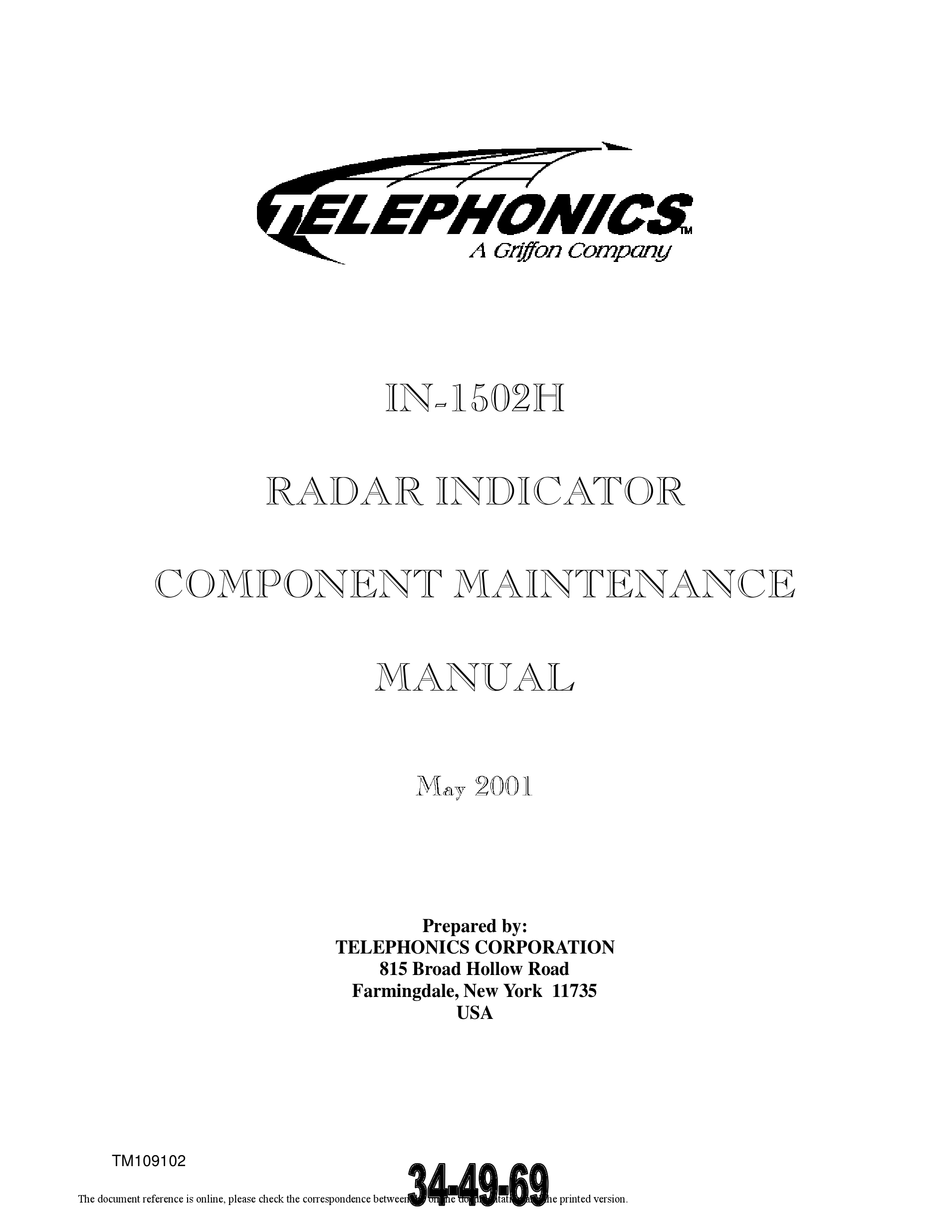

Griffon TELEPHONICS IN-1502H Component Maintenance Manual

Radar indicator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
8= $!7
A030A 8=3820C>A
2><?>=4=C <08=C4=0=24
<0=D0;
M a y 2 0 0 1
Prepared by:
TELEPHONICS CORPORATION
815 Broad Hollow Road
Farmingdale, New York 11735
USA
TM109102
The document reference is online, please check the correspondence between the online documentation and the printed version.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TELEPHONICS IN-1502H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Griffon TELEPHONICS IN-1502H

Summary of Contents for Griffon TELEPHONICS IN-1502H

  • Page 1 8= $!7 A030A 8=3820C>A 2><?>=4=C <08=C4=0=24 <0=D0; M a y 2 0 0 1 Prepared by: TELEPHONICS CORPORATION 815 Broad Hollow Road Farmingdale, New York 11735 TM109102 The document reference is online, please check the correspondence between the online documentation and the printed version.
  • Page 2 The document reference is online, please check the correspondence between the online documentation and the printed version.
  • Page 3 8 8 8 8 = = = =     $! $!7 7 7 7 A A A A 0 0 0 0 3 3 3 3 0 0 0 0 A A A A 8 8 8 8 = = = = 3 3 3 3 8 8 8 8 2 2 2 2 0 0 0 0 C C C C > > > > A A A A 2 2 2 2 >...
  • Page 4 The document reference is online, please check the correspondence between the online documentation and the printed version.

  • Page 5: Table Of Contents

    COMPONENT MAINTENANCE MANUAL IN 1502H RADAR INDICATOR TABLE OF CONTENTS SECTION I THEORY OF OPERATION Paragraph / Title Page 1. General ............1-1 2.
  • Page 6 COMPONENT MAINTENANCE MANUAL IN 1502H RADAR INDICATOR Voltage Output Circuit ........1-38 SECTION II FUNCTIONAL TEST 1.
  • Page 7 COMPONENT MAINTENANCE MANUAL IN 1502H RADAR INDICATOR Q. FLIR Gain Adjustment ..........4-15 R.
  • Page 8 COMPONENT MAINTENANCE MANUAL IN 1502H RADAR INDICATOR E. High Voltage Power Supply Assembly Removal ......5-14 F. Tube Module Removal ..........5-15 G.
  • Page 9 COMPONENT MAINTENANCE MANUAL IN 1502H RADAR INDICATOR 6-13 CRT Connector Module Assembly ........6-107 6-14 CRT Connector Module Schematic.
  • Page 10 COMPONENT MAINTENANCE MANUAL IN 1502H RADAR INDICATOR THIS PAGE RESERVED TM109102 TC-6 May/01 The document reference is online, please check the correspondence between the online documentation and the printed version.
  • Page 11 The document reference is online, please check the correspondence between the online documentation and the printed version.
  • Page 12 COMPONENT MAINTENANCE MANUAL IN 1502H RADAR INDICATOR IN 1502H Radar Indicator Figure 1-0 TM109102 May/01 The document reference is online, please check the correspondence between the online documentation and the printed version.

  • Page 13: Overall Operation

    COMPONENT MAINTENANCE MANUAL IN 1502H RADAR INDICATOR SECTION I THEORY OF OPERATION 1. General This section provides theory of operation of the IN 1502H Radar Indicator on three levels: overall operation within the RDR-1500B Radar System, block diagram operation of the indicator and detailed theory of operation.

  • Page 14: Display Of Interface Unit Inputs

    COMPONENT MAINTENANCE MANUAL IN 1502H RADAR INDICATOR The indicator receives its operating power from the aircraft 28-volt dc bus. Inputs to the indicator from the interface unit include the red, green and blue video, which are TTL inputs used to drive the CRT color guns; and the X-retrace and Y-retrace signals, which are also TTL signals, used to trigger the horizontal and vertical sweep circuits that develop the sweep signals for the CRT deflection yolks.
  • Page 15 COMPONENT MAINTENANCE MANUAL IN 1502H RADAR INDICATOR IN-1502H Radar Indicator, Circuit Board Cabling Diagram Figure 1-1 TM109102 May/01 The document reference is online, please check the correspondence between the online documentation and the printed version.
  • Page 16 COMPONENT MAINTENANCE MANUAL IN 1502H RADAR INDICATOR Indicator Screen Format Figure 1-2 Each bit on a line is located by a value of “X”. Each line of the screen is located by a value of “Y”. Each location on the screen has a corresponding location in memory at the interface unit.

  • Page 17: Alphanumeric Format

    COMPONENT MAINTENANCE MANUAL IN 1502H RADAR INDICATOR At the end of each line, an X-retrace interval, which is about 12.8 microseconds. Total time for each line, including X-retrace, is therefore about 64 microseconds. The vertical scan time for each field is about 16.38 milliseconds (256 x 64 microseconds).

  • Page 18: Display Of Composite Video

    COMPONENT MAINTENANCE MANUAL IN 1502H RADAR INDICATOR A separate alphanumeric set is used for generating characters from an optional checklist unit (CC-2024B, C or D). Checklist data is displayed as 32 characters per line, but using only 12 character lines on the screen, for a total of 384 characters. Four lines are left blank.
  • Page 19 COMPONENT MAINTENANCE MANUAL IN 1502H RADAR INDICATOR CCIR Video Signal Figure 1-3 TM109102 May/01 The document reference is online, please check the correspondence between the online documentation and the printed version.
  • Page 20 COMPONENT MAINTENANCE MANUAL IN 1502H RADAR INDICATOR RS-170 Video Signal Figure 1-4 TM109102 May/01 The document reference is online, please check the correspondence between the online documentation and the printed version.

  • Page 21: Video Signal Format

    COMPONENT MAINTENANCE MANUAL IN 1502H RADAR INDICATOR Since the field sync (Y-retrace) pulses must start halfway through the 313th line in the 625-line system, half-line pulses must be provided to the indicator for synchronization. The field sync pulse for the CCIR system consists of five broad half-line pulses. It must be inserted following lines 312 1/2 and 625.
  • Page 22 COMPONENT MAINTENANCE MANUAL IN 1502H RADAR INDICATOR However, before the on/off circuit can switch on the interface unit power supply, it must receive a +5 Vdc input from the interface unit power supply. Thus, when composite video is not selected for display, the indicator can not be turned on until the interface unit is operating.
  • Page 23 COMPONENT MAINTENANCE MANUAL IN 1502H RADAR INDICATOR The degaussing circuit generates a decaying magnetic field around the picture tube at 2-second to 3-second intervals when the indicator is on. The circuit includes a capacitor which is charged to a predetermined level by +250 volts from the horizontal sweep circuit on the sweep module.

  • Page 24: Sweep Module

    COMPONENT MAINTENANCE MANUAL IN 1502H RADAR INDICATOR The Y-retrace signal (YRET) is produced by simply using the field sync output of the V sync detector to trigger a one-shot multivibrator. The duration of this output pulse is fixed at 1800 microseconds. This signal is also multiplexed to the sweep module where it is used by the pincushion and vertical sweep circuits when composite video is selected.
  • Page 25 COMPONENT MAINTENANCE MANUAL IN 1502H RADAR INDICATOR Horizontal retrace time is controlled by a built-in timing circuit and is independent of the X-retrace signal which initiates retrace. The X-retrace signal is also forwarded to the high voltage power supply to control its pulse-width modulation control frequency. An input to the horizontal size circuit from the pincushion correction circuit is triggered by the Y-retrace signal.

  • Page 26: High-Voltage Supply

    COMPONENT MAINTENANCE MANUAL IN 1502H RADAR INDICATOR The sawtooth is terminated by the leading edge of the Y-retrace pulse and the sawtooth for the next vertical sweep is triggered by the trailing edge of the Y-retrace pulse. During trace time, the circuit operates from +/-12 volts. During retrace, the +52 volt supply is used to allow the beam to retrace in the allocated time.
  • Page 27 COMPONENT MAINTENANCE MANUAL IN 1502H RADAR INDICATOR This input is controlled at the radar system control unit and is sent to the indicator via the interface unit, or is activated by the composite video ENABLE input. The +28-volt input is filtered and applied to output drivers, which are modulated by an oscillator circuit.
  • Page 28 COMPONENT MAINTENANCE MANUAL IN 1502H RADAR INDICATOR THIS PAGE RESERVED TM109102 1-16 May/01 The document reference is online, please check the correspondence between the online documentation and the printed version.
  • Page 29 COMPONENT MAINTENANCE MANUAL IN 1502H RADAR INDICATOR IN-1502H Radar Indicator Block Diagram Figure 1-5 TM109102 1-17/1-18 May/01 The document reference is online, please check the correspondence between the online documentation and the printed version.
