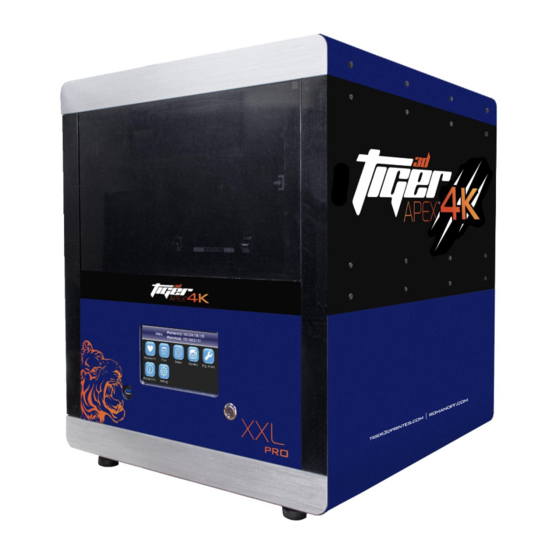

Summary of Contents for Tiger 3D Printers APEX XL

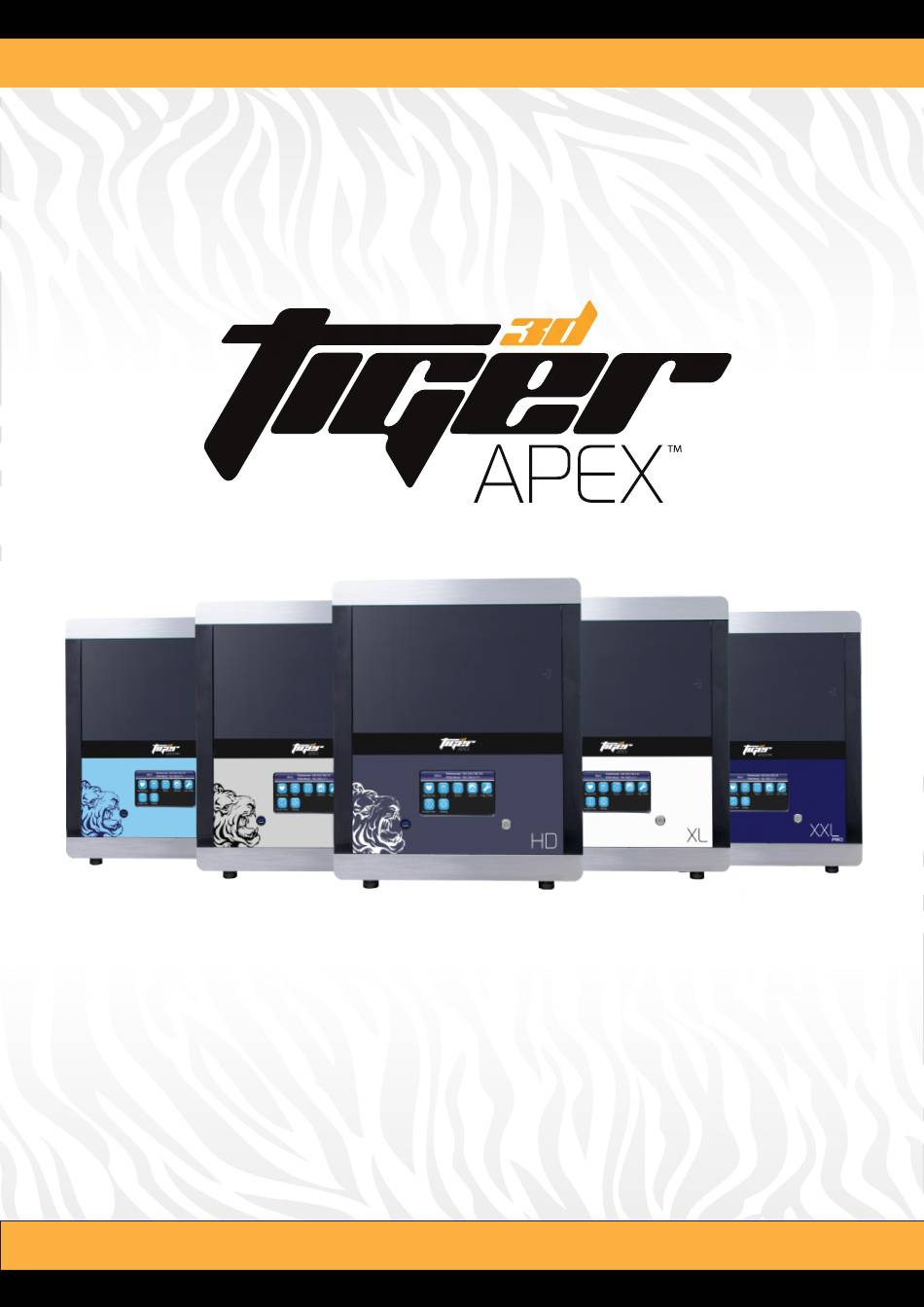

- Page 1 Operations Manual Rev 1.00 April 29 2020...
-
Page 2: Table Of Contents
Table of Contents 1 Product Informa�on---------------------------------------------------------------------------------------------------------------3 1.1 Usage Instruc�ons-------------------------------------------------------------------------------------------------------3 1.2 Regulatory Statements---------------------------------------------------------------------------------------------------3 1.3 Safety Precau�ons---------------------------------------------------------------------------------------------------------4 1.4 General Informa�on-------------------------------------------------------------------------------------------------------------5 1.5 Package Contents----------------------------------------------------------------------------------------------------------5 1.6 Product Overview---------------------------------------------------------------------------------------------------------6 2 3D Printer Setup - Hardware----------------------------------------------------------------------------------------------------7 2.1 Unpacking your 3D Printer----------------------------------------------------------------------------------------------7 2.2 Connect Computer--------------------------------------------------------------------------------------------------------7 2.3 Power Bu�on Control----------------------------------------------------------------------------------------------------8 2.4 Picker plate instala�on---------------------------------------------------------------------------------------------------9 2.5 Fill Resin Tank--------------------------------------------------------------------------------------------------------------9 2.6 Consumables and Spare Parts related to resin tank-------------------------------------------------------------10... -
Page 3: Product Informa
1. Product Information 1 Product Information 1.1 Usage Instruc�ons Please read through the following instruc�ons before you start using your printer. (1) Ensure that the glass under tank is flush against the corners to prevent damage to your 3D printer while prin�ng. -
Page 4: Safety Precau�Ons
1. Product Information 1.3 Safety Precau�ons Please read through the following Safety Precau�ons before you start using your printer. (1) Use only the power adapter and accessories provided by the manufacturer. (2) Before plugging the power adapter into an electrical outlet, verify the local power ra�ng conforms with the specified voltage and frequency. -
Page 5: General Informa
1. Product Information 1.3 General Informa�on Product Name Tiger3D APEX HD/ XHD /XL Tiger3D APEX Pro XHD / XXL Power Input Printer : 19V DC / 4.73A With Adapter : 100~240V AC, 1.5A, 50Hz/60Hz Printer Dimension W x D x H 50 x 57 x 59 cm Package Size and Weight 80 x 80 x 93 cm / 76 kg (Including pallet) -
Page 6: Product Overview
1. Product Information Printer Door USB Port (2x) Network Jack Power Jack Warming Lamp Port LCD Screen USB Port Power Button Handle Picker Plate Resin Tank tiger3Dprinters.com 800-221-7448 info@tiger3Dprinters.com... -
Page 7: Printer Setup - Hardware
2. 3D Printer Setup 2.1 Unpacking your 3D Printer (2) Remove the top (2) Remove the EPE (3) Remove the outer (4) Remove the inner cardboard cover surround the inner box cardboard panels cardboard cover Printer net weighs at least 124 pounds. (56 kilograms) Please be careful, and use proper WARNING: li�ing techniques to avoid injury. -
Page 8: Power Bu�On Control
2. 3D Printer Setup 2.3 Power Bu�on Opera�on (1) Power On Press Power Bu�on => Panel shows Star�ng up => Panel shows Menu (2) Power Off Press Power Bu�on => Confirm message => Confirm to shut down (3) Emergency shut down Press Power Bu�on and hold 3 seconds to shut down (4) Power Bu�on Signal Blue Solid... -
Page 9: Picker Plate Instala
2. 3D Printer Setup 2.4 Install Picker Hold the picker plate by both ends and install Pull down the latch to lock the picker plate in place. it into the machine ※ Remove the Picker: Li� the handle→ Carry both end of picker→ Remove the Picker 2.5 Fill resin tank. ※... -
Page 10: Consumables And Spare Parts Related To Resin Tank
2. 3D Printer Setup 2.6 Consumables and Spare Parts related to resin tank APEX Series APEX Pro Series APEX Pro Series 2.7 How to replace teflon film module for the APEX Pro series (1) Turn over teflon tank module (2) Remove 16 screws as shown in circled red area above (3) Remove old teflon film module and replace with the new film module (4) Set all previously removed 16 screws back in place (5) Securely fasten all screws in place... -
Page 11: Printer Opera�On - So�Ware
2. 3D Printer Setup 3 3D Printer Operation – Software Please refer to U�lity User Manual, all-in-one so�ware for Tiger3D printers. 4 After Printing 4.1 Remove Model Li� the latch securing the Picker Plate→ Remove the Picker along with the printed model → Use compressed air gun and and denatured alcohol to clean the printed model →... -
Page 12: Appendix: Specifica�Ons
3. Appendix | Specifications APEX HD APEX XHD APEX XL APEX PRO XHD APEX PRO XXL Item Item SKU 78-6080 78-6050 78-6000 78-601 10 78-60150 80 x 45 x 120 mm 57 x 32 x 120 mm 125 x 70 x 120 mm...
